3-08B — PARKING BRAKE (#9997) — 56 parça

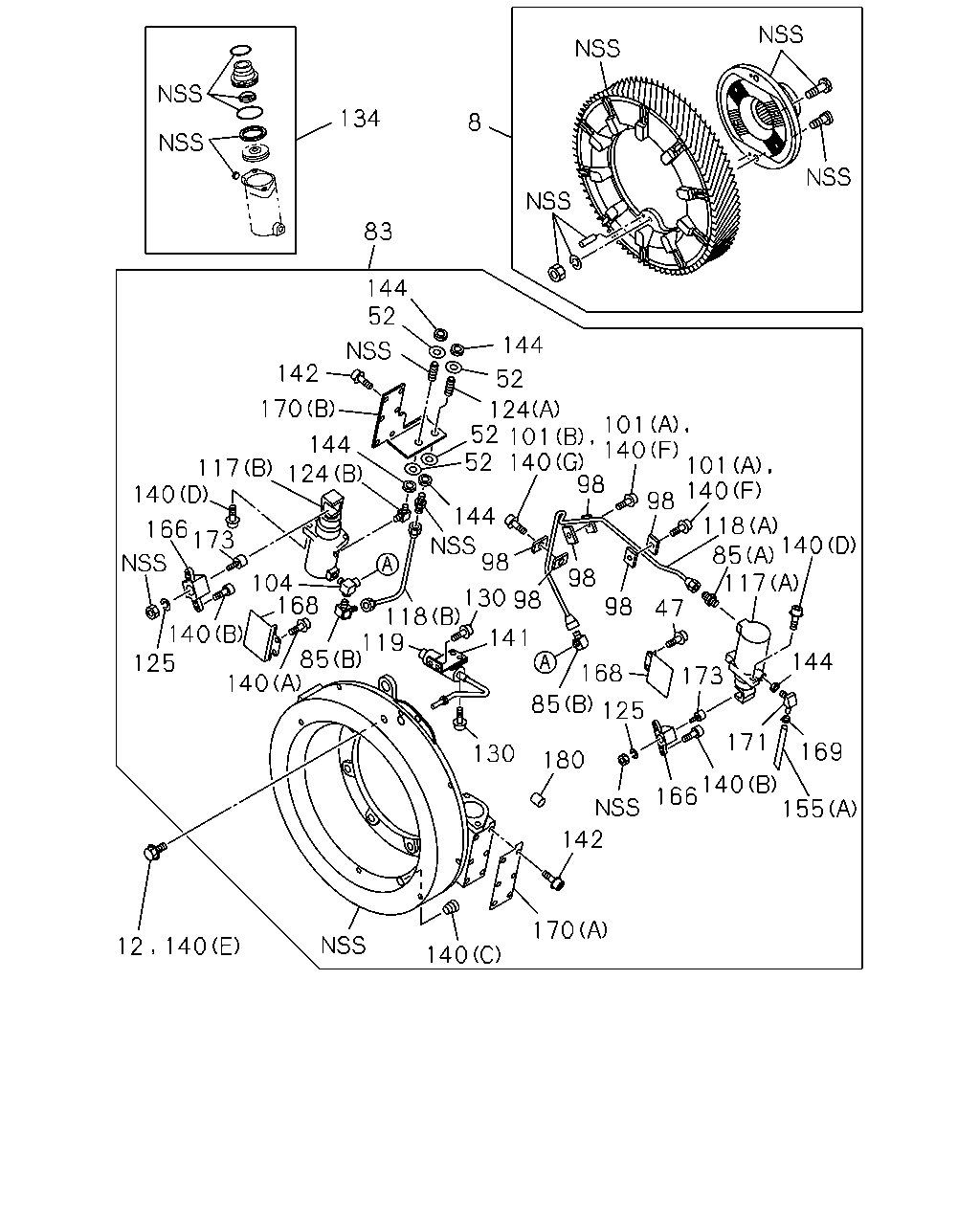

çizim 21967
140 12 140 130 180 142 170 166 140 155 169 171 144 173 125 85 141 168 98 47 98 98 144 52 98 130 117 118 140 101 98 98 140 101 140 101 52 124 52 144 144 142 52 170 117 144 124 140 125 140 140 173 166 168 104 119 85 118 85 140 8 83 134
BalonParca AdiParca NoAdetTipApplied Date
8 FLANGE; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-46210-288-2 01 1 0107-
12 BOLT; FIX
BRAKE SYSTEM RETARDER<RE2> M12X35 FLANGE 		0-28791-235-0 08 1 0107-0312
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 02 1 0107-
52 WASHER; PL
BRAKE SYSTEM RETARDER<RE2> ID=12.5 OD=26 		9-09160-612-0 04 1 0107-0605
52 WASHER; PL
BRAKE SYSTEM RETARDER<RE2> ID=12.5 OD=26 		0-91610-612-0 04 1 0606-
83 RETARDER ASM; PARKING BRK
FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N),FINAL GEAR 41/10 18.5"(W3V),FINAL GEAR 43/11 18.5"(W3W),FINAL GEAR 39/918.5"(W4T) BRAKE SYSTEM RETARDER<RE2> 		1-46200-237-9 01 1 0107-0501
83 RETARDER ASM; PARKING BRK
FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N),FINAL GEAR 41/10 18.5"(W3V),FINAL GEAR 43/11 18.5"(W3W),FINAL GEAR 39/918.5"(W4T) BRAKE SYSTEM RETARDER<RE2> 		1-46200-275-0 01 1 0502-
83 RETARDER ASM; PARKING BRK
FINAL GEAR 41/11 18.5"(W6V) BRAKE SYSTEM RETARDER<RE2> 		1-46200-269-6 01 1 0107-
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/8 		9-09221-806-1 01 1 0107-0607
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/8 		0-92111-806-0 01 1 0608-
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8 		9-09224-306-2 02 1 0107-0607
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8 		0-92124-306-0 02 1 0608-
98 CLIP; AIR PIPE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-209-0 06 1 0107-
101 BOLT; CLIP
BRAKE SYSTEM RETARDER<RE2> (A) M8X18 		1-48629-134-0 02 1 0107-0312
101 BOLT; CLIP
BRAKE SYSTEM RETARDER<RE2> (B) M6X25 		1-48629-239-0 01 1 0107-0312
104 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-236-0 01 1 0107-
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-193-0 01 1 0107-
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-231-0 01 1 0107-
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-234-0 01 1 0107-
118 PIPE ASM; AIR CYL
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-235-0 01 1 0107-
119 SWITCH; THERMO
BRAKE SYSTEM RETARDER<RE2> 		1-82450-054-0 01 1 0107-
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (A) M12 2WAY 		1-09654-257-1 01 1 0107-0207
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (A) M12 L=66.5 		9-09223-306-1 01 1 0208-0607
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (A) M12 L=66.5 		0-92113-306-0 01 1 0608-
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-296-0 01 1 0107-
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> 		1-48629-206-0 02 1 0107-
130 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 04 1 0107-
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> 		1-48629-218-0 02 1 0107-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (E) M12X35 FLANGE 		0-28791-235-0 08 1 0401-0512
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (E) M12X35 FLANGE 		0-28761-235-0 08 1 0601-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (F) M8X18 		1-48629-134-0 02 1 0401-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (G) M6X25 		1-48629-239-0 01 1 0401-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) M10X20 		1-48629-070-0 08 1 0107-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) M6X14 HEX SOCKET 		1-48629-145-0 02 1 0107-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (D) 		1-48629-170-0 04 1 0107-
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (C) M8X12 		1-48629-205-0 02 1 0107-
141 BRACKET
BRAKE SYSTEM RETARDER<RE2> 		1-48629-233-0 01 1 0107-
142 SCREW
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 12 1 0107-
144 NUT
BRAKE SYSTEM RETARDER<RE2> M12 		9-09840-280-0 05 1 0107-
155 TUBE
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-092-0 01 1 0107-
155 TUBE
BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-191-0 02 1 0107-
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-194-0 02 1 0107-
169 CLAMP
BRAKE SYSTEM RETARDER<RE2> 		1-48629-126-0 01 1 0107-
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-196-0 01 1 0107-
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-232-0 01 1 0107-
171 BREATHER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-144-0 01 1 0107-
173 FOLLOWER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-159-0 02 1 0107-
180 PIN; RETAINING
BRAKE SYSTEM RETARDER<RE2> 		1-48629-198-0 02 1 0107-

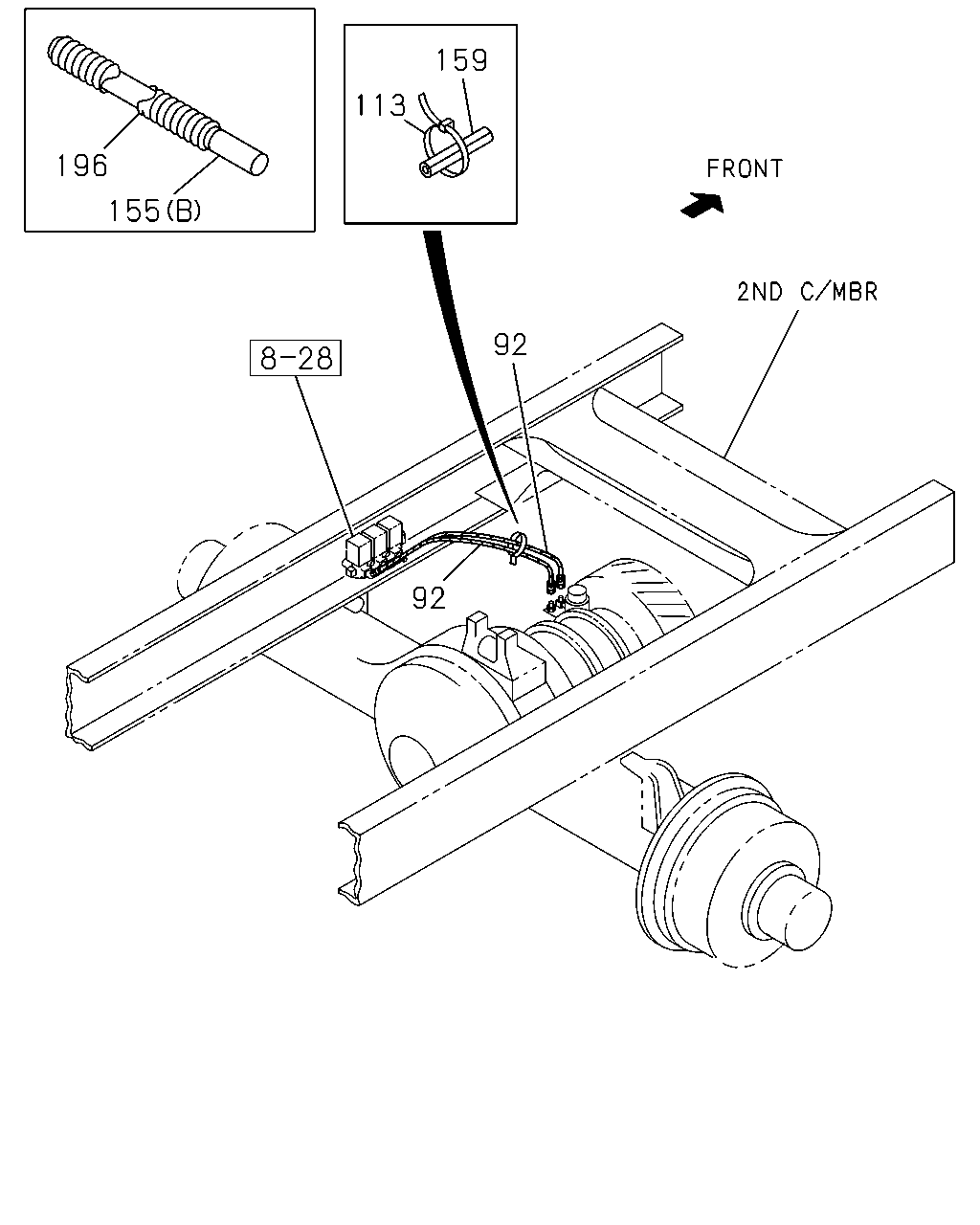

çizim 22940
196 113 159 155 92 92
BalonParca AdiParca NoAdetTipApplied Date
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> L=510 		1-09363-649-0 02 1 0107-
113 CLIP; HOSE
BRAKE SYSTEM RETARDER<RE2> L=140 		5-09707-031-1 01 1 0107-
155 TUBE
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-092-0 01 1 0107-
155 TUBE
BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0107-
159 SLEEVE
BRAKE SYSTEM RETARDER<RE2> ID=32 OD=36 L=50 		1-09337-023-0 02 1 0107-
196 TUBE; CORRUGATE
BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0108
196 TUBE; CORRUGATE
BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=10 		1-87410-088-0 02 1 0109-
