3-08A — PARKING BRAKE (#9996) — 56 parça

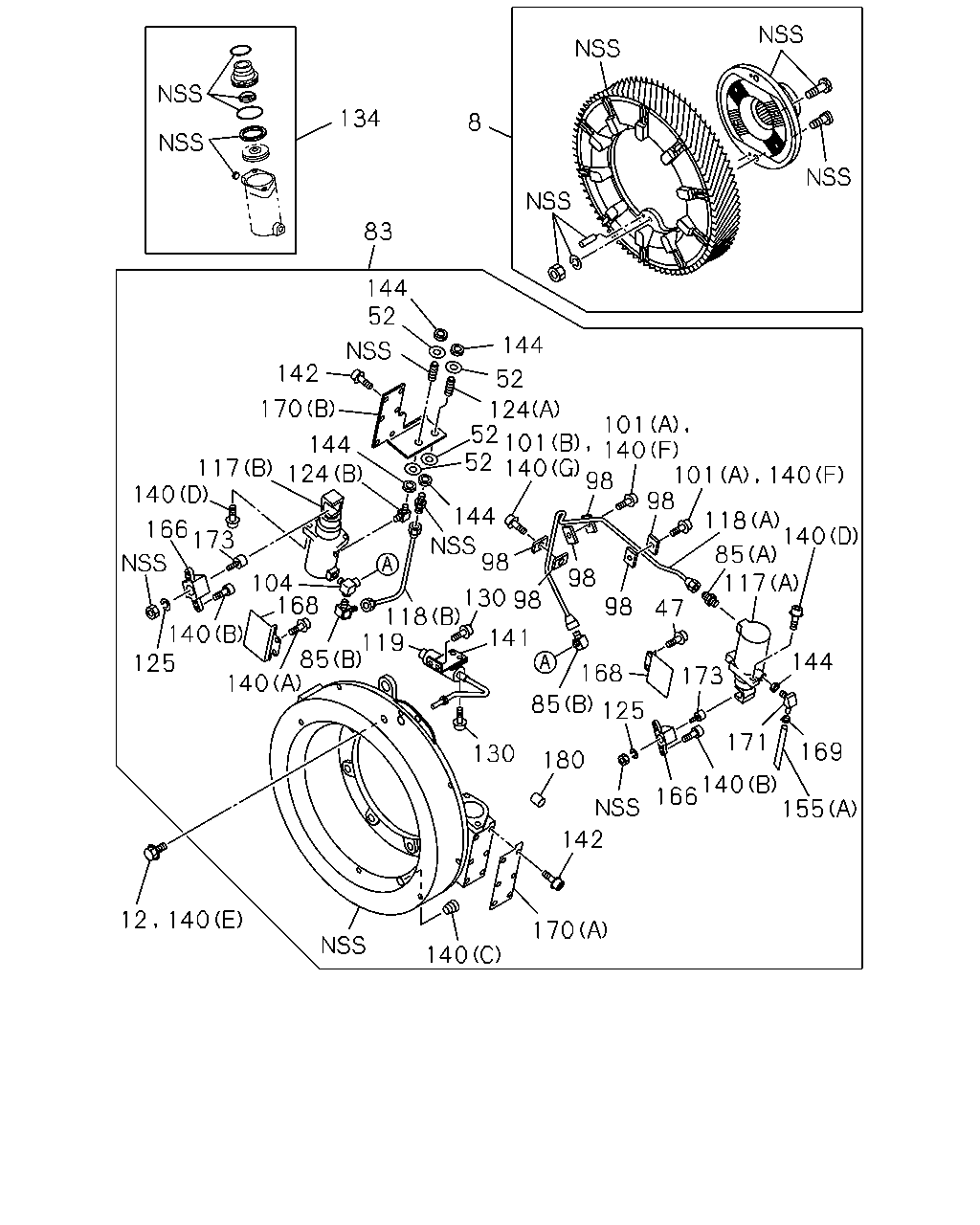

12 140 140 170 142 180 130 166 140 125 85 171 169 144 173 168 98 98 98 141 47 117 85 118 140 140 101 98 101 140 144 52 52 52 101 144 140 124 52 144 83 134 8 98 98 142 170 117 144 124 140 125 140 119 118 130 85 104 166 173 140 168 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	FLANGE; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-288-2	01	1	0107-	●	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> M12X35 FLANGE	0-28791-235-0	08	1	0107-0312	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	02	1	0107-	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> ID=12.5 OD=26	9-09160-612-0	04	1	0107-0605	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> ID=12.5 OD=26	0-91610-612-0	04	1	0606-	●	●
83	RETARDER ASM; PARKING BRK FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N),FINAL GEAR 41/10 18.5"(W3V),FINAL GEAR 43/11 18.5"(W3W),FINAL GEAR 39/9 18.5"(W4T) BRAKE SYSTEM RETARDER<RE2>	1-46200-237-9	01	1	0107-0501	●	●
83	RETARDER ASM; PARKING BRK FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N),FINAL GEAR 41/10 18.5"(W3V),FINAL GEAR 43/11 18.5"(W3W),FINAL GEAR 39/9 18.5"(W4T) BRAKE SYSTEM RETARDER<RE2>	1-46200-275-0	01	1	0502-	●	●
83	RETARDER ASM; PARKING BRK FINAL GEAR 41/11 18.5"(W6V) BRAKE SYSTEM RETARDER<RE2>	1-46200-269-6	01	1	0107-	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/8	9-09221-806-1	01	1	0107-0607	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/8	0-92111-806-0	01	1	0608-	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	9-09224-306-2	02	1	0107-0607	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	0-92124-306-0	02	1	0608-	●	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2>	1-48629-209-0	06	1	0107-	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (A) M8X18	1-48629-134-0	02	1	0107-0312	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (B) M6X25	1-48629-239-0	01	1	0107-0312	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-236-0	01	1	0107-	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-193-0	01	1	0107-	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-231-0	01	1	0107-	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-234-0	01	1	0107-	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-235-0	01	1	0107-	●	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-054-0	01	1	0107-	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A) M12 2WAY	1-09654-257-1	01	1	0107-0207	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A) M12 L=66.5	9-09223-306-1	01	1	0208-0607	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A) M12 L=66.5	0-92113-306-0	01	1	0608-	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-296-0	01	1	0107-	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2>	1-48629-206-0	02	1	0107-	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	04	1	0107-	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2>	1-48629-218-0	02	1	0107-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E) M12X35 FLANGE	0-28791-235-0	08	1	0401-0512	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E) M12X35 FLANGE	0-28761-235-0	08	1	0601-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (F) M8X18	1-48629-134-0	02	1	0401-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (G) M6X25	1-48629-239-0	01	1	0401-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M10X20	1-48629-070-0	08	1	0107-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M6X14 HEX SOCKET	1-48629-145-0	02	1	0107-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-170-0	04	1	0107-	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C) M8X12	1-48629-205-0	02	1	0107-	●	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-233-0	01	1	0107-	●	●
142	SCREW BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	12	1	0107-	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2> M12	9-09840-280-0	05	1	0107-	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-092-0	01	1	0107-	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0107-	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-191-0	02	1	0107-	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	0107-	●	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2>	1-48629-126-0	01	1	0107-	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-196-0	01	1	0107-	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-232-0	01	1	0107-	●	●
171	BREATHER BRAKE SYSTEM RETARDER<RE2>	1-48629-144-0	01	1	0107-	●	●
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-159-0	02	1	0107-	●	●
180	PIN; RETAINING BRAKE SYSTEM RETARDER<RE2>	1-48629-198-0	02	1	0107-	●	●

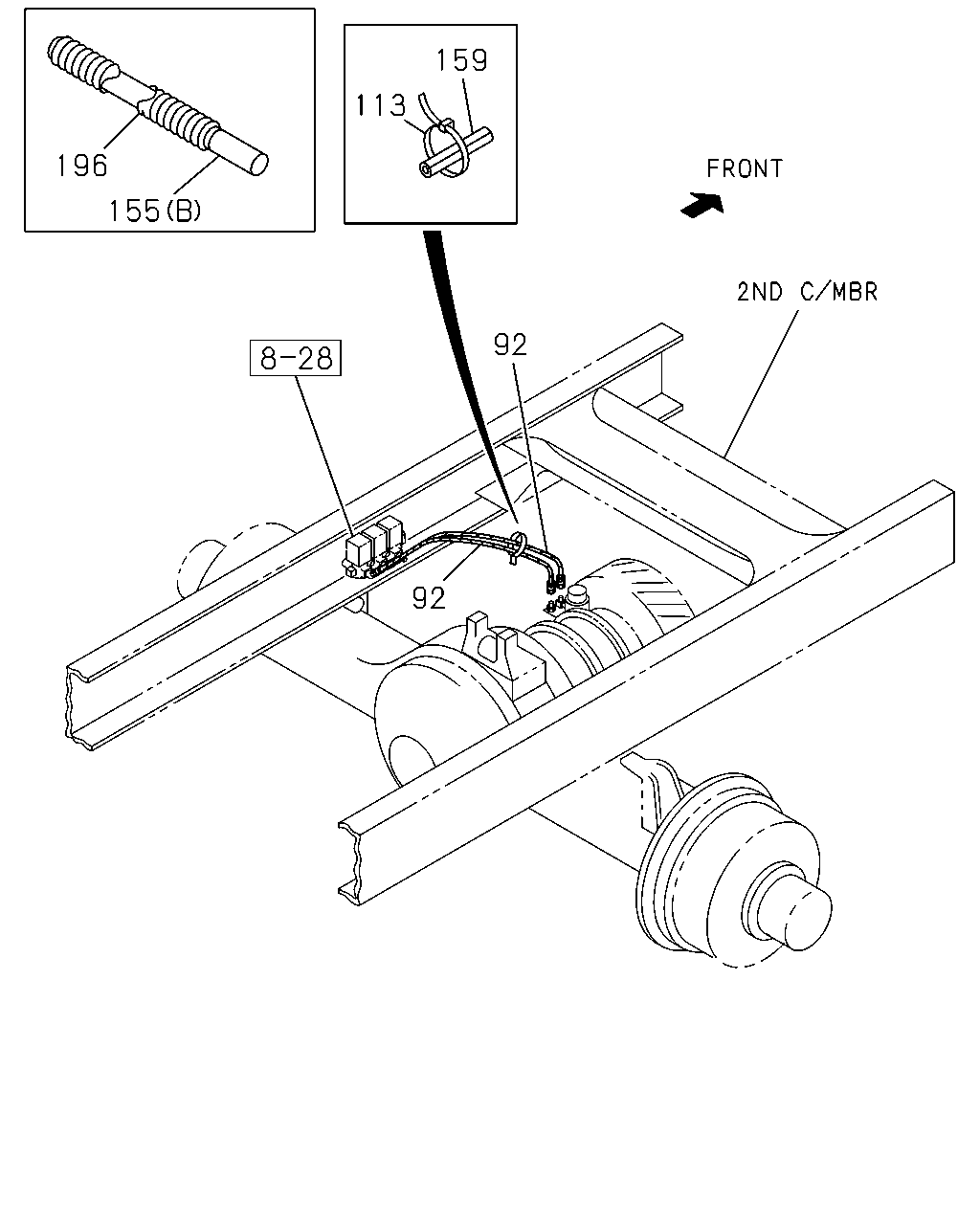

196 113 155 159 92 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> L=510	1-09363-649-0	02	1	0107-	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> L=140	5-09707-031-1	01	1	0107-	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-092-0	01	1	0107-	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0107-	●	●
159	SLEEVE BRAKE SYSTEM RETARDER<RE2> ID=32 OD=36 L=50	1-09337-023-0	02	1	0107-	●	●
196	TUBE; CORRUGATE BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0107-0108	●	●
196	TUBE; CORRUGATE BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0109-	●	●
