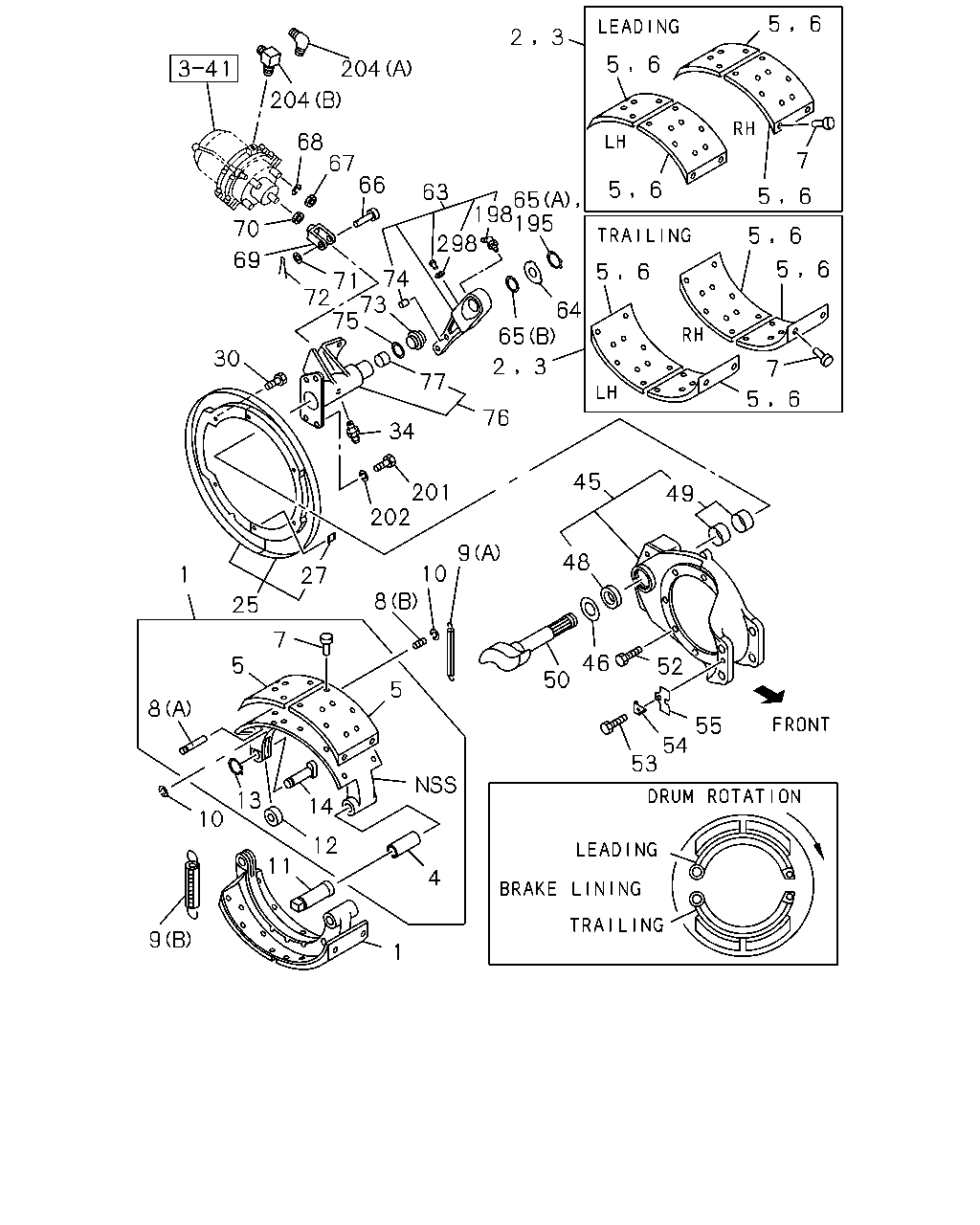

1 |
SHOE; BRK,RR
LEADING
|
1-47120-713-0 |
01 |
1 |
0107- |
| |
1 |
SHOE; BRK,RR
TRAILING
|
1-47120-714-0 |
01 |
1 |
0107- |
| |
1 |
SHOE; BRK,RR
LEADING
|
1-47120-715-0 |
01 |
1 |
0107- |
| |
1 |
SHOE; BRK,RR
TRAILING
|
1-47120-716-0 |
01 |
1 |
0107- |
| |
2 |
LINING SET; RR BRK,STANDARD
LEADING
|
1-88310-521-0 |
01 |
1 |
0107- |
| |
2 |
LINING SET; RR BRK,STANDARD
TRAILING
|
1-88310-523-0 |
01 |
1 |
0107- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
LEADING
|
1-88310-522-0 |
01 |
1 |
0107- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
TRAILING
|
1-88310-524-0 |
01 |
1 |
0107- |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
|
1-47112-012-0 |
04 |
1 |
0107- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
LEADING
|
1-47125-797-0 |
04 |
1 |
0107- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
TRAILING
|
1-47125-799-0 |
04 |
1 |
0107- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
LEADING
|
1-47125-798-0 |
04 |
1 |
0107- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
TRAILING
|
1-47125-800-0 |
04 |
1 |
0107- |
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
AR |
1 |
0107- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(B)
|
1-47119-021-0 |
04 |
1 |
0107- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(A)
|
1-47119-029-0 |
04 |
1 |
0107- |
| |
9 |
SPRING; RETURN,BRK SHOE
(B)
|
1-09583-175-0 |
02 |
1 |
0107- |
| |
9 |
SPRING; RETURN,BRK SHOE
(A)
|
1-09583-196-0 |
02 |
1 |
0107- |
| |
10 |
RING; SNAP,SPR PIN
ID=10
|
9-09185-410-0 |
08 |
1 |
0107-0604 |
| |
10 |
RING; SNAP,SPR PIN
ID=10
|
0-91805-510-0 |
08 |
1 |
0605- |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
L=121.5
|
1-47131-039-0 |
04 |
1 |
0107- |
| |
12 |
ROLLER; CAM,BRK SHOE
|
1-47113-005-0 |
04 |
1 |
0107- |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
|
9-47119-022-0 |
04 |
1 |
0107- |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
|
1-09744-061-0 |
04 |
1 |
0107- |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-462-1 |
02 |
1 |
0107- |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
0107- |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0107- |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
0107-0512 |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
0601- |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
ANTILOCK BRAKE SYSTEM(BFA)
|
1-47137-269-0 |
01 |
1 |
0107- |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
ANTILOCK BRAKE SYSTEM(BFA)
|
1-47137-270-0 |
01 |
1 |
0107- |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
EXC. ANTILOCK BRAKE SYSTEM(BFA)
|
1-47137-120-2 |
02 |
1 |
0107- |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
|
1-47143-005-0 |
02 |
1 |
0107- |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
|
1-09625-228-0 |
02 |
1 |
0107- |
| |
49 |
BUSHING; CM/SHF,RR BRK
|
1-47146-003-1 |
02 |
1 |
0107- |
| |
50 |
CAMSHAFT; BRK,RR BRK
|
1-47141-053-0 |
01 |
1 |
0107- |
| |
50 |
CAMSHAFT; BRK,RR BRK
|
1-47141-054-0 |
01 |
1 |
0107- |
| |
52 |
BOLT; ANCHOR BRKT
M14X50
|
1-09040-066-0 |
02 |
1 |
0107- |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20801-016-0 |
02 |
1 |
0107-0512 |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20851-016-0 |
02 |
1 |
0601- |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
0107- |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
0107- |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
|
1-48270-045-0 |
01 |
1 |
0107- |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
|
1-48270-046-0 |
01 |
1 |
0107- |
| |
64 |
PLATE; STOPPER,CM/SHF
|
1-47149-022-0 |
02 |
1 |
0107- |
| |
65 |
SPACER; SLACK ADJ,BRK
(B)
|
1-47143-004-0 |
02 |
1 |
0107- |
| |
65 |
SPACER; SLACK ADJ,BRK
EXC. ANTILOCK BRAKE SYSTEM(BFA)
(A)
|
9-09180-038-0 |
01 |
1 |
0107- |
| |
66 |
PIN; JAW JOINT
|
1-09744-088-0 |
02 |
1 |
0107- |
| |
67 |
NUT; POWER CHAMBER FIX
M16
|
9-99110-416-0 |
08 |
1 |
0107-0512 |
| |
67 |
NUT; POWER CHAMBER FIX
M16
|
0-91110-516-0 |
08 |
1 |
0601- |
| |
68 |
WASHER; LK,CHAMBER
ID=16.2
|
9-09150-516-0 |
08 |
1 |
0107-0603 |
| |
68 |
WASHER; LK,CHAMBER
ID=16.2
|
0-91510-516-0 |
08 |
1 |
0604- |
| |
69 |
JOINT; JAW
|
1-09768-060-1 |
02 |
1 |
0107- |
| |
70 |
NUT; LK,JAW JOINT
M16
|
9-99111-416-0 |
02 |
1 |
0107-0512 |
| |
70 |
NUT; LK,JAW JOINT
M16
|
0-91111-516-0 |
02 |
1 |
0601- |
| |
71 |
WASHER; PL,JAW JOINT
ID=17 OD=32
|
9-09160-616-0 |
02 |
1 |
0107- |
| |
72 |
PIN; SPLIT
OD=3.7 L=28
|
9-08114-028-0 |
02 |
1 |
0107-0606 |
| |
72 |
PIN; SPLIT
OD=3.7 L=28
|
0-81124-028-0 |
02 |
1 |
0607- |
| |
73 |
COLLAR; FELT RING,CM/SHF
|
1-47143-016-0 |
02 |
1 |
0107- |
| |
74 |
BUSHING; SLACK ADJ
|
1-09330-041-0 |
02 |
1 |
0107- |
| |
75 |
RING; FELT,CM/SHF
|
1-09620-009-0 |
02 |
1 |
0107- |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
|
1-48258-083-0 |
01 |
1 |
0107- |
| |
76 |
BRACKET; POWER CHAMBER,RR,W/BUSHING
|
1-48258-084-0 |
01 |
1 |
0107- |
| |
77 |
BUSHING
|
1-47146-003-1 |
02 |
1 |
0107- |
| |
195 |
RING; SNAP,CM/SHF
ANTILOCK BRAKE SYSTEM(BFA)
|
9-09180-038-0 |
02 |
1 |
0107- |
| |
195 |
RING; SNAP,CM/SHF
EXC. ANTILOCK BRAKE SYSTEM(BFA)
|
9-09180-038-0 |
01 |
1 |
0107- |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
0107-0512 |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES
|
0-90301-510-0 |
02 |
1 |
0601- |
| |
201 |
BOLT; BRKT,POWER CHAMBER
EXC. ANTILOCK BRAKE SYSTEM(BFA)
M14X35
|
0-28081-435-0 |
08 |
1 |
0202- |
| |
201 |
BOLT; BRKT,POWER CHAMBER
ANTILOCK BRAKE SYSTEM(BFA)
M14X35
|
0-20801-435-0 |
08 |
1 |
0107-0512 |
| |
201 |
BOLT; BRKT,POWER CHAMBER
ANTILOCK BRAKE SYSTEM(BFA)
M14X35
|
0-20851-435-0 |
08 |
1 |
0601- |
| |
202 |
WASHER; LK,BRKT
ANTILOCK BRAKE SYSTEM(BFA)
ID=14.2
|
9-09150-514-0 |
08 |
1 |
0107-0201 |
| |
202 |
WASHER; LK,BRKT
ID=14.2
|
9-09150-514-0 |
08 |
1 |
0202-0603 |
| |
202 |
WASHER; LK,BRKT
ID=14.2
|
0-91510-514-0 |
08 |
1 |
0604- |
| |
204 |
CONNECTOR; SPR CHAMBER
BRAKE SYSTEM RETARDER<RE2>
(B)
M20 & PT3/8 ELBOW
|
1-09660-684-0 |
01 |
1 |
0107- |
| |
204 |
CONNECTOR; SPR CHAMBER
(A)
DIN8 & R3/8 ELBOW
|
1-09660-652-1 |
01 |
1 |
0107- |
| |
204 |
CONNECTOR; SPR CHAMBER
EXC. BRAKE SYSTEM RETARDER<RE2>
(B)
DIN12 & R3/8 ELBOW
|
1-09660-653-1 |
01 |
1 |
0107- |
| |
298 |
GASKET
ID=23.3
|
9-09561-223-0 |
02 |
1 |
0107- |
