◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#999) — 81 parça

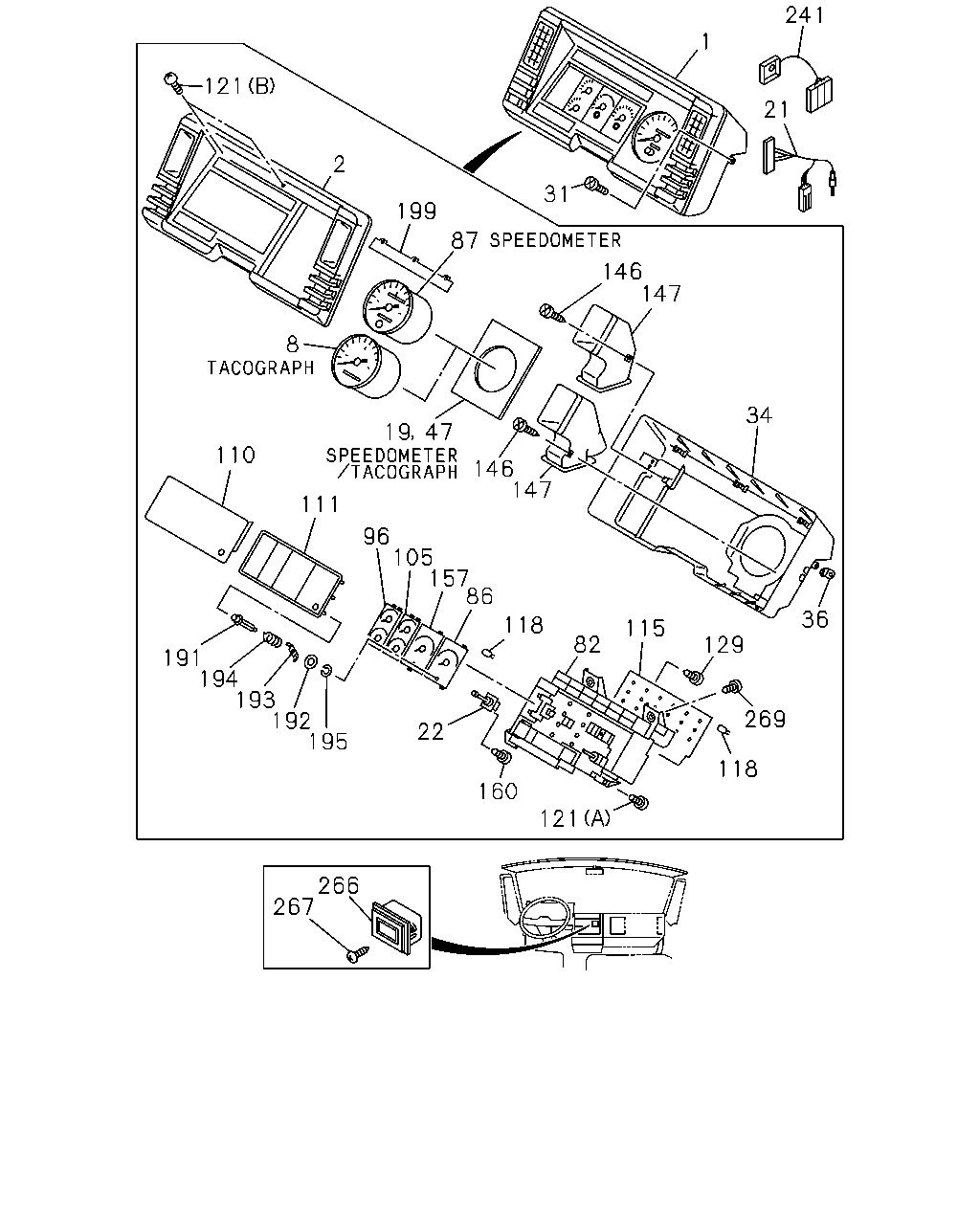

çizim 27901
241 1 121 21 2 31 199 87 146 147 8 34 19 110 146 147 111 96 105 157 86 36 118 115 82 129 191 194 193 192 195 269 22 118 160 121 266 267 47
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9>,MILE SPEEDOMETER<UC1>, TACHOMETER<UD7>,TACHOGRAPH 140KM/H<WC7>,BRIGHT CONTROL METER<WX7>,DELUXE CAB(W14),INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-200-2 01 1 9202- ● ●
1 METER COMPL; CLUSTER
EXC. FIRE TRUCK<RA9>,MILE SPEEDOMETER<UC1>, TACHOMETER<UD7>,DUAL AIR GAUGE<UG2>,TACHOGRAPH 140KM/H<WC7>,BRIGHT CONTROL METER<WX7>,DELUXE CAB(W14),INDIC ATOR TAIL & STOP LAMP<YD6> 		1-83114-244-2 01 1 9202- ● ●
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> EXC. FIRE TRUCK<RA9>,TACHOMETER<UD7>,DUAL AIR GAUGE<UG2>,TACHOGRAPH 140KM/H<WC7>,BRIGHT CONTROL METER<WX7>,DELUXE CAB(W14),INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-252-3 01 1 9202- ● ●
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> TACHOMETER<UD7> BRIGHT CONTROL METER<WX7> DELUXE CAB(W14) INDICATOR TAIL & STOP LAMP<YD6> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>, TACHOGRAPH 140KM/H<WC7> 		1-83114-288-3 01 1 9202- ● ●
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> TACHOMETER<UD7> EXC. FIRE TRUCK<RA9>,DUAL AIR GAUGE<UG2>, TACHOGRAPH 140KM/H<WC7>,BRIGHT CONTROL METER<WX7>,DELUXE CAB(W14),INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-271-3 01 1 9202- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<UD7> BRIGHT CONTROL METER<WX7> DELUXE CAB(W14) INDICATOR TAIL & STOP LAMP<YD6> EXC. FIRE TRUCK<RA9>,MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>,TACHOGRAPH 140KM/H<WC7> 		1-83114-280-2 01 1 9202- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<UD7> DUAL AIR GAUGE<UG2> BRIGHT CONTROL METER<WX7> DELUXE CAB(W14) INDICATOR TAIL & STOP LAMP<YD6> EXC. FIRE TRUCK<RA9>,MILE SPEEDOMETER<UC1>, TACHOGRAPH 140KM/H<WC7> 		1-83114-218-2 01 1 9202- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<UD7> DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9>,MILE SPEEDOMETER<UC1>, TACHOGRAPH 140KM/H<WC7>,BRIGHT CONTROL METER<WX7>,DELUXE CAB(W14),INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-209-2 01 1 9202- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<UD7> DUAL AIR GAUGE<UG2> TACHOGRAPH 140KM/H<WC7> EXC. FIRE TRUCK<RA9>,MILE SPEEDOMETER<UC1>,BRIGHT CONTROL METER<WX7>,DELUXE CAB(W14),INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-227-2 01 1 9202- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<UD7> DUAL AIR GAUGE<UG2> TACHOGRAPH 140KM/H<WC7> BRIGHT CONTROL METER<WX7> DELUXE CAB(W14) INDICATOR TAIL & STOP LAMP<YD6> EXC. FIRE TRUCK<RA9>,MILE SPEEDOMETER<UC1> 		1-83114-236-2 01 1 9202- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<UD7> EXC. FIRE TRUCK<RA9>,MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>,TACHOGRAPH 140KM/H<WC7>,BRIGHT CONTROL METER<WX7>,DELUXE CAB(W14),INDICATOR TAIL & STOPLAMP<YD6> 		1-83114-261-2 01 1 9202- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<UD7> TACHOGRAPH 140KM/H<WC7> BRIGHT CONTROL METER<WX7> DELUXE CAB(W14) INDICATOR TAIL & STOP LAMP<YD6> EXC. FIRE TRUCK<RA9>,MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2> 		1-83114-306-2 01 1 9202- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<UD7> TACHOGRAPH 140KM/H<WC7> EXC. FIRE TRUCK<RA9>,MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>,BRIGHT CONTROL METER<WX7>,DELUXE CAB(W14),INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-297-2 01 1 9202- ● ●
1 METER COMPL; CLUSTER
FIRE TRUCK<RA9> MILE SPEEDOMETER<UC1> TACHOMETER<UD7> EXC. DUAL AIR GAUGE<UG2>,TACHOGRAPH 140KM/H<WC7>, BRIGHT CONTROL METER<WX7>,DELUXE CAB(W14),INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-273-3 01 1 9202- ●
1 METER COMPL; CLUSTER
FIRE TRUCK<RA9> TACHOMETER<UD7> DUAL AIR GAUGE<UG2> EXC. MILE SPEEDOMETER<UC1>,TACHOGRAPH 140KM/H<WC7> ,BRIGHT CONTROL METER<WX7>,DELUXE CAB(W14), INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-211-2 01 1 9202- ●
1 METER COMPL; CLUSTER
FIRE TRUCK<RA9> TACHOMETER<UD7> DUAL AIR GAUGE<UG2> TACHOGRAPH 140KM/H<WC7> EXC. MILE SPEEDOMETER<UC1>,BRIGHT CONTROL METER<WX7>,DELUXE CAB(W14),INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-229-2 01 1 9202- ●
1 METER COMPL; CLUSTER
FIRE TRUCK<RA9> TACHOMETER<UD7> EXC. MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>, TACHOGRAPH 140KM/H<WC7>,BRIGHT CONTROL METER<WX7>,DEL UXE CAB(W14),INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-263-2 01 1 9202- ●
1 METER COMPL; CLUSTER
FIRE TRUCK<RA9> TACHOMETER<UD7> TACHOGRAPH 140KM/H<WC7> EXC. MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>, BRIGHT CONTROL METER<WX7>,DELUXE CAB(W14),INDICATOR TAIL & STOP LAMP<YD6> 		1-83114-299-2 01 1 9202- ●
2 PANEL; CLUSTER 1-83117-327-0 01 1 9202- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-360-1 01 1 9202- ● ●
19 COVER; SPEEDOMETER,CLUSTER METER
EXC. FIRE TRUCK<RA9>,TACHOGRAPH 140KM/H<WC7> 		1-83129-081-0 01 1 9202- ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-82623-920-0 01 1 9202- ● ●
22 RHEOSTAT; CLUSTER METER
EXC. AIR CON MANUAL CONTROL(C60),FIRE TRUCK<RA9>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-82380-075-0 01 1 9202- ● ●
31 SCREW; METER,INST PANEL
M4X14 TAPPING 		1-09140-009-0 03 1 9202- ● ●
31 SCREW; METER,INST PANEL
M6X20 W/PL WASHER 		5-09981-023-0 04 1 9202- ● ●
34 HOOD; CLUSTER METER 1-83117-441-0 01 1 9202- ● ●
36 BRACKET; CLUSTER METER 1-83119-118-0 01 1 9202- ● ●
36 BRACKET; CLUSTER METER 1-83119-117-0 01 1 9202- ● ●
47 COVER; TACHOGRAPH,CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83129-034-1 01 1 9202- ● ●
82 CASE ASM; CLUSTER METER
EXC. FIRE TRUCK<RA9>,TACHOGRAPH 140KM/H<WC7> 		1-83119-359-0 01 1 9202- ● ●
82 CASE ASM; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83119-376-0 01 1 9202- ● ●
86 TACHOMETER; CLUSTER METER
EXC. AIR CON MANUAL CONTROL(C60),FIRE TRUCK<RA9>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-83120-418-0 01 1 9202- ● ●
86 TACHOMETER; CLUSTER METER
EXC. DELUXE CAB(W14) 		1-83120-481-0 01 1 9202- ● ●
87 SPEEDOMETER
MILE SPEEDOMETER<UC1> 		1-83120-489-1 01 1 9202- ● ●
87 SPEEDOMETER
EXC. MILE SPEEDOMETER<UC1> 		1-83120-488-0 01 1 9202- ● ●
96 GAUGE; OIL THERMO W/COVER
FIRE TRUCK<RA9> EXC. MILE SPEEDOMETER<UC1>,DUAL AIR GAUGE<UG2>, TACHOGRAPH 140KM/H<WC7> 		1-83160-079-0 01 1 9202- ●
96 GAUGE; OIL THERMO W/COVER
FIRE TRUCK<RA9> DUAL AIR GAUGE<UG2> 		1-83160-079-0 01 1 9202- ●
96 GAUGE; OIL THERMO W/COVER
FIRE TRUCK<RA9> MILE SPEEDOMETER<UC1>,TACHOGRAPH 140KM/H<WC7> EXC. DUAL AIR GAUGE<UG2> 		1-83160-088-0 01 1 9202- ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
MILE SPEEDOMETER<UC1> 		1-83180-072-0 01 1 9202- ● ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
EXC. MILE SPEEDOMETER<UC1> 		1-83180-071-0 01 1 9202- ● ●
110 GLASS; CLUSTER METER
EXC. AIR CON MANUAL CONTROL(C60),FIRE TRUCK<RA9>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-83119-046-0 01 1 9202- ● ●
110 GLASS; CLUSTER METER
EXC. DELUXE CAB(W14) 		1-83119-101-0 01 1 9202- ● ●
111 RIM; GLASS,CLUSTER METER
EXC. FIRE TRUCK<RA9>,TACHOMETER<UD7> M3 TAPPING 		1-83119-106-0 01 1 9202- ● ●
111 RIM; GLASS,CLUSTER METER
TACHOMETER<UD7> EXC. FIRE TRUCK<RA9> 		1-83119-098-0 01 1 9202- ● ●
111 RIM; GLASS,CLUSTER METER
TACHOMETER<UD7> FIRE TRUCK<RA9> 		1-83119-099-0 01 1 9202- ●
115 CIRCUIT; PRINTED,CLUSTER METER
DUAL AIR GAUGE<UG2> EXC. FIRE TRUCK<RA9>,TACHOMETER<UD7>,TACHOGRAPH 140KM/H<WC7>,DELUXE CAB(W14) 		1-83118-299-0 01 1 9202- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> DELUXE CAB(W14) EXC. FIRE TRUCK<RA9>,TACHOGRAPH 140KM/H<WC7> 		1-83118-299-0 01 1 9202- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. FIRE TRUCK<RA9>,TACHOMETER<UD7>,DUAL AIR GAUGE<UG2>,TACHOGRAPH 140KM/H<WC7>,DELUXE CAB(W14) 		1-83189-221-0 01 1 9202- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> EXC. FIRE TRUCK<RA9>,TACHOGRAPH 140KM/H<WC7>, DELUXE CAB(W14) 		1-83189-223-0 01 1 9202- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> TACHOGRAPH 140KM/H<WC7> DELUXE CAB(W14) EXC. FIRE TRUCK<RA9> 		1-83189-222-0 01 1 9202- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7> TACHOGRAPH 140KM/H<WC7> EXC. FIRE TRUCK<RA9>,DELUXE CAB(W14) 		1-83189-225-0 01 1 9202- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
FIRE TRUCK<RA9> TACHOGRAPH 140KM/H<WC7> 		1-83189-226-0 01 1 9202- ●
115 CIRCUIT; PRINTED,CLUSTER METER
FIRE TRUCK<RA9> EXC. TACHOGRAPH 140KM/H<WC7> 		1-83189-224-0 01 1 9202- ●
118 BULB; CLUSTER METER
24V 3W 		1-82358-003-0 20 1 9202- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING 		1-83119-059-0 04 1 9202- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-87590-049-0 02 1 9202- ● ●
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4X16 TAPPING 		1-83119-033-0 04 1 9208- ● ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 09 1 9202- ● ●
146 SCREW; AIR DUCT FIX,METER FOOD
M4X16 TAPPING 		1-83119-033-0 06 1 9202- ● ●
147 DUCT; AIR,CLUSTER METER 1-83119-045-0 01 1 9202- ● ●
147 DUCT; AIR,CLUSTER METER 1-83119-044-0 01 1 9202- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> 		1-83150-148-0 01 1 9202- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. DUAL AIR GAUGE<UG2> 		1-83150-147-0 01 1 9202- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
MILE SPEEDOMETER<UC1> 		1-83150-152-0 01 1 9202- ● ●
160 SCREW; RHEOSTAT,CLUSTER METER
DELUXE CAB(W14) 		1-83119-050-0 03 1 9202- ● ●
191 KNOB; BULB CHECK 1-83119-316-0 01 1 9202- ● ●
192 WASHER; BULB CHECK KNOB 1-83119-317-0 01 1 9202- ● ●
193 PLATE; BULB CHECK 1-83119-318-0 01 1 9202- ● ●
194 SPRING; BULB CHECK KNOB 1-83119-319-0 01 1 9202- ● ●
195 RING; SNAP,KNOB 1-83119-320-0 01 1 9202- ● ●
199 LENS; WARNING LAMP 1-82255-277-0 01 1 9202- ● ●
241 HARNESS; SPEEDOMETER 1-82623-837-1 01 1 9202-9204 ● ●
241 HARNESS; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H<WC7> 		1-82623-837-1 01 1 9205- ● ●
266 CLOCK; QUARTZ
ELECTRIC DIGITAL CLOCK<UE8> 		1-83170-002-0 01 1 9202- ● ●
267 SCREW; CLOCK
ELECTRIC DIGITAL CLOCK<UE8> M5X14 TAPPING W/PL WASHER 		0-74100-514-0 02 1 9202- ● ●
269 SCREW; METER CLUSTER
M4X10 		1-83119-051-0 03 1 9202- ● ●
269 SCREW; METER CLUSTER
M3X8 		1-83119-058-0 06 1 9202- ● ●
269 SCREW; METER CLUSTER
EXC. FIRE TRUCK<RA9>,TACHOGRAPH 140KM/H<WC7> M3 TAPPING 		1-83119-084-0 04 1 9202- ● ●
269 SCREW; METER CLUSTER
TACHOMETER<UD7> M3 		1-83119-361-0 03 1 9208- ● ●
269 SCREW; METER CLUSTER
TACHOMETER<UD7> EXC. FIRE TRUCK<RA9> M3 		1-83119-377-0 03 1 9202- ● ●
269 SCREW; METER CLUSTER
TACHOMETER<UD7> FIRE TRUCK<RA9> M3X8 		1-83119-058-0 09 1 9202- ●
