2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#9986) — 96 parça

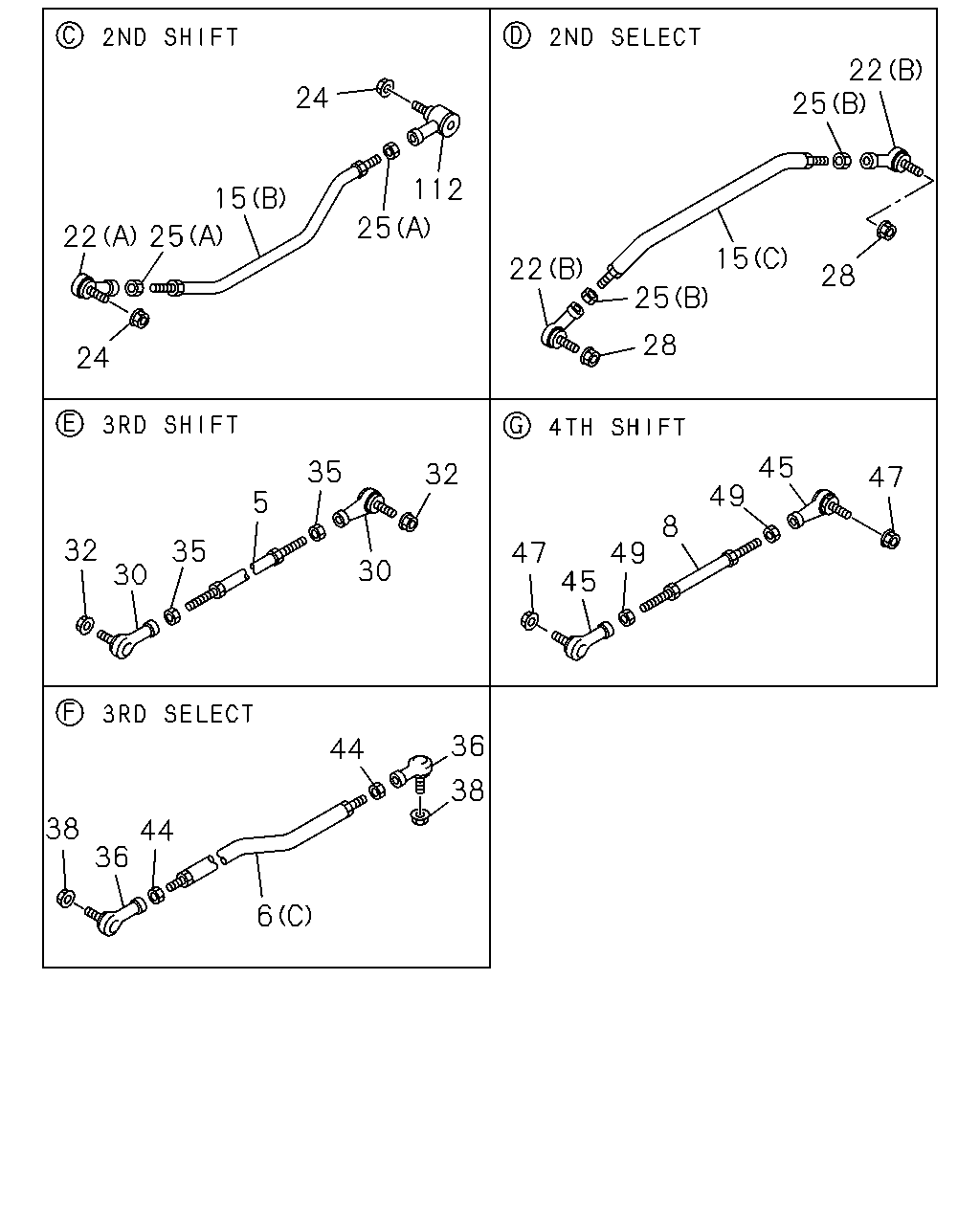

22 25 28 15 25 22 28 47 45 49 8 49 45 47 32 30 35 5 35 30 32 36 38 44 6 44 36 38 24 112 25 24 15 25 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT L=1120	1-33652-603-0	01	1	0107-
6	ROD; LINK,3RD SELECT MJD7S M/T(Y2Y) (C) L=1656	1-33652-954-1	01	1	0107-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (A) L=1399	1-33652-914-1	01	1	0107-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0107-
6	ROD; LINK,3RD SELECT MJX16P M/T(Y3Z) (C) L=1698	1-33652-946-1	01	1	0107-
8	ROD; LINK,4TH SHIFT MJD7S M/T(Y2Y) L=370	1-33652-654-1	01	1	0107-
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> L=485	1-33652-859-1	01	1	0107-
8	ROD; LINK,4TH SHIFT MJX16P M/T(Y3Z) L=410	1-33652-947-0	01	1	0107-
15	ROD; LINK 1ST SHIFT (A) L=435	1-33652-696-0	01	1	0107-
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-1	01	1	0107-
15	ROD; LINK 1ST SHIFT (C) L=423	1-33652-804-2	01	1	0107-
22	JOINT; BALL,SCREW,LINK ROD (B)	1-09760-109-0	02	1	0107-
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-125-0	01	1	0107-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0107-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	9-09111-410-0	02	1	0107-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	0-91111-510-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	0107-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	0-91111-512-0	02	1	0601-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0107-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0107-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0107-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0107-0512
35	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ISUZU M/T<X9A>	1-09760-124-0	02	1	0107-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0107-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0107-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0107-
44	NUT; LK,RIGHT SCREW,LINK ROD ISUZU M/T<X9A> M10	9-09111-410-0	02	1	0107-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ISUZU M/T<X9A> M10	0-91111-510-0	02	1	0601-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0107-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0107-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	0-91111-510-0	01	1	0601-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	0-91111-510-0	01	1	0601-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0107-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0107-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0107-0512
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0107-
112	JOINT; RUBBER	1-33670-413-1	01	1	0107-

45 49 47 8 49 47 45 22 25 28 15 25 28 22 38 36 44 121 6 44 36 38 32 30 35 5 35 30 32 112 25 24 15 25 22 24 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT L=1120	1-33652-603-0	01	1	0107-
6	ROD; LINK,3RD SELECT MJD7S M/T(Y2Y) (C) L=1656	1-33652-954-1	01	1	0107-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (A) L=1399	1-33652-914-1	01	1	0107-
6	ROD; LINK,3RD SELECT ZF M/T<X9E> (B) L=125	1-33671-570-0	01	1	0107-
6	ROD; LINK,3RD SELECT MJX16P M/T(Y3Z) (C) L=1698	1-33652-946-1	01	1	0107-
8	ROD; LINK,4TH SHIFT MJD7S M/T(Y2Y) L=370	1-33652-654-1	01	1	0107-
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> L=485	1-33652-859-1	01	1	0107-
8	ROD; LINK,4TH SHIFT MJX16P M/T(Y3Z) L=410	1-33652-947-0	01	1	0107-
15	ROD; LINK 1ST SHIFT (A) L=435	1-33652-696-0	01	1	0107-
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-1	01	1	0107-
15	ROD; LINK 1ST SHIFT (C) L=423	1-33652-804-2	01	1	0107-
22	JOINT; BALL,SCREW,LINK ROD (B)	1-09760-109-0	02	1	0107-
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-125-0	01	1	0107-
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0107-
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	9-09111-410-0	02	1	0107-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (B) M10	0-91111-510-0	02	1	0601-
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	0107-0512
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	0-91111-512-0	02	1	0601-
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0107-
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0107-
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0107-
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0107-0512
35	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ISUZU M/T<X9A>	1-09760-124-0	02	1	0107-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0107-
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E>	1-09760-124-0	01	1	0107-
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0107-
44	NUT; LK,RIGHT SCREW,LINK ROD ISUZU M/T<X9A> M10	9-09111-410-0	02	1	0107-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ISUZU M/T<X9A> M10	0-91111-510-0	02	1	0601-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0107-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	9-09111-410-0	01	1	0107-0512
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	0-91111-510-0	01	1	0601-
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> M10	0-91111-510-0	01	1	0601-
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0107-
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0107-
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0107-0512
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0107-
112	JOINT; RUBBER	1-33670-413-1	01	1	0107-
121	BOLT; LINK ROD ZF M/T<X9E>	1-09044-103-0	02	1	0107-

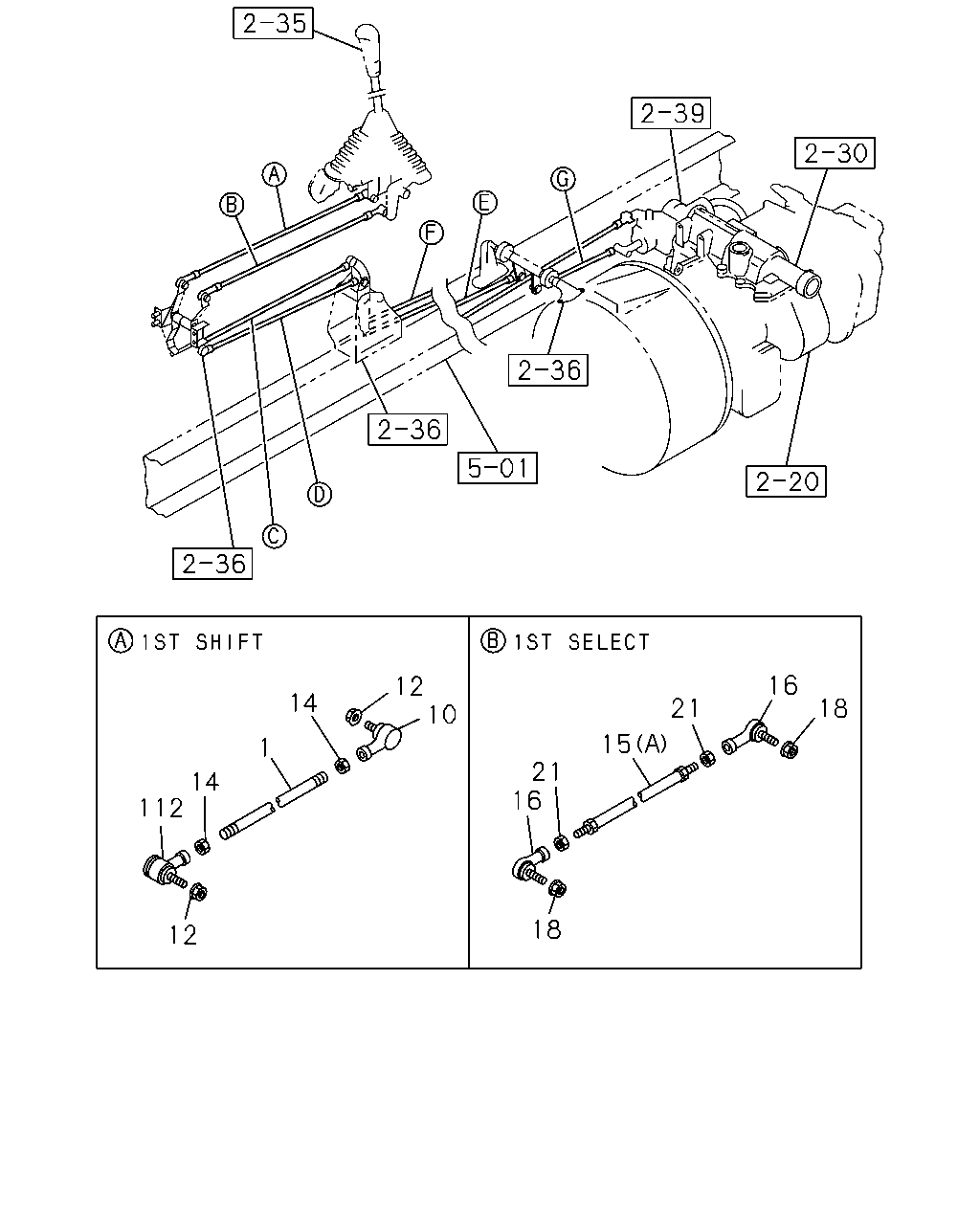

10 12 14 1 14 112 12 21 16 21 15 16 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	0107-
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0107-
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0107-
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0107-0512
14	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-
15	ROD; LINK 1ST SHIFT (A) L=435	1-33652-696-0	01	1	0107-
15	ROD; LINK 1ST SHIFT (B) L=474	1-33652-803-1	01	1	0107-
15	ROD; LINK 1ST SHIFT (C) L=423	1-33652-804-2	01	1	0107-
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	0107-
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0107-
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	0107-0512
21	NUT; LK,RIGHT SCREW,LINK ROD M8	0-91111-508-0	02	1	0601-
112	JOINT; RUBBER	1-33670-413-1	01	1	0107-
112	JOINT; RUBBER	1-33670-413-1	01	1	0107-

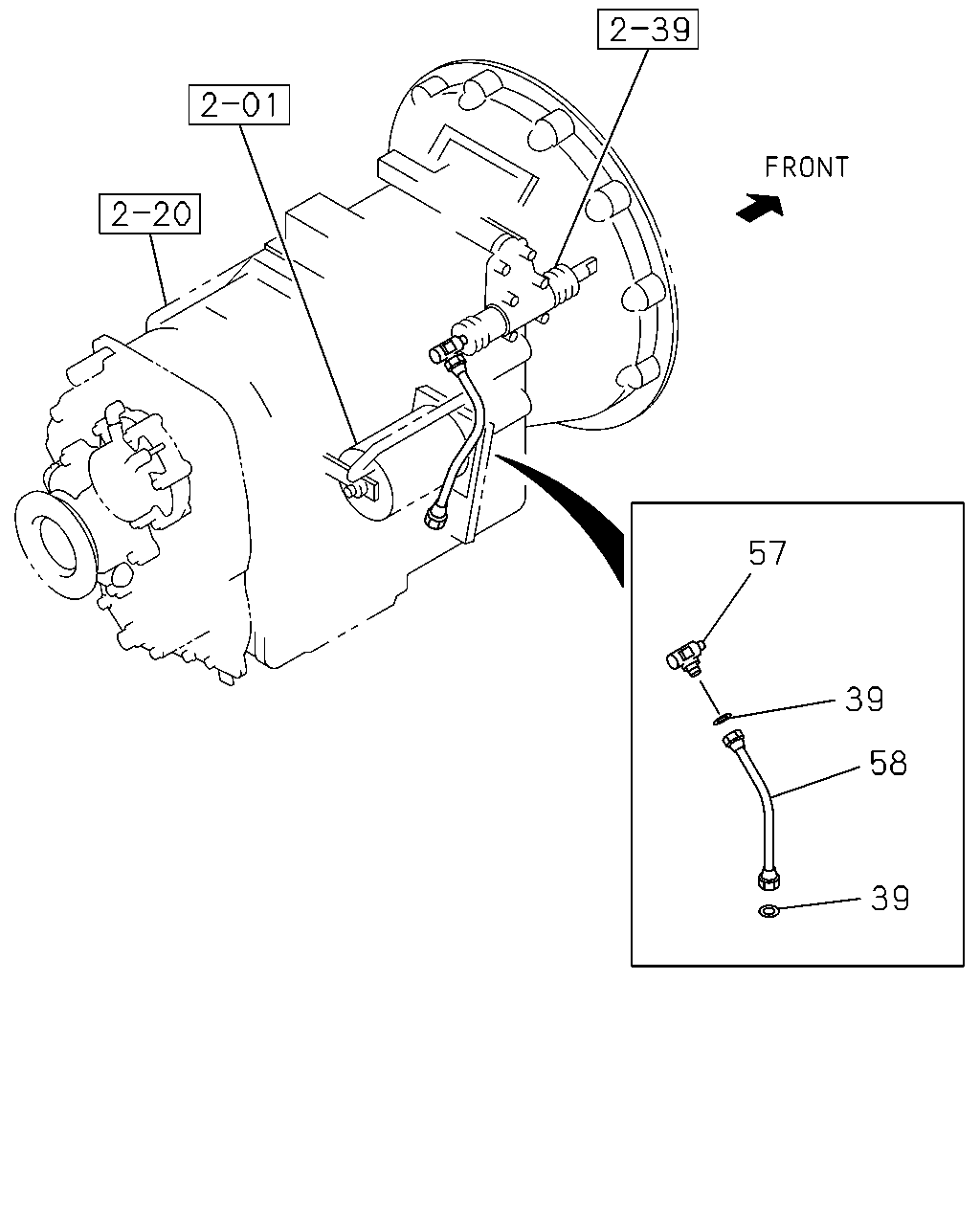

39 58 39 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	GASKET; FLEX HOSE ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	02	1	0107-0112
57	NIPPLE; POWER ASSISTOR ISUZU M/T<X9A> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0107-0112
58	HOSE; FLEX,POWER ASSISTOR MJD7S M/T(Y2Y) L=360	0-07150-360-0	01	1	0107-0112
