2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#9985) — 127 parça

496 192 468 465 509

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	COVER	1-79907-090-0	01	1	0107-
465	BRACKET; CONNECTOR	1-47478-772-1	01	1	0107-
468	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0107-
496	FASTENER D8X13.5	1-09987-248-1	02	1	0107-
509	SEAL; BRKT	1-47477-825-2	01	1	0107-0401
509	SEAL; BRKT	1-47479-978-0	01	1	0402-

283 458 457 118 115 88 118 457 457 118 365 88 118 457 100 268 253 16 254 253

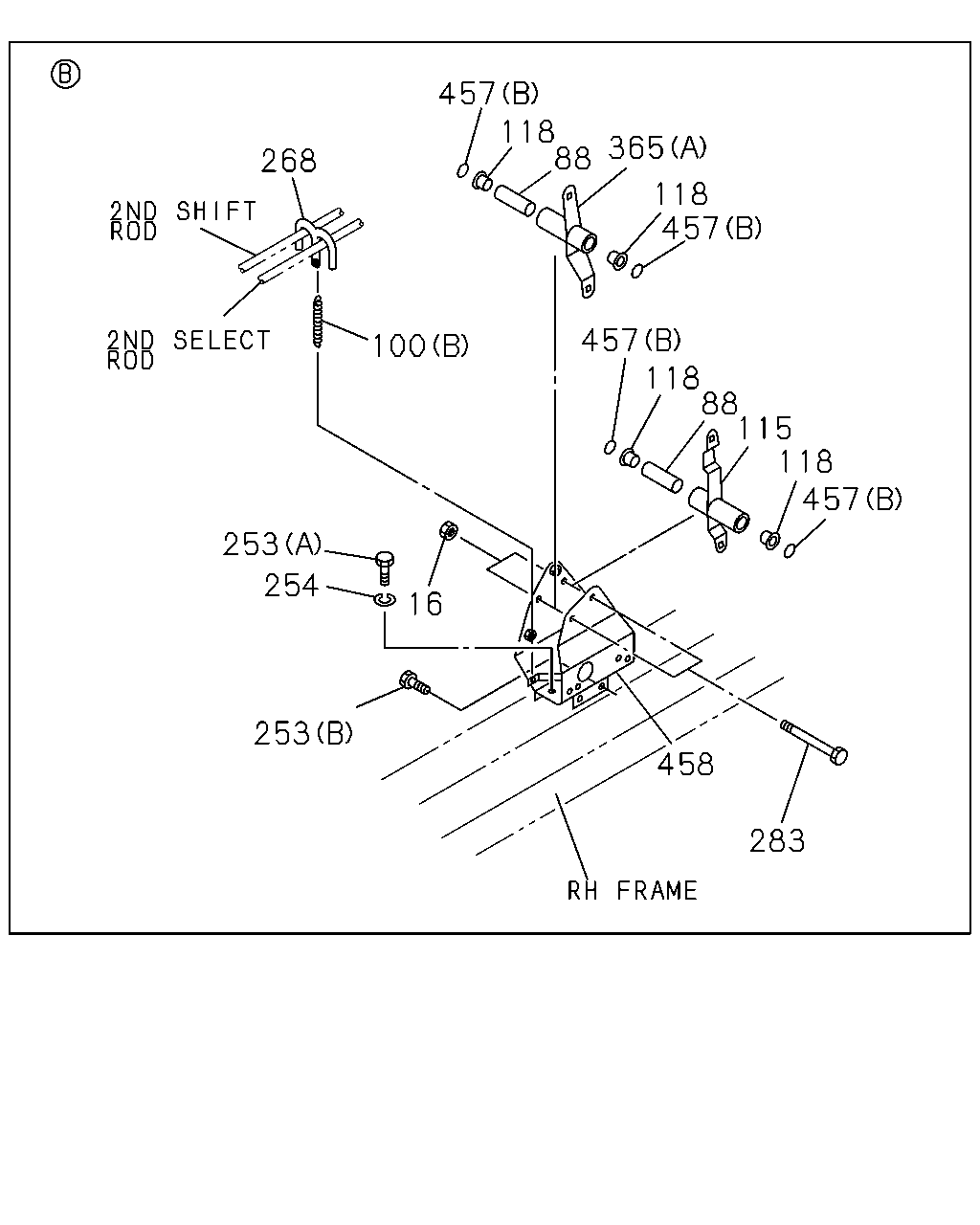

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	0107-0602
16	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	02	1	0603-
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	0107-
100	SPRING (B)	1-09583-319-0	01	1	0107-
100	SPRING (A)	1-09583-351-0	01	1	0107-
115	LEVER; RELAY,2ND SHIFT	1-33651-769-1	01	1	0107-
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	0107-
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	0107-
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	0107-0512
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	0107-0603
254	WASHER; LK,RELAY LEVER ID=14.2	0-91510-614-0	02	1	0604-
268	BRACKET; LINK ROD	1-33657-216-0	01	1	0107-
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	0107-
365	LEVER; RELAY,SELECT (B)	1-33651-638-1	01	1	0107-
365	LEVER; RELAY,SELECT (C)	1-33651-649-1	01	1	0107-
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	0107-
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
457	GASKET (B)	1-09623-594-0	04	1	0107-
458	BRACKET; 2ND RELAY LEVER	1-33657-664-1	01	1	0107-

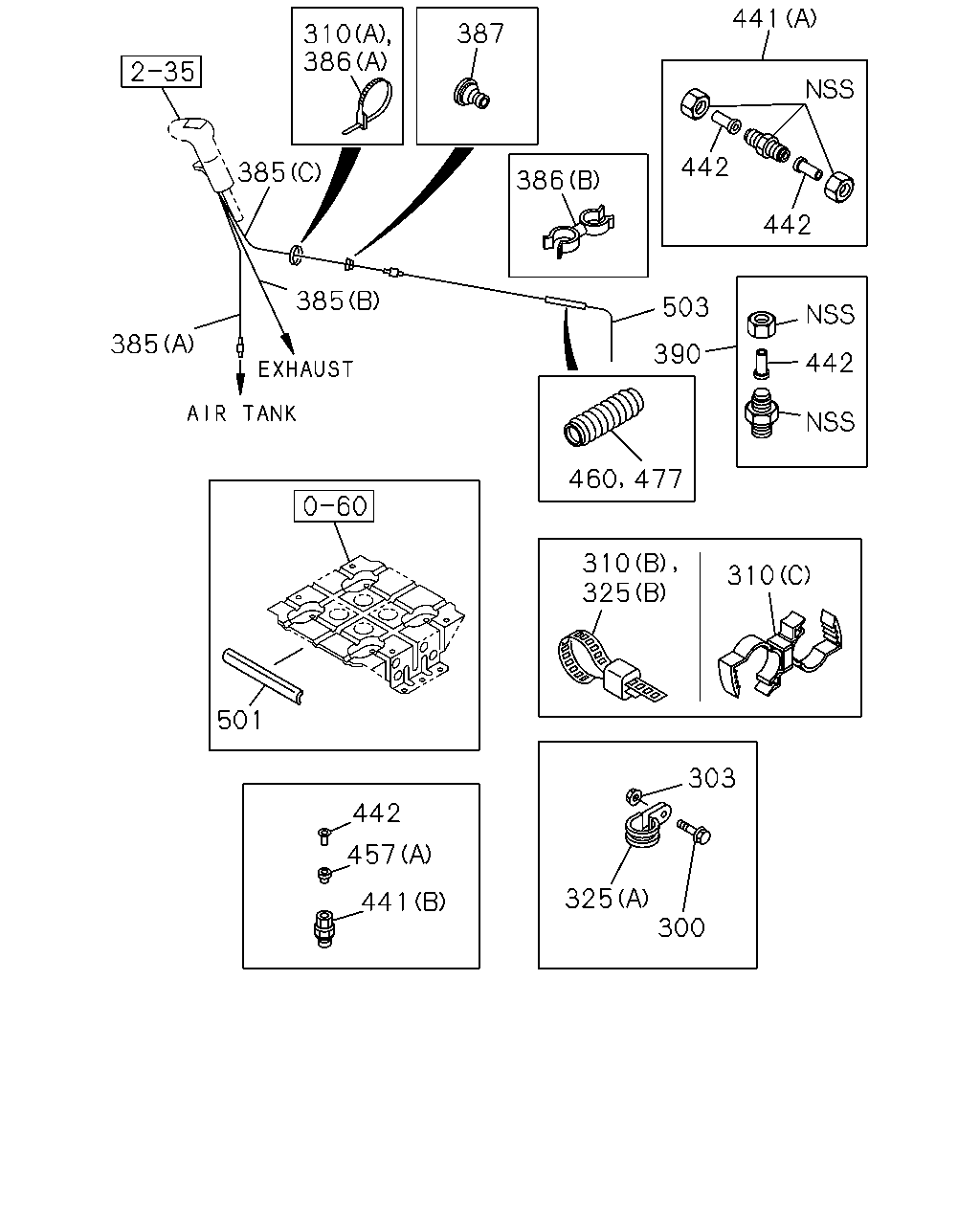

387 310 386 441 442 442 503 442 390 477 460 310 310 442 457 441 501 385 385 385 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (C) ID=12-16 & 12-16	1-09709-191-0	01	1	0107-
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B) L=140	5-09707-031-1	03	1	0107-
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B) L=250	1-09707-126-0	16	1	0107-
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=250	5-09707-030-1	02	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=250	5-09707-030-1	02	1	0107-0308
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	01	1	0107-0308
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	02	1	0309-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0107-0308
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z)	1-09332-102-0	01	1	0107-
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0107-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B)	1-09660-466-0	01	1	0107-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0107-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0107-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0107-
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
457	GASKET (B)	1-09623-594-0	04	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) L=250 ID=7 SERVICED BY L=800	1-83129-031-1	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U) SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	0107-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	0107-
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 100X40	1-72498-022-0	04	1	0107-
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0107-

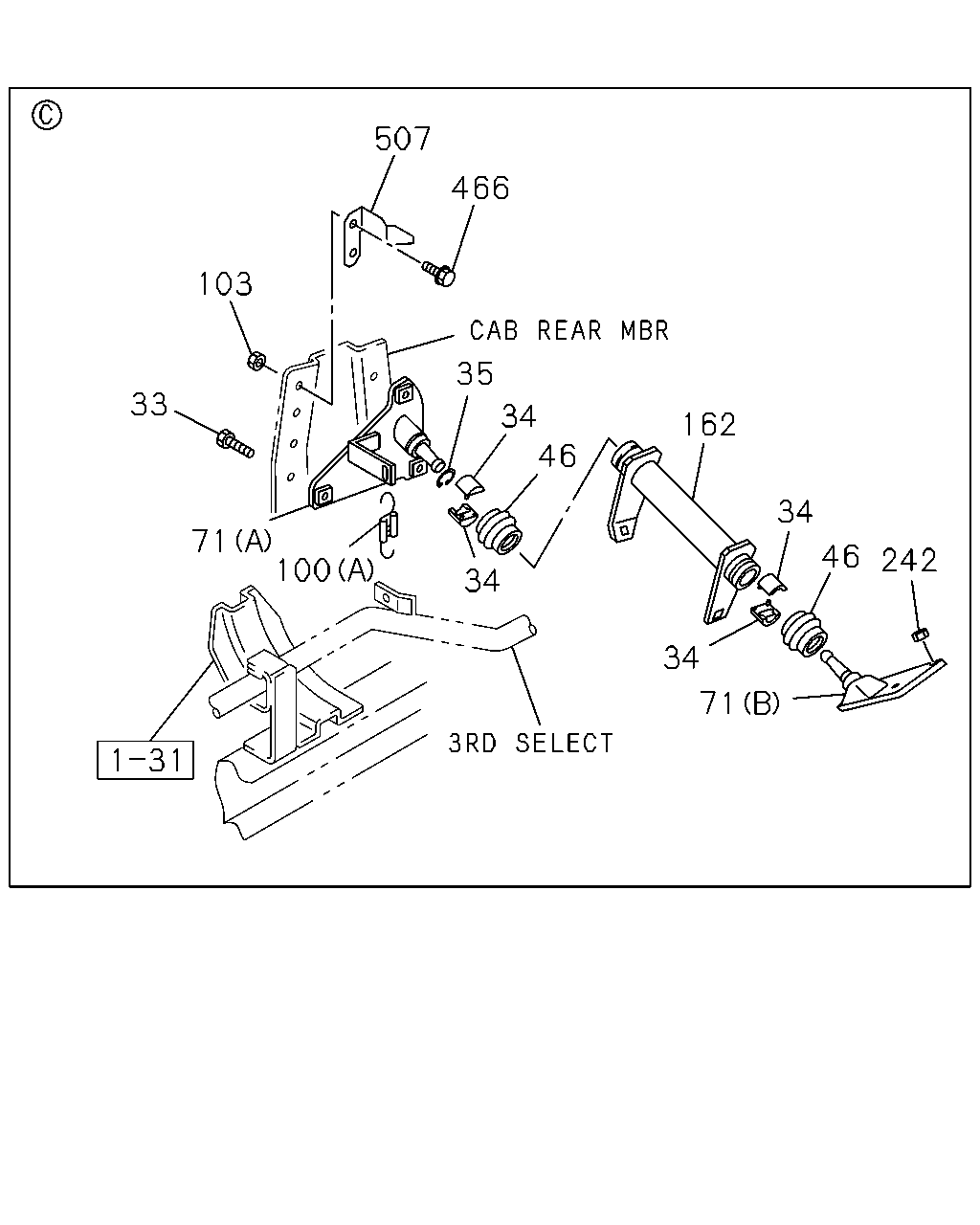

71 242 46 34 162 34 46 34 35 466 507 103 33 71 100 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	0107-0512
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28651-030-0	03	1	0601-
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	0107-
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	0107-
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	0107-0503
46	SEAL; DUST,RELAY LEVER	1-33659-248-0	02	1	0504-
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	0107-
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-584-0	01	1	0107-
100	SPRING (B)	1-09583-319-0	01	1	0107-
100	SPRING (A)	1-09583-351-0	01	1	0107-
103	NUT M8 FLANGE	0-91150-108-0	01	1	0107-0602
103	NUT M8 FLANGE	0-91180-108-0	01	1	0603-
162	LEVER; RELAY ISUZU M/T<X9A>	1-33651-625-1	01	1	0107-
162	LEVER; RELAY ZF M/T<X9E>	1-33651-679-1	01	1	0107-
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	0107-0602
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91180-212-0	03	1	0603-
466	BOLT; FIX M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
466	BOLT; FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-
507	PROTECTOR; HEAT	1-14181-313-0	01	1	0107-

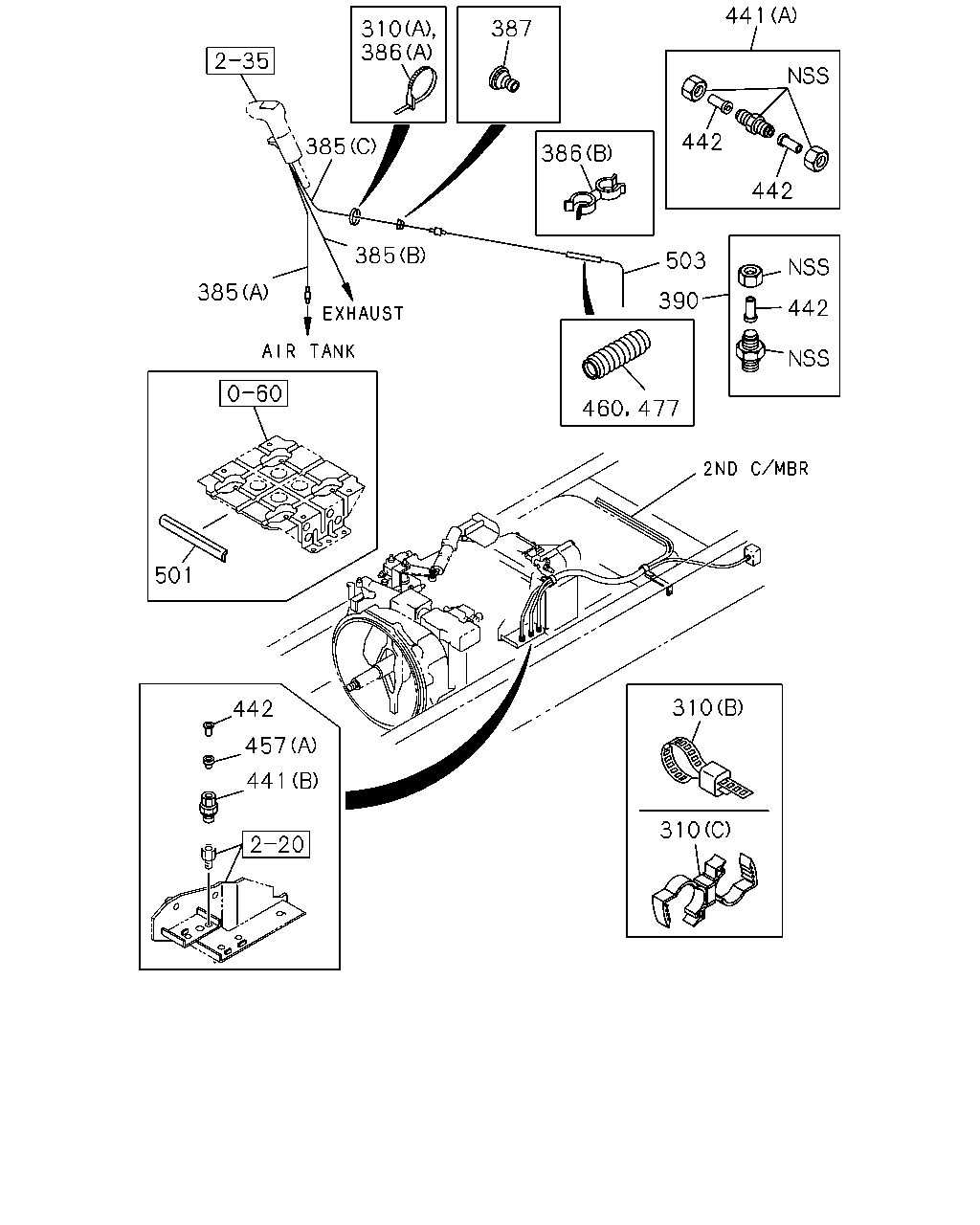

310 387 386 441 442 442 386 503 442 390 460 477 310 310 325 303 300 325 441 442 457 501 385 385 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	BOLT; CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
300	BOLT; CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	0601-
303	NUT; CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	01	1	0107-0602
303	NUT; CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	0603-
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (C) ID=12-16 & 12-16	1-09709-191-0	01	1	0107-
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B) L=140	5-09707-031-1	03	1	0107-
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B) L=250	1-09707-126-0	16	1	0107-
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=250	5-09707-030-1	02	1	0107-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (B) L=250	1-09707-126-0	07	1	0107-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (A) ID=18 L=28	1-09701-067-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=250	5-09707-030-1	02	1	0107-0308
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	01	1	0107-0308
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	02	1	0309-
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0107-0308
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z)	1-09332-102-0	01	1	0107-
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0107-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (B)	1-09660-466-0	01	1	0107-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0107-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0107-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0107-
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
457	GASKET (B)	1-09623-594-0	04	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) L=250 ID=7 SERVICED BY L=800	1-83129-031-1	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U) SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	0107-
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	0107-
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) 100X40	1-72498-022-0	04	1	0107-
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0107-
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),MJX16P M/T(Y3Z) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0107-

245 111 112 112 113 112 112 112 112 264 375 375 246 245 114 110 365 112 112 365

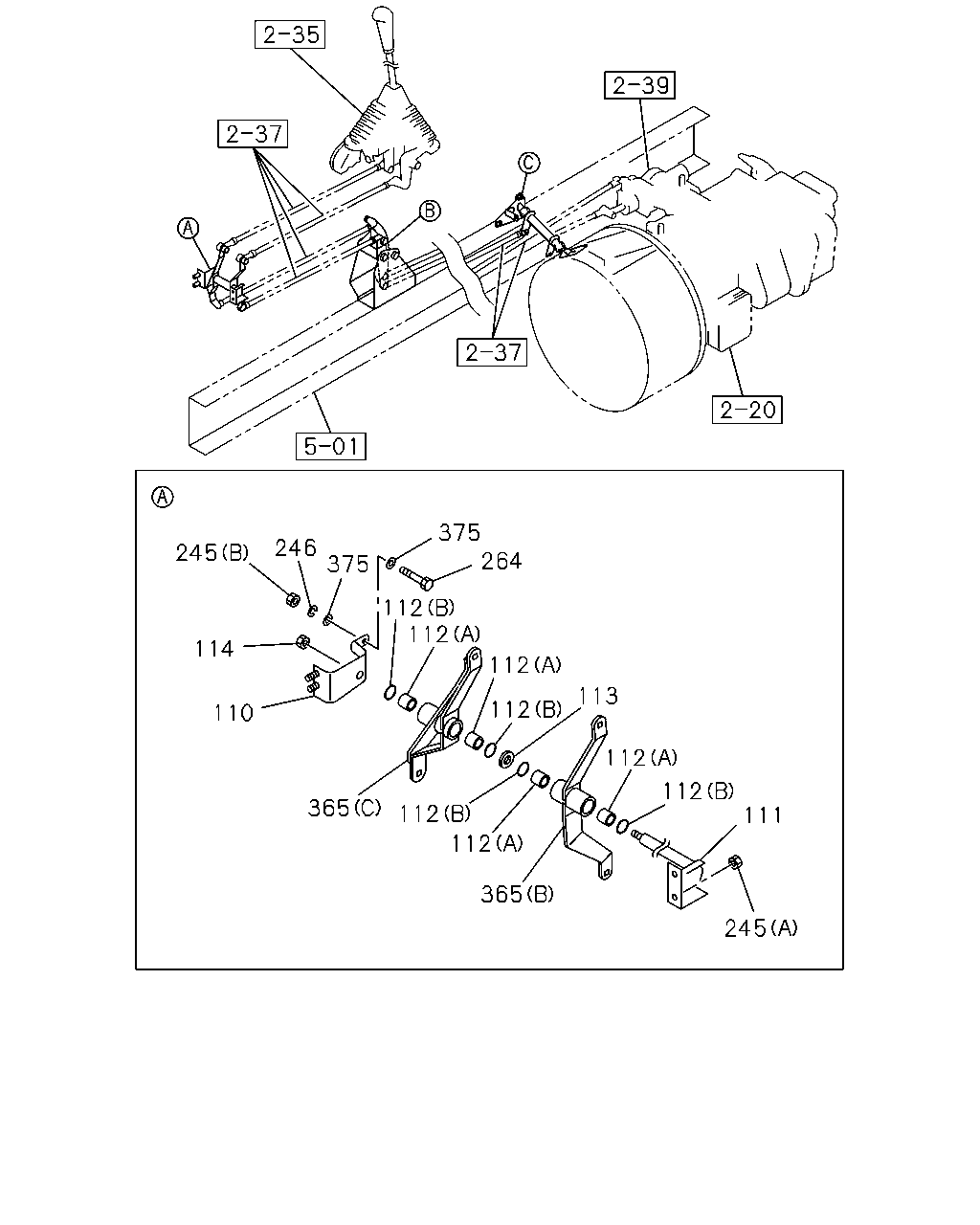

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	0107-
111	SHAFT; RELAY LEVER,1ST	1-33619-468-1	01	1	0107-
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	0107-
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	0107-
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	0107-0605
113	WASHER; RELAY LEVER ID=17 OD=30	0-91610-516-0	01	1	0606-
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	0107-0602
114	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	01	1	0603-
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	0107-0602
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91180-210-0	02	1	0603-
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	0107-
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	0107-
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	0107-0301
264	BOLT; BRKT,RELAY LEVER M10X105	1-79198-008-1	01	1	0302-
365	LEVER; RELAY,SELECT (B)	1-33651-638-1	01	1	0107-
365	LEVER; RELAY,SELECT (C)	1-33651-649-1	01	1	0107-
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	0107-
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0107-
