◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#9983) — 211 parça

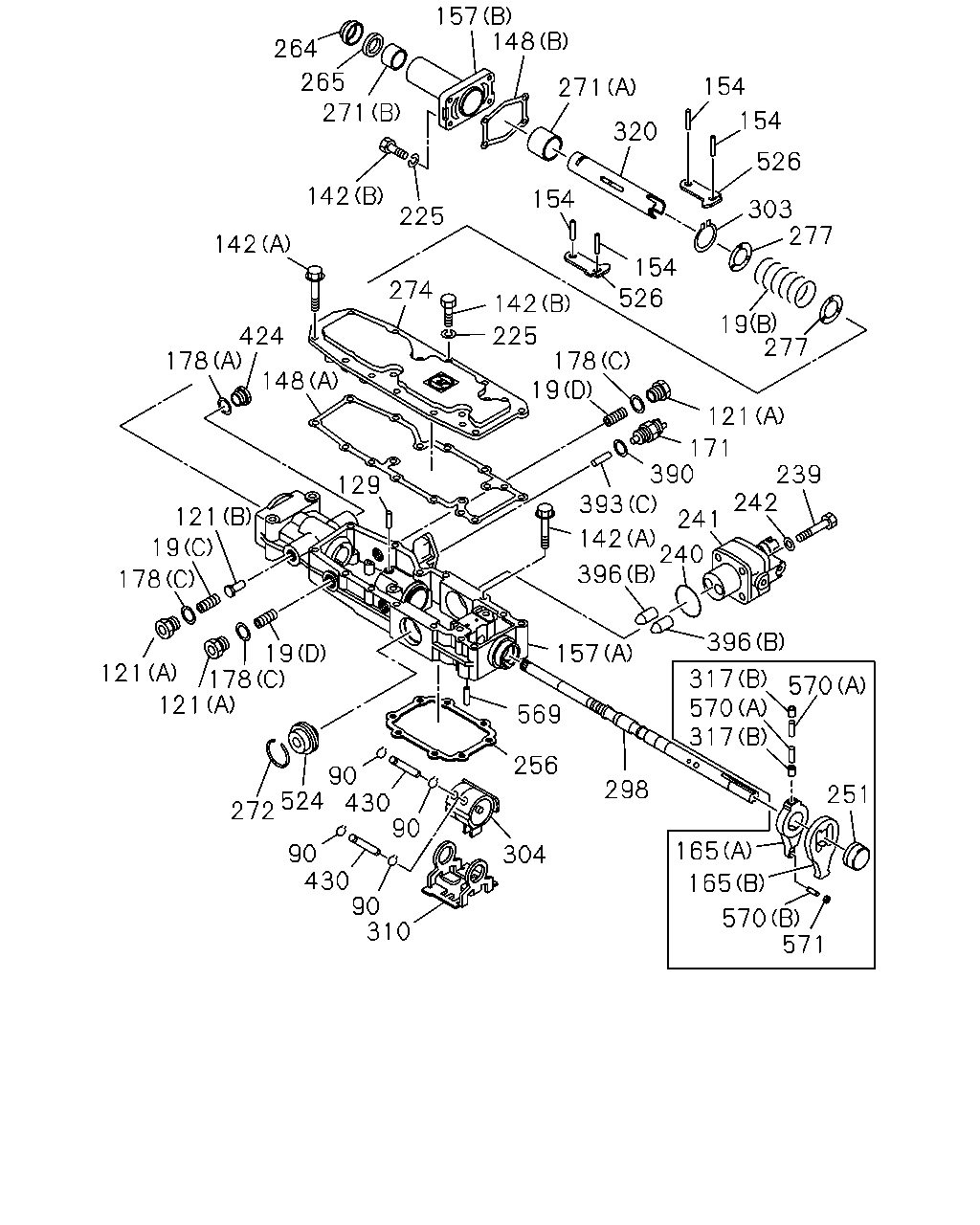

çizim 21592
157 148 271 320 154 154 526 303 277 277 19 526 154 154 142 264 265 271 142 225 142 274 225 178 19 121 171 390 393 142 396 240 241 242 239 396 317 570 570 317 251 571 570 165 165 298 256 304 310 90 430 90 272 524 90 430 90 569 157 19 178 121 121 178 19 121 129 148 178 424
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33539-022-0 02 1 0107-
19 SPRING; COIL COMP
(A) 		1-33519-014-0 01 1 0107-
19 SPRING; COIL COMP
(B) 		1-33539-028-0 01 1 0107-
19 SPRING; COIL COMP
(C) 		1-33539-030-0 01 1 0107-
19 SPRING; COIL COMP
EXC. TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33549-189-0 02 1 0107-
90 RING; SNAP,SHIFT ROD 1-33529-109-0 04 1 0107-
121 PLUG; DETENT SPR
(A) 		1-33549-194-0 03 1 0107-
121 PLUG; DETENT SPR
(B) 		1-33549-305-0 01 1 0107-
129 PIN; SPR,SHIFT 1-33529-107-0 01 1 0107-
142 BOLT; QUAD BOX
(B) M8X30 		1-33549-172-0 09 1 0107-
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-256-0 14 1 0107-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33544-044-0 01 1 0107-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33549-319-0 01 1 0107-
154 PIN; SELECT LEVER 1-33529-040-0 04 1 0107-
157 BOX; QUAD,TRANS
(A) 		1-33549-313-0 01 1 0107-
157 BOX; QUAD,TRANS
(B) 		1-33549-326-0 01 1 0107-
165 LEVER; SHIFT
(A) 		1-33549-321-0 01 1 0107-
165 LEVER; SHIFT
(B) 		1-33549-325-0 01 1 0107-
171 SWITCH; NEUTRAL 1-82440-095-0 01 1 0107-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 01 1 0107-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-057-0 01 1 0107-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33549-195-0 03 1 0107-
225 WASHER; LK,QUAD BOX 1-33549-159-0 09 1 0107-
239 BOLT; CUT OFF VALVE 1-33549-302-0 04 1 0107-
240 GASKET; CUT OFF VALVE 1-33549-198-0 01 1 0107-
241 VALVE; CUT OFF 1-33549-334-0 01 1 0107-
242 WASHER; CUT OFF VALVE 1-33549-159-0 04 1 0107-
251 COVER; SIDE 1-33549-330-0 01 1 0107-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-057-0 01 1 0107-
264 SEAL; DUST,SHAFT 1-33549-327-0 01 1 0107-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-328-0 01 1 0107-
271 BUSHING; QUAD BOX
(A) 		1-33549-318-0 01 1 0107-
271 BUSHING; QUAD BOX
(B) 		1-33549-329-0 01 1 0107-
272 RING; SNAP,QUAD BOX 1-44519-217-0 01 1 0107-
274 COVER; SHAFT,QUAD BOX 1-33549-320-0 01 1 0107-
277 PLATE; SPRING SEAT 1-33539-039-0 02 1 0107-
298 SHAFT; SHIFT LEVER 1-33549-314-0 01 1 0107-
303 RING; SNAP,SHAFT 1-33539-040-0 01 1 0107-
304 BLOCK; SHIFT SHAFT 1-33549-315-0 01 1 0107-
310 PLATE; LOCK,SHIFT LEVER 1-33549-316-0 01 1 0107-
317 BUSHING; LEVER
(A) 		1-09330-119-0 04 1 0107-
317 BUSHING; LEVER
(B) 		1-33549-322-0 02 1 0107-
320 SHAFT; LEVER 1-33549-317-0 01 1 0107-
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 0107-
393 PIN; SW
(A) 		1-33519-029-0 02 1 0107-
393 PIN; SW
(B) 		1-33519-077-0 01 1 0107-
393 PIN; SW
(D) 		1-33519-098-0 01 1 0107-
393 PIN; SW
(C) 		1-33549-335-0 01 1 0107-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-118-0 01 1 0107-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0107-
424 PLUG; NEUTRAL SW HOLE 1-33119-171-0 01 1 0107-
430 PIN; SPR,SHIFT ROD 1-33529-108-0 02 1 0107-
524 DETENT; QUAD BOX 1-33549-197-0 01 1 0107-
526 LEVER; DETENT 1-33549-298-0 02 1 0107-
569 PIN; QUADRANT BOX 1-33529-106-0 01 1 0107-
570 PIN; SHIFT LEVER
(A) 		1-33529-110-0 02 1 0107-
570 PIN; SHIFT LEVER
(B) 		1-33529-111-0 01 1 0107-
571 ROLLER; LEVER 1-33549-324-0 01 1 0107-

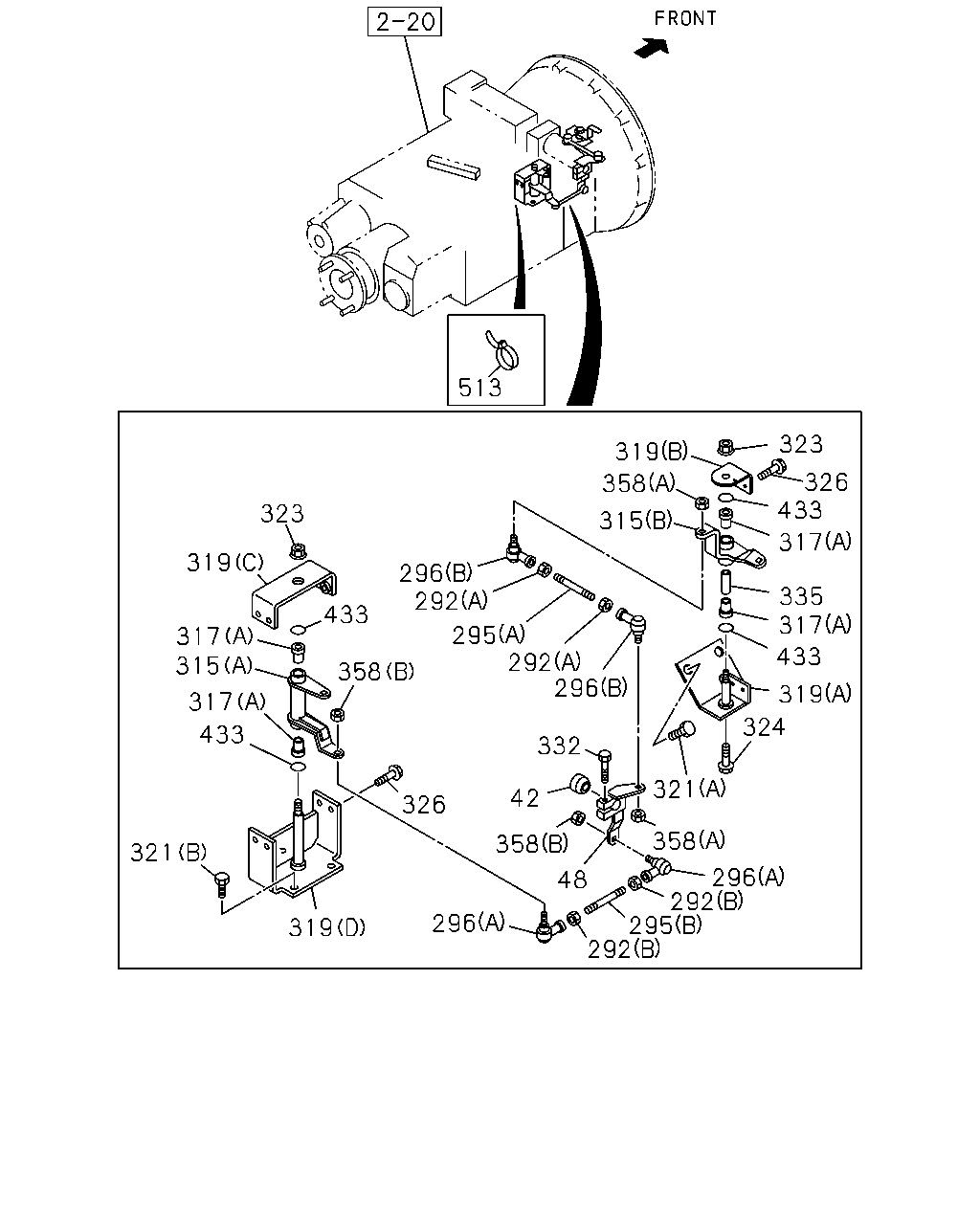

çizim 22118
513 319 323 358 326 315 433 335 317 317 319 433 324 321 358 296 292 295 292 48 358 332 292 296 42 296 326 358 433 296 295 292 323 319 317 315 317 433 321 319
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX 1-33549-111-0 01 1 0107-
48 LEVER; 4TH,SHIFT 1-33651-639-0 01 1 0107-
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0107-0512
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601-
292 NUT; LINK ROD
(B) M10 		9-09111-410-0 02 1 0107-0512
292 NUT; LINK ROD
(B) M10 		0-91111-510-0 02 1 0601-
295 ROD; LINK,RELAY LEVER
(A) M8 L=50 		9-08400-805-0 01 1 0107-
295 ROD; LINK,RELAY LEVER
(B) M8 L=90 		9-08401-009-0 01 1 0107-
296 ROD END
(A) 		1-09760-108-0 02 1 0107-
296 ROD END
(B) 		1-09760-124-0 02 1 0107-
315 LEVER; SELECT
(A) 		1-33651-743-0 01 1 0107-
315 LEVER; SELECT
(B) 		1-33651-775-0 01 1 0107-
317 BUSHING; LEVER
(A) 		1-09330-119-0 04 1 0107-
317 BUSHING; LEVER
(B) 		1-33549-322-0 02 1 0107-
319 BRACKET; SELECT LEVER
(A) 		1-33657-717-0 01 1 0107-
319 BRACKET; SELECT LEVER
(B) 		1-33657-718-0 01 1 0107-
319 BRACKET; SELECT LEVER
(C) 		1-33657-741-0 01 1 0107-
319 BRACKET; SELECT LEVER
(D) 		1-33657-742-0 01 1 0107-
321 BOLT; BRKT,RELAY LEVER
(B) M12X30 		0-28781-230-0 03 1 0107-0512
321 BOLT; BRKT,RELAY LEVER
(B) M12X30 FLANGE 		0-28751-230-0 03 1 0601-
321 BOLT; BRKT,RELAY LEVER
(A) M16X30 FLANGE 		0-28881-630-0 02 1 0107-0512
321 BOLT; BRKT,RELAY LEVER
(A) M16X30 FLANGE 		0-28851-630-0 02 1 0601-
323 NUT; LK,SELECT LEVER 1-33659-219-0 02 1 0107-
324 BOLT; SHAFT
M10X80 FLANGE 		0-28081-080-0 01 1 0107-
326 BOLT; RELAY LEVER ASM
M8X20 FLANGE 		0-28680-820-0 06 1 0107-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28680-840-0 01 1 0107-0512
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 01 1 0601-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-221-0 01 1 0107-
358 NUT; SHIFT ROD
(B) M10 FLANGE 		1-09440-061-0 02 1 0107-
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0107-
358 NUT; SHIFT ROD
(C) 		1-33519-049-0 02 1 0107-
433 GASKET; BUSHING 1-09623-636-0 04 1 0107-
513 CLIP; BAND
L=140 		5-09707-031-1 01 1 0107-

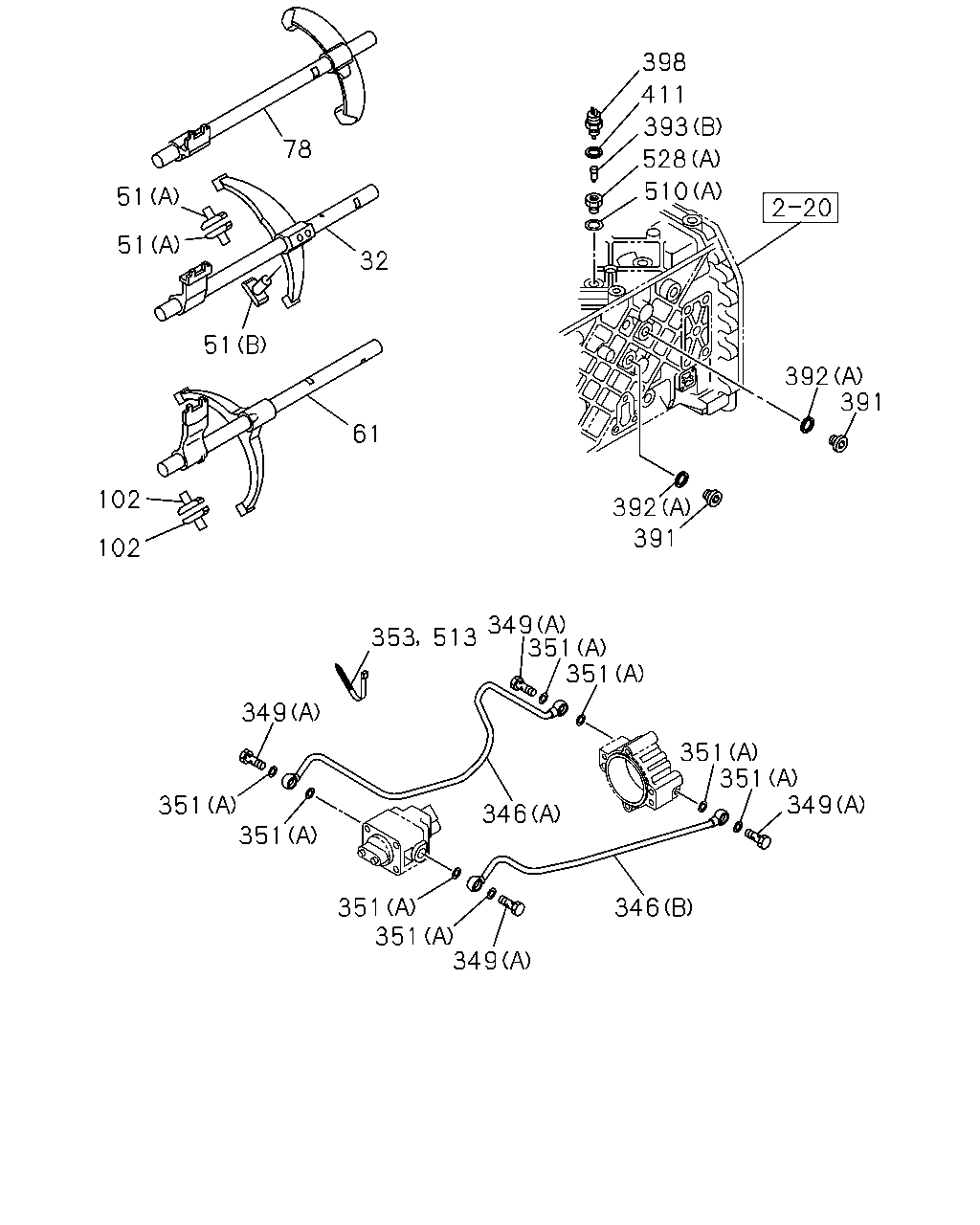

çizim 75254
349 351 351 346 349 351 351 351 351 346 351 351 349 513 353 349 102 102 61 51 32 78 51 51 398 393 411 528 510 392 392 391 391
BalonParca AdiParca NoAdetTipApplied Date
32 ARM; SHIFT,1ST & 2ND 1-33519-127-0 01 1 0107-
51 BLOCK; SHIFT,1ST & 2ND
(A) 		1-33519-053-0 02 1 0107-
51 BLOCK; SHIFT,1ST & 2ND
(B) 		1-33519-116-0 01 1 0107-
61 ARM; SHIFT,3RD & 4TH 1-33511-510-0 01 1 0107-
78 ARM; SHIFT,REV 1-33511-511-0 01 1 0107-
102 BLOCK; SHIFT,3RD & 4TH 1-33519-053-0 02 1 0107-
346 HOSE; AIR
(A) 		1-33549-182-0 01 1 0107-
346 HOSE; AIR
(B) 		1-33549-183-0 01 1 0107-
349 BOLT; EYE,AIR HOSE
(B) 		1-33549-144-0 01 1 0107-
349 BOLT; EYE,AIR HOSE
(A) 		1-33549-155-0 04 1 0107-
351 GASKET; CONNECTOR
(A) 		1-33549-184-0 08 1 0107-
351 GASKET; CONNECTOR
(B) 		1-33549-307-0 04 1 0107-
353 CLIP; AIR HOSE 1-33549-142-0 01 1 0107-
391 PLUG; SW HOLE 1-33119-171-0 02 1 0107-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 04 1 0107-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-097-0 01 1 0107-
393 PIN; SW
(A) 		1-33519-029-0 02 1 0107-
393 PIN; SW
(B) 		1-33519-077-0 01 1 0107-
393 PIN; SW
(D) 		1-33519-098-0 01 1 0107-
393 PIN; SW
(C) 		1-33549-335-0 01 1 0107-
398 SWITCH; REV LAMP 1-82440-095-0 01 1 0107-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). T=2.0 		1-82449-010-0 01 1 0107-
510 GASKET; ADAPTER
(B) T=2.20 		1-33529-074-0 01 1 0107-
510 GASKET; ADAPTER
(A) T=2.0 		1-82449-010-0 01 1 0107-
513 CLIP; BAND
L=140 		5-09707-031-1 01 1 0107-
528 ADAPTER; SWITCH
(A) 		1-33119-278-0 01 1 0107-
528 ADAPTER; SWITCH
(B) 		1-33519-099-0 01 1 0107-

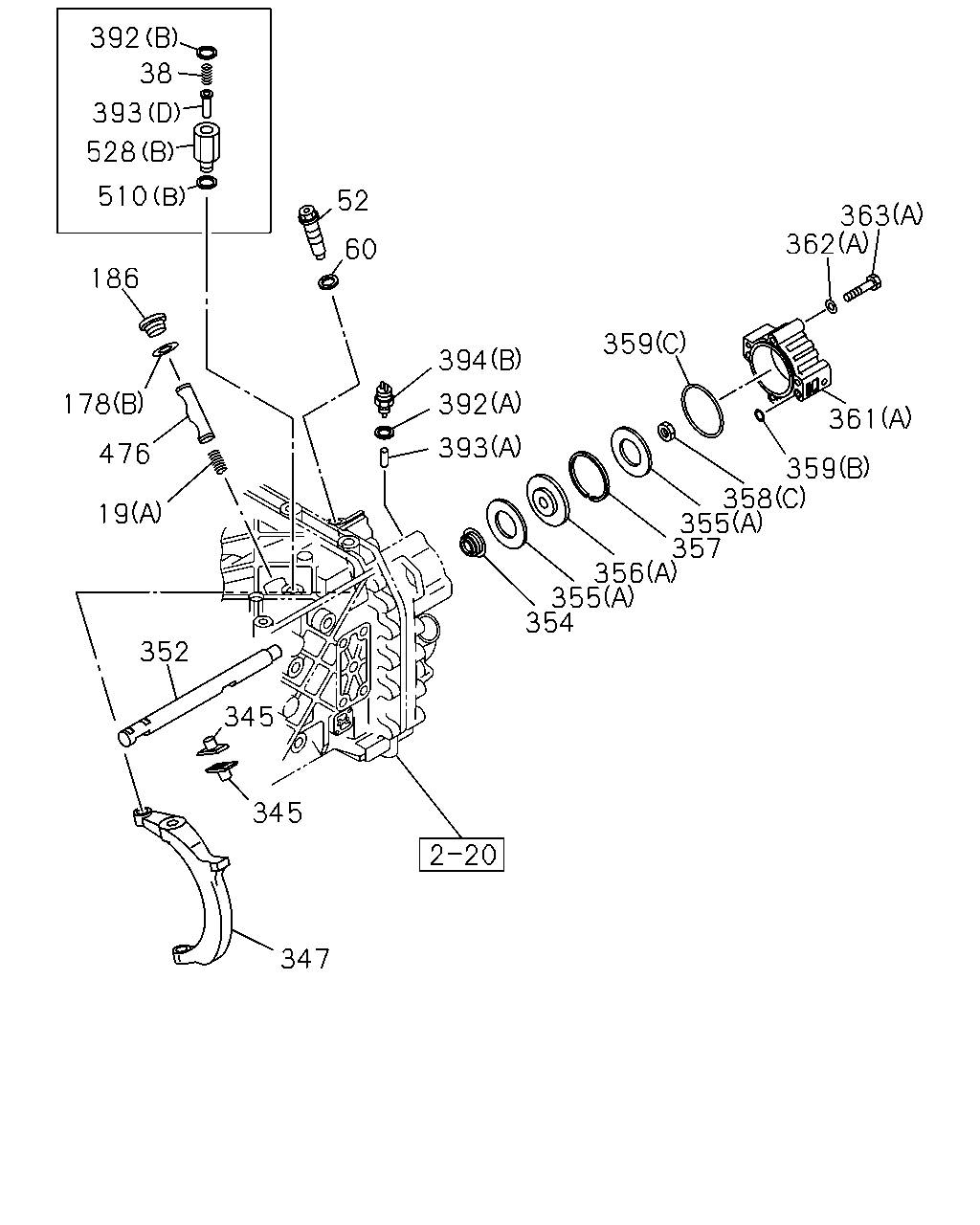

çizim 75271
363 362 359 361 359 358 355 357 356 355 354 347 345 345 352 19 476 178 186 510 528 393 392 38 52 60 394 393 392
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33539-022-0 02 1 0107-
19 SPRING; COIL COMP
(A) 		1-33519-014-0 01 1 0107-
19 SPRING; COIL COMP
(B) 		1-33539-028-0 01 1 0107-
19 SPRING; COIL COMP
(C) 		1-33539-030-0 01 1 0107-
19 SPRING; COIL COMP
EXC. TRANS SELECT DETENT HEAVY<BFU> (D) 		1-33549-189-0 02 1 0107-
38 SPRING; DETENT 1-33519-096-0 01 1 0107-
52 BOLT; SHIFT ARM 1-33519-058-0 01 1 0107-
60 WASHER; LK 1-33519-059-0 02 1 0107-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 01 1 0107-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-057-0 01 1 0107-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). (C) 		1-33549-195-0 03 1 0107-
186 PLUG; SHIFTER ROD 1-33519-056-0 01 1 0107-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-037-0 02 1 0107-
347 ARM; SHIFT,RANGE CHANGE 1-33511-566-0 01 1 0107-
352 ROD; SHIFT,RANGE CHANGE 1-33511-507-0 01 1 0107-
354 SEAL; AIR CYL 1-33519-068-0 02 1 0107-
355 CUP; PISTON,AIR CYL
(B) 		1-33519-070-0 01 1 0107-
355 CUP; PISTON,AIR CYL
(A) 		1-33519-119-0 02 1 0107-
356 PISTON; AIR CYL
(A) 		1-33519-060-0 01 1 0107-
356 PISTON; AIR CYL
(B) 		1-33519-069-0 01 1 0107-
357 RING; GUIDE,AIR CYL 1-33519-032-0 01 1 0107-
358 NUT; SHIFT ROD
(B) M10 FLANGE 		1-09440-061-0 02 1 0107-
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0107-
358 NUT; SHIFT ROD
(C) 		1-33519-049-0 02 1 0107-
359 GASKET; AIR CYL
(A) 		1-09623-606-0 01 1 0107-
359 GASKET; AIR CYL
(B) 		1-33519-034-0 02 1 0107-
359 GASKET; AIR CYL
(D) 		1-33519-072-0 01 1 0107-
359 GASKET; AIR CYL
(C) 		1-33519-121-0 01 1 0107-
361 CYLINDER; AIR,SHIFT
(B) 		1-33519-126-0 01 1 0107-
361 CYLINDER; AIR,SHIFT
(A) 		1-33519-140-0 01 1 0107-
362 WASHER; AIR CYL
(A) 		1-09469-010-0 04 1 0107-
362 WASHER; AIR CYL
(B) 		1-33519-076-0 02 1 0107-
363 BOLT; AIR CYL
(A) 		1-33519-064-0 04 1 0107-
363 BOLT; AIR CYL
(B) 		1-33519-128-0 02 1 0107-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 04 1 0107-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-097-0 01 1 0107-
393 PIN; SW
(A) 		1-33519-029-0 02 1 0107-
393 PIN; SW
(B) 		1-33519-077-0 01 1 0107-
393 PIN; SW
(D) 		1-33519-098-0 01 1 0107-
393 PIN; SW
(C) 		1-33549-335-0 01 1 0107-
394 SWITCH; RANGE CHANGE
(A) 		1-82440-080-1 01 1 0107-
394 SWITCH; RANGE CHANGE
(B) 		1-82440-095-0 02 1 0107-
476 PIN; SHIFT ROD 1-33519-040-0 01 1 0107-
510 GASKET; ADAPTER
(B) T=2.20 		1-33529-074-0 01 1 0107-
510 GASKET; ADAPTER
(A) T=2.0 		1-82449-010-0 01 1 0107-
528 ADAPTER; SWITCH
(A) 		1-33119-278-0 01 1 0107-
528 ADAPTER; SWITCH
(B) 		1-33519-099-0 01 1 0107-

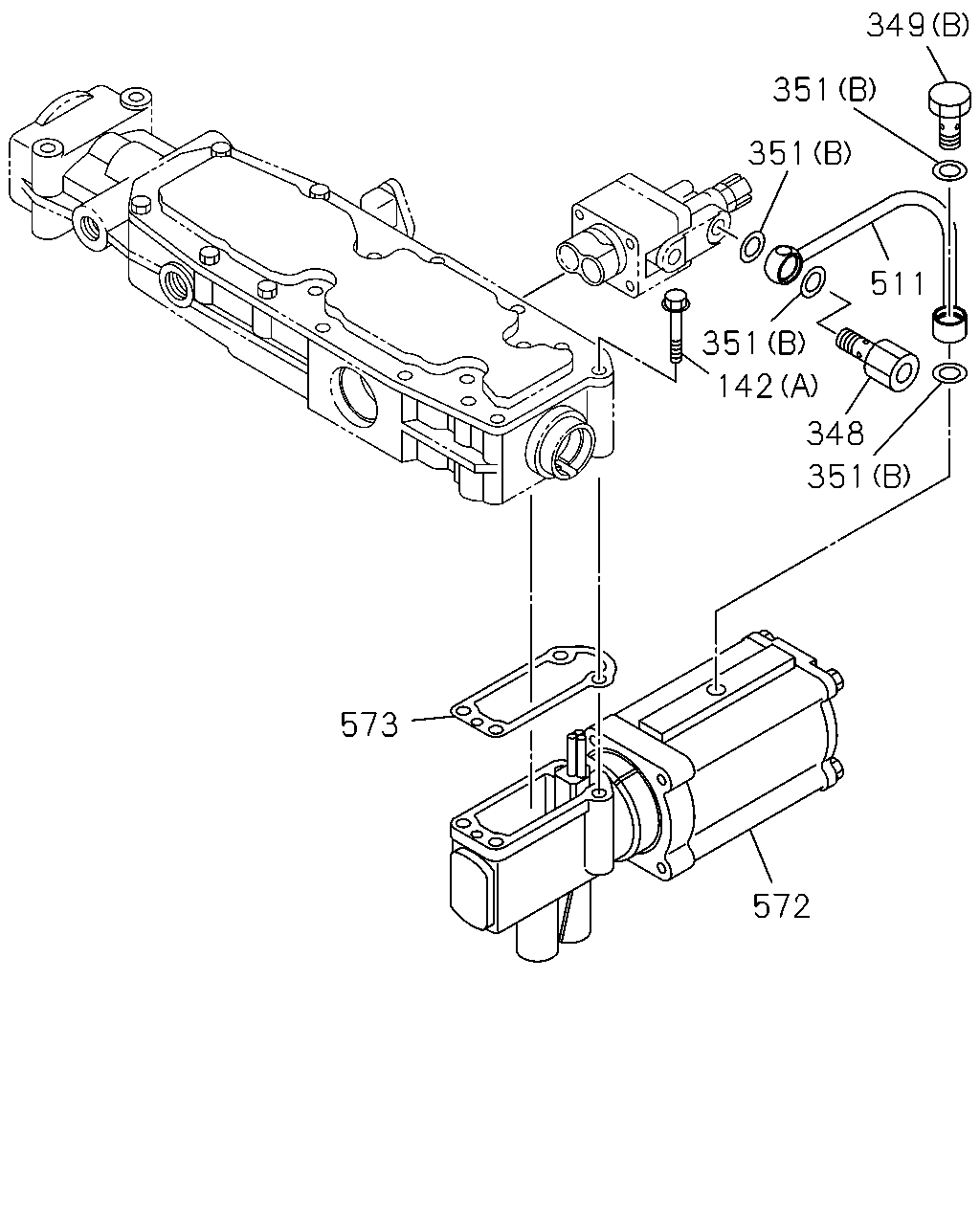

çizim 76396
349 351 351 511 351 142 348 351 572 573
BalonParca AdiParca NoAdetTipApplied Date
142 BOLT; QUAD BOX
(B) M8X30 		1-33549-172-0 09 1 0107-
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-256-0 14 1 0107-
348 CONNECTOR; AIR HOSE 1-33549-333-0 01 1 0107-
349 BOLT; EYE,AIR HOSE
(B) 		1-33549-144-0 01 1 0107-
349 BOLT; EYE,AIR HOSE
(A) 		1-33549-155-0 04 1 0107-
351 GASKET; CONNECTOR
(A) 		1-33549-184-0 08 1 0107-
351 GASKET; CONNECTOR
(B) 		1-33549-307-0 04 1 0107-
511 PIPE; AIR 1-33529-112-0 01 1 0107-
572 SERVO UNIT; GEAR SHIFT 1-33549-331-0 01 1 0107-
573 GASKET; SERVO UNIT 1-33549-332-0 01 1 0107-

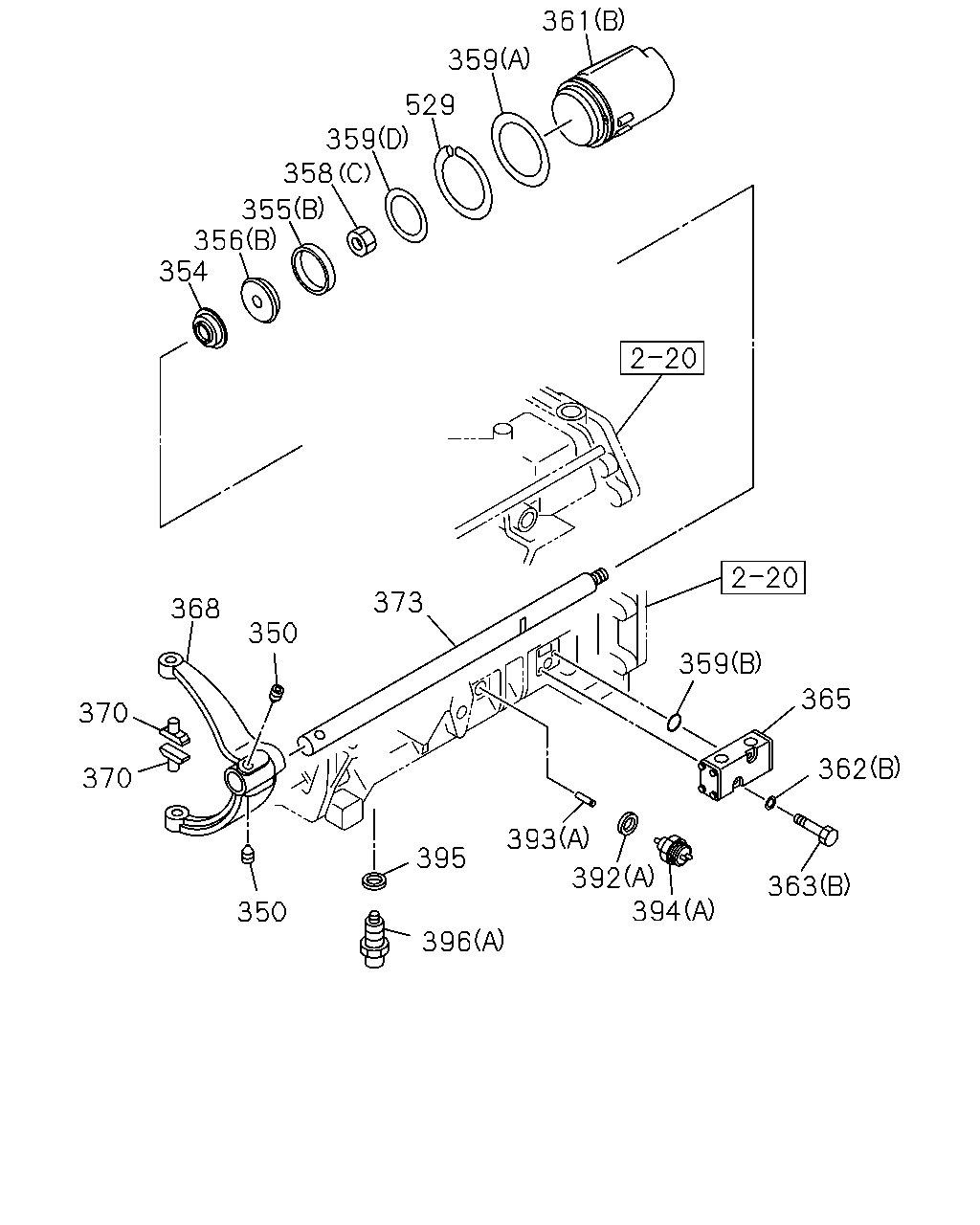

çizim 77391
365 362 363 359 394 392 393 395 396 350 370 368 370 350 373 361 359 529 359 358 355 356 354
BalonParca AdiParca NoAdetTipApplied Date
350 SCREW; SHIFT ARM 1-33519-065-0 02 1 0107-
354 SEAL; AIR CYL 1-33519-068-0 02 1 0107-
355 CUP; PISTON,AIR CYL
(B) 		1-33519-070-0 01 1 0107-
355 CUP; PISTON,AIR CYL
(A) 		1-33519-119-0 02 1 0107-
356 PISTON; AIR CYL
(A) 		1-33519-060-0 01 1 0107-
356 PISTON; AIR CYL
(B) 		1-33519-069-0 01 1 0107-
358 NUT; SHIFT ROD
(B) M10 FLANGE 		1-09440-061-0 02 1 0107-
358 NUT; SHIFT ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0107-
358 NUT; SHIFT ROD
(C) 		1-33519-049-0 02 1 0107-
359 GASKET; AIR CYL
(A) 		1-09623-606-0 01 1 0107-
359 GASKET; AIR CYL
(B) 		1-33519-034-0 02 1 0107-
359 GASKET; AIR CYL
(D) 		1-33519-072-0 01 1 0107-
359 GASKET; AIR CYL
(C) 		1-33519-121-0 01 1 0107-
361 CYLINDER; AIR,SHIFT
(B) 		1-33519-126-0 01 1 0107-
361 CYLINDER; AIR,SHIFT
(A) 		1-33519-140-0 01 1 0107-
362 WASHER; AIR CYL
(A) 		1-09469-010-0 04 1 0107-
362 WASHER; AIR CYL
(B) 		1-33519-076-0 02 1 0107-
363 BOLT; AIR CYL
(A) 		1-33519-064-0 04 1 0107-
363 BOLT; AIR CYL
(B) 		1-33519-128-0 02 1 0107-
365 VALVE; AIR CYL 1-33519-074-0 01 1 0107-0109
365 VALVE; AIR CYL 1-33519-136-0 01 1 0110-
368 ARM; SHIFT,SPLITTER GEAR 1-33511-508-0 01 1 0107-
370 BLOCK; SHIFT,SPLITTER GEAR 1-33519-053-0 02 1 0107-
373 ROD; SHIFT,SPLITTER GEAR 1-33519-129-0 01 1 0107-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33119-249-0 04 1 0107-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33519-097-0 01 1 0107-
393 PIN; SW
(A) 		1-33519-029-0 02 1 0107-
393 PIN; SW
(B) 		1-33519-077-0 01 1 0107-
393 PIN; SW
(D) 		1-33519-098-0 01 1 0107-
393 PIN; SW
(C) 		1-33549-335-0 01 1 0107-
394 SWITCH; RANGE CHANGE
(A) 		1-82440-080-1 01 1 0107-
394 SWITCH; RANGE CHANGE
(B) 		1-82440-095-0 02 1 0107-
395 GASKET; PLUNGER 1-33549-167-0 01 1 0107-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-118-0 01 1 0107-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 0107-
529 SPRING; AIR CYL 1-33519-078-0 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
