◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26B - MANUAL TRANSMISSION GEAR ▶
2-26B — MANUAL TRANSMISSION GEAR (#9981) — 229 parça

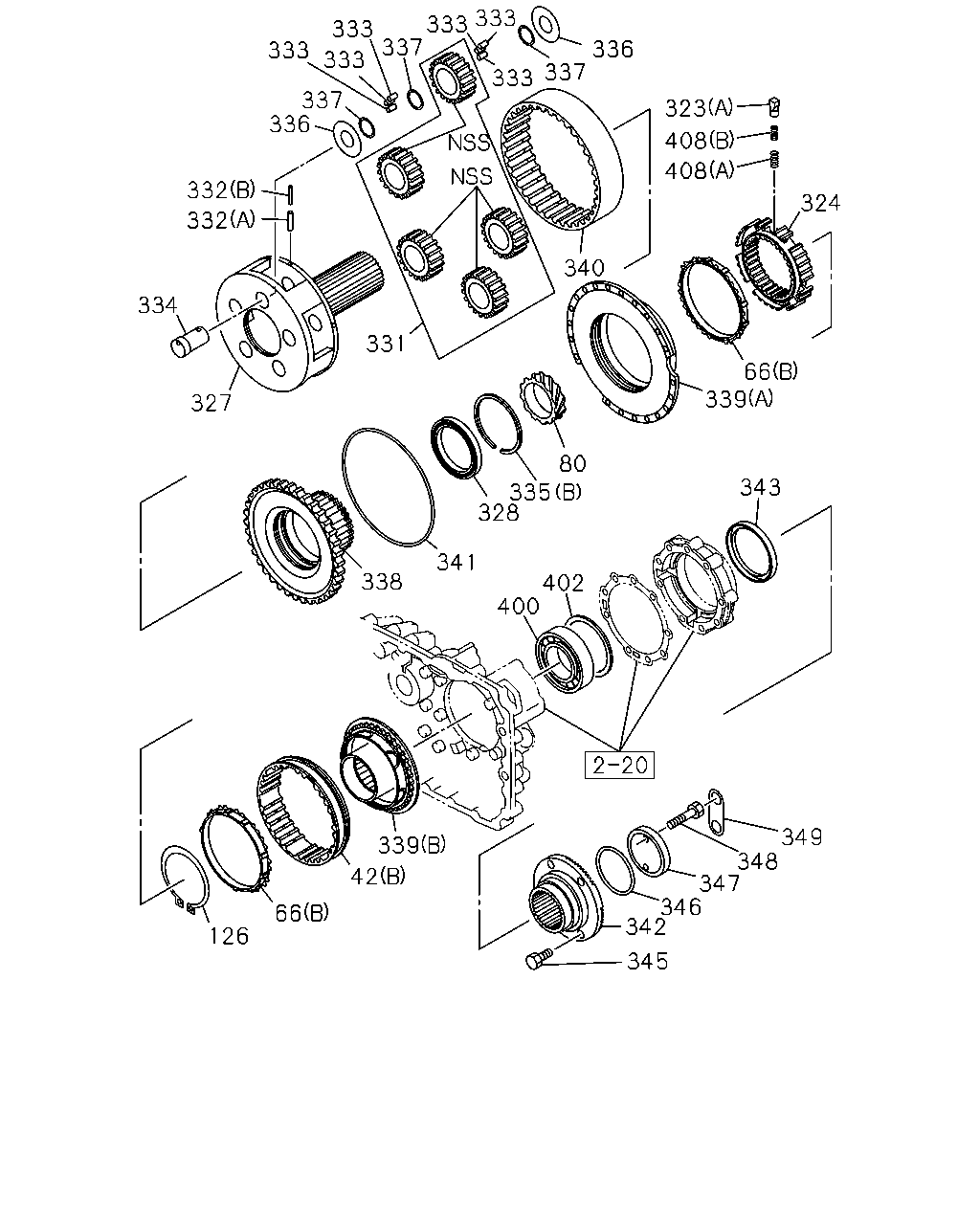

çizim 21484
336 337 333 333 333 337 333 333 333 337 336 332 332 334 327 331 340 323 408 408 324 66 339 80 335 328 341 338 126 66 42 339 345 342 346 347 348 349 400 402 343
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE
(A) 		1-33262-208-0 01 1 0107-
42 SLEEVE
(B) 		1-33339-020-0 01 1 0107-
66 RING; BLOCK,SYN
(A) 		1-33219-241-0 02 1 0107-
66 RING; BLOCK,SYN
(B) 		1-33339-069-0 02 1 0107-
80 GEAR; SPD DRIVE 1-33371-061-0 01 1 0107-
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 01 1 0107-
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 01 1 0107-
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 01 1 0107-
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 01 1 0107-
323 INSERT
(A) 		1-33263-027-0 09 1 0107-
323 INSERT
(B) 		1-33263-030-0 09 1 0107-
324 HUB; CLU 1-33261-227-0 01 1 0107-
327 CARRIER; PLANETARY GEAR 1-33231-281-0 01 1 0107-
328 BEARING; CARRIER 1-33339-039-0 01 1 0107-
331 GEAR SET; PLANETARY 1-33239-180-0 01 1 0107-
332 PIN; LOCK,SHAFT
(A) 		1-33239-185-0 05 1 0107-
332 PIN; LOCK,SHAFT
(B) 		1-33239-186-0 05 1 0107-
333 ROLLER; PLANETARY GEAR 1-33239-183-0 AR 1 0107-
334 SHAFT; PLANETARY GEAR 1-33239-184-0 05 1 0107-
335 RING; SNAP,BEARING
(A) 		1-33219-246-0 01 1 0107-
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-081-0 01 1 0107-
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-082-0 01 1 0107-
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-083-0 01 1 0107-
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-084-0 01 1 0107-
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-085-0 01 1 0107-
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-086-0 01 1 0107-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-182-0 10 1 0107-
337 WASHER; PLANETARY GEAR,INNER 1-33239-181-0 15 1 0107-
338 CARRIER; RING GEAR 1-33331-237-0 01 1 0107-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33261-226-0 01 1 0107-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-441-0 01 1 0107-
340 GEAR; RING 1-33339-011-0 01 1 0107-
341 WIRE; LOCK,CARRIER 1-33339-012-0 01 1 0107-
342 FLANGE; OUTPUT 1-37243-294-0 01 1 0107-
343 SEAL; FLANGE 1-33139-052-0 01 1 0107-
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 0107-
346 GASKET; FLANGE 1-34155-035-0 01 1 0107-
347 WASHER; FLANGE 1-37249-149-0 01 1 0107-
348 BOLT; SHAFT 1-37249-150-0 02 1 0107-
349 WASHER; LK,SHAFT 1-37249-151-0 01 1 0107-
400 BEARING; OUTPUT SHAFT RR 1-33139-014-0 01 1 0107-
402 SHIM
T=0.60 		1-33139-015-0 01 1 0107-
402 SHIM
T=0.50 		1-33139-016-0 01 1 0107-
402 SHIM
T=0.30 		1-33139-017-0 01 1 0107-
402 SHIM
T=0.40 		1-33139-018-0 01 1 0107-
402 SHIM
T=0.20 		1-33139-019-0 01 1 0107-
408 SPRING
(A) 		1-33269-038-0 09 1 0107-
408 SPRING
(B) 		1-33269-039-0 09 1 0107-
408 SPRING
(C) 		1-33269-042-0 09 1 0107-

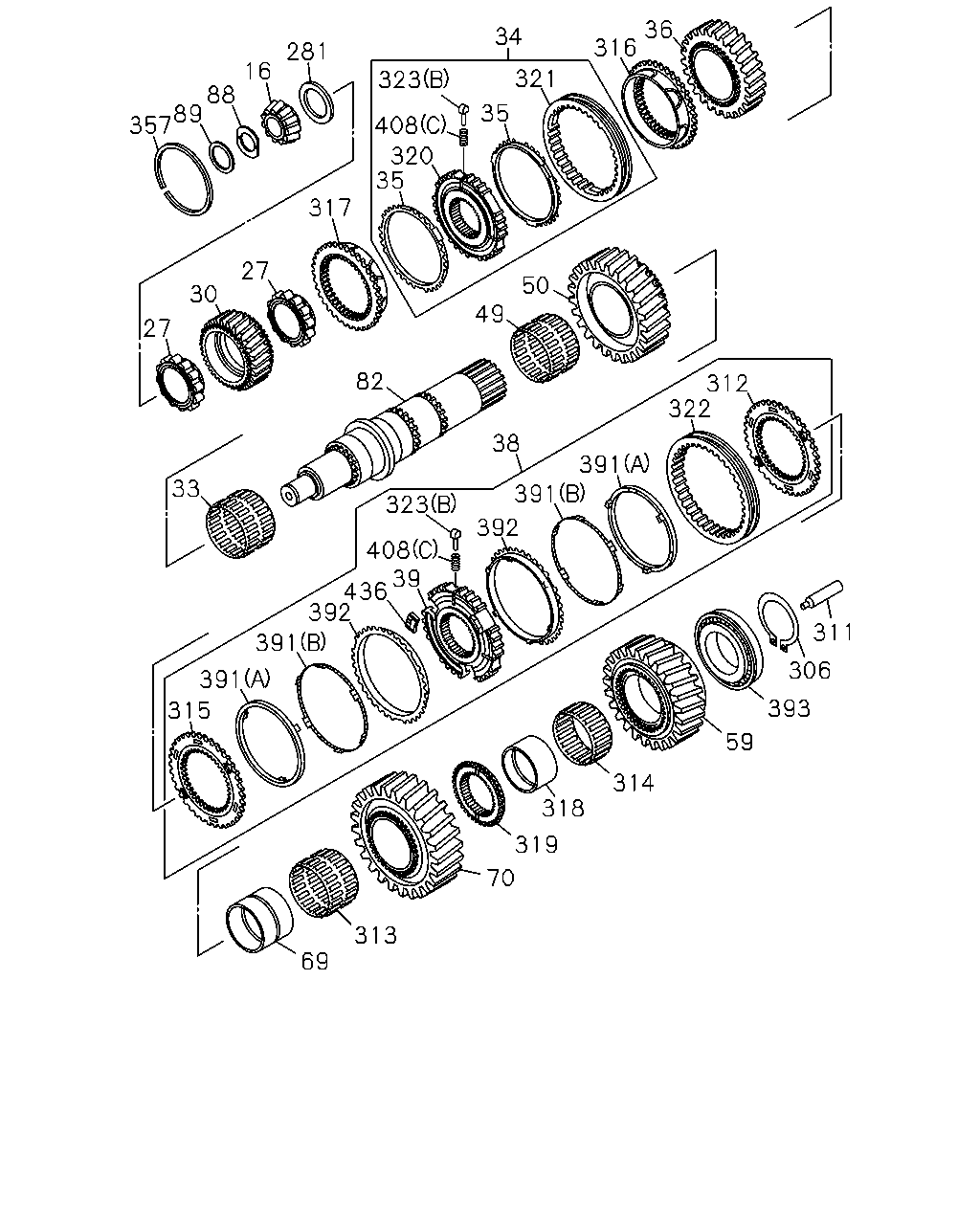

çizim 22343
357 89 88 16 281 34 36 316 321 35 323 408 320 35 317 27 30 27 33 82 49 50 312 322 391 391 38 392 323 408 39 436 392 391 391 315 69 313 70 319 318 314 59 393 306 311
BalonParca AdiParca NoAdetTipApplied Date
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 0107-
27 BEARING; 4TH GEAR 1-33259-042-0 02 1 0107-
30 GEAR; 4TH,MAINSHAFT 1-33251-400-0 01 1 0107-
33 BEARING; NEEDLE,3RD GEAR 1-33239-187-0 01 1 0107-
34 SYNCHRONIZER; 4TH & 3RD 1-33260-151-0 01 1 0107-
35 RING; BLOCK,4TH & 3RD 1-33219-241-0 02 1 0107-
36 GEAR; 3RD,MAINSHAFT 1-33251-399-0 01 1 0107-
38 SYNCHRONIZER; LOW & 2ND 1-33260-152-0 01 1 0107-
39 HUB; CLU,LOW & 2ND 1-33261-224-0 01 1 0107-
49 BEARING; NEEDLE,2ND GEAR 1-33239-187-0 01 1 0107-
50 GEAR; 2ND,MAINSHAFT 1-33251-397-0 01 1 0107-
59 GEAR; REV MAINSHAFT 1-33257-083-0 01 1 0107-
69 COLLAR; 1ST GEAR MAIN 1-33259-038-0 01 1 0107-
70 GEAR; 1ST,MAINSHAFT 1-33251-398-0 01 1 0107-
82 SHAFT; MAIN,TRANS 1-33231-282-0 01 1 0107-
88 RING; THRUST,THRUST WASHER
T=4.90 		1-33239-213-0 02 1 0107-
88 RING; THRUST,THRUST WASHER
T=4.70 		1-33239-214-0 02 1 0107-
88 RING; THRUST,THRUST WASHER
T=4.60 		1-33239-215-0 02 1 0107-
88 RING; THRUST,THRUST WASHER
T=5.00 		1-33239-305-0 02 1 0107-
88 RING; THRUST,THRUST WASHER
T=4.80 		1-33239-306-0 02 1 0107-
89 RING; RET,THRUST RING 1-33239-216-0 01 1 0107-
281 WASHER; THRUST,MAINSHAFT
T=8.30 		1-33239-210-0 01 1 0107-
281 WASHER; THRUST,MAINSHAFT
T=7.90 		1-33239-211-0 01 1 0107-
306 RING; SNAP,MAINSHAFT
T=2.50 		1-33239-098-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=2.40 		1-33239-099-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=2.30 		1-33239-100-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=2.20 		1-33239-101-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=3.50 		1-33239-189-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=3.45 		1-33239-190-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=3.40 		1-33239-191-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=3.35 		1-33239-192-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=3.30 		1-33239-193-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=3.25 		1-33239-194-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=3.20 		1-33239-195-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=3.15 		1-33239-196-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=3.10 		1-33239-197-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=3.05 		1-33239-198-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=3.00 		1-33239-199-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=2.95 		1-33239-200-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=2.90 		1-33239-201-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=2.85 		1-33239-202-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=2.80 		1-33239-203-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=2.70 		1-33239-204-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=2.60 		1-33239-205-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=3.55 		1-33239-206-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=3.60 		1-33239-207-0 AR 1 0107-
306 RING; SNAP,MAINSHAFT
T=3.65 		1-33239-208-0 AR 1 0107-
311 PIPE; MAINSHAFT 1-33239-209-0 01 1 0107-
312 CLUTCH; DOG,1ST GEAR 1-33265-439-0 01 1 0107-
313 BEARING; NEEDLE,LOW GEAR 1-33259-039-0 01 1 0107-
314 BEARING; NEEDLE,REV GEAR 1-33259-041-0 01 1 0107-
315 CLUTCH; DOG,2ND GEAR 1-33265-439-0 01 1 0107-
316 CLUTCH; DOG,3RD GEAR 1-33265-436-0 01 1 0107-
317 CLUTCH; DOG,4TH GEAR 1-33265-436-0 01 1 0107-
318 COLLAR; DIST,REV GEAR 1-33259-040-0 01 1 0107-
319 CLUTCH; SLIDING 1-33261-225-0 01 1 0107-
320 HUB; CLU,4TH & 3RD 1-33261-228-0 01 1 0107-
321 SLEEVE; SYN,4TH & 3RD 1-33262-208-0 01 1 0107-
322 SLEEVE; SYN,LOW & 2ND 1-33269-079-0 01 1 0107-
323 INSERT
(A) 		1-33263-027-0 09 1 0107-
323 INSERT
(B) 		1-33263-030-0 09 1 0107-
357 RING
T=4.00 		1-33239-217-0 01 1 0107-
357 RING
T=3.60 		1-33239-218-0 01 1 0107-
391 RING; INSIDE,SYN
(A) 		1-33265-440-0 02 1 0107-
391 RING; INSIDE,SYN
(B) 		1-33269-044-0 02 1 0107-
392 RING; OUTSIDE,SYN 1-33269-045-0 02 1 0107-
393 BEARING; MAINSHAFT END 1-33239-307-0 01 1 0107-
408 SPRING
(A) 		1-33269-038-0 09 1 0107-
408 SPRING
(B) 		1-33269-039-0 09 1 0107-
408 SPRING
(C) 		1-33269-042-0 09 1 0107-
436 KEY; LOW & 2ND 1-33269-046-0 03 1 0107-

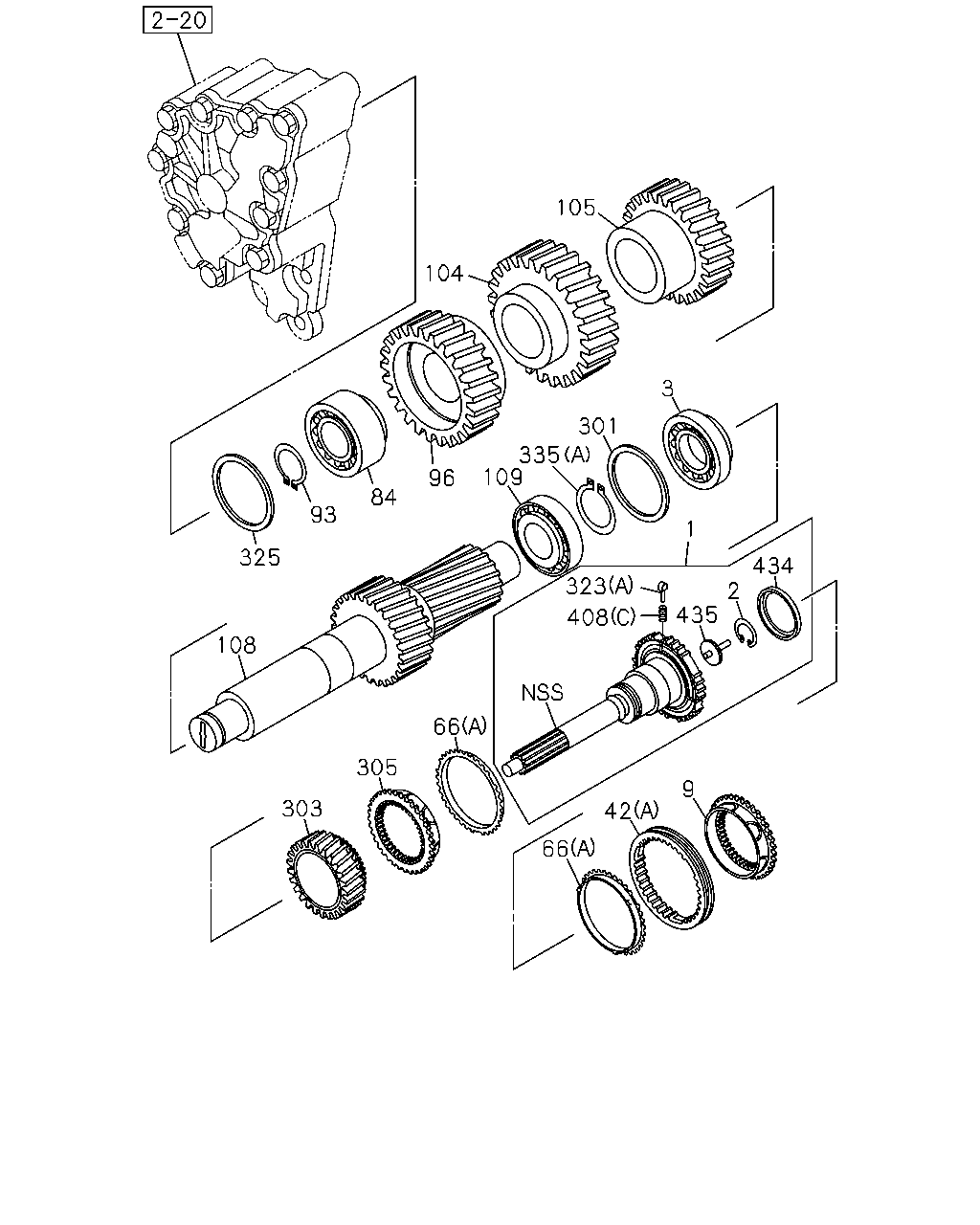

çizim 75347
105 104 3 301 335 109 96 84 93 325 108 303 305 66 66 42 9 434 2 435 1 323 408
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33219-239-0 01 1 0107-
2 RING; SNAP,TOP GEAR SHAFT 1-33219-115-0 01 1 0107-
3 BEARING; TOP GEAR SHAFT 1-33219-242-0 01 1 0107-
9 CLUTCH; DOG,TOP GEAR 1-33265-437-0 01 1 0107-
42 SLEEVE
(A) 		1-33262-208-0 01 1 0107-
42 SLEEVE
(B) 		1-33339-020-0 01 1 0107-
66 RING; BLOCK,SYN
(A) 		1-33219-241-0 02 1 0107-
66 RING; BLOCK,SYN
(B) 		1-33339-069-0 02 1 0107-
84 BEARING; COUNTER SHAFT,FRT 1-33319-087-0 01 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=3.20 		1-33319-061-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=3.15 		1-33319-062-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=3.10 		1-33319-063-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=3.05 		1-33319-064-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=3.00 		1-33319-065-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.95 		1-33319-066-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.90 		1-33319-067-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.85 		1-33319-068-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.80 		1-33319-069-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.75 		1-33319-070-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.70 		1-33319-071-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.65 		1-33319-072-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.60 		1-33319-073-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.55 		1-33319-074-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-075-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.45 		1-33319-076-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-077-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.35 		1-33319-078-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-079-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.25 		1-33319-080-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-081-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.15 		1-33319-082-0 AR 1 0107-
93 RING; SNAP,COUNTER FRT BRG
T=2.10 		1-33319-083-0 AR 1 0107-
96 GEAR; COUNTER DRIVE 1-33331-260-0 01 1 0107-
104 GEAR; 4TH,COUNTER 1-33338-376-0 01 1 0107-
105 GEAR; 3RD,COUNTER 1-33333-164-0 01 1 0107-
108 SHAFT; COUNTER 1-33311-314-0 01 1 0107-
109 BEARING; COUNTER SHAFT,RR 1-33319-087-0 01 1 0107-
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33219-117-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33219-118-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-119-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-120-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-121-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33219-122-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33219-123-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33219-124-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33219-125-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33219-126-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33219-127-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33219-128-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33219-129-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33219-130-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33219-131-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33219-132-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33219-133-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33219-134-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33219-135-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33219-136-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33219-137-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33219-138-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33219-139-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.05 		1-33219-140-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=1.00 		1-33219-141-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=0.95 		1-33219-142-0 AR 1 0107-
301 SHIM; TOP GEAR SHAFT
T=0.90 		1-33219-143-0 AR 1 0107-
303 GEAR; SPLITTER 1-33219-252-0 01 1 0107-
305 CLUTCH; DOG,SPLITTER GEAR 1-33265-436-0 01 1 0107-
323 INSERT
(A) 		1-33263-027-0 09 1 0107-
323 INSERT
(B) 		1-33263-030-0 09 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33319-108-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33319-109-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33319-110-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33319-111-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33319-112-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33319-113-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33319-114-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33319-115-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33319-116-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33319-117-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33319-118-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33319-119-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33319-120-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33319-121-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33319-122-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33319-123-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33319-124-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33319-125-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33319-126-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33319-127-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33319-128-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33319-129-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33319-130-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33319-131-0 AR 1 0107-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33319-132-0 AR 1 0107-
335 RING; SNAP,BEARING
(A) 		1-33219-246-0 01 1 0107-
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-081-0 01 1 0107-
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-082-0 01 1 0107-
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-083-0 01 1 0107-
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-084-0 01 1 0107-
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-085-0 01 1 0107-
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-086-0 01 1 0107-
408 SPRING
(A) 		1-33269-038-0 09 1 0107-
408 SPRING
(B) 		1-33269-039-0 09 1 0107-
408 SPRING
(C) 		1-33269-042-0 09 1 0107-
434 GASKET; INPUTSHAFT 1-33219-116-0 01 1 0107-
435 PIPE; INPUTSHAFT 1-33219-114-0 01 1 0107-

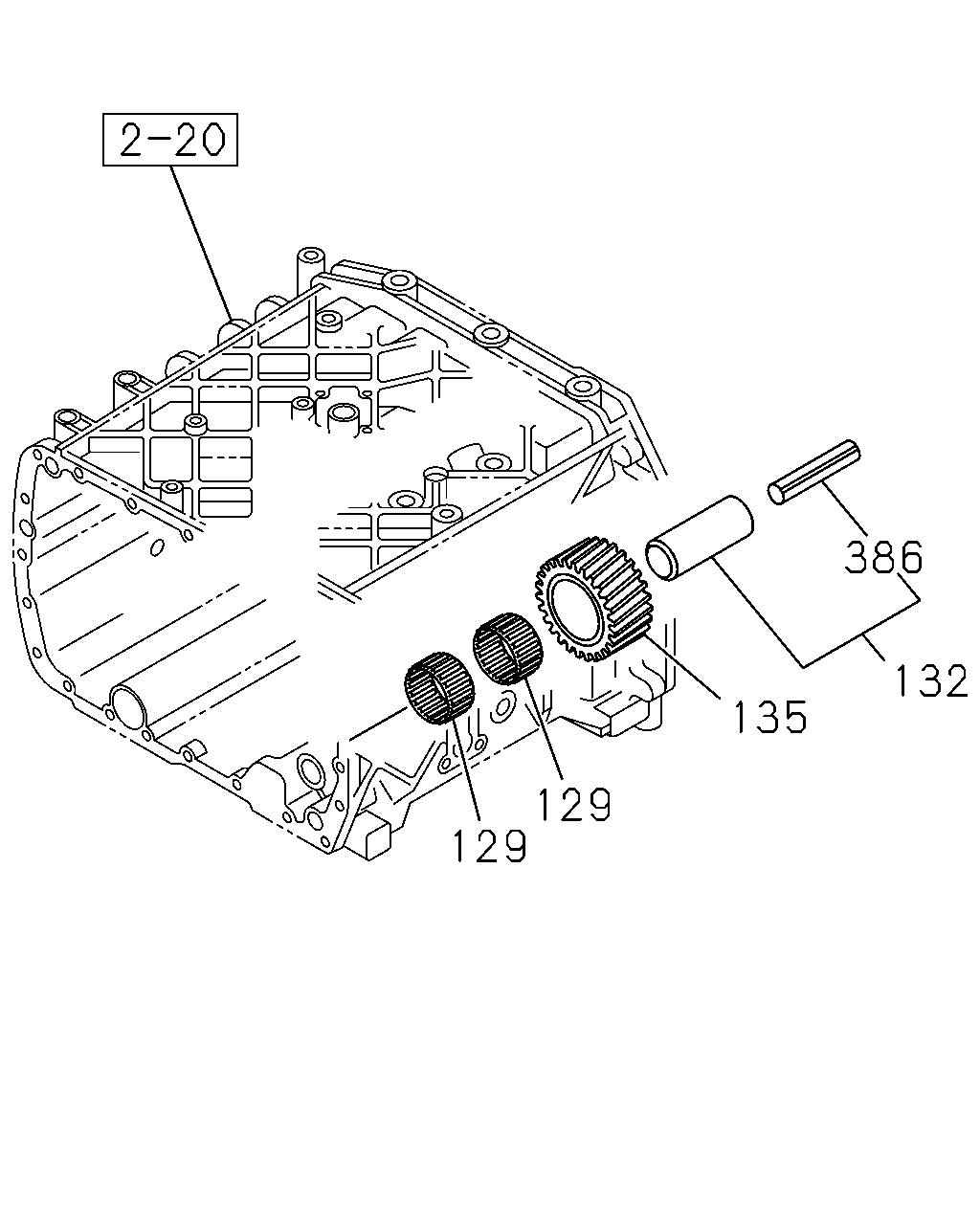

çizim 75410
386 132 135 129 129
BalonParca AdiParca NoAdetTipApplied Date
129 BEARING; NEEDLE,IDLER 1-33369-019-0 02 1 0107-
132 SHAFT; REV 1-33351-034-0 01 1 0107-
135 GEAR; REV IDLER 1-33361-083-0 01 1 0107-
386 PIN; REV SHAFT 1-33359-013-0 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
