Sayfa 2-20B - Isuzu EPC

2-20B — MANUAL TRANSMISSION ASM AND CASE (#9977) — 228 parça

375 375 511 511 192 192 359 359 375 245 245 170 175 175 534 353 303 177 164 356 265 175 271 176 180 182 181 422 432 303 506 511 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

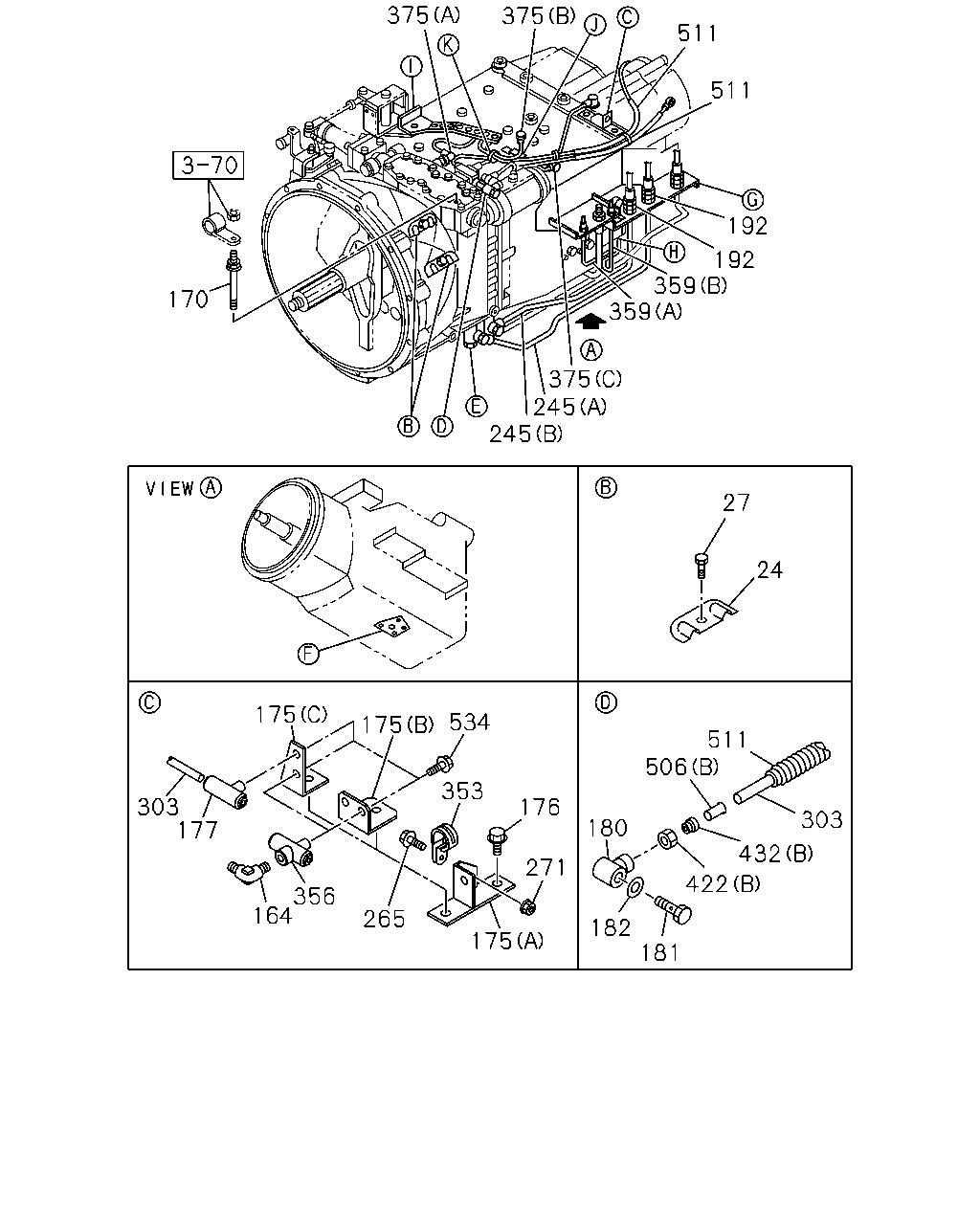

24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	0107-
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	0107-0512
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28851-625-0	02	1	0601-
164	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-
170	STUD; QUAD BOX	1-09052-017-1	01	1	0108-
175	BRACKET; UNION (B)	1-47477-572-0	01	1	0107-0107
175	BRACKET; UNION (C)	1-47479-299-0	01	1	0107-
175	BRACKET; UNION (A)	1-47477-545-0	01	1	0107-
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	0107-0512
176	BOLT; UNION BRKT M16X25 FLANGE	0-28851-625-0	02	1	0601-
177	UNION; NYLON TUBE DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0107-
180	CONNECTOR; NYLON TUBE	1-09660-239-0	01	1	0107-
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	0107-
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	0107-
192	HOSE; FLEX,TRANS OUTER L=400	1-09364-913-0	01	1	0107-
192	HOSE; FLEX,TRANS INLET L=500	1-09364-914-0	01	1	0107-
245	PIPE; OIL (A)	1-49161-055-0	01	1	0107-
245	PIPE; OIL (B)	1-49161-061-0	01	1	0107-
265	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0107-0107
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
271	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0107-0107
303	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0107-
303	TUBE; NYLON CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0107-0201
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212
303	TUBE; NYLON CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
303	TUBE; NYLON CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-0201
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0202-0212
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-
353	CLIP; NYLON TUBE ID=24 L=27	1-09700-809-0	01	1	0107-0107
353	CLIP; NYLON TUBE L=250	1-09707-126-0	03	1	0107-
356	UNION DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0107-
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	0107-
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	0107-0109
359	PIPE; AIR,TRANS TO UNION (A)	1-49123-133-0	01	1	0110-
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	0107-0109
359	PIPE; AIR,TRANS TO UNION (B)	1-49123-134-0	01	1	0110-
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	0107-
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	0107-
375	CABLE; TRANS (C) L=880	1-82659-137-1	01	1	0107-
422	NUT; SLEEVE (B) M18	1-09660-213-0	01	1	0107-
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	0107-
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	0107-
432	SLEEVE; TUBE (B) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0107-
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	0107-
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0107-
506	INSERT (B) ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0107-
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0107-
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0107-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0202-
511	TUBE; CORRUGATE L=250 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0107-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-0107
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-0107
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0107-0201
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0202-
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0107-
534	BOLT; UNION M8X12 FLANGE	0-28080-812-0	01	1	0107-0107
534	BOLT; UNION M8X16 FLANGE	0-28080-816-0	02	1	0107-0512
534	BOLT; UNION M8X16 FLANGE	0-28050-816-0	02	1	0601-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

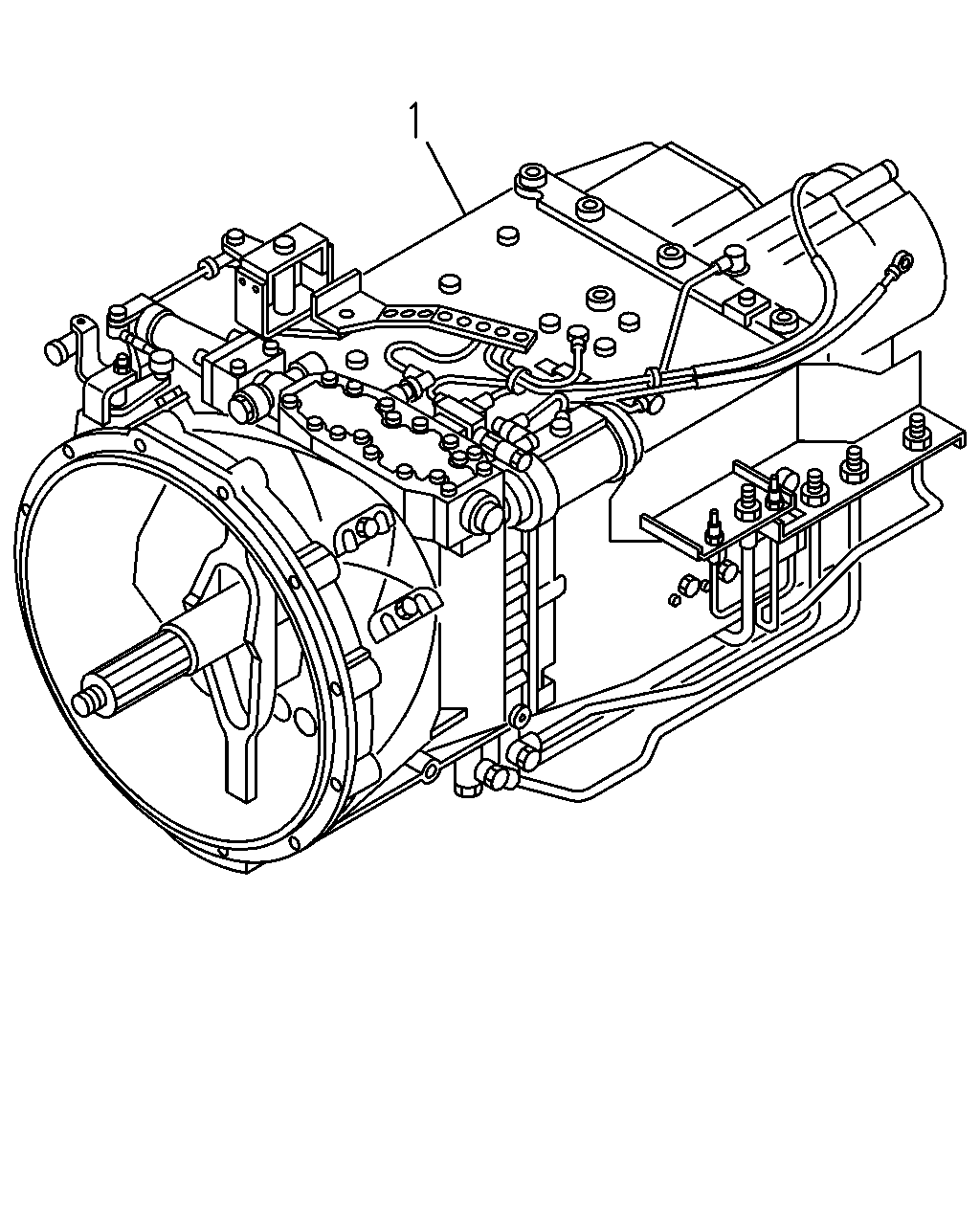

1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33043-021-0	01	1	0107-0109
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33043-383-0	01	1	0110-
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-33043-023-0	01	1	0107-0109
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-33043-387-0	01	1	0110-
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-033-0	01	1	0107-0109
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33043-381-0	01	1	0110-
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-034-0	01	1	0107-0109
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33043-385-0	01	1	0110-
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM)	1-33043-020-0	01	1	0107-0109
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM)	1-33043-382-0	01	1	0110-
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM)	1-33043-022-0	01	1	0107-0109
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM)	1-33043-386-0	01	1	0110-
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-017-0	01	1	0107-0109
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33043-380-0	01	1	0110-
1	TRANSMISSION ASM; MANUAL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-018-0	01	1	0107-0109
1	TRANSMISSION ASM; MANUAL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33043-384-0	01	1	0110-

415 62 86 87 419 328 328 419 427 327 86 86 86 86 86 86 86 86 86 328 419 429 86 100 101 86 86 86 86 86 62 451 62 429 326 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

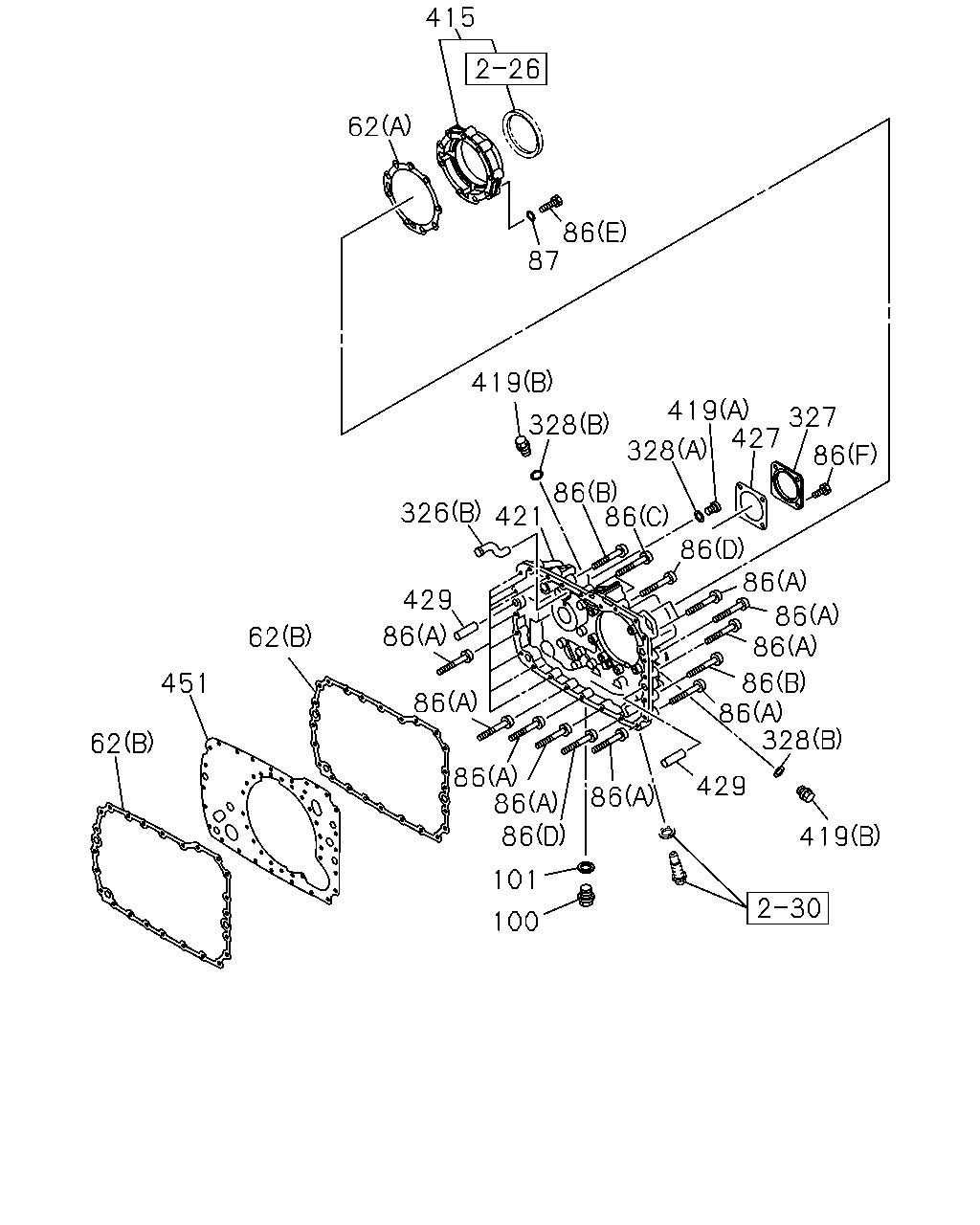

62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33119-399-0	02	1	0107-
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33139-053-0	01	1	0107-
86	BOLT; RR COVER (A)	1-33119-266-0	18	1	0107-
86	BOLT; RR COVER (E)	1-33139-054-0	09	1	0107-
86	BOLT; RR COVER (B)	1-33139-056-0	02	1	0107-
86	BOLT; RR COVER (C) M10X110	1-33139-057-0	02	1	0107-
86	BOLT; RR COVER (D) M10X50	1-33139-058-0	02	1	0107-
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (F) M12X25	1-33119-400-0	04	1	0107-
87	WASHER; LK,RR COVER	1-09469-010-0	09	1	0107-
100	PLUG; DRAIN RR COVER	1-33119-268-0	01	1	0107-
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	0107-
326	NOZZLE; OIL,OUTLET (A)	1-33119-272-0	01	1	0107-
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	0107-
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM)	1-33131-165-0	01	1	0107-
328	GASKET; PLUG (B)	1-33119-249-0	02	1	0107-
328	GASKET; PLUG (C)	1-33119-264-0	01	1	0107-
328	GASKET; PLUG (A)	1-33139-023-0	01	1	0107-
415	COVER; BRG	1-33159-039-0	01	1	0107-
419	PLUG; RR COVER (B)	1-33119-171-0	02	1	0107-
419	PLUG; RR COVER (A)	1-34119-008-0	01	1	0107-
421	COVER; RR,TRANS	1-33131-244-0	01	1	0107-
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM)	1-33132-054-0	01	1	0107-
429	PIN; STRAIGHT	1-33119-265-0	07	1	0107-
451	PLATE; RR COVER	1-33139-055-0	01	1	0107-

355 292 265 439 405 186 186 186 183 184 184 186 185 185 303 506 432 422 194 439 311 178 365 366 365 368 511 359 362 508 362 359 362 361 439 192 192 509 358 357 358 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

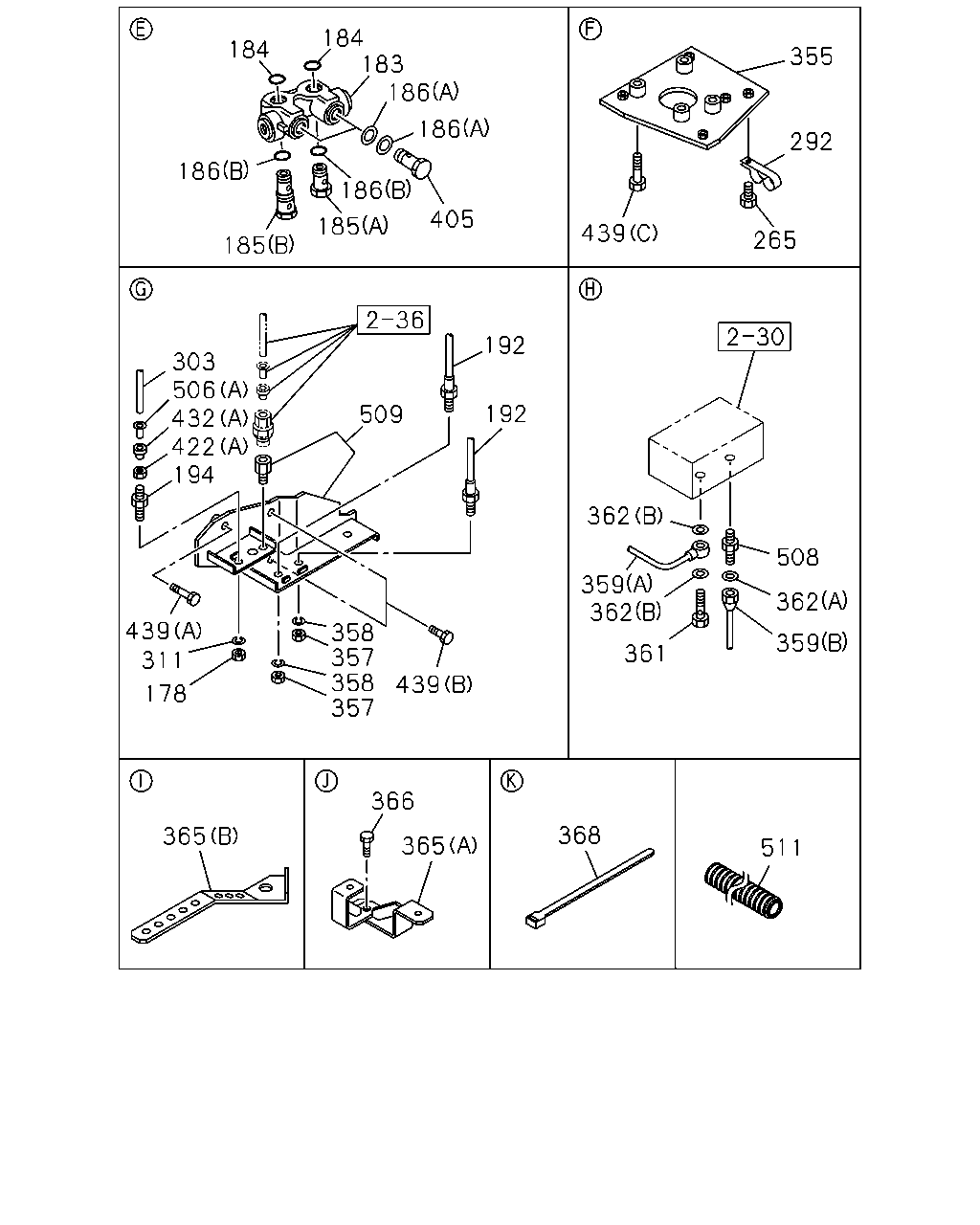

178	NUT; UNION M14	9-99111-414-0	01	1	0107-0512
178	NUT; UNION M14	0-91111-514-0	01	1	0601-

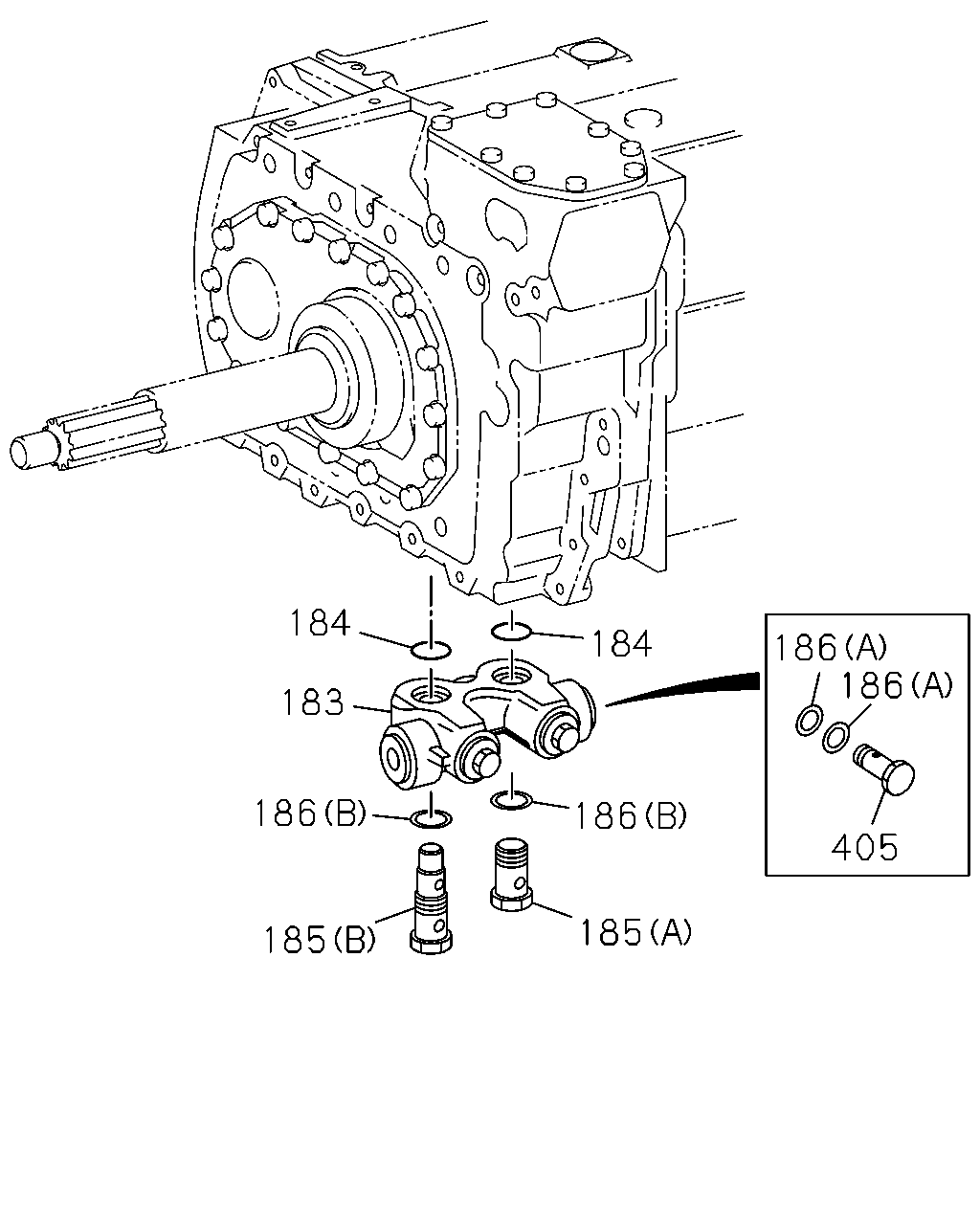

183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	0107-
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	0107-
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	0107-
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	0107-
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	0107-
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	0107-
192	HOSE; FLEX,TRANS OUTER L=400	1-09364-913-0	01	1	0107-
192	HOSE; FLEX,TRANS INLET L=500	1-09364-914-0	01	1	0107-
194	UNION; NYLON TUBE M14	1-09664-230-0	01	1	0107-
265	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0107-0107
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-
292	CLIP; OIL PIPE ID=16 & 16 L=28	1-09701-219-0	01	1	0107-
303	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0107-
303	TUBE; NYLON CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0107-0201
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212
303	TUBE; NYLON CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
303	TUBE; NYLON CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-0201
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0202-0212
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-
311	WASHER; LK ID=14.2	9-09150-514-0	01	1	0107-0603
311	WASHER; LK ID=14.2	0-91510-514-0	01	1	0604-
355	BRACKET; OIL PIPE	1-47477-500-1	01	1	0107-
357	NUT; UNION,FLEX HOSE M22	9-09111-522-0	02	1	0107-0512
357	NUT; UNION,FLEX HOSE M22	0-91111-522-0	02	1	0601-
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0107-0603
358	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0604-
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	0107-
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	0107-0109
359	PIPE; AIR,TRANS TO UNION (A)	1-49123-133-0	01	1	0110-
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	0107-0109
359	PIPE; AIR,TRANS TO UNION (B)	1-49123-134-0	01	1	0110-
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-229-0	01	1	0107-
362	GASKET; AIR PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
362	GASKET; AIR PIPE (B) ID=12.2	1-09630-084-0	02	1	0107-
365	BRACKET; HARNESS (A)	1-47479-047-0	01	1	0107-
365	BRACKET; HARNESS (B)	1-82699-490-2	01	1	0107-
366	BOLT; BRKT,HARNESS M12X25 FLANGE	0-28181-225-0	01	1	0107-0512
366	BOLT; BRKT,HARNESS M12X25 FLANGE	0-28151-225-0	01	1	0601-
368	CLIP; BAND,CABLE L=140	5-09707-031-1	03	1	0107-
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	0107-
422	NUT; SLEEVE (B) M18	1-09660-213-0	01	1	0107-
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	0107-
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	0107-
432	SLEEVE; TUBE (B) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0107-
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	0107-
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0107-
439	BOLT; BRKT (C) M10X40 FLANGE	0-28781-040-0	04	1	0107-0512
439	BOLT; BRKT (C) M10X40 FLANGE	0-28751-040-0	04	1	0601-
439	BOLT; BRKT (B) M16X25 FLANGE	0-28881-625-0	02	1	0107-0512
439	BOLT; BRKT (B) M16X25 FLANGE	0-28851-625-0	02	1	0601-
439	BOLT; BRKT (A) M16X40 FLANGE	0-28881-640-0	01	1	0107-0512
439	BOLT; BRKT (A) M16X40 FLANGE	0-28851-640-0	01	1	0601-
506	INSERT (B) ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0107-
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0107-
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0107-
508	UNION; AIR M10 & M12 STRAIGHT	1-09664-235-0	01	1	0107-
509	BRACKET; PIPE	1-47477-447-2	01	1	0107-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0202-
511	TUBE; CORRUGATE L=250 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0107-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-0107
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-0107
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0107-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0107-0201
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0202-
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0107-

322 321 437 435 326 228 45 417 318 317 319 26 429 425 430 50 417 45 332 429 2 315 454 315 454 454 315 315 412 254 328 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

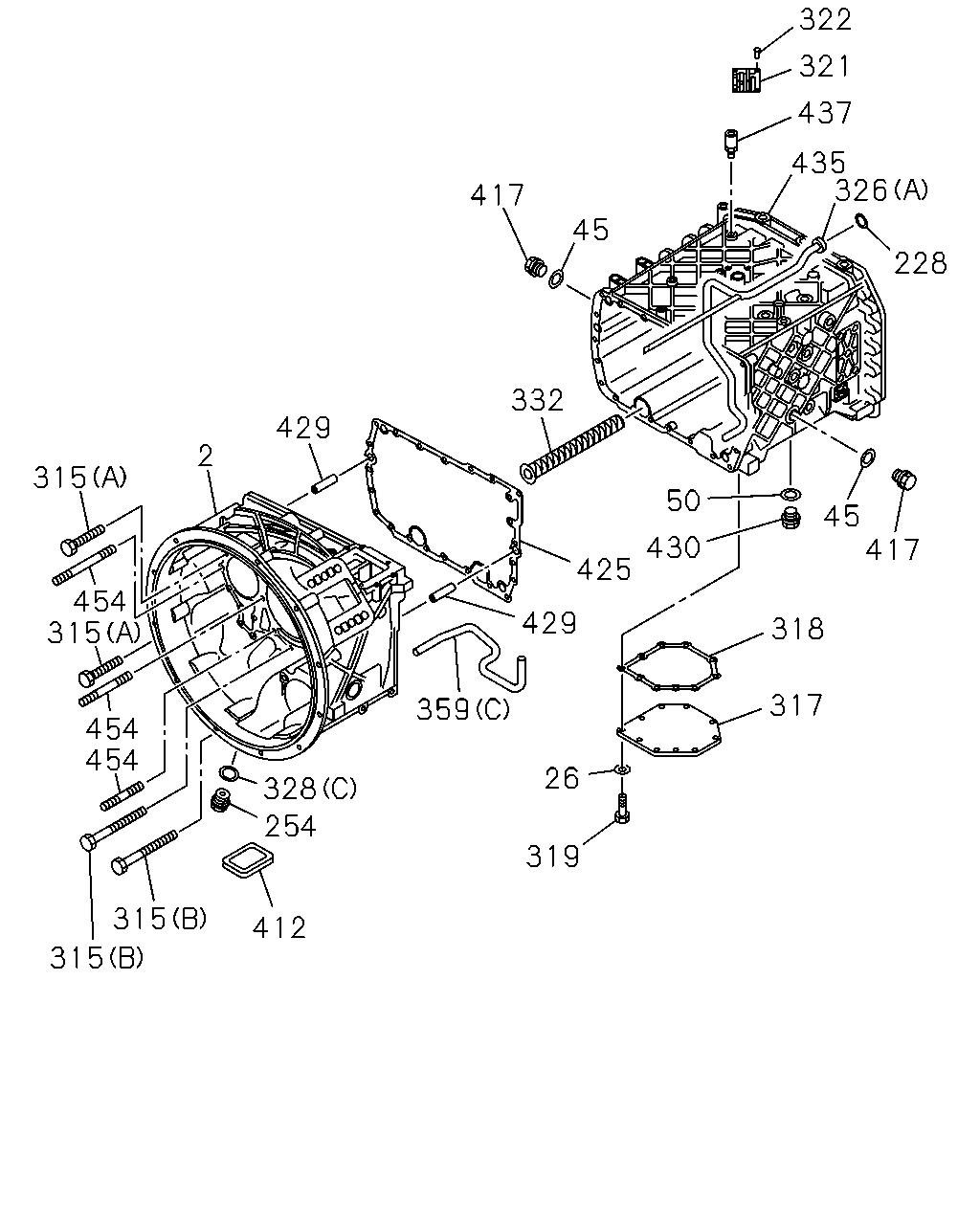

2	HOUSING; CLU	1-31111-194-0	01	1	0107-
26	WASHER; PL,COVER	1-09469-010-0	10	1	0107-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	02	1	0107-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	0107-
228	GASKET; NOZZLE	1-33119-273-0	01	1	0107-
254	PLUG; DRAIN,OIL	1-33119-376-0	01	1	0107-
315	BOLT; CASE (A)	1-33119-266-0	15	1	0107-
315	BOLT; CASE (B)	1-33119-267-0	07	1	0107-
317	COVER; CASE	1-33119-274-0	01	1	0107-
318	GASKET; COVER	1-33119-409-0	01	1	0107-
319	BOLT; COVER	1-33119-276-0	10	1	0107-
321	PLATE; NAME	1-33119-277-0	01	1	0107-
322	RIVET; NAME PLATE	1-33119-398-0	04	1	0107-
326	NOZZLE; OIL,OUTLET (A)	1-33119-272-0	01	1	0107-
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	0107-
328	GASKET; PLUG (B)	1-33119-249-0	02	1	0107-
328	GASKET; PLUG (C)	1-33119-264-0	01	1	0107-
328	GASKET; PLUG (A)	1-33139-023-0	01	1	0107-
332	FILTER; OIL	1-33119-370-0	01	1	0107-
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	0107-
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	0107-0109
359	PIPE; AIR,TRANS TO UNION (A)	1-49123-133-0	01	1	0110-
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	0107-0109
359	PIPE; AIR,TRANS TO UNION (B)	1-49123-134-0	01	1	0110-
412	CAP; CLU HSG	1-31119-022-0	01	1	0107-
417	PLUG; OIL FILLER,TRANS	1-33119-268-0	02	1	0107-
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-262-0	01	1	0107-
429	PIN; STRAIGHT	1-33119-265-0	07	1	0107-
430	PLUG; OIL DRAIN	1-33119-268-0	01	1	0107-
435	CASE; TRANS	1-33111-290-0	01	1	0107-
437	BREATHER; TRANS	1-36122-004-0	01	1	0107-
454	STUD; CLU HSG M10 L=50	1-33119-381-0	04	1	0107-
454	STUD; CLU HSG M10 L=80	1-33119-393-0	08	1	0107-
454	STUD; CLU HSG M10 L=25	1-33119-394-0	11	1	0107-

184 183 186 185 185 186 184 186 186 405

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	0107-
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	0107-
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	0107-
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	0107-
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	0107-
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	0107-
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	0107-

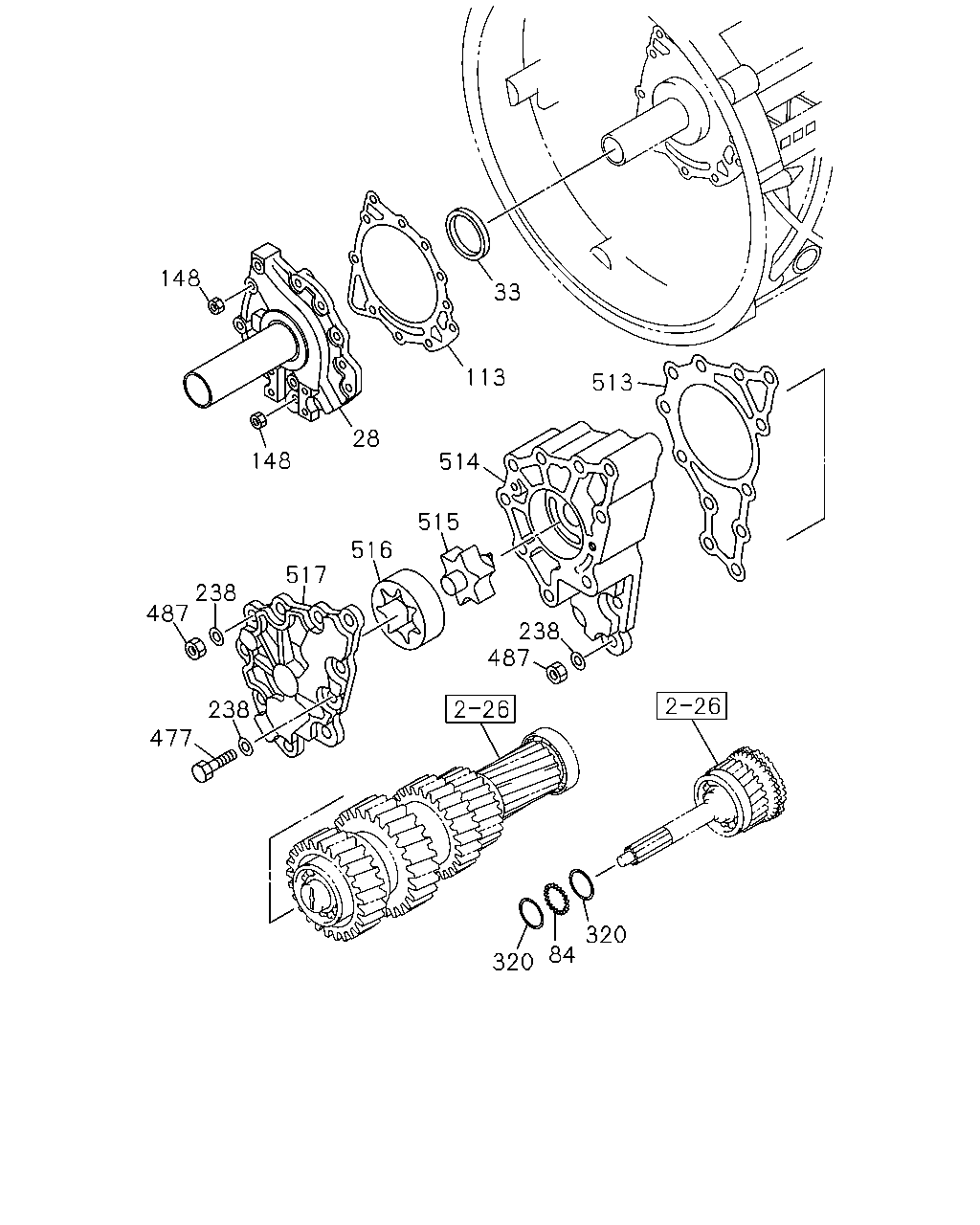

148 33 513 113 28 148 514 515 516 517 238 487 477 238 238 487 320 84 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	COVER; FRT,TRANS CASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33121-149-0	01	1	0107-
28	COVER; FRT,TRANS CASE CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-33121-146-0	01	1	0107-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-248-0	01	1	0107-
84	SPACER; COVER,TRANS	1-33129-006-0	01	1	0107-
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-018-0	01	1	0107-
148	NUT	1-33529-056-0	11	1	0107-
238	WASHER; PL	1-09469-010-0	14	1	0107-
320	WASHER; COVER	1-33129-007-0	02	1	0107-
477	BOLT; OIL PUMP	1-33529-055-0	02	1	0107-
487	NUT; COVER,OIL PUMP	1-33529-056-0	12	1	0107-
513	GASKET; HOUSING	1-34159-058-0	01	1	0107-
514	HOUSING; OIL PUMP	1-34155-027-0	01	1	0107-
515	SHAFT; OIL PUMP	1-34159-070-0	01	1	0107-
516	ROTOR; OIL PUMP	1-34159-060-0	01	1	0107-
517	COVER; OIL PUMP	1-34159-071-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
