◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#9974) — 10 parça

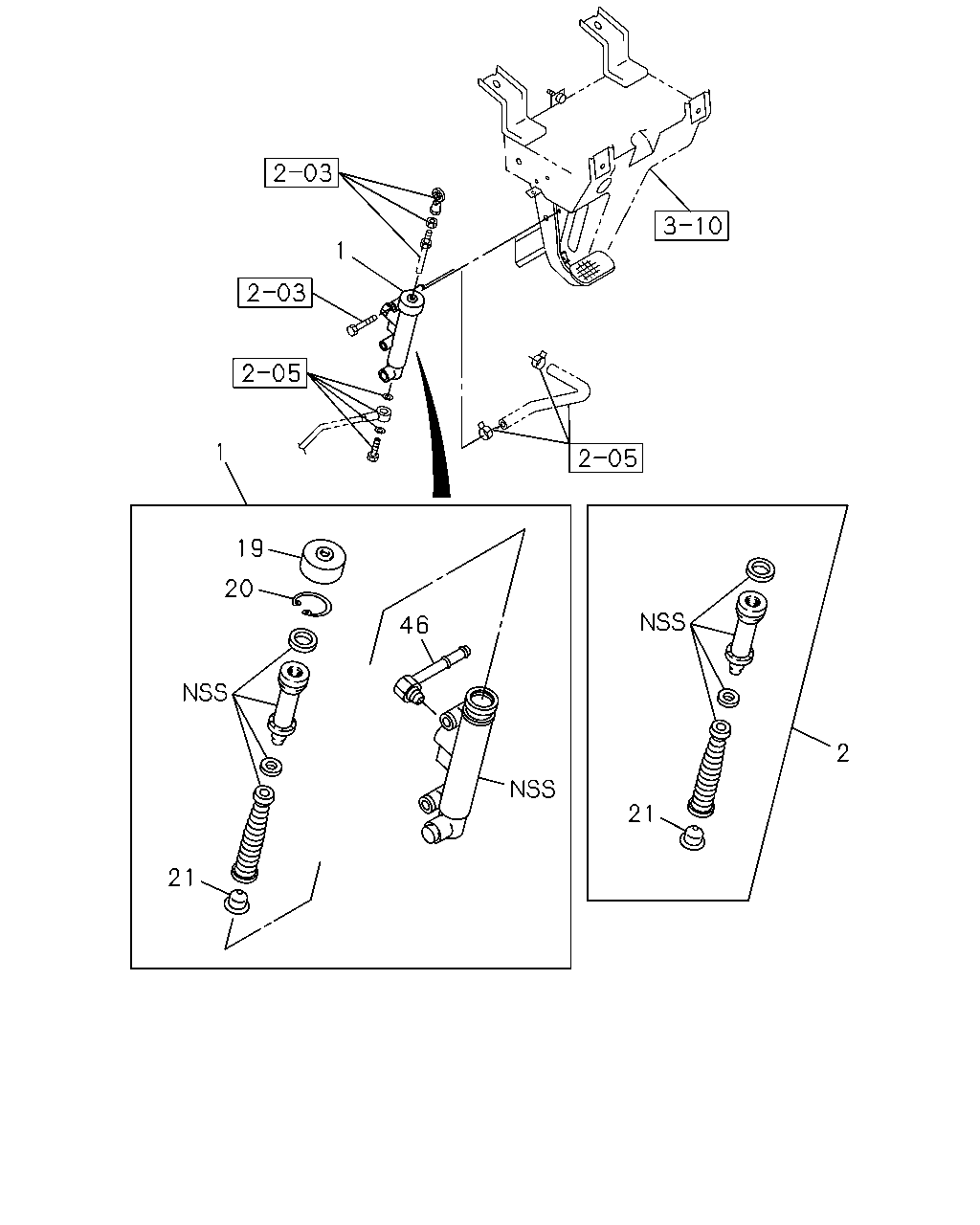

çizim 75869
1 1 19 20 21 46 2 21
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47500-242-2 01 1 0107-
1 CYLINDER ASM; CLUTCH MASTER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ISUZU M/T<X9A> 		1-47500-232-2 01 1 0107-
2 REPAIR KIT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47550-046-0 01 1 0107-
2 REPAIR KIT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ISUZU M/T<X9A> 		1-85576-114-0 01 1 0107-
19 BOOT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47545-011-0 01 1 0107-
19 BOOT; CLU M/CYL
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ISUZU M/T<X9A> 		9-47545-032-0 01 1 0107-
20 RING; SNAP,BODY
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> 		1-47515-009-0 01 1 0107-
20 RING; SNAP,BODY
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ISUZU M/T<X9A> OD=26.9 		9-09180-125-0 01 1 0107-
21 VALVE; CHECK 1-47565-004-0 01 1 0107-
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
