2-07A — CLUTCH BOOSTER; MINIPACK (#9972) — 167 parça

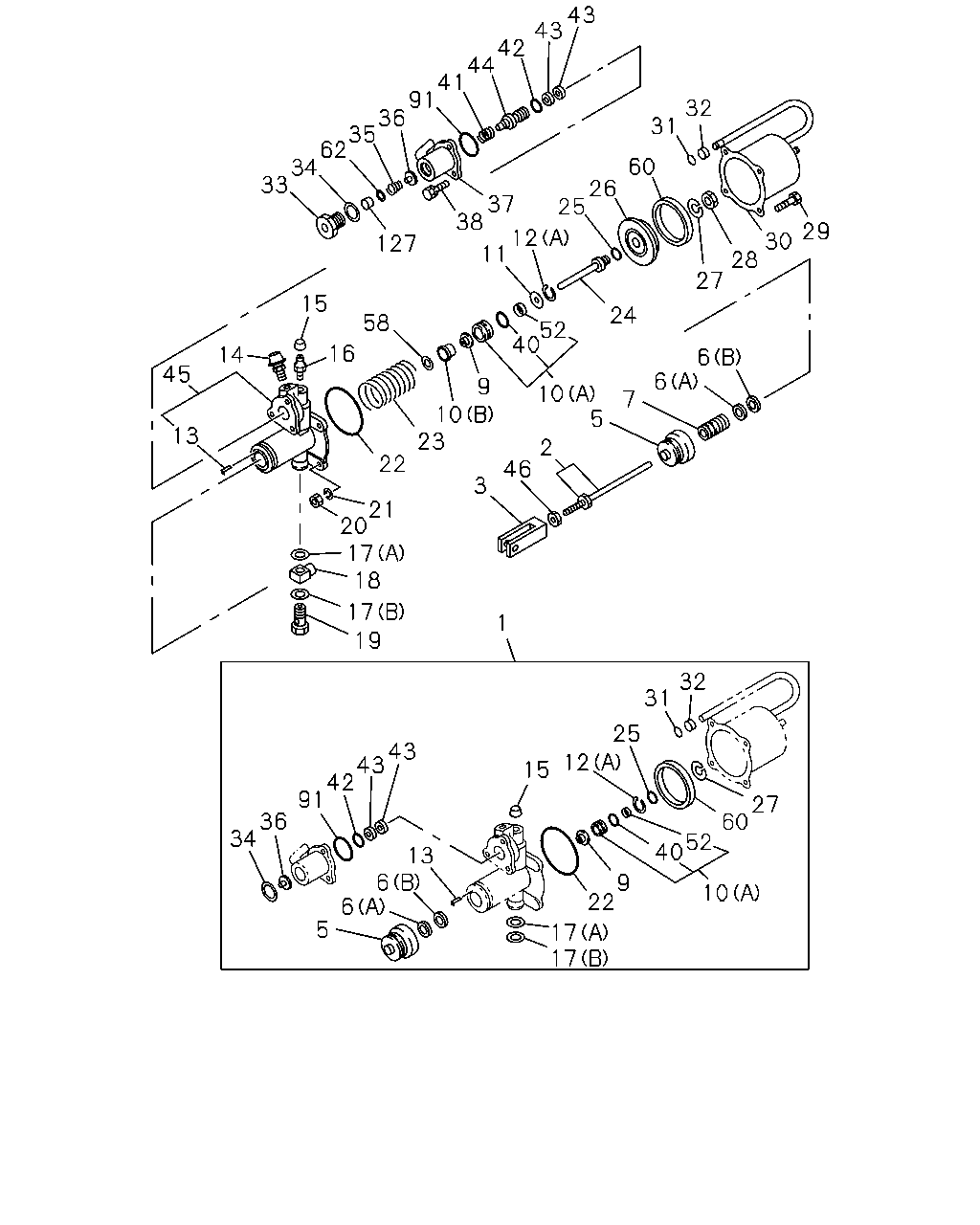

çizim 19883
33 34 62 35 36 91 41 44 42 43 43 32 31 60 26 25 12 11 37 38 127 58 16 15 14 45 13 29 30 28 27 6 6 24 52 40 7 5 2 46 3 9 10 10 23 22 21 20 17 18 17 19 1 32 31 25 12 15 43 43 42 91 36 34 5 6 6 13 17 17 22 9 40 10 52 60 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 0107- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-356-0 01 1 0107-0203 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-572-0 01 1 0204- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 0107- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-160-0 01 1 0107- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0107- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 0107- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-283-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-284-0 01 1 0107- ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107- ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 0107- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0107- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0107-0203 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0204- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0107- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 0107-0203 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0107- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 0107- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0107- ● ●
13 PIN; SPR 1-31829-109-0 01 1 0107- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 0107- ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0203 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0204- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0107- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0107- ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 0107- ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0107- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0107- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0107- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0107- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0107- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0107- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0107- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 0107- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 0107- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 0107- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 0107- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0107- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 0107- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-060-0 01 1 0107-0203 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0204- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0107- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0107- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0107- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 0107- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-077-0 01 1 0107-0203 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-134-0 01 1 0204- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0107- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0107- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0107- ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0107- ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0107- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0107- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 0107-0203 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0204- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0107- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 0107-0203 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0204- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0107- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0107- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0107- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0107- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 0107-0203 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0204- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0107- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0107- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0107- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 0107- ●
45 PLATE; END,CLU BOOSTER 1-31811-080-1 01 1 0107- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0107- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 0107- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0107-0203 ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0204- ● ●
58 WASHER; PISTON,CLU BOOSTER 1-31829-294-0 01 1 0107-0203 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0204- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0107-0203 ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0204- ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0107- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0107- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0107- ●

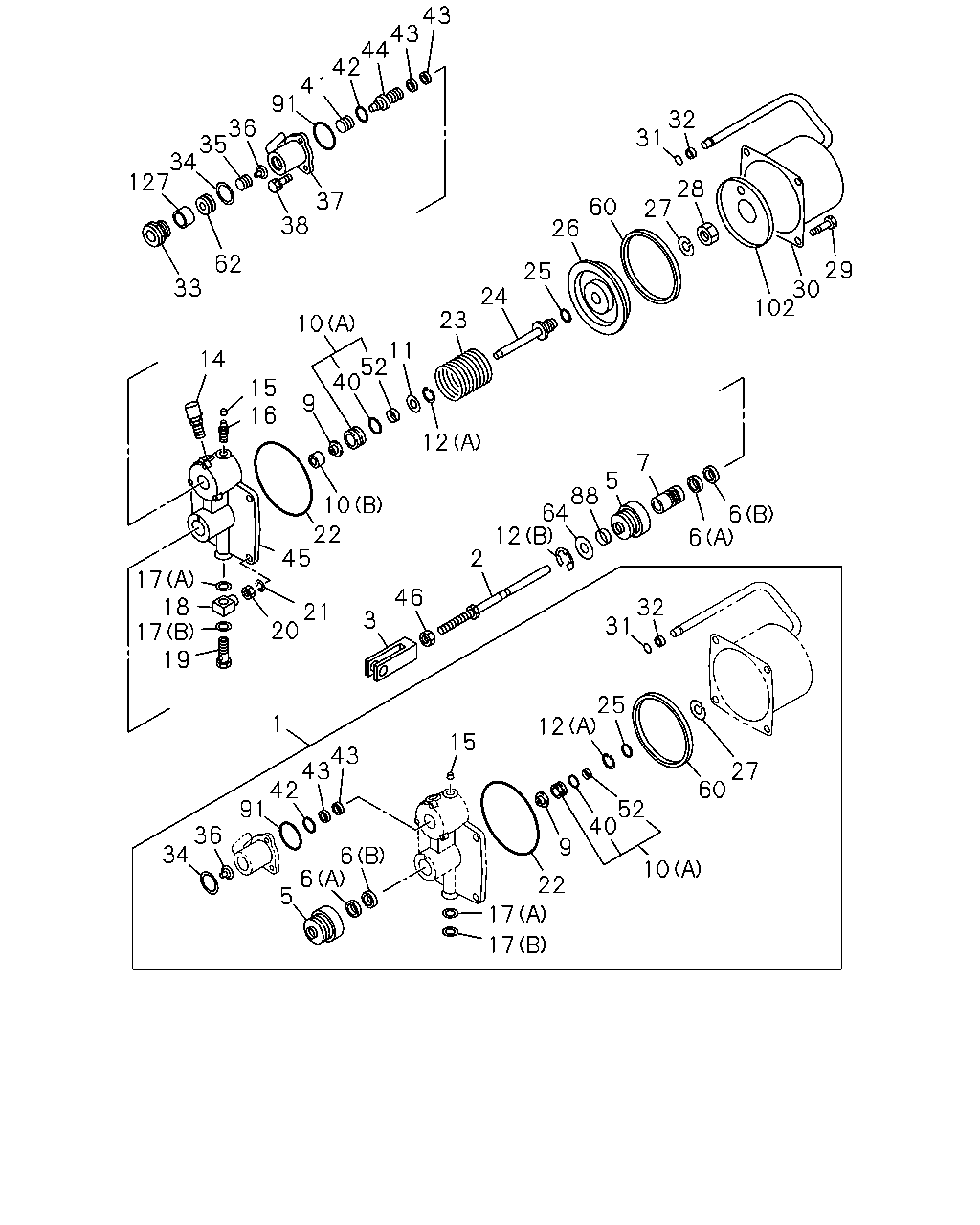

çizim 21968
43 43 44 42 41 91 36 35 34 127 33 62 38 37 32 31 28 27 60 26 25 24 23 11 52 40 9 10 14 15 16 12 10 22 45 17 18 17 19 20 21 29 30 102 7 5 88 64 12 2 46 3 1 34 36 91 42 43 43 15 31 32 6 6 27 60 10 52 40 9 22 17 17 5 6 6 12 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 0107- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-356-0 01 1 0107-0203 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-572-0 01 1 0204- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 0107- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-160-0 01 1 0107- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 0107- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 0107- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-282-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-283-0 01 1 0107- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-284-0 01 1 0107- ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107- ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 0107- ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0107- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0107-0203 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0204- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0107- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-293-0 01 1 0107-0203 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0107- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 0107- ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 0107- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 0107- ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0203 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0204- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0107- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0107- ●
16 PLUG; END PLATE,CLU BOOSTER 1-31829-351-0 01 1 0107- ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0107- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0107- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0107- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0107- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 0107- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 0107- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 0107- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 0107- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-295-0 01 1 0107- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 0107- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-121-0 01 1 0107- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 0107- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 0107- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-060-0 01 1 0107-0203 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 0204- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 0107- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 0107- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 0107- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 0107- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-077-0 01 1 0107-0203 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-134-0 01 1 0204- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 0107- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 0107- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 0107- ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0107- ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0107- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0107- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 0107-0203 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0204- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0107- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 0107-0203 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0204- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0107- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0107- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0107- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 0107- ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-288-0 01 1 0107-0203 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0204- ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 0107- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 0107- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 0107- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 0107- ●
45 PLATE; END,CLU BOOSTER 1-31811-080-1 01 1 0107- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0107- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 0107- ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0107-0203 ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0204- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 0204- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0107-0203 ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 0204- ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0107- ●
64 WASHER; PUSH ROD
ID=10.5 OD=22 		9-09164-610-0 01 1 0107- ●
88 CLAMP; HOSE,CLU BOOSTER 1-31829-063-0 01 1 0107- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0107- ● ●
102 PLATE; BOOSTER 1-31829-559-0 01 1 0107- ●
127 FILTER; POPPET 1-31829-495-0 01 1 0107- ●
