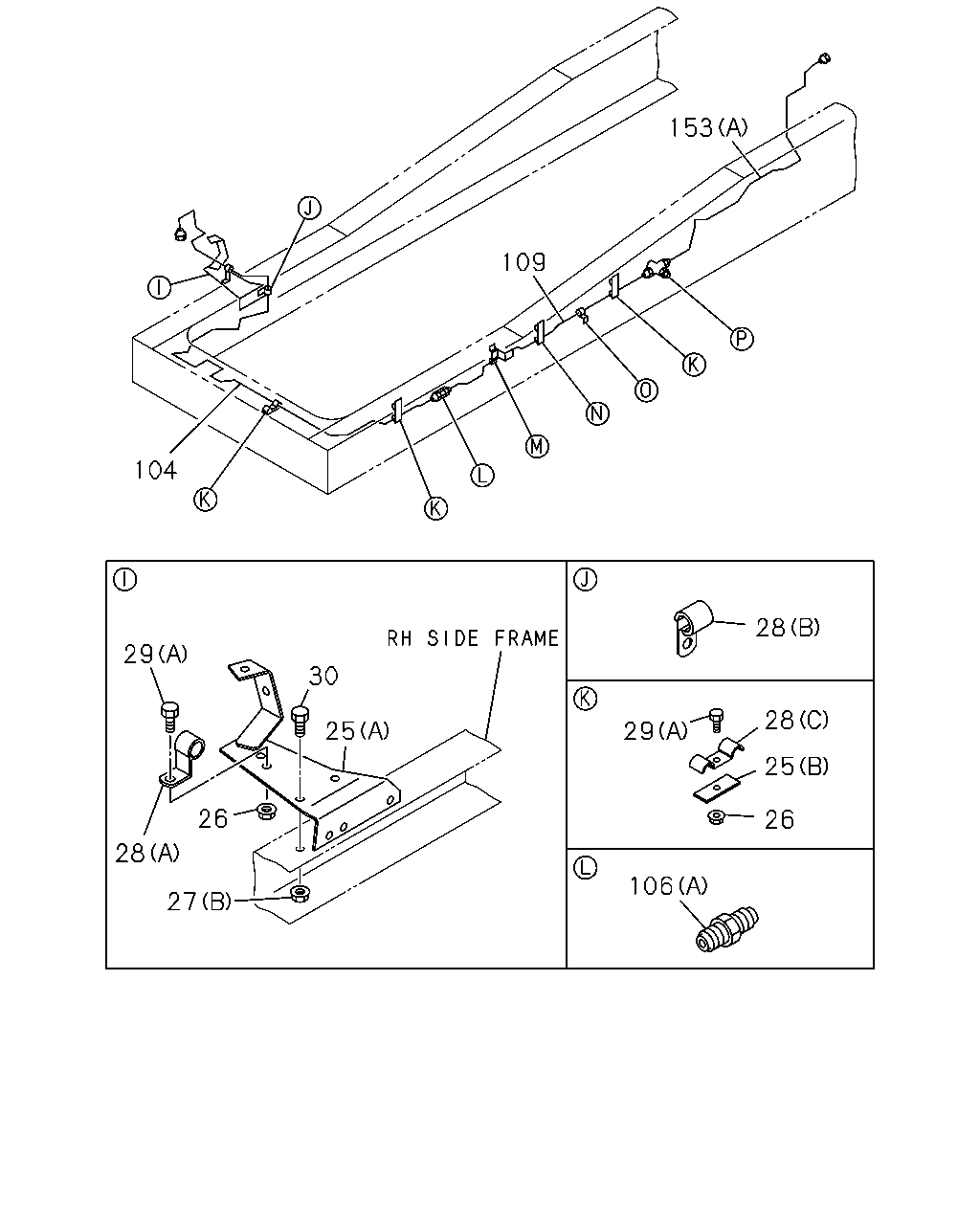

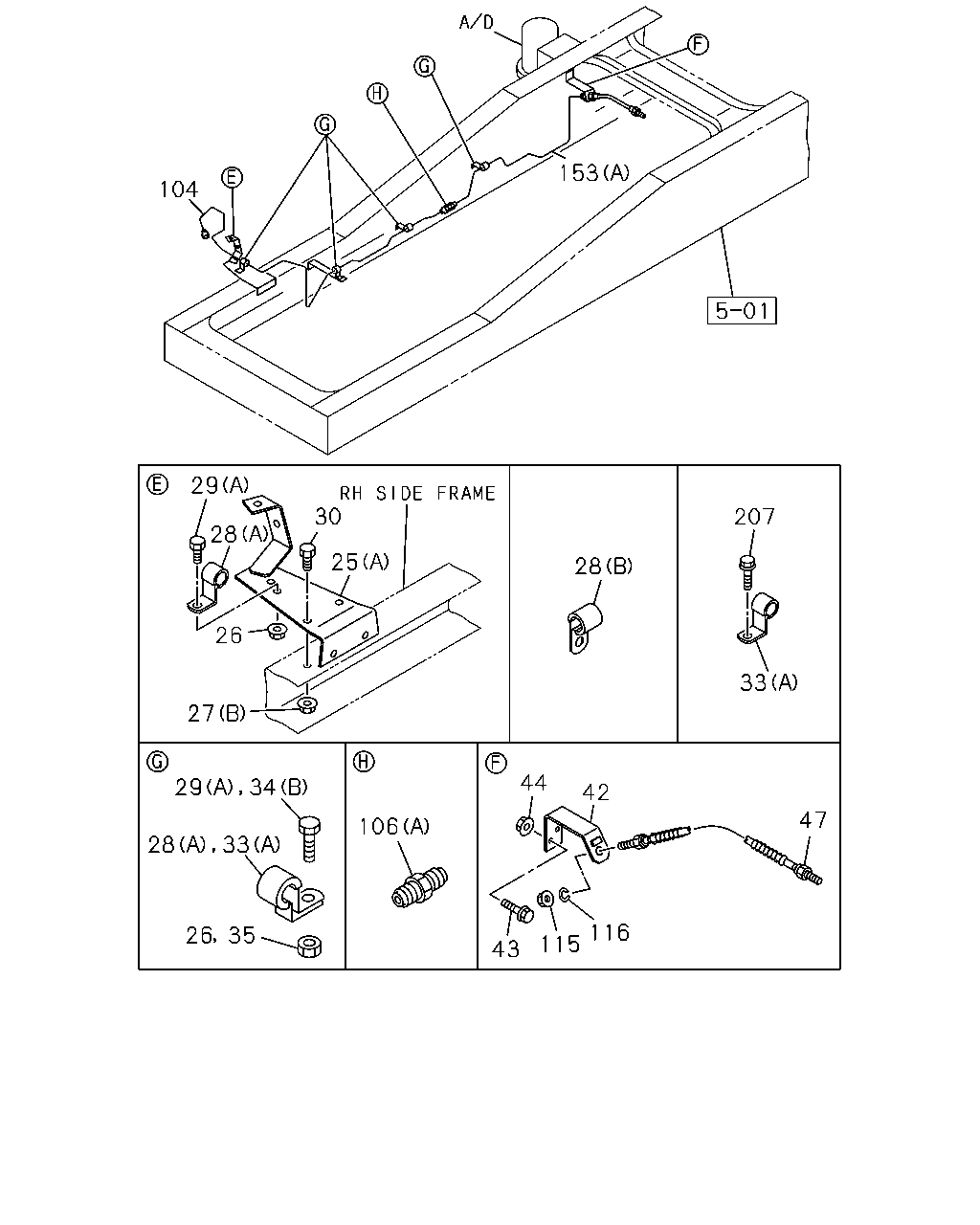

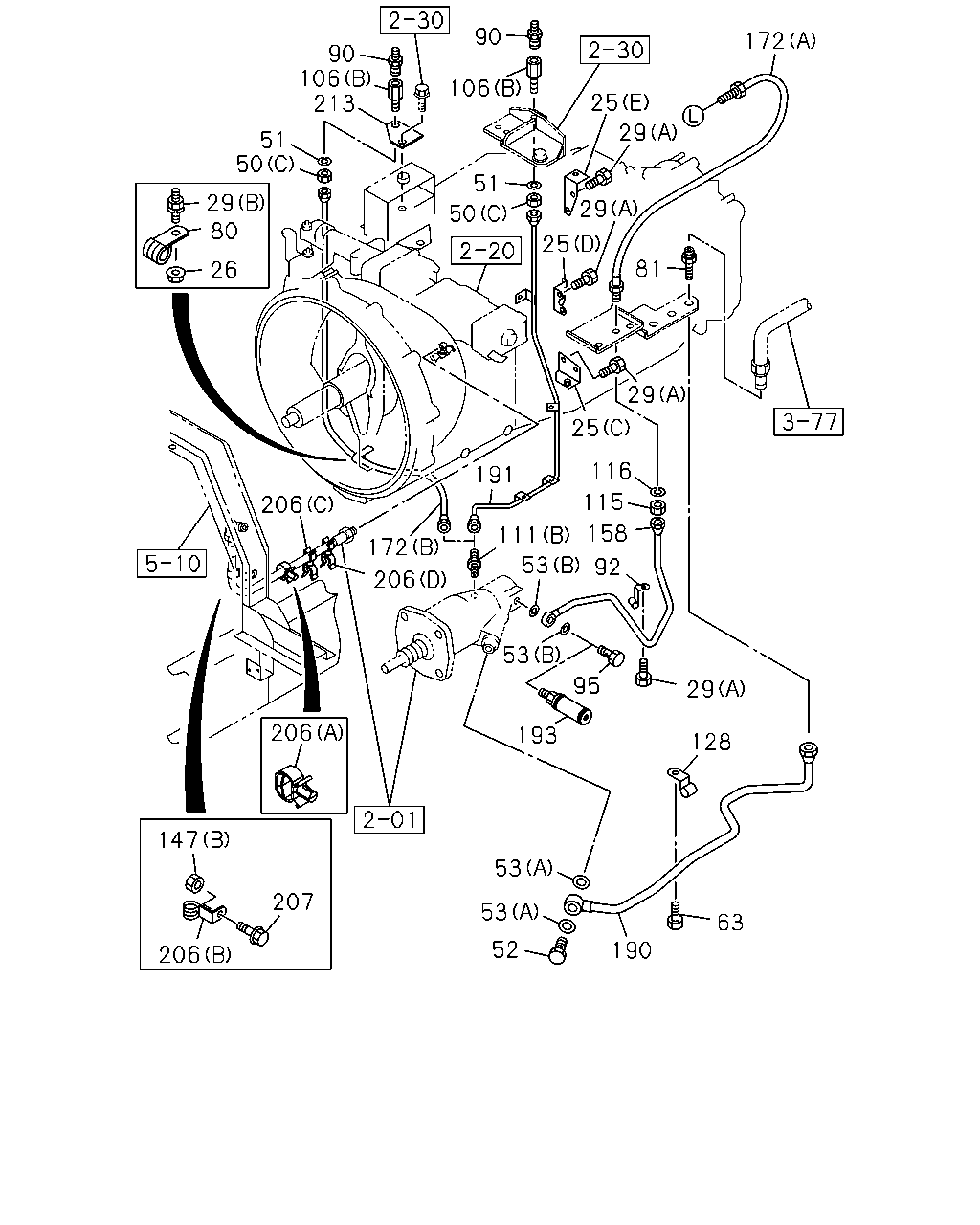

2-05 — CLUTCH PIPING (#9971) — 291 parça

172 25 29 29 25 81 29 25 116 115 158 92 29 128 63 190 52 53 53 193 95 53 53 111 191 172 206 206 207 206 147 206 26 80 29 50 51 213 106 90 90 106 51 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0107-0107
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE ZF M/T<X9E> (B) L=50	1-47475-299-2	03	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (C)	1-47477-498-1	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (D)	1-47477-499-1	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (E)	1-47478-406-0	01	1	0107-0107
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0107-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	04	1	0603-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	03	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) M8X16 FLANGE	0-28080-816-0	04	1	0107-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
50	NUT; UNION ZF M/T<X9E> (D) M12 FLANGE	0-91150-212-0	01	1	0107-0602
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U) (D) M12 FLANGE	0-91180-212-0	01	1	0603-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U) (C) M12	9-09840-280-0	01	1	0107-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0107-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
51	WASHER; LK TRANSMISSION-ZF 16S221 OD(Y1U) ID=12.2	9-09150-512-0	01	1	0107-0603
51	WASHER; LK TRANSMISSION-ZF 16S221 OD(Y1U) ID=12.2	0-91510-512-0	01	1	0604-
52	BOLT; EYE,AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M16X30	1-09675-026-0	01	1	0107-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S221 OD(Y1U) (A) ID=16.2	1-09630-086-0	02	1	0107-
53	GASKET; JOINT BOLT TRANSMISSION-ZF 16S221 OD(Y1U) (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0107-
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512
63	BOLT; CLIP,PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8X16 FLANGE	0-28050-816-0	01	1	0601-
80	CLIP; HOSE TRANSMISSION-ZF 16S221 OD(Y1U) ID=16 L=28	1-09700-872-0	01	1	0108-
81	UNION; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U)	1-09664-233-0	01	1	0107-
90	NIPPLE; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U)	1-31829-485-0	01	1	0107-
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=9 H=32 L=24	1-09701-221-0	01	1	0107-
95	BOLT; EYE,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M14X27 FLANGE	1-09675-086-0	01	1	0107-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-09654-384-0	01	1	0107-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0107-0607
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0107-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0107-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=13 H=18 L=20	1-09701-232-0	01	1	0107-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0107-0602
147	NUT; CLIP FIX TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8 FLANGE	0-91180-208-0	01	1	0603-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0107-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-054-0	01	1	0107-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=570	1-09365-162-0	01	1	0108-
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=380	1-09364-261-0	01	1	0107-
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-730-0	01	1	0107-
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49163-428-0	01	1	0107-0107
193	ABSORBER; CLU TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31820-023-0	01	1	0107-
206	CLIP; TUBE ZF M/T<X9E> (D) ID=13 & 21	8-94417-626-0	01	1	0108-
206	CLIP; TUBE ZF M/T<X9E> (B) ID=18 L=28 H=30	1-09701-110-0	01	1	0107-
206	CLIP; TUBE ZF M/T<X9E> (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0107-
206	CLIP; TUBE ZF M/T<X9E> (C) ID=13 & 12	8-94178-797-0	01	1	0107-
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
207	BOLT; CLIP TRANSMISSION-ZF 16S221 OD(Y1U) M8X20 FLANGE	0-28650-820-0	01	1	0601-
207	BOLT; CLIP MJX16P M/T(Y3Z) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU> M10X16 FLANGE	0-28181-016-0	02	1	0107-0512
207	BOLT; CLIP MJX16P M/T(Y3Z) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU> M10X16 FLANGE	0-28151-016-0	02	1	0601-
213	BRACKET; OIL HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-47478-478-0	01	1	0108-

24 153 104 56 1 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

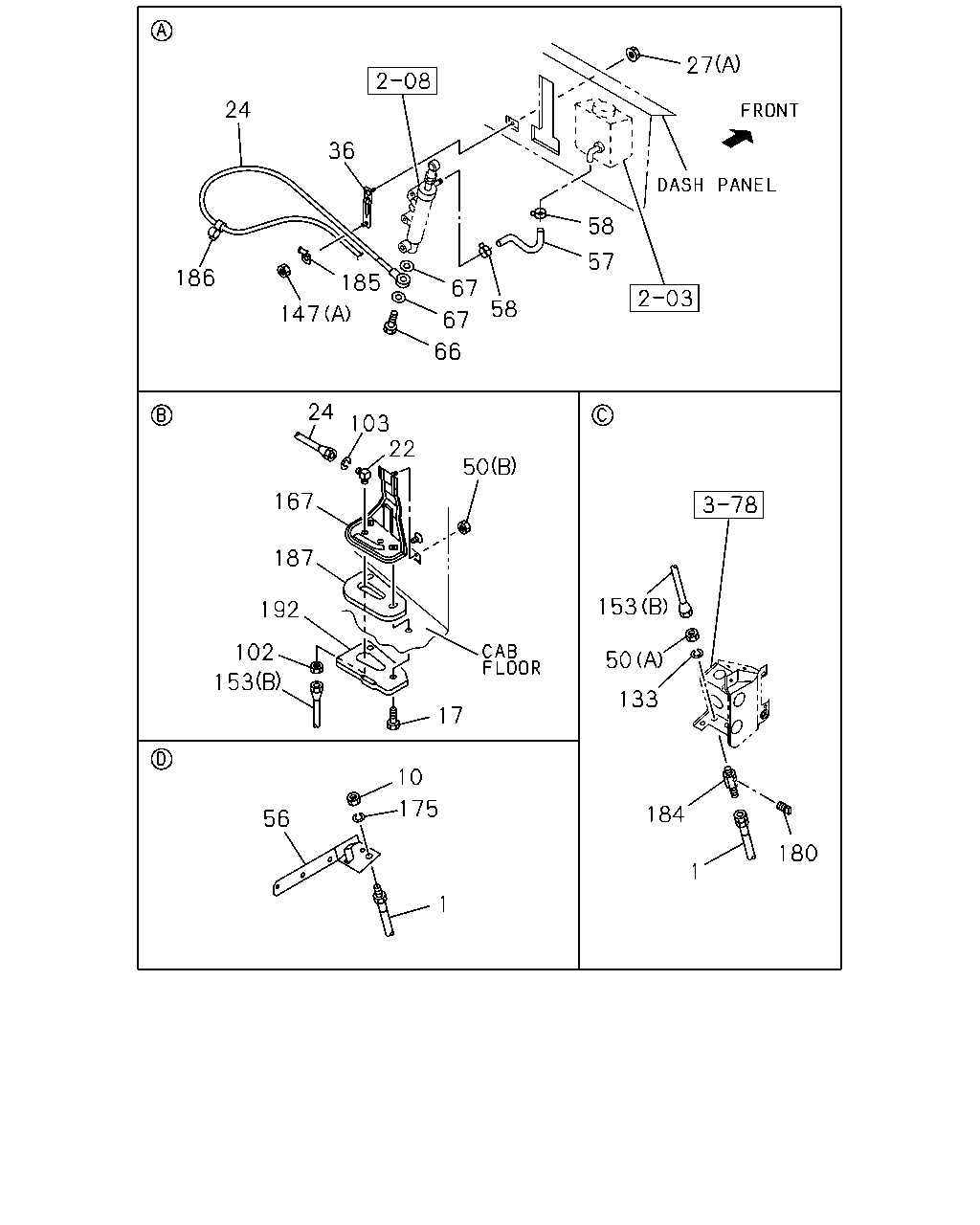

1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0107-
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A> L=643	1-47424-529-2	01	1	0107-
24	PIPE ASM; CLU,M/CYL TO UNION TRANSMISSION-ZF 16S221 OD(Y1U)	1-47427-608-0	01	1	0107-
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0107-0110
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0111-0201
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0202-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-322-0	01	1	0109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=1618	1-49166-188-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0107-
167	BRACKET; UNION	1-71117-183-3	01	1	0107-

173 173 220 9 54 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJD7S M/T(Y2Y) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU> M10 FLANGE	0-91150-210-0	02	1	0107-0602
9	NUT; BRKT,FLEX HOSE MJD7S M/T(Y2Y) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU> M10 FLANGE	0-91180-210-0	02	1	0603-

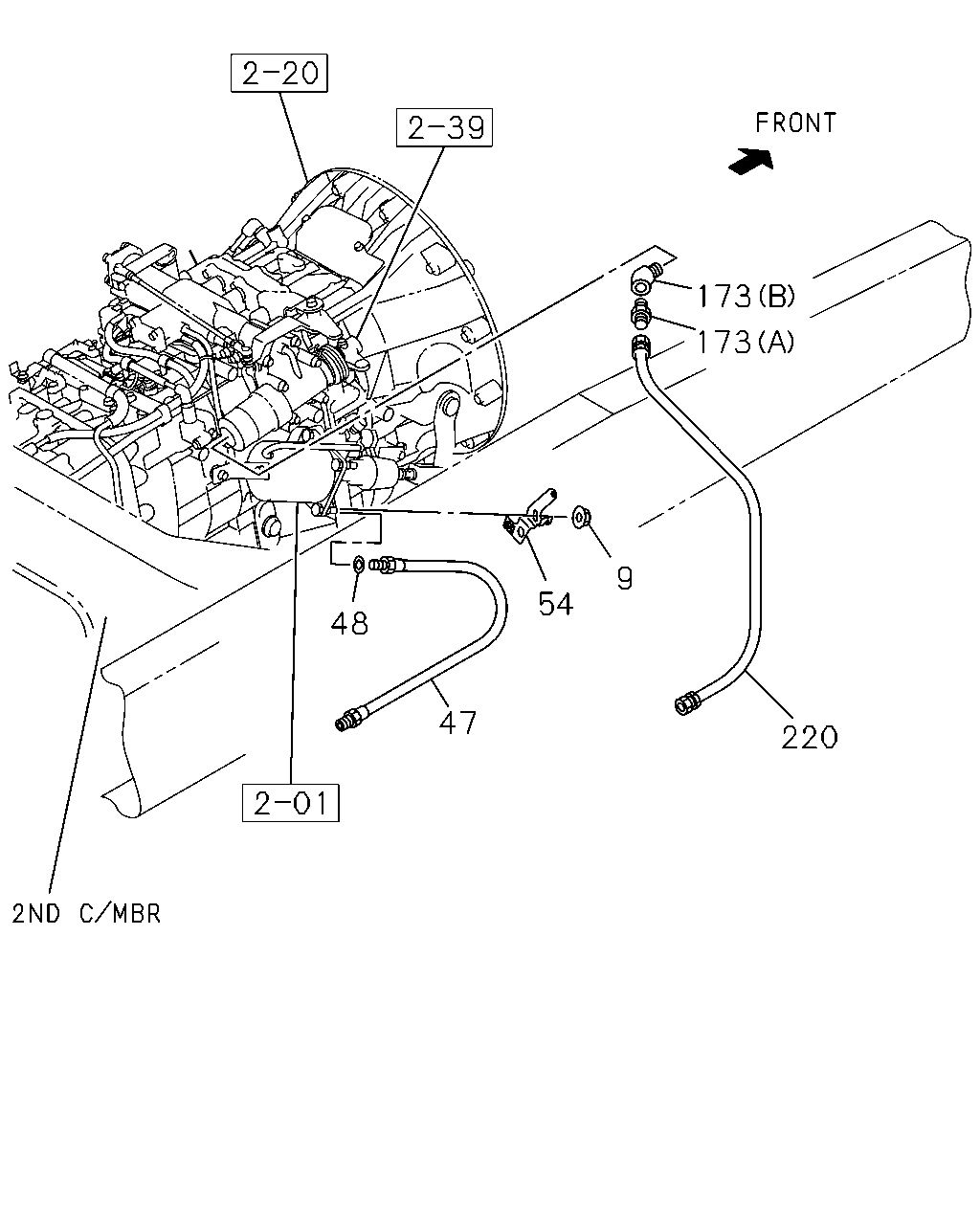

47	HOSE; FLEX,CLU CONT MJD7S M/T(Y2Y) L=500	1-09364-329-0	01	1	0107-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=370	1-09364-646-0	01	1	0107-
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0107-
54	BRACKET; AIR,FLEX HOSE MJD7S M/T(Y2Y) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-47477-284-1	01	1	0107-
173	CONNECTOR ISUZU M/T<X9A> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
173	CONNECTOR ISUZU M/T<X9A> (B) R1/4 & RC1/4	1-09664-211-0	01	1	0107-0204
173	CONNECTOR MJX16P M/T(Y3Z) (B) R1/4 & RC1/4	1-09664-211-0	01	1	0205-
220	HOSE; FLEX,POWER ASSIST MJD7S M/T(Y2Y) L=340	1-09363-617-0	01	1	0107-0204
220	HOSE; FLEX,POWER ASSIST MJD7S M/T(Y2Y) L=300	1-09363-611-0	01	1	0205-
220	HOSE; FLEX,POWER ASSIST MJX16P M/T(Y3Z) L=270	1-09363-687-0	01	1	0107-

27 58 57 58 153 50 133 184 180 1 1 175 10 56 17 153 102 192 187 167 22 50 103 24 66 67 67 185 147 186 24 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0107-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0107-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0107-0607
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A> L=643	1-47424-529-2	01	1	0107-
24	PIPE ASM; CLU,M/CYL TO UNION TRANSMISSION-ZF 16S221 OD(Y1U)	1-47427-608-0	01	1	0107-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0107-0602
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0107-
36	BRACKET; CLIP	1-71117-191-1	01	1	0107-
50	NUT; UNION ZF M/T<X9E> (D) M12 FLANGE	0-91150-212-0	01	1	0107-0602
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U) (D) M12 FLANGE	0-91180-212-0	01	1	0603-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U) (C) M12	9-09840-280-0	01	1	0107-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0107-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0107-0110
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0111-0201
56	BRACKET; FLEX HOSE	1-47477-602-1	01	1	0202-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0107-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0107-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0107-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0107-0603
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0107-0602
147	NUT; CLIP FIX TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8 FLANGE	0-91180-208-0	01	1	0603-
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0107-
167	BRACKET; UNION	1-71117-183-3	01	1	0107-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
180	PLUG; PIPE	9-09204-510-0	01	1	0107-
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0107-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0107-0606
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0607-
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0107-
187	SEAL; BRKT	1-71117-222-0	01	1	0107-
192	PLATE	1-71117-221-0	01	1	0107-

30 31 111 50 32 33 34 33 32 35 33 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
30	BOLT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U) M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0107-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
31	NUT; BRKT ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0107-0602
31	NUT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> (B)	1-47477-669-1	01	1	0107-
32	BRACKET; CLIP OIL PIPE ZF M/T<X9E> (A) L=50	1-47475-299-2	01	1	0107-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
33	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0107-
33	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-0512
34	BOLT; PIPE CLIP ISUZU M/T<X9A> (B) M8X30 FLANGE	0-28650-830-0	04	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
34	BOLT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0107-0602
35	NUT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0107-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	04	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0107-0602
35	NUT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	02	1	0603-
50	NUT; UNION ZF M/T<X9E> (D) M12 FLANGE	0-91150-212-0	01	1	0107-0602
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U) (D) M12 FLANGE	0-91180-212-0	01	1	0603-
50	NUT; UNION TRANSMISSION-ZF 16S221 OD(Y1U) (C) M12	9-09840-280-0	01	1	0107-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0107-
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0107-0512
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-
111	UNION; OIL PIPE ZF M/T<X9E> (A) M14 2WAY	1-09654-176-2	01	1	0107-
111	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0107-

104 153 207 33 47 42 44 116 115 43 106 35 26 33 28 34 29 27 26 25 28 30 28 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0107-0107
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE ZF M/T<X9E> (B) L=50	1-47475-299-2	03	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (C)	1-47477-498-1	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (D)	1-47477-499-1	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (E)	1-47478-406-0	01	1	0107-0107
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0107-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	04	1	0603-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0107-0602
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0107-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0107-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0107-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0107-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	03	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) M8X16 FLANGE	0-28080-816-0	04	1	0107-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
30	BOLT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U) M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0107-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
33	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0107-
33	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
33	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0107-
33	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-
34	BOLT; PIPE CLIP ISUZU M/T<X9A> (B) M8X30 FLANGE	0-28680-830-0	04	1	0107-0512
34	BOLT; PIPE CLIP ISUZU M/T<X9A> (B) M8X30 FLANGE	0-28650-830-0	04	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
34	BOLT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
34	BOLT; PIPE CLIP ZF M/T<X9E> (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
34	BOLT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0107-0602
35	NUT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0107-0602
35	NUT; PIPE CLIP ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	04	1	0603-
35	NUT; PIPE CLIP ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	0107-0602
35	NUT; PIPE CLIP TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	02	1	0603-
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A>	1-47479-261-0	01	1	0107-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	02	1	0601-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	0107-0602
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	02	1	0603-
47	HOSE; FLEX,CLU CONT MJD7S M/T(Y2Y) L=500	1-09364-329-0	01	1	0107-
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) L=370	1-09364-646-0	01	1	0107-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-322-0	01	1	0109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=1618	1-49166-188-0	01	1	0107-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-09654-384-0	01	1	0107-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0107-0607
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0107-0512
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0107-0603
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0107-
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
207	BOLT; CLIP TRANSMISSION-ZF 16S221 OD(Y1U) M8X20 FLANGE	0-28650-820-0	01	1	0601-
207	BOLT; CLIP MJX16P M/T(Y3Z) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU> M10X16 FLANGE	0-28181-016-0	02	1	0107-0512
207	BOLT; CLIP MJX16P M/T(Y3Z) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU> M10X16 FLANGE	0-28151-016-0	02	1	0601-

153 109 104 29 30 25 26 28 27 106 26 25 28 28 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47478-411-1	01	1	0107-0107
25	BRACKET; OIL PIPE (A)	1-47479-297-0	01	1	0107-
25	BRACKET; OIL PIPE ZF M/T<X9E> (B) L=50	1-47475-299-2	03	1	0107-
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (C)	1-47477-498-1	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (D)	1-47477-499-1	01	1	0107-0107
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (E)	1-47478-406-0	01	1	0107-0107
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91150-108-0	01	1	0108-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	01	1	0603-
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	03	1	0107-0602
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	03	1	0603-
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0107-0602
26	NUT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) M8 FLANGE	0-91180-108-0	04	1	0603-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0107-0602
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0107-
28	CLIP; OIL PIPE ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0107-
28	CLIP; OIL PIPE ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0107-
28	CLIP; OIL PIPE ZF M/T<X9E> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0107-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	0107-0606
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0607-
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	03	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) M8X16 FLANGE	0-28080-816-0	04	1	0107-0107
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (A) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
30	BOLT; BRKT TRANSMISSION-ZF 16S221 OD(Y1U) M8X30 FLANGE	0-28650-830-0	01	1	0601-
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0107-0512
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-212-0	01	1	0107-0108
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E>	1-49166-322-0	01	1	0109-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> L=1618	1-49166-188-0	01	1	0107-
106	UNION; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B)	1-09654-384-0	01	1	0107-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0107-0607
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=1102 SERVICED BY L=1000	1-47426-386-0	01	1	0107-0108
109	PIPE; AIR,UNION TO UNION ZF M/T<X9E> L=1101 SERVICED BY L=1100	1-47426-387-0	01	1	0109-
153	PIPE ASM; CLU,UNION TO FLEX ISUZU M/T<X9A> (A) L=1637 SERVICED BY L=1700	1-47426-391-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> (A) L=955	1-49163-430-0	01	1	0107-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
