◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#997) — 205 parça

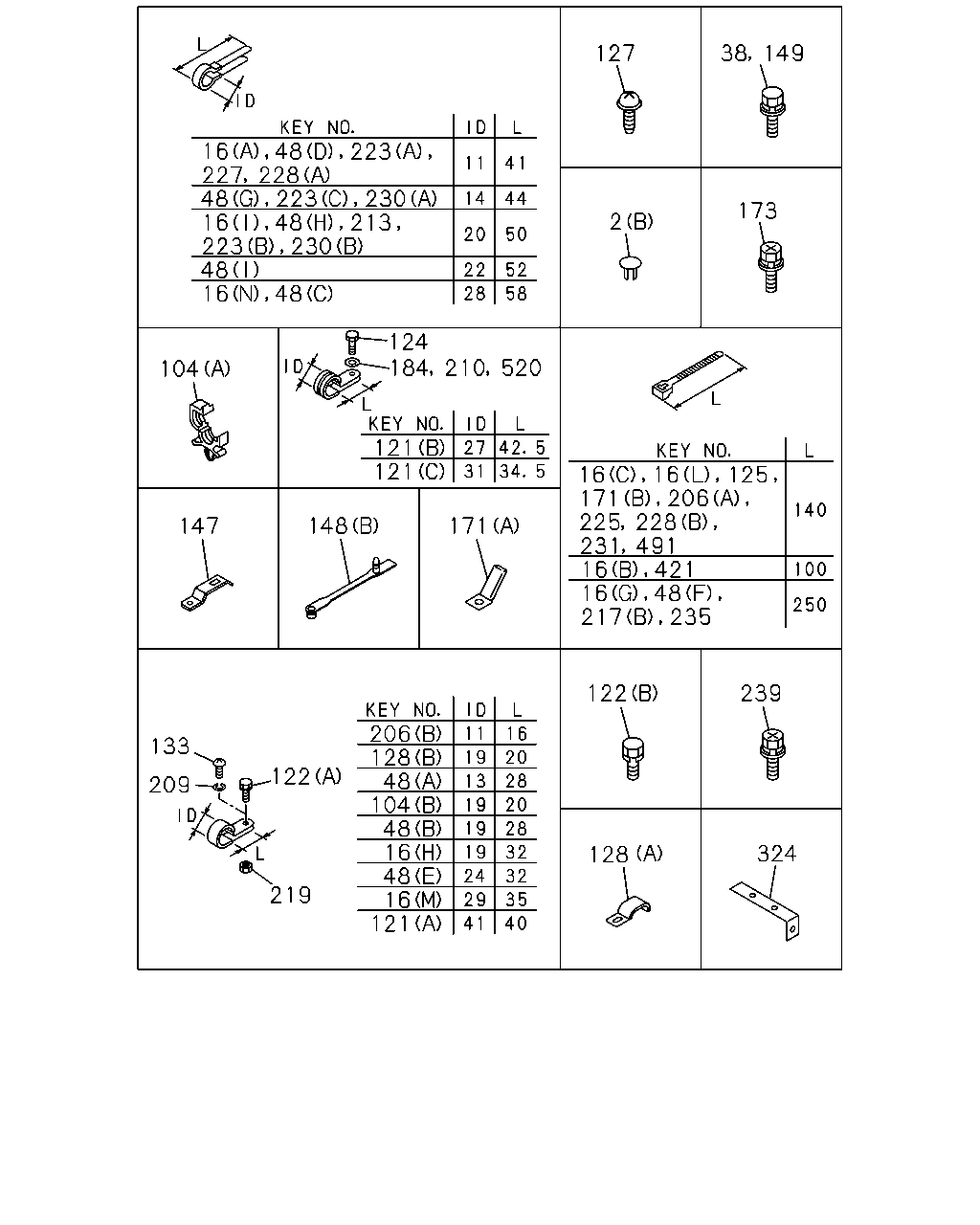

çizim 29129
127 38 149 48 173 2 124 184 210 520 104 121 121 16 16 125 231 147 148 171 122 239 206 128 48 104 48 16 48 16 121 133 122 209 324 219 16 48 223 228 227 230 223 48 213 48 16 230 223 48 16 171 206 16 421 491 225 228 16 217 48 235 128
BalonParca AdiParca NoAdetTipApplied Date A B
2 GROMMET; CLIP HOLE,HARNESS
(A) OD=47 		1-09983-039-1 02 1 9202- ● ●
2 GROMMET; CLIP HOLE,HARNESS
(B) OD=12.8 		1-09983-065-0 04 1 9202- ● ●
16 CLIP; HARNESS
(J) ID=28 L=60 		1-09700-585-0 01 1 9202-9203 ●
16 CLIP; HARNESS
EXC. FIRE TRUCK<RA9> (J) ID=28 L=60 		1-09700-585-0 01 1 9202-9203 ●
16 CLIP; HARNESS
(N) ID=28 L=58 		1-09700-400-0 01 1 9204- ●
16 CLIP; HARNESS
EXC. FIRE TRUCK<RA9> (N) ID=28 L=58 		1-09700-400-0 01 1 9204- ●
16 CLIP; HARNESS
(K) L=300 		1-09707-001-0 01 1 9202- ●
16 CLIP; HARNESS
EXC. FIRE TRUCK<RA9> (K) L=300 		1-09707-001-0 01 1 9202- ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 9202-9206 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9207- ● ●
16 CLIP; HARNESS
(D) ID=19 H=33 L=45 		1-09701-045-0 01 1 9202- ● ●
16 CLIP; HARNESS
(E) L=219.5 		1-09987-136-0 04 1 9202-9208 ● ●
16 CLIP; HARNESS
(E) L=219.5 		1-09987-136-0 03 1 9209- ●
16 CLIP; HARNESS
EXC. FIRE TRUCK<RA9> (E) L=219.5 		1-09987-136-0 03 1 9209- ●
16 CLIP; HARNESS
(F) L=135 		1-09987-143-1 02 1 9202- ● ●
16 CLIP; HARNESS
(G) L=250 		5-09707-030-0 02 1 9202-9202 ● ●
16 CLIP; HARNESS
(K) L=300 		1-09707-001-0 02 1 9203-9206 ● ●
16 CLIP; HARNESS
(H) ID=19 L=32 		9-09525-866-0 01 1 9202- ● ●
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 9202- ● ●
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9202- ● ●
16 CLIP; HARNESS
(G) L=250 		5-09707-030-0 01 1 9303- ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (C) L=140 		5-09707-031-0 01 1 9202- ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) L=100 		5-09707-036-0 02 1 9202- ● ●
16 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (L) L=140 		5-09707-031-0 03 1 9202- ● ●
16 CLIP; HARNESS
MLD7R M/T(X5L),MLD6A M/T(X5N) (A) ID=11 L=41 		1-09700-403-0 01 1 9202-9206 ● ●
16 CLIP; HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 L=41 		1-09700-403-0 01 1 9202-9206 ● ●
16 CLIP; HARNESS
FIRE TRUCK<RA9> (M) ID=29 L=35 		5-09700-293-1 02 1 9202- ●
16 CLIP; HARNESS
FIRE TRUCK<RA9> (E) L=219.5 		1-09987-136-0 04 1 9209- ●
38 BOLT; CLIP,HARNESS
EXC. ENGINE REAR PTO(SV1) M8X14 FLANGE 		0-28080-814-0 01 1 9212- ●
38 BOLT; CLIP,HARNESS
M8X14 FLANGE 		0-28080-814-0 01 1 9212- ●
38 BOLT; CLIP,HARNESS
FLANGE BOLT M8X16 FLANGE 		0-28080-816-0 02 1 9202-9202 ● ●
38 BOLT; CLIP,HARNESS
FLANGE BOLT M8X20 FLANGE 		0-28080-820-0 02 1 9202-9202 ● ●
38 BOLT; CLIP,HARNESS
ENGINE REAR PTO(SV1) FLANGE BOLT M8X20 FLANGE 		0-28080-820-0 02 1 9202-9202 ●
38 BOLT; CLIP,HARNESS
FLANGE BOLT M8X20 FLANGE 		0-28080-820-0 04 1 9203-9211 ● ●
38 BOLT; CLIP,HARNESS
FLANGE BOLT M8X20 FLANGE 		0-28080-820-0 02 1 9212- ● ●
38 BOLT; CLIP,HARNESS
FLANGE BOLT M8X20 FLANGE 		0-28080-820-0 01 1 9202-9211 ● ●
38 BOLT; CLIP,HARNESS
M8X14 FLANGE 		0-28080-814-0 02 1 9212- ● ●
38 BOLT; CLIP,HARNESS
ENGINE REAR PTO(SV1) M8X14 FLANGE 		0-28080-814-0 02 1 9212- ●
38 BOLT; CLIP,HARNESS
FLANGE BOLT M8X25 FLANGE 		0-28080-825-0 02 1 9202- ● ●
38 BOLT; CLIP,HARNESS
EXHAUST BRAKE<NF8> FLANGE BOLT M8X16 FLANGE 		0-28080-816-0 01 1 9202-9202 ● ●
38 BOLT; CLIP,HARNESS
ENGINE REAR PTO(SV1) FLANGE BOLT M8X20 FLANGE 		0-28080-820-0 02 1 9203-9211 ●
38 BOLT; CLIP,HARNESS
FIRE TRUCK<RA9> FLANGE BOLT M8X20 FLANGE 		0-28080-820-0 01 1 9212- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 11 1 9202-9307 ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 10 1 9308- ●
48 CLIP; FRAME HARNESS
ENGINE REAR PTO(SV1) (A) ID=13 		9-09525-255-0 01 1 9202-9206 ●
48 CLIP; FRAME HARNESS
ENGINE REAR PTO(SV1) (B) ID=19 L=28 		9-09525-856-0 01 1 9202-9206 ●
48 CLIP; FRAME HARNESS
(B) ID=19 L=28 		9-09525-856-0 02 1 9207- ● ●
48 CLIP; FRAME HARNESS
ENGINE REAR PTO(SV1) (B) ID=19 L=28 		9-09525-856-0 02 1 9207- ●
48 CLIP; FRAME HARNESS
EXC. ENGINE REAR PTO(SV1) (H) ID=12 H=24 L=20 		1-09700-605-0 01 1 9205- ●
48 CLIP; FRAME HARNESS
(H) ID=12 H=24 L=20 		1-09700-605-0 01 1 9205- ●
48 CLIP; FRAME HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 9202-9205 ● ●
48 CLIP; FRAME HARNESS
(F) L=250 		5-09707-030-0 01 1 9202-9202 ● ●
48 CLIP; FRAME HARNESS
(F) L=250 		5-09707-030-0 02 1 9203- ● ●
48 CLIP; FRAME HARNESS
(B) ID=19 L=28 		9-09525-856-0 02 1 9202-9206 ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 02 1 9202- ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 03 1 9202- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 9202-9206 ● ●
48 CLIP; FRAME HARNESS
(G) ID=14 L=44 		9-09917-427-0 01 1 9207- ● ●
48 CLIP; FRAME HARNESS
(I) ID=22 L=52 		9-09917-431-0 01 1 9202-9202 ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=58 		1-09700-400-0 02 1 9202- ● ●
48 CLIP; FRAME HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 9202- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 06 1 9202-9206 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 05 1 9207- ● ●
48 CLIP; FRAME HARNESS
(I) ID=22 L=52 		9-09917-431-0 02 1 9202- ● ●
48 CLIP; FRAME HARNESS
(I) ID=22 L=52 		9-09917-431-0 01 1 9205- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> (H) ID=20 L=50 		9-09917-430-0 13 1 9202-9202 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (H) ID=20 L=50 		9-09917-430-0 14 1 9203- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (H) ID=20 L=50 		9-09917-430-0 14 1 9202-9202 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (H) ID=20 L=50 		9-09917-430-0 16 1 9202- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 18 1 9202- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 20 1 9411- ●
104 CLIP; HEADLAMP HARNESS
(A) L=142 		8-94232-619-0 02 1 9202- ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=19 L=20 		9-09525-832-0 01 1 9202- ● ●
121 CLIP; FACIA HARNESS
(A) ID=41 L=40 		1-09700-596-0 02 1 9202- ● ●
121 CLIP; FACIA HARNESS
(B) ID=27 L=32 		1-09700-712-0 04 1 9202-9208 ● ●
121 CLIP; FACIA HARNESS
(D) ID=35 L=35 		1-09700-726-0 03 1 9209- ●
121 CLIP; FACIA HARNESS
EXC. FIRE TRUCK<RA9> (D) ID=35 L=35 		1-09700-726-0 03 1 9209- ●
121 CLIP; FACIA HARNESS
(C) ID=31 L=33.5 		1-09987-165-0 01 1 9202- ● ●
121 CLIP; FACIA HARNESS
FIRE TRUCK<RA9> (D) ID=35 L=35 		1-09700-726-0 04 1 9209- ●
122 BOLT; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		1-09980-493-0 03 1 9202- ● ●
122 BOLT; FACIA HARNESS CLIP
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X20 W/LK&PL WASHER 		9-01960-620-0 02 1 9202-9204 ● ●
122 BOLT; FACIA HARNESS CLIP
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9205- ● ●
124 BOLT; GRAND,FACIA
M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9202-9303 ● ●
124 BOLT; GRAND,FACIA
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304- ● ●
125 CLIP; BAND,STOP LAMP SW HARNESS
L=140 		5-09707-031-0 01 1 9202- ● ●
127 SCREW; FACIA HARNESS CLIP
EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING W/PL WASHER 		0-74100-516-0 01 1 9202- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) 		1-09987-193-0 01 1 9202- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) 		9-09525-832-0 01 1 9202- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/LK&PL WASHER 		9-03920-612-0 02 1 9202- ● ●
147 BRACKET; HARNESS,HEADLAMP 1-71998-471-0 02 1 9202- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=219.5 		1-09987-136-0 01 1 9202- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 		8-94232-611-0 03 1 9202- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 06 1 9202-9208 ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 07 1 9209- ●
148 CLIP; BAND,HEADLAMP HARNESS
EXC. FIRE TRUCK<RA9> (C) L=142 		8-94232-619-0 07 1 9209- ●
148 CLIP; BAND,HEADLAMP HARNESS
FIRE TRUCK<RA9> (C) L=142 		8-94232-619-0 06 1 9209- ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 9202-9303 ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X20 W/LK&PL WASHER 		8-97086-824-0 02 1 9304- ● ●
149 BOLT; HEADLAMP HARNESS EARTH
M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 9202-9303 ● ●
171 CLIP; STARTER HARNESS
(A) L=63 		1-09700-418-1 01 1 9202-9204 ● ●
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-0 01 1 9202- ● ●
171 CLIP; STARTER HARNESS
(C) L=300 		1-09707-001-0 01 1 9207- ● ●
173 BOLT; STARTER EARTH
M10X16 FLANGE 		0-28081-016-0 01 1 9202-9212 ● ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9301- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 9301- ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-0 02 1 9202- ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=11 L=16 		9-09525-022-0 01 1 9202- ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9202- ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9301- ● ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9202- ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9202- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-0 02 1 9202- ● ●
219 NUT
M8 		9-09110-408-0 01 1 9202- ● ●
219 NUT
M8 		9-09110-408-0 04 1 9202- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 9202-9205 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9206- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 05 1 9202-9205 ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 9206- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 01 1 9206- ● ●
225 CLIP; AIR TANK HARNESS
L=140 		5-09707-031-0 01 1 9206- ● ●
227 CLIP; FOG LAMP HARNESS
ID=11 L=41 		1-09700-403-0 02 1 9202- ● ●
228 CLIP; COOLER HARNESS
AIR CON MANUAL CONTROL(C60) (A) ID=11 L=41 		1-09700-403-0 01 1 9202-9202 ● ●
228 CLIP; COOLER HARNESS
AIR CON MANUAL CONTROL(C60) (B) L=140 		5-09707-031-0 03 1 9202-9202 ● ●
228 CLIP; COOLER HARNESS
AIR CON MANUAL CONTROL(C60) (B) L=140 		5-09707-031-0 04 1 9203- ● ●
230 CLIP; C/MBR HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 9202-9205 ● ●
230 CLIP; C/MBR HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 9206- ● ●
231 CLIP; BAND,OIL PRESS
L=140 		5-09707-031-0 01 1 9202- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=250 		5-09707-030-0 01 1 9202- ● ●
239 BOLT; GRAND
M8X20 		0-28410-820-0 01 1 9202-9204 ● ●
239 BOLT; GRAND
M8X20 FLANGE 		0-28480-820-0 01 1 9205-9212 ● ●
239 BOLT; GRAND
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9301- ● ●
239 BOLT; GRAND
M5X8 		9-92040-508-0 01 1 9202-9204 ● ●
239 BOLT; GRAND
M5X8 		0-20800-508-0 01 1 9205- ● ●
324 BRACKET; CLIP 1-47475-730-0 01 1 9205- ● ●
421 CLIP; FLOOR HARNESS
SAUDI ARABIA EQUIPMENT(WH1) L=100 		5-09707-036-0 01 1 9202- ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
FIRE TRUCK<RA9> L=140 		5-09707-031-0 01 1 9202-9207 ●
491 CLIP; BAND,HTR HOSE & HARNESS
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) FIRE TRUCK<RA9> L=140 		5-09707-031-0 01 1 9208- ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9301- ● ●
çizim 95463
64 2 27 16 178 148 16 171 16 148 53 176 242 185 224 121 154 252 294 182 194 305 16 217 16 95
BalonParca AdiParca NoAdetTipApplied Date A B
2 GROMMET; CLIP HOLE,HARNESS
(A) OD=47 		1-09983-039-1 02 1 9202- ● ●
2 GROMMET; CLIP HOLE,HARNESS
(B) OD=12.8 		1-09983-065-0 04 1 9202- ● ●
16 CLIP; HARNESS
(J) ID=28 L=60 		1-09700-585-0 01 1 9202-9203 ●
16 CLIP; HARNESS
EXC. FIRE TRUCK<RA9> (J) ID=28 L=60 		1-09700-585-0 01 1 9202-9203 ●
16 CLIP; HARNESS
(N) ID=28 L=58 		1-09700-400-0 01 1 9204- ●
16 CLIP; HARNESS
EXC. FIRE TRUCK<RA9> (N) ID=28 L=58 		1-09700-400-0 01 1 9204- ●
16 CLIP; HARNESS
(K) L=300 		1-09707-001-0 01 1 9202- ●
16 CLIP; HARNESS
EXC. FIRE TRUCK<RA9> (K) L=300 		1-09707-001-0 01 1 9202- ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 9202-9206 ● ●
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9207- ● ●
16 CLIP; HARNESS
(D) ID=19 H=33 L=45 		1-09701-045-0 01 1 9202- ● ●
16 CLIP; HARNESS
(E) L=219.5 		1-09987-136-0 04 1 9202-9208 ● ●
16 CLIP; HARNESS
(E) L=219.5 		1-09987-136-0 03 1 9209- ●
16 CLIP; HARNESS
EXC. FIRE TRUCK<RA9> (E) L=219.5 		1-09987-136-0 03 1 9209- ●
16 CLIP; HARNESS
(F) L=135 		1-09987-143-1 02 1 9202- ● ●
16 CLIP; HARNESS
(G) L=250 		5-09707-030-0 02 1 9202-9202 ● ●
16 CLIP; HARNESS
(K) L=300 		1-09707-001-0 02 1 9203-9206 ● ●
16 CLIP; HARNESS
(H) ID=19 L=32 		9-09525-866-0 01 1 9202- ● ●
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 9202- ● ●
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9202- ● ●
16 CLIP; HARNESS
(G) L=250 		5-09707-030-0 01 1 9303- ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (C) L=140 		5-09707-031-0 01 1 9202- ● ●
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) L=100 		5-09707-036-0 02 1 9202- ● ●
16 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (L) L=140 		5-09707-031-0 03 1 9202- ● ●
16 CLIP; HARNESS
MLD7R M/T(X5L),MLD6A M/T(X5N) (A) ID=11 L=41 		1-09700-403-0 01 1 9202-9206 ● ●
16 CLIP; HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 L=41 		1-09700-403-0 01 1 9202-9206 ● ●
16 CLIP; HARNESS
FIRE TRUCK<RA9> (M) ID=29 L=35 		5-09700-293-1 02 1 9202- ●
16 CLIP; HARNESS
FIRE TRUCK<RA9> (E) L=219.5 		1-09987-136-0 04 1 9209- ●
27 PROTECTOR; EDGE
L=2040 		1-71997-513-1 02 1 9202- ● ●
53 BRACKET; HARNESS
FIRE TRUCK<RA9> 		1-47475-775-3 01 1 9202- ●
64 SCREW; CLIP
M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 9202- ● ●
95 CLIP; CABLE
L=135 		1-09987-143-1 02 1 9202- ● ●
121 CLIP; FACIA HARNESS
(A) ID=41 L=40 		1-09700-596-0 02 1 9202- ● ●
121 CLIP; FACIA HARNESS
(B) ID=27 L=32 		1-09700-712-0 04 1 9202-9208 ● ●
121 CLIP; FACIA HARNESS
(D) ID=35 L=35 		1-09700-726-0 03 1 9209- ●
121 CLIP; FACIA HARNESS
EXC. FIRE TRUCK<RA9> (D) ID=35 L=35 		1-09700-726-0 03 1 9209- ●
121 CLIP; FACIA HARNESS
(C) ID=31 L=33.5 		1-09987-165-0 01 1 9202- ● ●
121 CLIP; FACIA HARNESS
FIRE TRUCK<RA9> (D) ID=35 L=35 		1-09700-726-0 04 1 9209- ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=219.5 		1-09987-136-0 01 1 9202- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 		8-94232-611-0 03 1 9202- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 06 1 9202-9208 ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 07 1 9209- ●
148 CLIP; BAND,HEADLAMP HARNESS
EXC. FIRE TRUCK<RA9> (C) L=142 		8-94232-619-0 07 1 9209- ●
148 CLIP; BAND,HEADLAMP HARNESS
FIRE TRUCK<RA9> (C) L=142 		8-94232-619-0 06 1 9209- ●
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 9202- ● ●
171 CLIP; STARTER HARNESS
(A) L=63 		1-09700-418-1 01 1 9202-9204 ● ●
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-0 01 1 9202- ● ●
171 CLIP; STARTER HARNESS
(C) L=300 		1-09707-001-0 01 1 9207- ● ●
176 CLIP; BACK SW HARNESS
ID=11 		1-09700-415-0 01 1 9202- ●
176 CLIP; BACK SW HARNESS
MLD7R M/T(X5L),MLD6A M/T(X5N) ID=11 		1-09700-415-0 01 1 9202- ●
178 GROMMET; HARNESS
ID=15 OD=20 T=22 		9-09956-181-0 01 1 9202-9205 ● ●
178 GROMMET; HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) ID=15 OD=20 T=22 		9-09956-181-0 01 1 9202-9205 ●
178 GROMMET; HARNESS
ID=15 OD=20 T=22 		9-09956-181-0 01 1 9206- ● ●
178 GROMMET; HARNESS
ID=15 OD=20 T=22 		9-09956-181-0 02 1 9202- ● ●
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9205- ● ●
182 CLIP; HARNESS,OIL FILTER
L=140 		5-09707-031-0 01 1 9202- ● ●
185 SLEEVE; RUBBER
ID=9 OD=14 L=35 		8-94127-043-0 01 1 9202- ● ●
194 CLIP; BAND
L=180 		1-09707-162-0 03 1 9202- ● ●
194 CLIP; BAND
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=180 		1-09707-162-0 01 1 9202- ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9202- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-0 02 1 9202- ● ●
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 01 1 9206- ● ●
242 BOLT; BRKT,HARNESS
M8X16 FLANGE 		0-28080-816-0 01 1 9205- ● ●
242 BOLT; BRKT,HARNESS
FIRE TRUCK<RA9> M8X25 FLANGE 		0-28080-825-0 01 1 9202- ●
252 CLIP; CONNECTOR FIX
W/SPONGE RUBBER 		1-09709-150-0 01 1 9202- ● ●
294 NUT
FIRE TRUCK<RA9> M8 		9-09110-408-0 01 1 9202- ●
305 CLIP; ENG HARNESS
L=250 		5-09707-030-0 01 1 9202- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
