2-01B — CLUTCH (#9969) — 104 parça

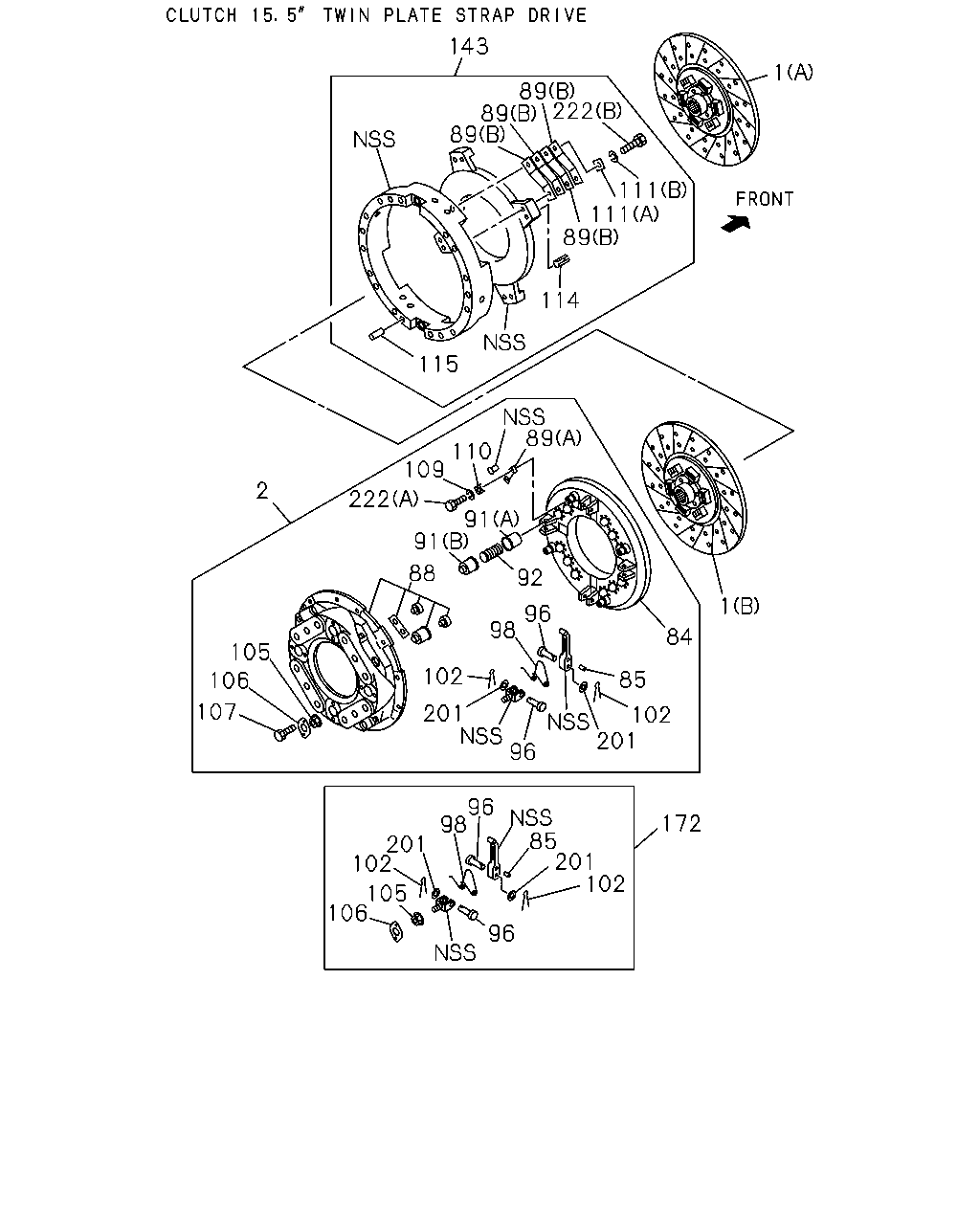

143 1 222 89 89 89 111 111 89 114 115 110 109 222 2 105 106 107 106 105 102 201 96 98 96 85 201 102 172 1 84 85 102 201 96 201 102 98 96 92 88 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH (A) FRONT 15.5"	1-31240-883-0	01	1	0107-
1	DISC; CLUTCH (B) REAR 15.5"	1-31240-884-0	01	1	0107-
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8)	1-31220-293-3	01	1	0107-
2	PLATE ASM; PRESSURE,CLU 6WF1 TC(84L)	1-31220-299-3	01	1	0107-
84	PLATE; PRESSURE	1-31221-092-0	01	1	0107-
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	0107-0205
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	0206-
88	COVER SUB ASM; CLU	1-31211-034-1	01	1	0107-
89	PLATE; STRAP (B)	1-31229-010-0	12	1	0107-
89	PLATE; STRAP (A)	1-31229-048-0	20	1	0107-
91	SEAT; SPR (B)	1-31219-045-0	12	1	0107-
91	SEAT; SPR (A)	1-31219-046-0	12	1	0107-
92	SPRING; CLU 6WF1 TC-C(1B8)	1-31214-062-0	12	1	0107-
92	SPRING; CLU 6WF1 TC(84L)	1-31214-055-0	12	1	0107-
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	0107-0308
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	0309-
98	SPRING; RETURN	1-31233-007-0	04	1	0107-
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0107-
105	NUT; SUPPORT M16	1-31239-013-0	04	1	0107-0205
105	NUT; SUPPORT	1-31235-014-0	04	1	0206-
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0107-
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0107-0205
107	BOLT; LK PLATE	1-31239-061-0	08	1	0206-
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0107-0603
109	WASHER; LK,STRAP ID=12.2	0-91510-512-0	04	1	0604-
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0107-
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	0107-
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	0107-0603
111	WASHER; PL,STRAP (B) ID=12.2	0-91510-512-0	08	1	0604-
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	0107-
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	0107-
143	PLATE; INTERMEDIATE	1-31221-110-0	01	1	0107-
172	LEVER KIT; RELEASE,CLU	1-87830-809-0	01	1	0107-0205
172	LEVER KIT; RELEASE,CLU	1-87831-113-0	01	1	0206-0308
172	LEVER KIT; RELEASE,CLU	1-87831-174-1	01	1	0309-
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	0107-
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	0107-
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	0107-

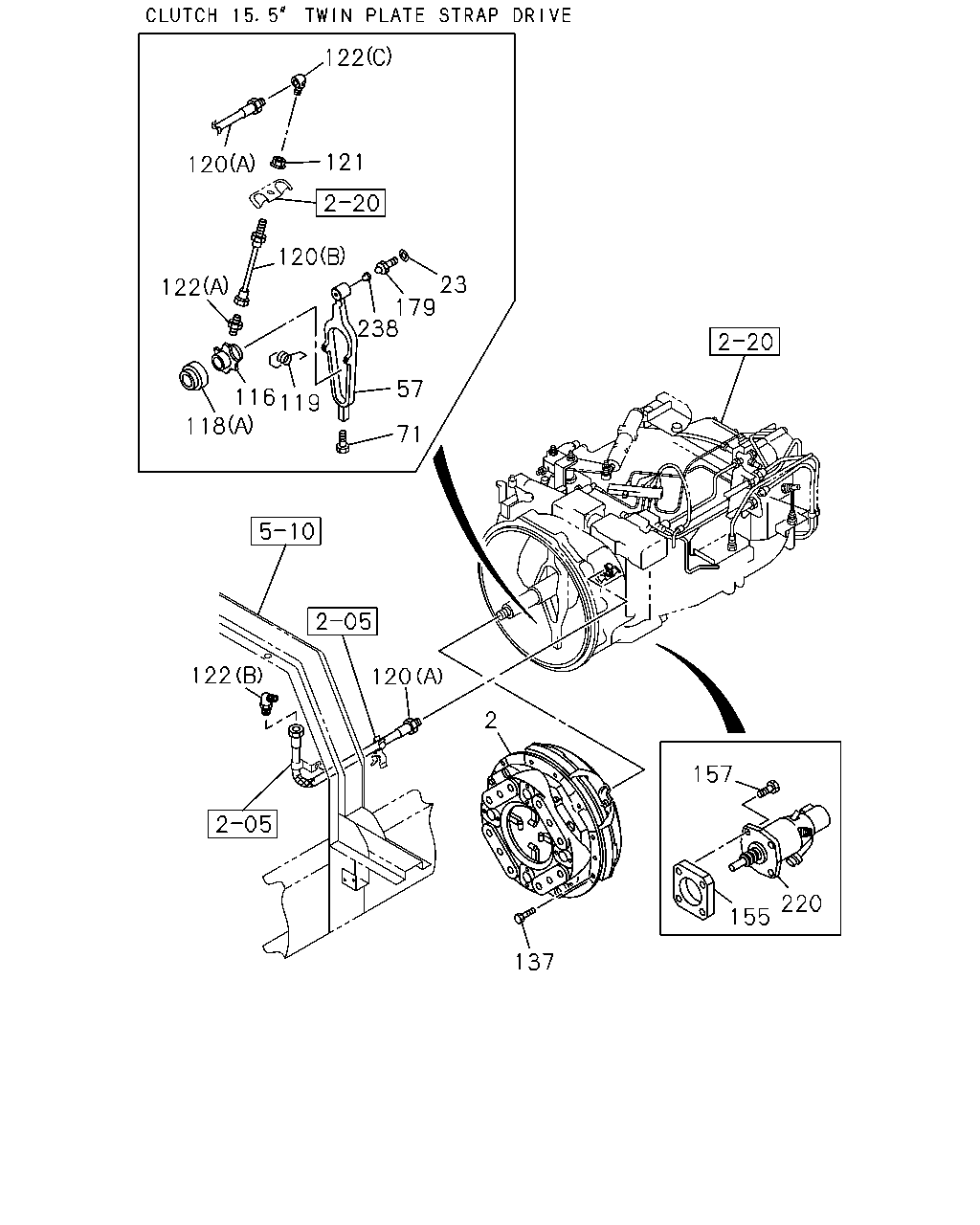

122 121 120 120 122 23 179 238 57 71 119 116 118 122 120 2 137 155 220 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8)	1-31220-293-3	01	1	0107-
2	PLATE ASM; PRESSURE,CLU 6WF1 TC(84L)	1-31220-299-3	01	1	0107-
23	WASHER; LK,SUPPORT,CLU FORK	1-31349-027-0	01	1	0107-
57	FORK; SHIFT,CLU	1-31341-041-0	01	1	0107-
71	BOLT M4X6	9-93490-406-0	01	1	0107-
116	BLOCK; SHIFT,CLU	1-31321-087-0	01	1	0107-
118	BEARING; CLU RELEASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-09820-080-0	01	1	0107-0111
118	BEARING; CLU RELEASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-09820-116-0	01	1	0112-
118	BEARING; CLU RELEASE CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B)	1-31310-011-0	01	1	0107-
119	SPRING; SHIFT FORK	1-31329-020-0	02	1	0107-
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) L=270	1-09364-903-0	01	1	0107-
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=705	1-09364-850-0	01	1	0107-
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) L=400	1-09364-934-0	01	1	0107-
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	0107-0602
121	NUT; SHIFT FORK M16 FLANGE	0-91180-216-0	01	1	0603-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0107-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0107-0512
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28181-280-0	02	1	0107-0512
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28151-280-0	02	1	0601-
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28181-290-0	10	1	0107-0512
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28151-290-0	10	1	0601-
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30	0-28781-230-0	04	1	0107-0512
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30 FLANGE	0-28751-230-0	04	1	0601-
137	BOLT; CLU COVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M10X110 FLANGE	0-28186-011-0	12	1	0107-0512
137	BOLT; CLU COVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M10X110 FLANGE	0-28156-011-0	12	1	0601-
155	BRACKET; MINIPACK	1-31429-361-1	01	1	0107-
157	BOLT; BRKT M8X40 HEX SOCKET	0-58310-840-0	04	1	0107-0512
157	BOLT; BRKT M8X40 HEX SOCKET	0-58330-840-0	04	1	0601-
179	SUPPORT; CLU FORK	1-31349-026-0	01	1	0107-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	0107-
238	CUP; SUPPORT,CLU FORK	1-31349-025-0	01	1	0107-

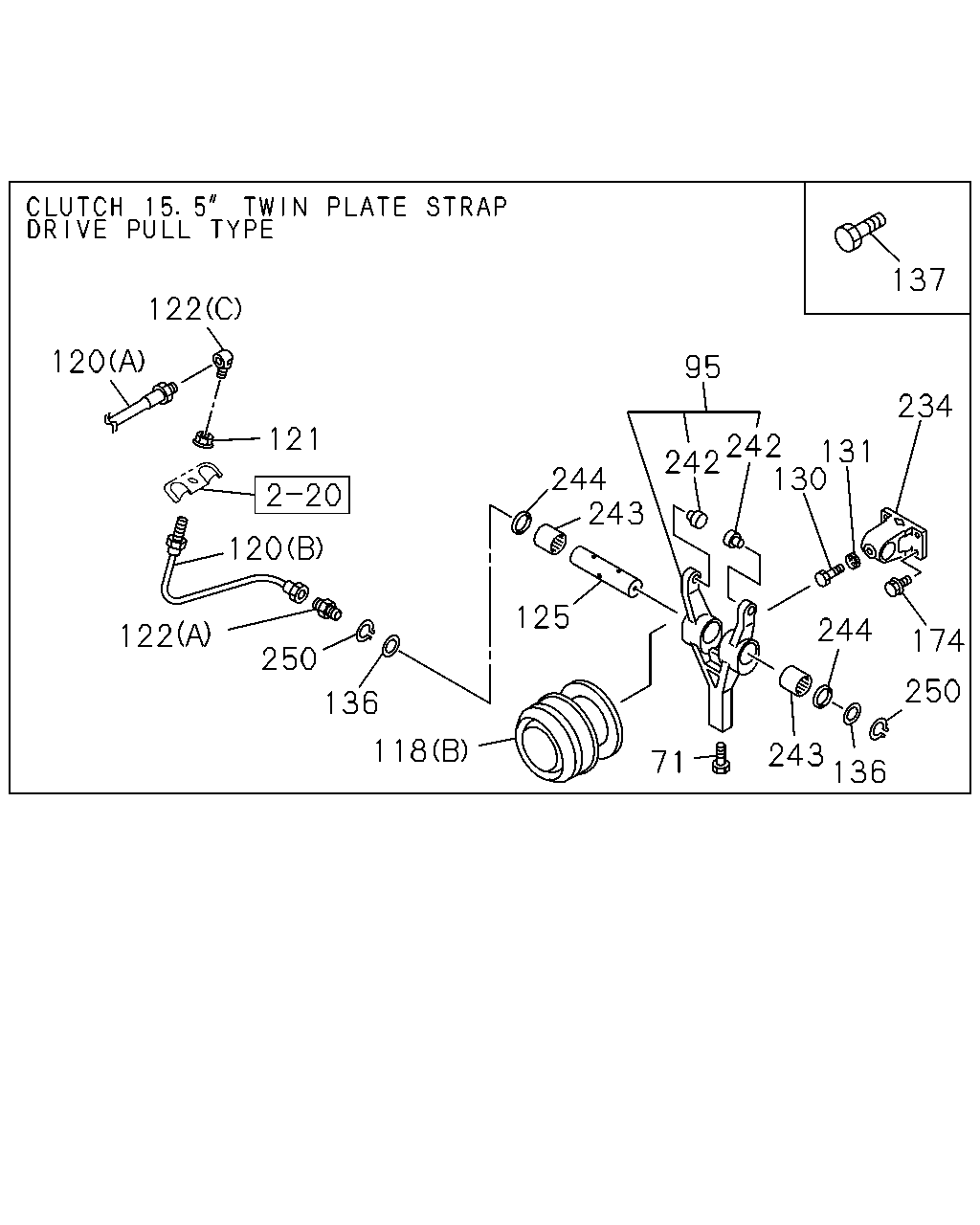

122 120 121 120 122 250 136 118 71 243 136 250 174 244 125 244 243 242 242 130 131 234 137 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	BOLT M4X6	9-93490-406-0	01	1	0107-
95	LEVER; RELEASE CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31340-068-2	01	1	0107-
118	BEARING; CLU RELEASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-09820-080-0	01	1	0107-0111
118	BEARING; CLU RELEASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-09820-116-0	01	1	0112-
118	BEARING; CLU RELEASE CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B)	1-31310-011-0	01	1	0107-
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) L=270	1-09364-903-0	01	1	0107-
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=705	1-09364-850-0	01	1	0107-
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) (B) L=400	1-09364-934-0	01	1	0107-
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	0107-0602
121	NUT; SHIFT FORK M16 FLANGE	0-91180-216-0	01	1	0603-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0107-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0107-0512
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
125	SHAFT; CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31342-295-0	01	1	0107-
130	SCREW; SHIFT FORK CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-09129-016-0	01	1	0107-
131	WASHER; LK,SHIFT FORK CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ID=8.2	9-09150-508-0	01	1	0107-0603
131	WASHER; LK,SHIFT FORK CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ID=8.2	0-91510-508-0	01	1	0604-
136	WASHER; PL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ID=31	9-09160-530-0	02	1	0107-
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28181-280-0	02	1	0107-0512
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28151-280-0	02	1	0601-
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28181-290-0	10	1	0107-0512
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28151-290-0	10	1	0601-
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30	0-28781-230-0	04	1	0107-0512
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30 FLANGE	0-28751-230-0	04	1	0601-
137	BOLT; CLU COVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M10X110 FLANGE	0-28186-011-0	12	1	0107-0512
137	BOLT; CLU COVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M10X110 FLANGE	0-28156-011-0	12	1	0601-
174	BOLT; BRKT CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M8X23 FLANGE	8-94174-559-2	04	1	0107-
234	BRACKET; CLU CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31345-004-0	01	1	0107-
242	BEARING; CAM FOLLOWER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-31349-060-1	02	1	0107-
243	BEARING; RELEASE LEVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-09811-087-0	02	1	0107-
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-09625-003-0	02	1	0107-
250	RING; SNAP,SHAFT CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) ID=27.9	9-09180-030-0	02	1	0107-
