2-01A — CLUTCH (#9968) — 142 parça

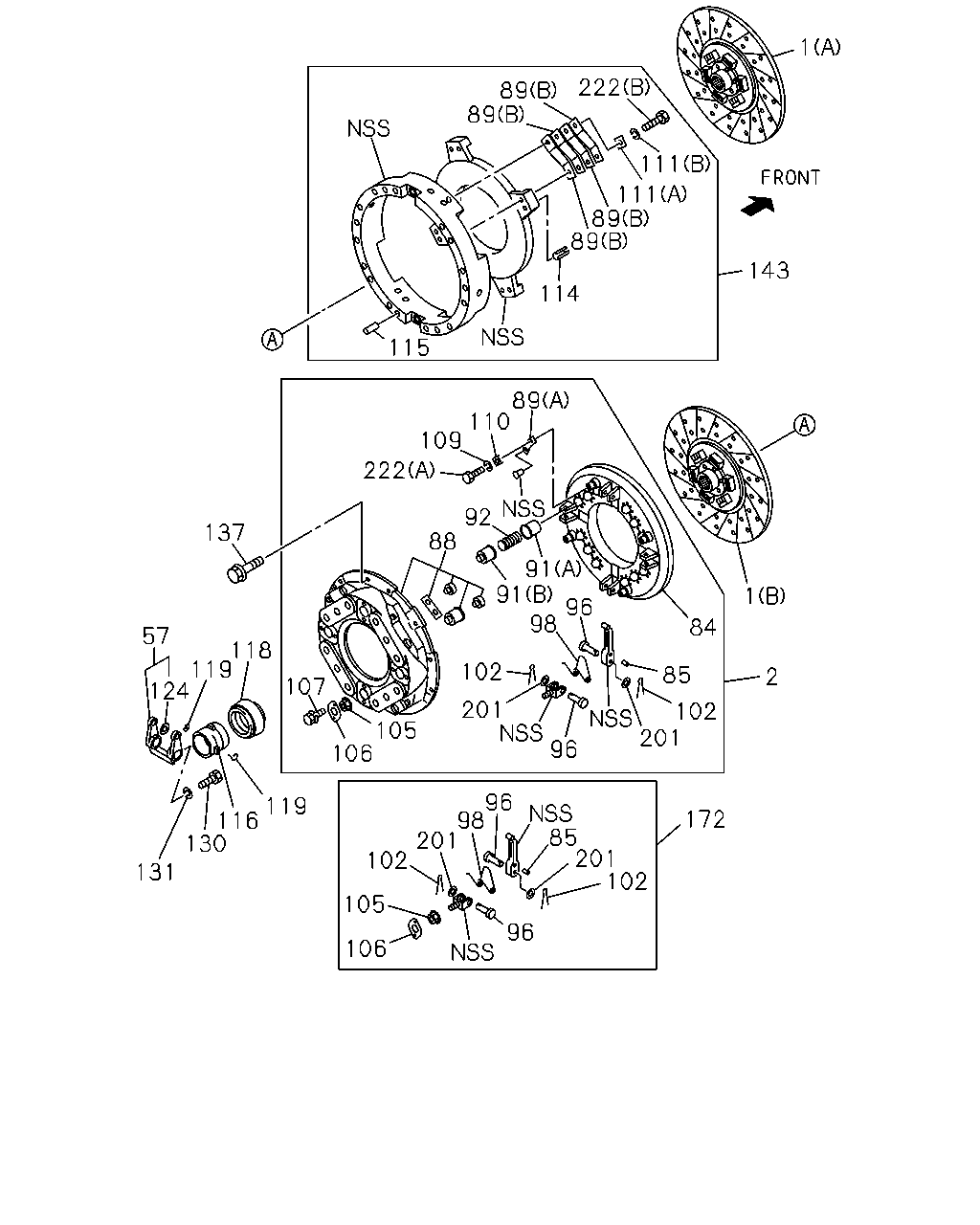

1 222 89 89 111 111 89 89 114 143 115 89 110 109 222 137 57 118 119 124 131 130 116 119 107 106 105 96 98 201 102 105 106 96 172 102 201 85 96 201 102 85 2 1 84 96 201 102 98 91 91 92 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH (C) 15.5"	1-31240-907-0	01	1	0107-	●
1	DISC; CLUTCH (A) FRONT 15.5"	1-31240-883-0	01	1	0107-		●
1	DISC; CLUTCH (B) REAR 15.5"	1-31240-884-0	01	1	0107-		●
2	PLATE ASM; PRESSURE,CLU	1-31220-352-0	01	1	0107-	●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8)	1-31220-329-2	01	1	0107-		●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC(84L)	1-31220-333-2	01	1	0107-		●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0107-		●
57	FORK; SHIFT,CLU	1-31340-066-1	01	1	0107-	●
84	PLATE; PRESSURE	1-31221-087-0	01	1	0107-		●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	0107-0205		●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	0206-		●
88	COVER SUB ASM; CLU	1-31210-020-1	01	1	0107-		●
89	PLATE; STRAP (B)	1-31229-010-0	12	1	0107-		●
89	PLATE; STRAP (A)	1-31229-048-0	20	1	0107-		●
91	SEAT; SPR (B)	1-31219-045-0	12	1	0107-		●
91	SEAT; SPR (A)	1-31219-046-0	12	1	0107-		●
92	SPRING; CLU 6WF1 TC-C(1B8)	1-31214-062-0	12	1	0107-		●
92	SPRING; CLU 6WF1 TC(84L)	1-31214-055-0	12	1	0107-		●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	0107-0308		●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	0309-		●
98	SPRING; RETURN	1-31233-007-0	04	1	0107-		●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0107-		●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	0107-0205		●
105	NUT; SUPPORT	1-31235-014-0	04	1	0206-		●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0107-		●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0107-0205		●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0206-		●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0107-0603		●
109	WASHER; LK,STRAP ID=12.2	0-91510-512-0	04	1	0604-		●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0107-		●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	0107-		●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	0107-0603		●
111	WASHER; PL,STRAP (B) ID=12.2	0-91510-512-0	08	1	0604-		●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	0107-		●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	0107-		●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	0107-		●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0107-0111		●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0112-		●
118	BEARING; CLU RELEASE	1-31310-006-0	01	1	0107-	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	0107-		●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	0107-		●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0107-		●
124	BEARING; CAM,SHIFT FORK	1-31349-060-1	02	1	0107-	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0107-0512	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0107-0603	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28181-280-0	02	1	0107-0512		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28151-280-0	02	1	0601-		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28181-290-0	10	1	0107-0512		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28151-290-0	10	1	0601-		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30	0-28781-230-0	04	1	0107-0512		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30 FLANGE	0-28751-230-0	04	1	0601-		●
137	BOLT; CLU COVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M10X110 FLANGE	0-28186-011-0	12	1	0107-0512	●
137	BOLT; CLU COVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M10X110 FLANGE	0-28156-011-0	12	1	0601-	●
143	PLATE; INTERMEDIATE	1-31221-109-0	01	1	0107-		●
172	LEVER KIT; RELEASE,CLU	1-87830-915-0	01	1	0107-0205		●
172	LEVER KIT; RELEASE,CLU	1-87831-114-0	01	1	0206-0308		●
172	LEVER KIT; RELEASE,CLU	1-87831-164-1	01	1	0309-		●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	0107-		●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	0107-		●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	0107-		●

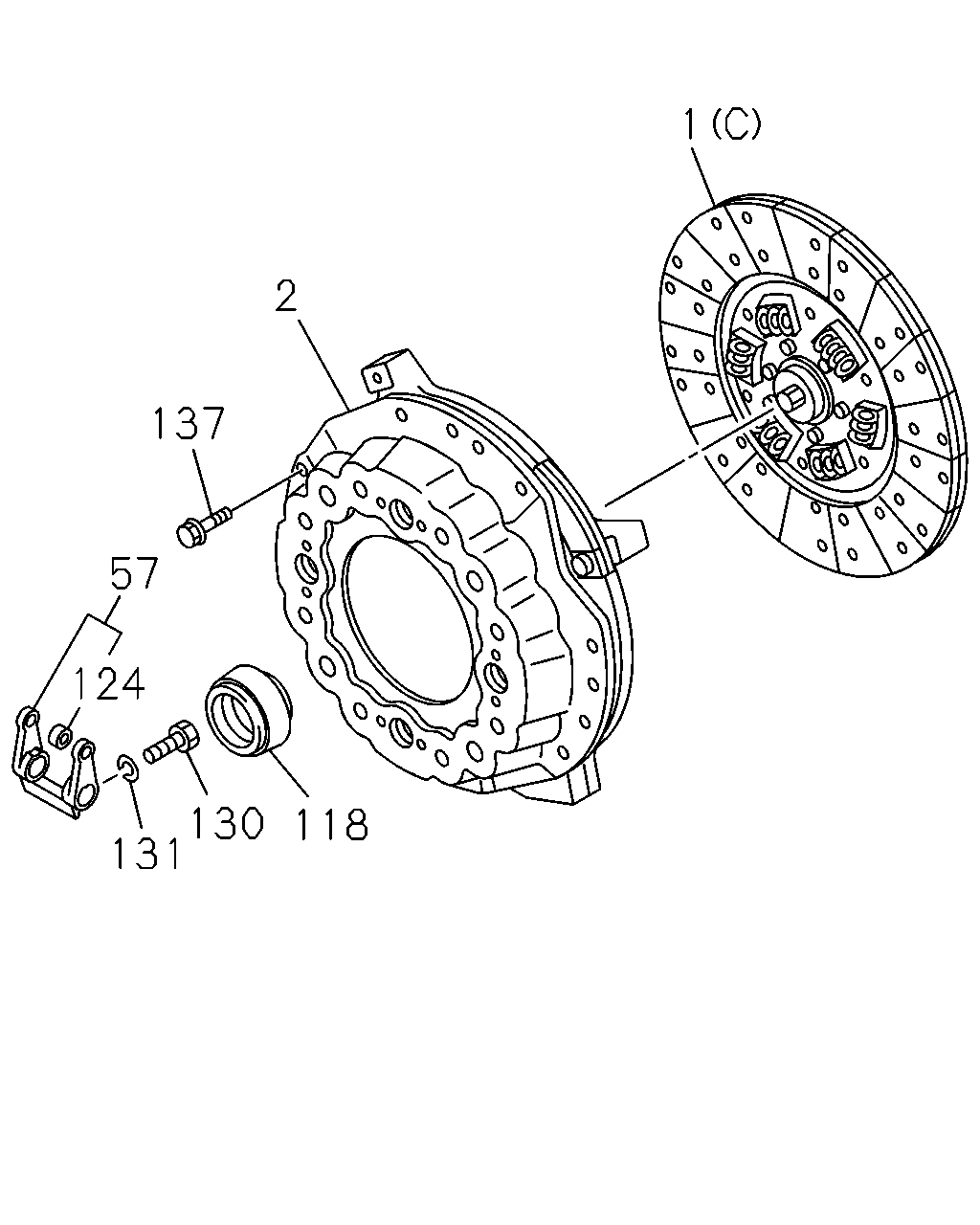

1 2 137 57 124 131 130 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH (C) 15.5"	1-31240-907-0	01	1	0107-	●
1	DISC; CLUTCH (A) FRONT 15.5"	1-31240-883-0	01	1	0107-		●
1	DISC; CLUTCH (B) REAR 15.5"	1-31240-884-0	01	1	0107-		●
2	PLATE ASM; PRESSURE,CLU	1-31220-352-0	01	1	0107-	●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8)	1-31220-329-2	01	1	0107-		●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC(84L)	1-31220-333-2	01	1	0107-		●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0107-		●
57	FORK; SHIFT,CLU	1-31340-066-1	01	1	0107-	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0107-0111		●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0112-		●
118	BEARING; CLU RELEASE	1-31310-006-0	01	1	0107-	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0107-		●
124	BEARING; CAM,SHIFT FORK	1-31349-060-1	02	1	0107-	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0107-0512	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0107-0603	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28181-280-0	02	1	0107-0512		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28151-280-0	02	1	0601-		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28181-290-0	10	1	0107-0512		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28151-290-0	10	1	0601-		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30	0-28781-230-0	04	1	0107-0512		●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30 FLANGE	0-28751-230-0	04	1	0601-		●
137	BOLT; CLU COVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M10X110 FLANGE	0-28186-011-0	12	1	0107-0512	●
137	BOLT; CLU COVER CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) M10X110 FLANGE	0-28156-011-0	12	1	0601-	●

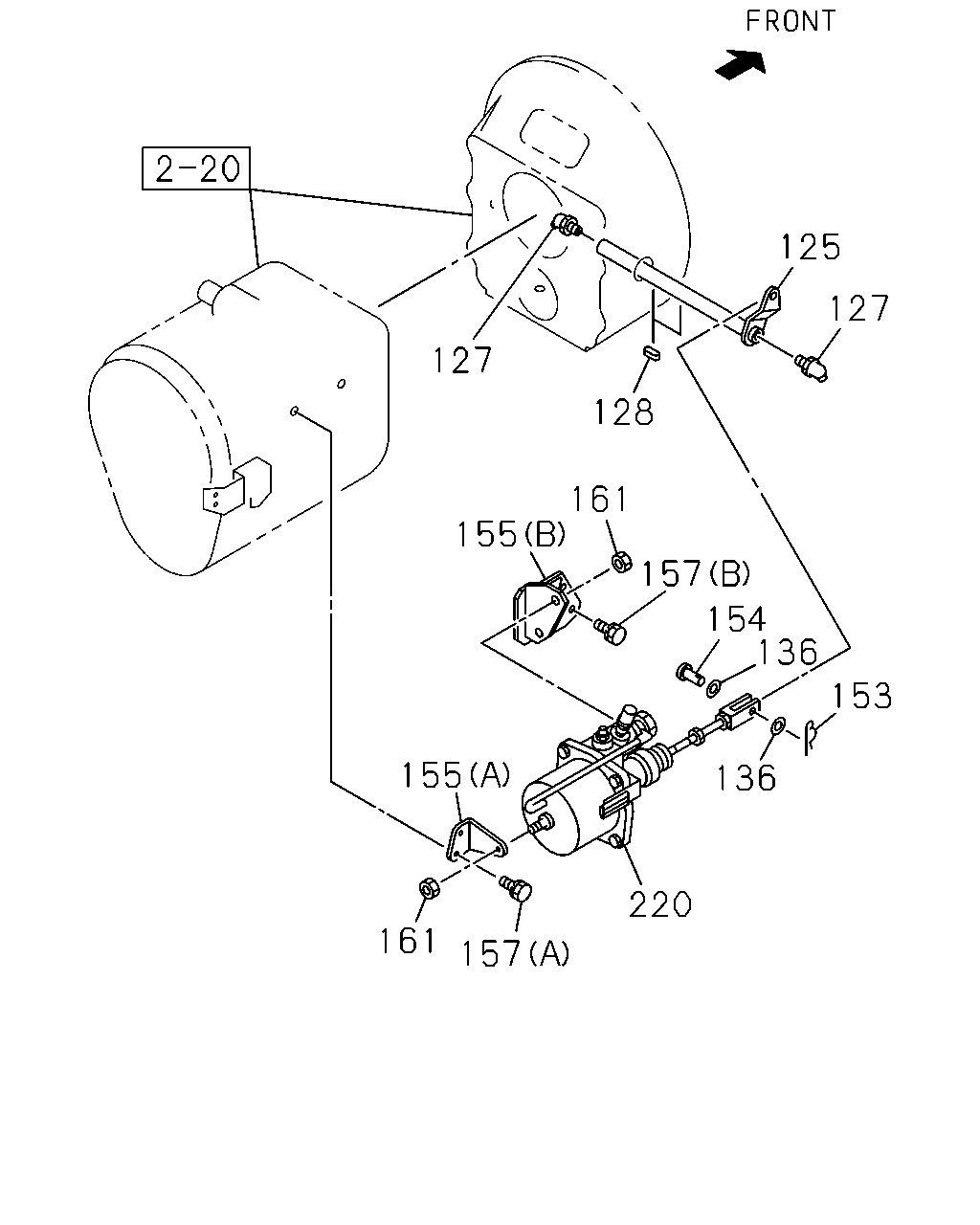

125 127 128 161 157 154 136 153 136 220 157 161 155 155 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
125	SHAFT; CLU	1-31342-324-0	01	1	0107-	●
125	SHAFT; CLU	1-31342-262-0	01	1	0107-		●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0107-0512	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0107-	●	●
136	WASHER; PL ID=15	9-09160-514-0	02	1	0107-0605	●
136	WASHER; PL ID=15	0-91610-514-0	02	1	0606-	●
153	PIN; SPLIT,CLU SHAFT	1-09747-009-0	01	1	0107-	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0107-		●
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	0107-	●
155	BRACKET; MINIPACK (B)	1-31429-456-0	01	1	0107-	●
155	BRACKET; MINIPACK (A)	1-31429-457-0	01	1	0107-	●
155	BRACKET; MINIPACK (B)	1-31429-323-1	01	1	0107-		●
155	BRACKET; MINIPACK (A)	1-31429-350-0	01	1	0107-		●
157	BOLT; BRKT (C) M10X25 FLANGE	0-28781-025-0	03	1	0107-0512		●
157	BOLT; BRKT (C) M10X25 FLANGE	0-28751-025-0	03	1	0601-		●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28781-025-0	01	1	0107-0512	●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28751-025-0	01	1	0601-	●
157	BOLT; BRKT (B) M10X30 FLANGE	0-28781-030-0	02	1	0107-0512	●
157	BOLT; BRKT (B) M10X30 FLANGE	0-28751-030-0	02	1	0601-	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	0107-0602	●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0603-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-500-0	01	1	0107-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-386-3	01	1	0107-		●

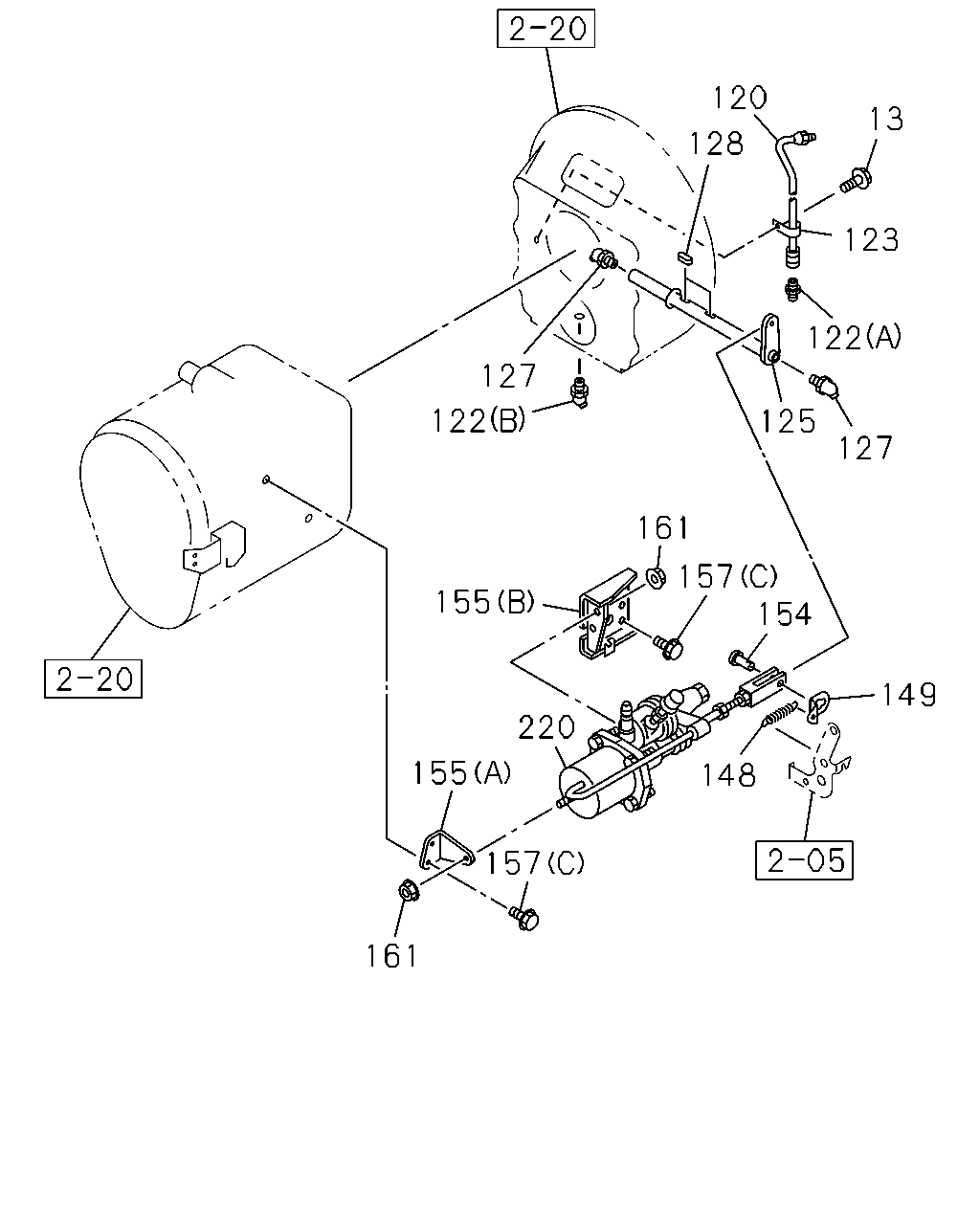

120 128 127 122 155 220 155 161 157 148 149 154 157 161 127 125 122 123 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0107-0512		●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0107-		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0107-		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0107-0512		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-		●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0107-0606		●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-		●
125	SHAFT; CLU	1-31342-324-0	01	1	0107-	●
125	SHAFT; CLU	1-31342-262-0	01	1	0107-		●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0107-0512	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0107-	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0107-		●
149	EYE; SPRING,RETURN SPRING	1-31426-048-0	01	1	0107-		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0107-		●
154	PIN; JAW JOINT L=35	1-31424-003-0	01	1	0107-	●
155	BRACKET; MINIPACK (B)	1-31429-456-0	01	1	0107-	●
155	BRACKET; MINIPACK (A)	1-31429-457-0	01	1	0107-	●
155	BRACKET; MINIPACK (B)	1-31429-323-1	01	1	0107-		●
155	BRACKET; MINIPACK (A)	1-31429-350-0	01	1	0107-		●
157	BOLT; BRKT (C) M10X25 FLANGE	0-28781-025-0	03	1	0107-0512		●
157	BOLT; BRKT (C) M10X25 FLANGE	0-28751-025-0	03	1	0601-		●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28781-025-0	01	1	0107-0512	●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28751-025-0	01	1	0601-	●
157	BOLT; BRKT (B) M10X30 FLANGE	0-28781-030-0	02	1	0107-0512	●
157	BOLT; BRKT (B) M10X30 FLANGE	0-28751-030-0	02	1	0601-	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	0107-0602	●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0603-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-500-0	01	1	0107-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-386-3	01	1	0107-		●
