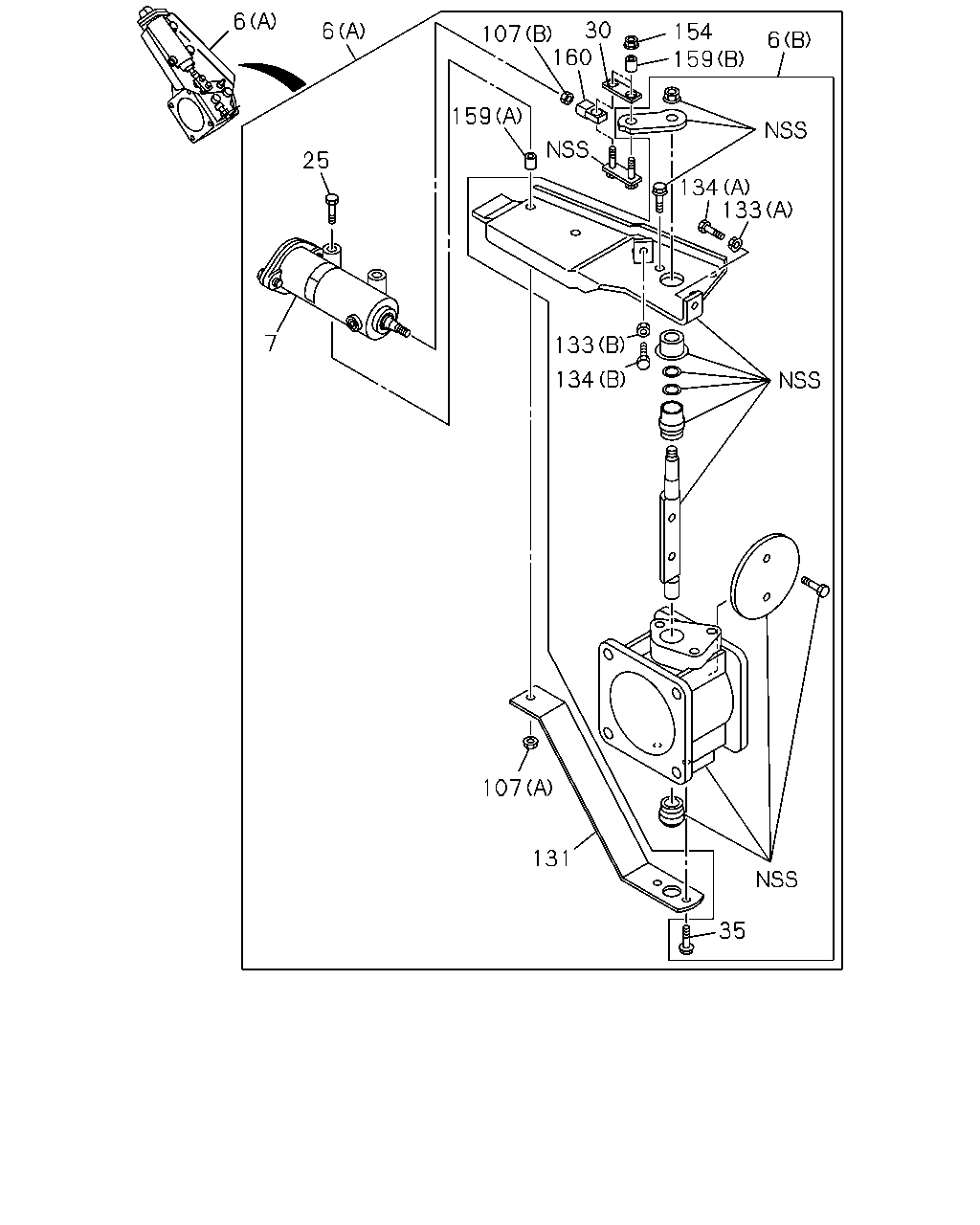

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#9966) — 58 parça
çizim 75179
6 6 25 7 107 131 35 134 133 133 134 6 159 154 30 107 160 159
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-22180-380-1 01 1 0107-0109 ● ●
6 VALVE; EXH BRAKE
(A) 		1-22180-390-0 01 1 0110-0508 ● ●
6 VALVE; EXH BRAKE
(C) 		8-98024-270-0 01 1 0509- ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-166-0 01 1 0107-0109 ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-170-0 01 1 0110-0508 ● ●
7 CYLINDER ASM; CONT 1-22190-665-0 01 1 0107-0109 ● ●
7 CYLINDER ASM; CONT 1-22190-666-0 01 1 0110-0508 ● ●
25 BOLT; CONT CYL 1-09000-744-0 02 1 0107-0109 ● ●
25 BOLT; CONT CYL 1-09000-743-0 02 1 0110-0508 ● ●
30 ROD; LINK,CONT CYL 1-22199-162-0 01 1 0107-0508 ● ●
35 BOLT; PLATE FIX 1-22199-174-0 02 1 0107-0508 ● ●
107 NUT; CONT CYL
(A) 		1-09440-079-0 02 1 0107-0508 ● ●
107 NUT; CONT CYL
(B) M8 		9-09110-508-0 01 1 0107-0109 ● ●
107 NUT; CONT CYL
(B) M10 		9-09111-410-0 01 1 0110-0508 ● ●
131 PLATE; BODY 1-22189-359-0 01 1 0107-0508 ● ●
133 NUT; LK
(A) 		1-09440-078-0 01 1 0107-0508 ● ●
133 NUT; LK
(B) 		1-09440-079-0 01 1 0107-0508 ● ●
134 BOLT; STOPPER
(A) M8X30 		1-09000-112-1 01 1 0107-0508 ● ●
134 BOLT; STOPPER
(B) 		1-09000-742-0 01 1 0107-0508 ● ●
154 NUT; CLEVIS,CONT CYL 1-09440-078-0 02 1 0107-0508 ● ●
159 COLLAR; CONT CYL
(A) 		1-22189-360-0 02 1 0107-0109 ● ●
159 COLLAR; CONT CYL
(B) 		1-22197-151-0 02 1 0107-0508 ● ●
160 JOINT; CONT CYL 1-22199-164-0 01 1 0107-0109 ● ●
160 JOINT; CONT CYL 1-22189-363-0 01 1 0110-0508 ● ●
çizim 75868
42 139 74 6 6 139 76
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-22180-380-1 01 1 0107-0109 ● ●
6 VALVE; EXH BRAKE
(A) 		1-22180-390-0 01 1 0110-0508 ● ●
6 VALVE; EXH BRAKE
(C) 		8-98024-270-0 01 1 0509- ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-166-0 01 1 0107-0109 ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-170-0 01 1 0110-0508 ● ●
42 HOSE; FLEX,EXH BRK
L=430 		1-09363-677-0 01 1 0107- ● ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0107- ● ●
76 PIPE ASM; AIR UNION TO UNION 1-49122-911-0 01 1 0107- ● ●
139 GASKET; EXH BRK VLV
ID=100 		1-14145-175-0 02 1 0107- ● ●
çizim 80734
7 14 13 162 163 10 105 104 161 163 16 15 17 20 21 23 24
BalonParca AdiParca NoAdetTipApplied Date A B
7 CYLINDER ASM; CONT 1-22190-665-0 01 1 0107-0109 ● ●
7 CYLINDER ASM; CONT 1-22190-666-0 01 1 0110-0508 ● ●
10 SEAL; DUST,CONT 1-22199-071-0 01 1 0107-0508 ● ●
13 SPRING; CONT CYL 1-22199-234-0 01 1 0107-0109 ● ●
13 SPRING; CONT CYL 1-22199-173-0 01 1 0110-0508 ● ●
14 SHAFT; CONT CYL 1-22199-158-0 01 1 0107-0109 ● ●
14 SHAFT; CONT CYL 1-22199-208-0 01 1 0110-0508 ● ●
15 PLATE; CONT CYL 1-22199-233-0 01 1 0107-0109 ● ●
15 PLATE; CONT CYL 1-22199-168-0 01 1 0110-0508 ● ●
16 RING; WEAR,CONT CYL 8-97600-317-0 01 1 0107-0109 ● ●
16 RING; WEAR,CONT CYL 1-22189-345-0 01 1 0110-0508 ● ●
17 GASKET; CONT CYL 8-97600-318-0 01 1 0107-0109 ● ●
17 GASKET; CONT CYL 1-22199-170-0 01 1 0110-0508 ● ●
20 NUT; CONT CYL 1-09440-078-0 01 1 0107-0508 ● ●
21 GASKET; COVER 1-22199-072-0 01 1 0107-0109 ● ●
21 GASKET; COVER 1-22199-171-0 01 1 0110-0508 ● ●
23 COVER; CONT CYL 8-97600-319-0 01 1 0107-0109 ● ●
23 COVER; CONT CYL 1-22199-172-0 01 1 0110-0508 ● ●
24 BOLT; COVER 1-22199-174-0 02 1 0107-0508 ● ●
104 RING; RET 9-88510-331-0 01 1 0107-0508 ● ●
105 FILTER; CONT CYL 9-88510-330-0 01 1 0107-0508 ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 01 1 0107-0508 ● ●
162 GUIDE; CONT CYL 1-22199-147-0 01 1 0107-0508 ● ●
163 WASHER; CONT CYL
(B) 		1-22199-209-0 01 1 0110-0508 ● ●
163 WASHER; CONT CYL
(A) 		1-22199-148-0 01 1 0107-0508 ● ●
