1-50 — EXHAUST PIPE AND SILENCER (#9965) — 100 parça

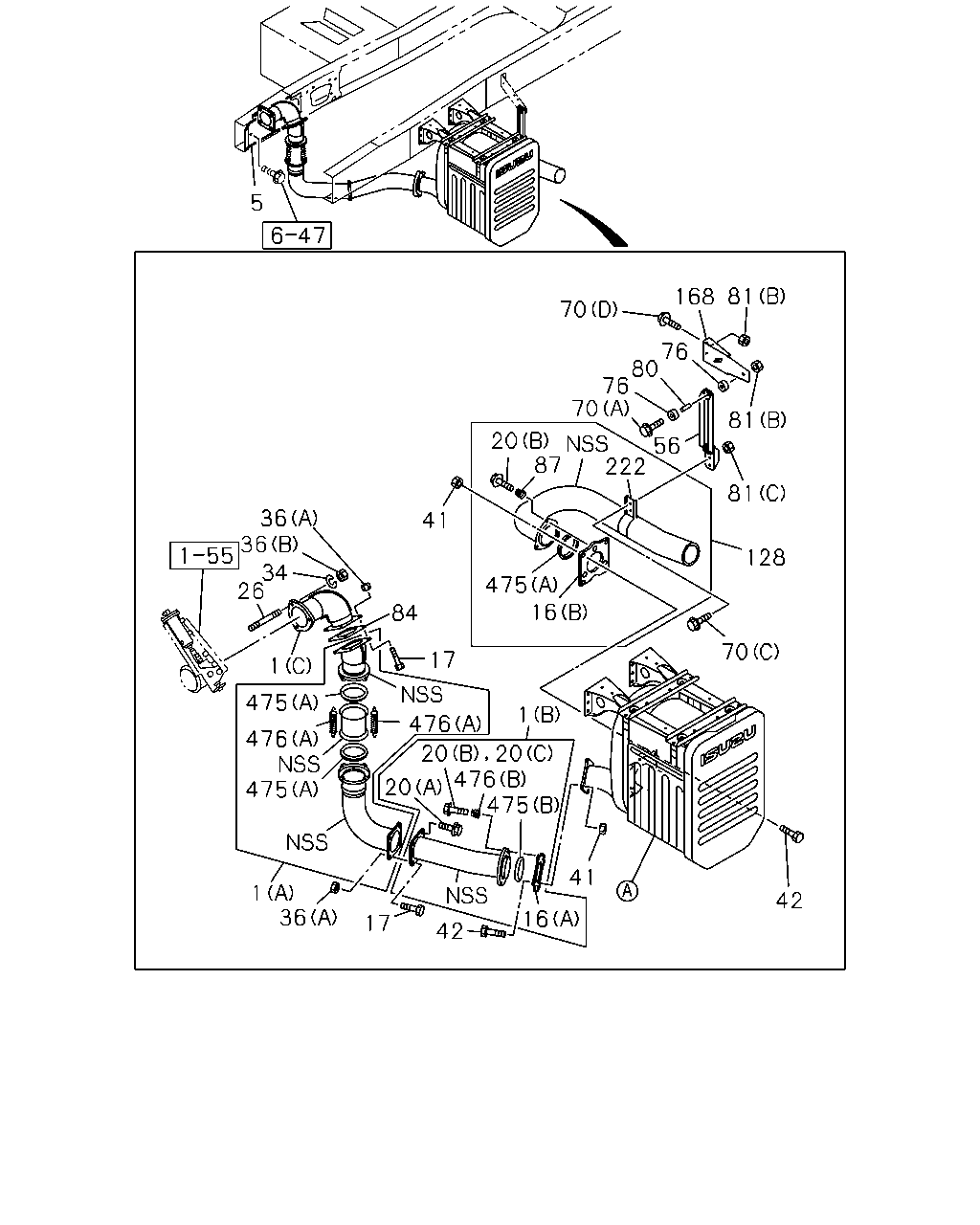

5 70 168 81 76 80 76 70 56 81 81 128 70 42 41 16 42 17 36 1 475 20 475 476 20 1 20 476 476 475 1 17 84 26 34 36 36 41 475 16 222 87 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (C)	1-22122-976-0	01	1	0107-
1	PIPE; EXH (A)	1-22123-487-0	01	1	0107-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22123-421-1	01	1	0107-
5	PROTECTOR; HEAT	1-22119-405-0	01	1	0107-
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22115-148-1	01	1	0107-
16	FLANGE; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22115-194-0	01	1	0107-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	07	1	0107-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (C) M10X51.4	8-94436-943-0	02	1	0501-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28691-230-0	01	1	0107-0512
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) M12X30 FLANGE	0-28661-230-0	01	1	0601-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X51.4	1-09009-167-0	05	1	0107-0412
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X51.4	1-09009-167-0	03	1	0501-
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	0107-0209
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0210-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	03	1	0107-0209
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0210-
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	0107-0209
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	0210-
36	NUT; EXH PIPE (A) M12	9-99110-512-0	08	1	0107-0512
36	NUT; EXH PIPE (A) M12	0-91110-512-0	08	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	04	1	0601-
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12	9-99110-512-0	08	1	0107-0512
41	NUT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12	0-91110-512-0	08	1	0601-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	08	1	0107-
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22151-812-0	01	1	0107-0312
56	BRACKET; CLAMP,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22152-070-0	01	1	0401-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28081-050-0	04	1	0504-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X25 FLANGE	0-28081-025-0	04	1	0107-0406
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X20 FLANGE	0-28681-020-0	04	1	0407-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X20 FLANGE	0-28651-020-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28081-050-0	05	1	0107-0503
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28081-050-0	01	1	0504-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	01	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X40 FLANGE	0-28680-840-0	02	1	0107-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X40 FLANGE	0-28650-840-0	02	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X30 FLANGE	0-28681-030-0	02	1	0107-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X30 FLANGE	0-28651-030-0	02	1	0601-
76	SUPPORT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	0107-
80	COLLAR; DIST,SUPPORT RUBBER EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	0107-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	0107-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91180-108-0	02	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	0107-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91150-212-0	08	1	0107-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	08	1	0603-
84	GASKET; EXH PIPE	1-22116-030-0	01	1	0107-
87	SPRING; PRE SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	8-94141-851-0	03	1	0107-
128	PIPE; EXH,RR EXC. SILENCER SINGLE VERTICAL<N28>	1-22122-841-3	01	1	0107-
168	BRACKET; EXH PIPE,FRT EXC. SILENCER SINGLE VERTICAL<N28>	1-22131-847-0	01	1	0107-
222	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28>	1-22133-276-0	01	1	0107-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0107-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) OD=112	1-22119-294-0	01	1	0107-
475	BEARING; SEAL,VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-0	01	1	0107-
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-298-0	04	1	0107-
476	SPRING; VIBNON,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-94141-851-0	02	1	0107-

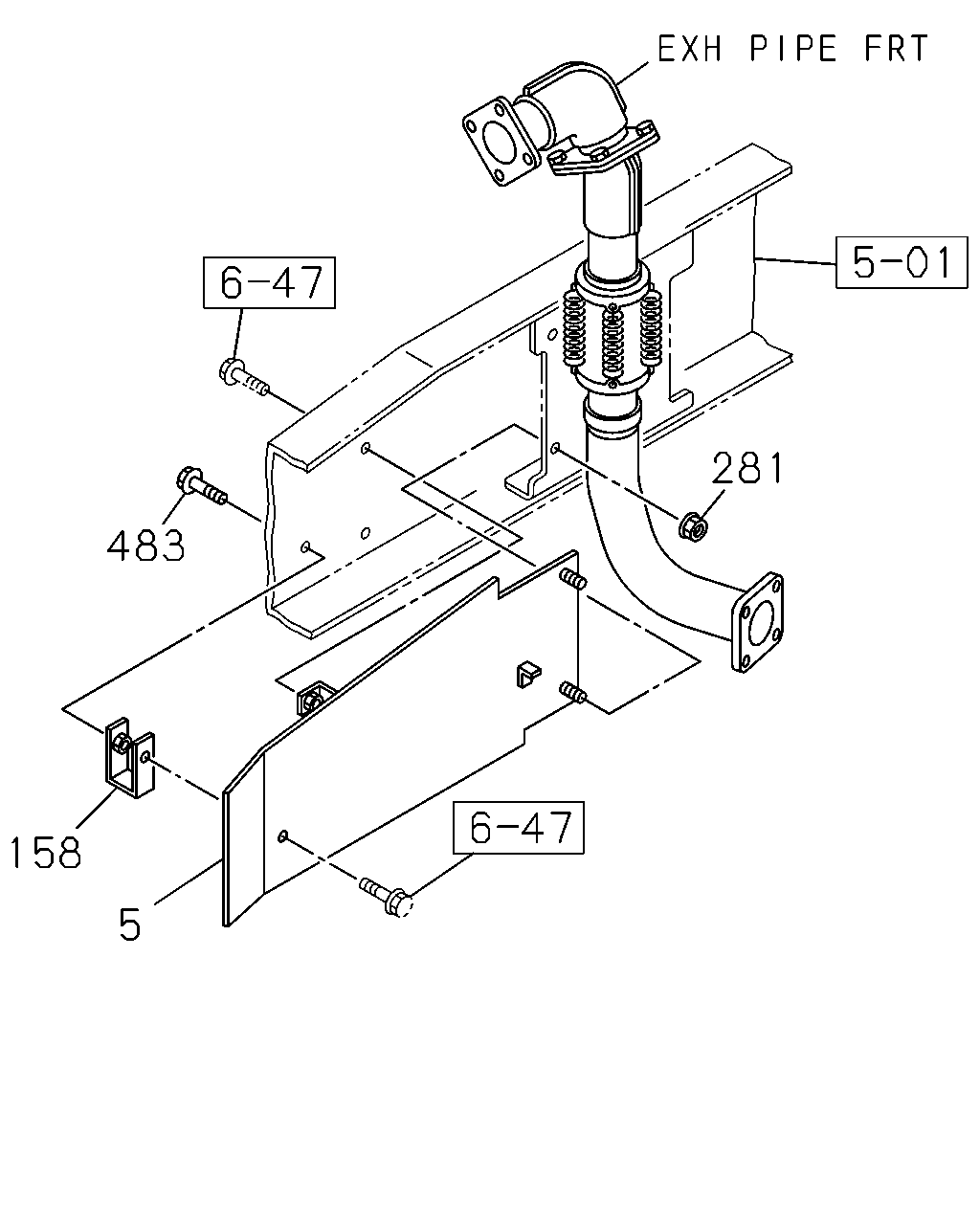

281 483 158 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PROTECTOR; HEAT	1-22119-405-0	01	1	0107-
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	0107-
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	0107-0602
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	02	1	0603-
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28650-830-0	01	1	0601-

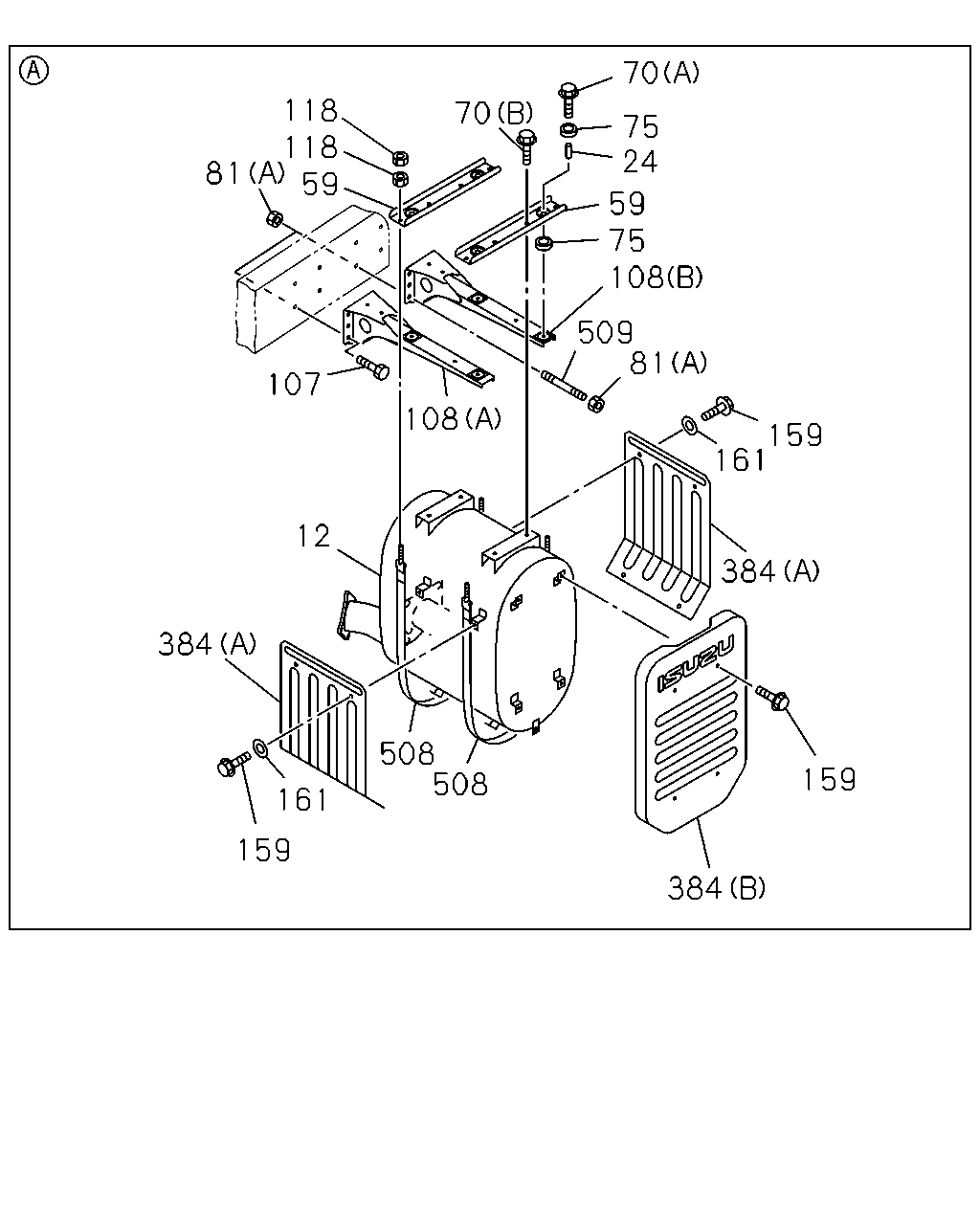

118 118 81 59 107 108 12 384 159 161 508 508 384 159 384 161 159 81 509 108 75 59 24 75 70 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	1-22140-968-3	01	1	0107-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	0107-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28>	1-22151-710-1	02	1	0107-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28081-050-0	04	1	0504-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X25 FLANGE	0-28081-025-0	04	1	0107-0406
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X20 FLANGE	0-28681-020-0	04	1	0407-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X20 FLANGE	0-28651-020-0	04	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28081-050-0	05	1	0107-0503
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28081-050-0	01	1	0504-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	01	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X40 FLANGE	0-28680-840-0	02	1	0107-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8X40 FLANGE	0-28650-840-0	02	1	0601-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X30 FLANGE	0-28681-030-0	02	1	0107-0512
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (D) M10X30 FLANGE	0-28651-030-0	02	1	0601-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0107-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91150-108-0	02	1	0107-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (C) M8 FLANGE	0-91180-108-0	02	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91150-210-0	01	1	0107-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	0603-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91150-212-0	08	1	0107-0602
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M12 FLANGE	0-91180-212-0	08	1	0603-
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28081-235-0	04	1	0112-0512
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28051-235-0	04	1	0601-
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28681-240-0	04	1	0107-0512
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 FLANGE	0-28651-240-0	04	1	0601-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-774-3	01	1	0107-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22131-775-3	01	1	0107-
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	9-09110-510-0	08	1	0107-0512
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	0601-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0107-
161	WASHER; PL,HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> ID=10.5 OD=26	9-09160-710-0	08	1	0107-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22119-378-3	01	1	0107-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-379-1	02	1	0107-
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-264-1	02	1	0107-0408
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-382-0	02	1	0409-
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X32 L=54	1-09300-096-0	04	1	0107-0303
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 L=56	1-09300-123-0	04	1	0304-
