1-41 — FUEL PIPING; CHASSIS (#9963) — 60 parça

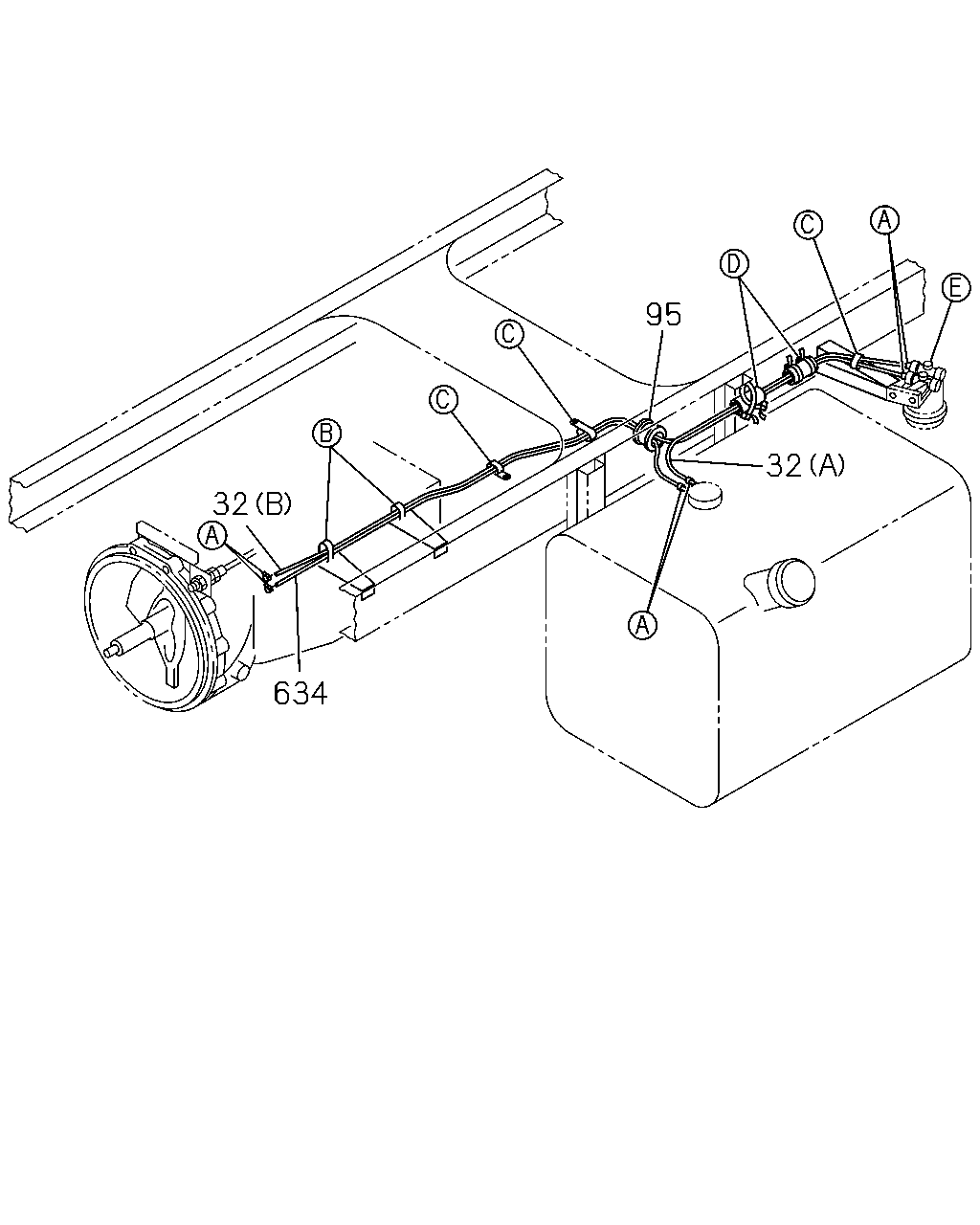

çizim 19424
32 634 32 95
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
FUEL SEDIMENTER<PS9> (A) L=1200 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-
32 PIPE; DELIVERY,FUEL TANK
FUEL SEDIMENTER<PS9> (B) L=2350 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL SEDIMENTER<PS9> (A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL SEDIMENTER<PS9> (B) L=2000 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0107-
634 HOSE; RUBBER RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-

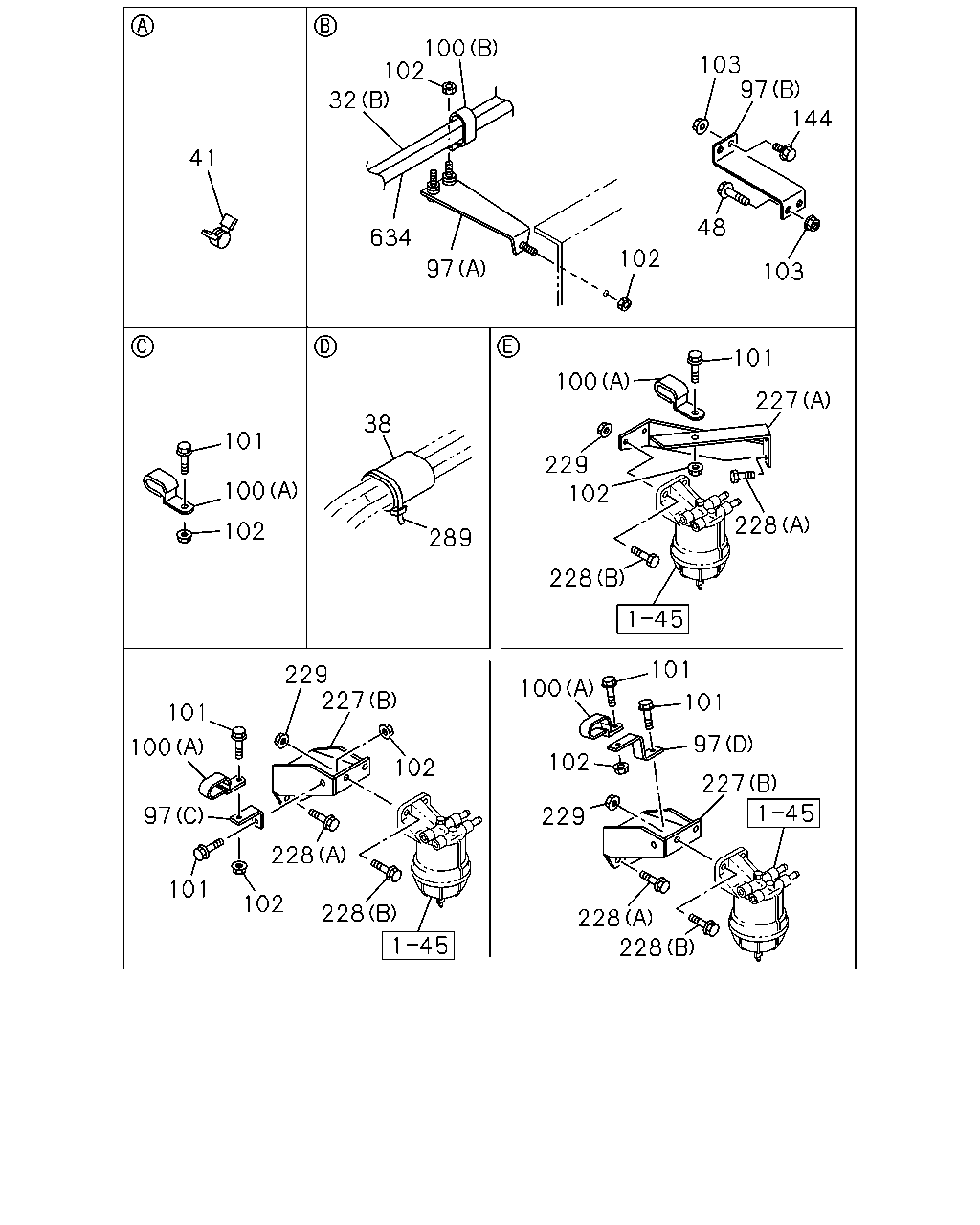

çizim 19425
41 32 102 100 103 97 144 103 48 102 97 634 101 100 102 38 289 100 101 227 228 229 102 228 100 101 101 97 227 102 229 228 228 102 227 229 101 100 97 101 102 228 228
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
FUEL SEDIMENTER<PS9> (A) L=1200 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-
32 PIPE; DELIVERY,FUEL TANK
FUEL SEDIMENTER<PS9> (B) L=2350 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL SEDIMENTER<PS9> (A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-
32 PIPE; DELIVERY,FUEL TANK
EXC. FUEL SEDIMENTER<PS9> (B) L=2000 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-
38 SLEEVE; RUBBER,RUBBER HOSE
EXC. FUEL SEDIMENTER<PS9> L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0109-
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0107-0108
38 SLEEVE; RUBBER,RUBBER HOSE
FUEL SEDIMENTER<PS9> L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0109-
41 CLIP; FUEL PIPE,FUEL TANK
ID=14 		1-09704-102-0 06 1 0107-
48 BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE 		0-28680-830-0 02 1 0112-0512
48 BOLT; BRKT
SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE 		0-28650-830-0 02 1 0601-
97 BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28> (B) 		1-47479-379-0 01 1 0112-
97 BRACKET; CLIP
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-47479-247-0 02 1 0112-0408
97 BRACKET; CLIP
EXC. SILENCER SINGLE VERTICAL<N28> (A) 		1-47471-045-0 02 1 0409-
97 BRACKET; CLIP
FUEL SEDIMENTER<PS9> (C) L=115 		1-47475-305-0 01 1 0107-0108
97 BRACKET; CLIP
FUEL SEDIMENTER<PS9> (C) L=75 		1-47477-119-0 01 1 0109-0410
97 BRACKET; CLIP
FUEL SEDIMENTER<PS9> (D) 		1-47471-150-0 01 1 0411-
97 BRACKET; CLIP
(A) 		1-47479-247-0 02 1 0107-0111
97 BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28> (A) 		1-47479-247-0 01 1 0112-0408
97 BRACKET; CLIP
SILENCER SINGLE VERTICAL<N28> (A) 		1-47471-045-0 01 1 0409-
100 CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20 		1-09700-744-0 03 1 0107-
100 CLIP; FUEL PIPE
(B) ID=15 		1-09700-845-1 02 1 0107-0107
100 CLIP; FUEL PIPE
(B) 		1-09701-299-0 02 1 0108-
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28680-825-0 03 1 0107-0512
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 03 1 0601-
102 NUT; CLIP,FUEL PIPE
EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91150-108-0 02 1 0112-0602
102 NUT; CLIP,FUEL PIPE
EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 02 1 0603-
102 NUT; CLIP,FUEL PIPE
FUEL SEDIMENTER<PS9> M8 FLANGE 		0-91150-108-0 01 1 0107-0410
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 07 1 0107-0111
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91150-108-0 05 1 0112-0602
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 05 1 0603-
103 NUT; BRKT
SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91150-108-0 03 1 0112-0602
103 NUT; BRKT
SILENCER SINGLE VERTICAL<N28> M8 FLANGE 		0-91180-108-0 03 1 0603-
144 BOLT; CLIP,FUEL PIPE,C/MBR
FUEL SEDIMENTER<PS9> M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512
144 BOLT; CLIP,FUEL PIPE,C/MBR
FUEL SEDIMENTER<PS9> M8X25 FLANGE 		0-28650-825-0 01 1 0601-
227 BRACKET; FUEL SEDIMENTER
FUEL SEDIMENTER<PS9> (A) 		1-22518-180-0 01 1 0107-0410
227 BRACKET; FUEL SEDIMENTER
FUEL SEDIMENTER<PS9> (B) 		1-22518-207-0 01 1 0411-
227 BRACKET; FUEL SEDIMENTER
EXC. FUEL SEDIMENTER<PS9> (A) 		1-22518-179-0 01 1 0107-
228 BOLT; BRKT,SEDIMENTER
FUEL SEDIMENTER<PS9> (B) M14X45 		0-20801-445-0 02 1 0107-
228 BOLT; BRKT,SEDIMENTER
FUEL SEDIMENTER<PS9> (A) M10X35 FLANGE 		0-28681-035-0 04 1 0107-0512
228 BOLT; BRKT,SEDIMENTER
FUEL SEDIMENTER<PS9> (A) M10X35 FLANGE 		0-28651-035-0 04 1 0601-
228 BOLT; BRKT,SEDIMENTER
EXC. FUEL SEDIMENTER<PS9> (A) M10X30 FLANGE 		0-28681-030-0 02 1 0107-0512
228 BOLT; BRKT,SEDIMENTER
EXC. FUEL SEDIMENTER<PS9> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0601-
228 BOLT; BRKT,SEDIMENTER
EXC. FUEL SEDIMENTER<PS9> (B) M10X35 FLANGE 		0-28681-035-0 02 1 0107-0512
228 BOLT; BRKT,SEDIMENTER
EXC. FUEL SEDIMENTER<PS9> (B) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
229 NUT; BRKT,FUEL FILTER
FUEL SEDIMENTER<PS9> M10 FLANGE 		0-91150-210-0 02 1 0107-0602
229 NUT; BRKT,FUEL FILTER
FUEL SEDIMENTER<PS9> M10 FLANGE 		0-91180-210-0 02 1 0603-
229 NUT; BRKT,FUEL FILTER
FUEL SEDIMENTER<PS9> M14 		9-99110-414-0 02 1 0107-0512
229 NUT; BRKT,FUEL FILTER
FUEL SEDIMENTER<PS9> M14 		0-91110-514-0 02 1 0601-
229 NUT; BRKT,FUEL FILTER
EXC. FUEL SEDIMENTER<PS9> M10 FLANGE 		0-91150-210-0 04 1 0107-0602
229 NUT; BRKT,FUEL FILTER
EXC. FUEL SEDIMENTER<PS9> M10 FLANGE 		0-91180-210-0 04 1 0603-
289 CLIP; BAND,HOSE
EXC. FUEL SEDIMENTER<PS9> L=250 		5-09707-030-1 04 1 0109-
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 04 1 0107-0108
289 CLIP; BAND,HOSE
FUEL SEDIMENTER<PS9> L=250 		5-09707-030-1 02 1 0109-
634 HOSE; RUBBER RETURN
L=1750 SERVICED BY L=3000 		0-01260-300-0 01 1 0107-
