◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#9961) — 10 parça

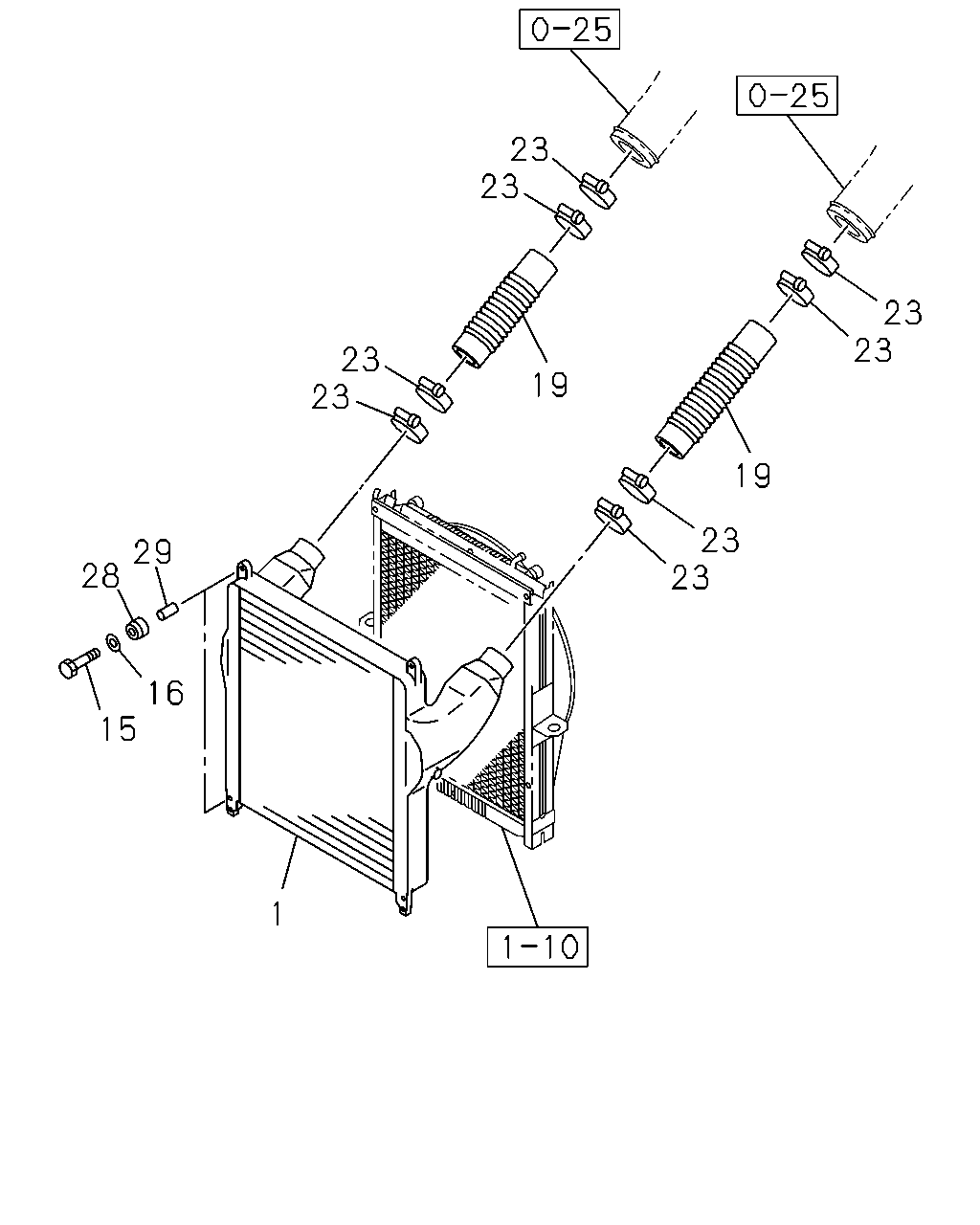

çizim 75547
23 23 23 23 29 28 15 16 1 23 23 19 23 23 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLER; CHARGE AIR
EURO3 SPECIFICATION<NJX> 		1-14431-057-0 01 1 0107- ● ●
15 BOLT; CHARGE AIR COOLER
EURO3 SPECIFICATION<NJX> M8X35 FLANGE 		0-28080-835-0 02 1 0107- ● ●
15 BOLT; CHARGE AIR COOLER
EURO3 SPECIFICATION<NJX> M8X50 FLANGE 		0-28080-850-0 02 1 0107- ● ●
16 WASHER; PL,CHARGE AIR COOLER
EURO3 SPECIFICATION<NJX> ID=10.5 OD=32 		9-09164-810-0 08 1 0107- ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD 1-09361-088-0 01 1 0107- ● ●
19 HOSE; FLEX,CHARGE AIR COOLER,RAD 1-09361-089-1 01 1 0107- ● ●
23 CLIP; HOSE
ID=87-116 		1-09707-144-0 08 1 0107-0306 ● ●
23 CLIP; HOSE
ID=87-113 		1-09707-199-0 08 1 0307- ● ●
28 RUBBER; MTG,CHARGE AIR COOLER
EURO3 SPECIFICATION<NJX> 		1-21467-015-1 04 1 0107- ● ●
29 COLLAR; MTG RUBBER,CAC BRKT
EURO3 SPECIFICATION<NJX> 		1-21469-100-0 04 1 0107- ● ●
