1-31 — AIR DUCT (#9960) — 121 parça

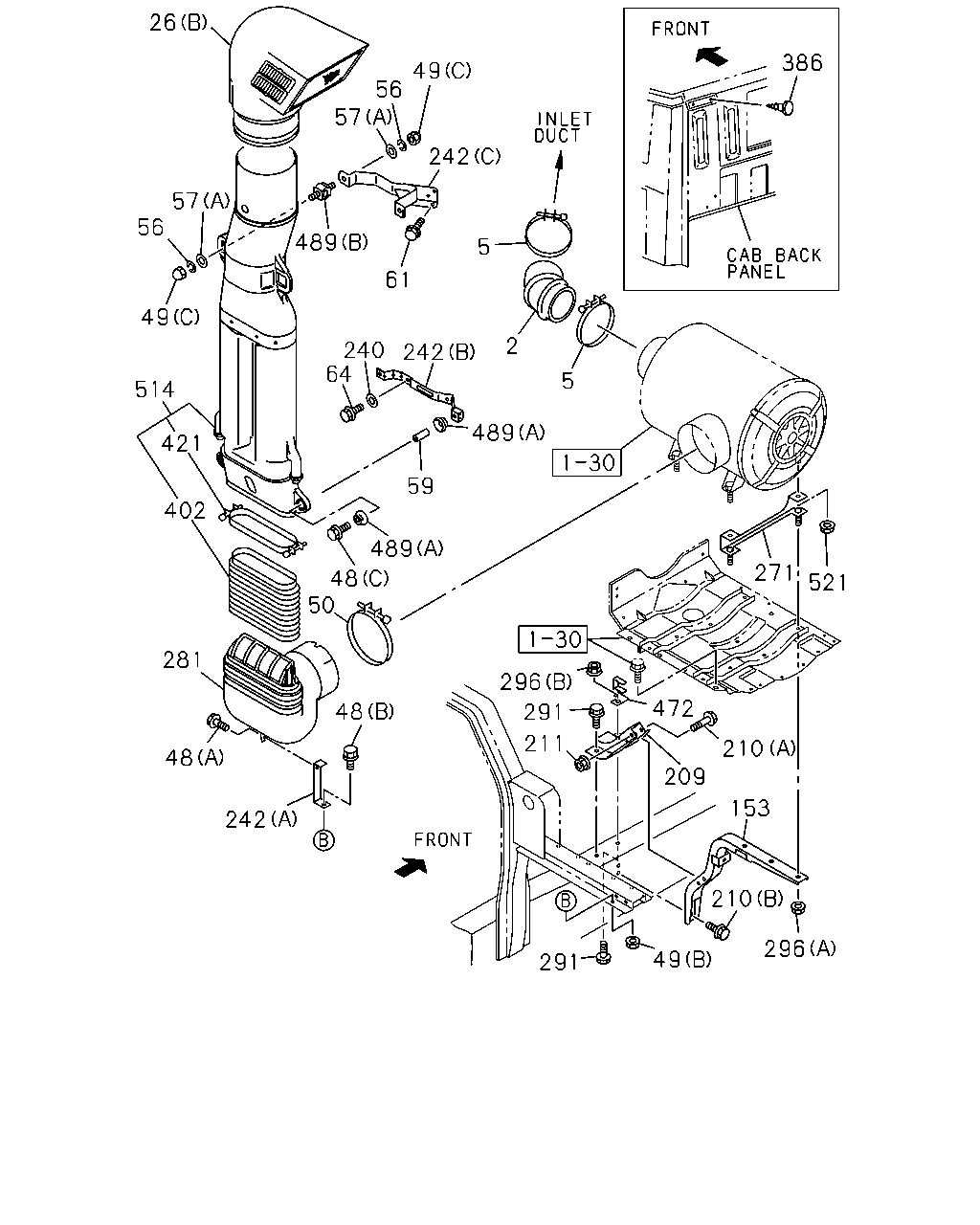

386 26 49 56 57 57 56 49 514 421 402 281 48 242 48 50 48 489 59 489 242 64 240 489 61 242 5 2 5 271 521 210 153 296 210 49 291 209 472 296 291 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-931-0	01	1	0107-	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0107-	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0107-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (A)	1-14230-202-0	01	1	0107-	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0107-	●	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512	●	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0107-0512	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	0107-	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0107-0602	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0107-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8	9-09110-408-0	01	1	0107-0512	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8	0-91110-508-0	01	1	0601-	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0107-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0107-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0107-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	0107-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0107-0110	●	●
57	WASHER; PL,AIR INT DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	0107-	●	●
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0107-	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0107-	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0107-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0107-0308	●	●
153	BRACKET; ACL,FRT HONG KONG EQUIPMENT(PQ1)	1-53419-299-0	01	1	0309-	●	●
209	BRACKET; ACL	1-53419-276-0	01	1	0107-	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0107-0512	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0107-0512	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
240	WASHER; PL,BRKT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0107-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (E)	1-53419-324-0	01	1	0111-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B)	1-79990-041-0	01	1	0107-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79990-045-1	01	1	0107-	●	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	0107-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-53419-325-1	01	1	0107-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0107-0110	●	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0111-	●	●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0107-	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-194-0	01	1	0107-	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0107-0512	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0107-0602	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0107-0602	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0107-	●	●
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-1	01	1	0107-	●	●
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	0107-	●	●
472	STOPPER; LINK ROD TRANSMISSION-ZF 16S221 OD(Y1U),MJD7S M/T(Y2Y)	1-33659-227-0	01	1	0107-	●	●
472	STOPPER; LINK ROD MJX16P M/T(Y3Z)	1-33659-173-1	01	1	0107-	●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0107-	●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0107-	●	●
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-0	01	1	0107-	●	●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0107-0602	●	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-	●	●

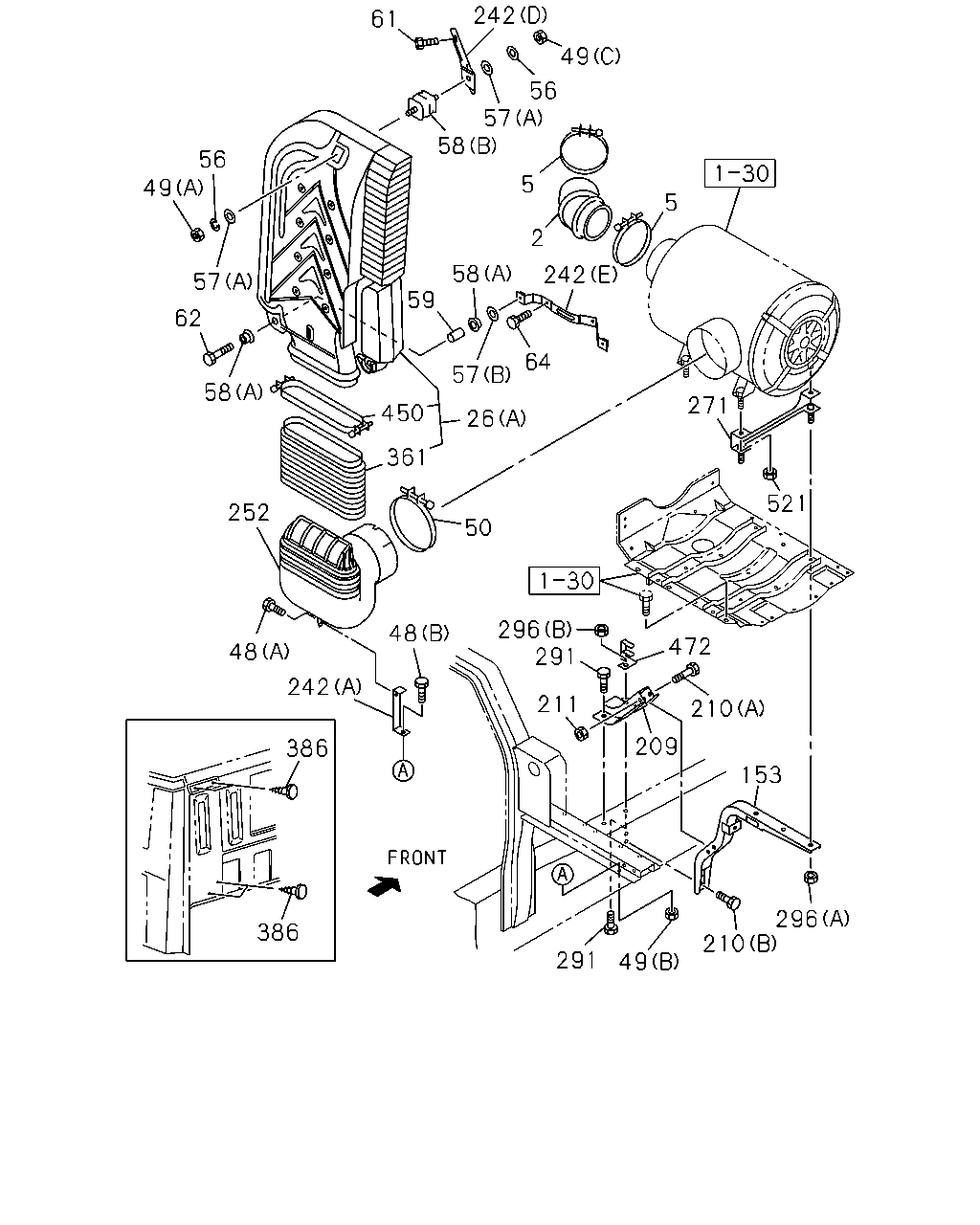

61 242 49 56 57 58 56 49 57 62 58 252 48 242 386 386 291 49 210 296 153 210 209 211 472 291 296 48 50 361 450 26 57 59 58 5 2 242 64 5 271 521

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; ACL	1-14231-931-0	01	1	0107-	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0107-	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0107-	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (A)	1-14230-202-0	01	1	0107-	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0107-	●	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512	●	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0107-0512	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	0107-	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0107-0602	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0107-	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8	9-09110-408-0	01	1	0107-0512	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8	0-91110-508-0	01	1	0601-	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0107-	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=8.2	1-09985-177-0	04	1	0107-	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=8.2	1-09985-177-0	02	1	0107-	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	04	1	0107-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0107-0110	●	●
57	WASHER; PL,AIR INT DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22	1-09985-188-0	02	1	0107-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (B)	8-97080-149-0	01	1	0111-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0107-	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0107-0110	●	●
58	SUPPORT; AIR INL DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0111-	●	●
59	TUBE; DIST,AIR INT DUCT	1-79998-228-0	02	1	0107-	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0107-	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> M10X60	1-09030-044-1	02	1	0107-	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0107-	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0107-0308	●	●
153	BRACKET; ACL,FRT HONG KONG EQUIPMENT(PQ1)	1-53419-299-0	01	1	0309-	●	●
209	BRACKET; ACL	1-53419-276-0	01	1	0107-	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0107-0512	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0107-0512	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17>,GRIP OUT SIDE<W52> (E)	1-53419-324-0	01	1	0111-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (B)	1-79990-041-0	01	1	0107-	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79990-045-1	01	1	0107-	●	●
242	BRACKET; AIR DUCT (A)	1-23957-006-0	01	1	0107-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-53419-325-1	01	1	0107-	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0107-0110	●	●
242	BRACKET; AIR DUCT GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (E)	1-53419-351-1	01	1	0111-	●	●
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0107-	●	●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0107-	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0107-0512	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0107-0602	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0107-0602	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0107-	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0107-	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0107-	●	●
472	STOPPER; LINK ROD TRANSMISSION-ZF 16S221 OD(Y1U),MJD7S M/T(Y2Y)	1-33659-227-0	01	1	0107-	●	●
472	STOPPER; LINK ROD MJX16P M/T(Y3Z)	1-33659-173-1	01	1	0107-	●	●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0107-0602	●	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
