1-01 — ACCELERATOR PEDAL AND CONTROL (#9956) — 72 parça

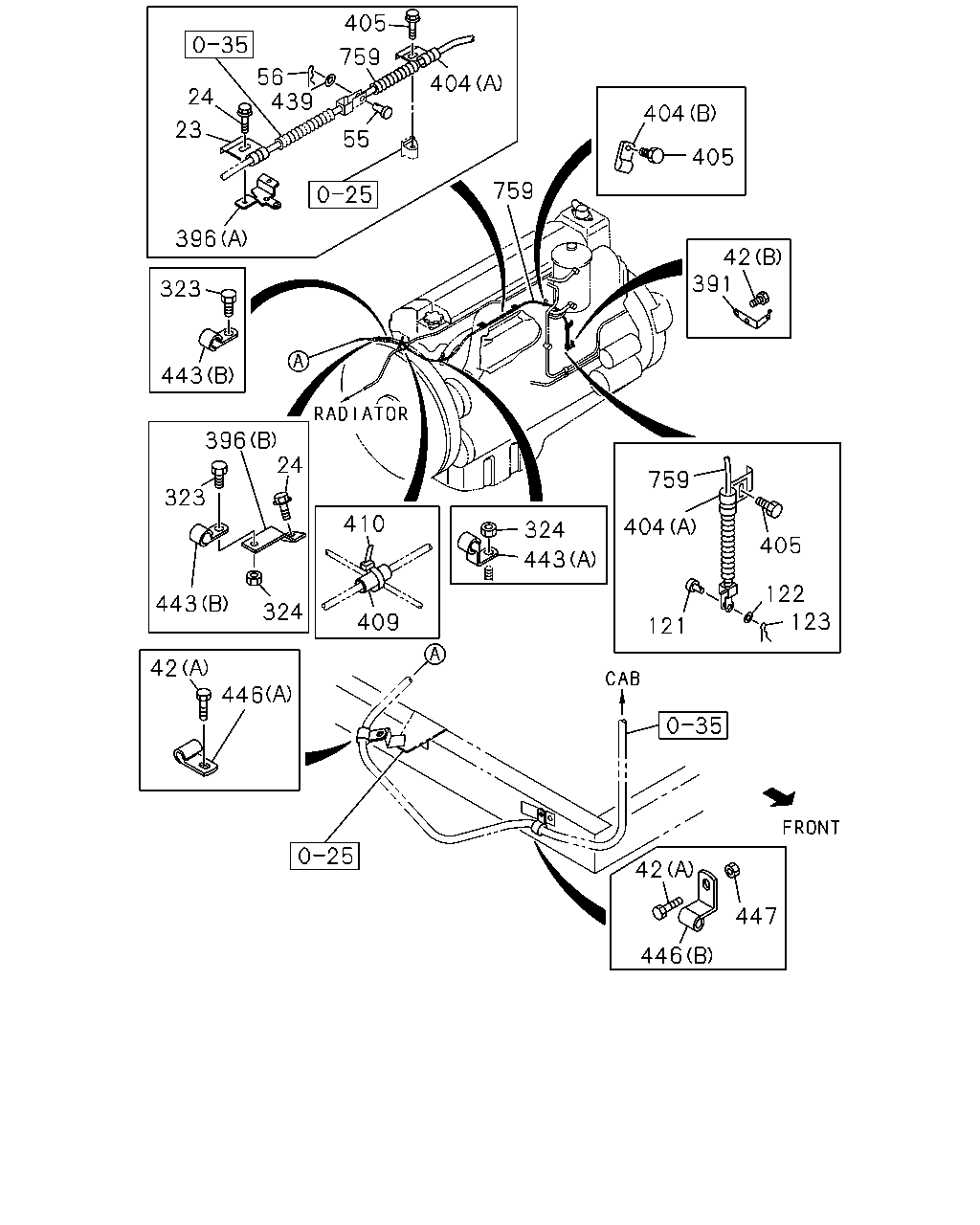

405 759 404 55 56 439 24 23 396 323 443 396 24 323 443 324 42 446 409 410 324 443 446 447 42 121 123 122 405 404 759 391 42 405 404 759

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0107-0112	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-140-0	01	1	0201-0401	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0402-0402	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0403-	●	●
24	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0107-0512	●	●
24	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0107-0512	●	●
24	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
24	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
42	BOLT; BRKT,ENG CONT CABLE (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512	●	●
42	BOLT; BRKT,ENG CONT CABLE (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-	●	●
42	BOLT; BRKT,ENG CONT CABLE (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512	●	●
42	BOLT; BRKT,ENG CONT CABLE (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	0107-	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0107-	●	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0107-	●	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0107-0605	●	●
122	WASHER; PL,CABLE ID=5.3	0-91610-505-0	01	1	0606-	●	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0107-	●	●
323	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0107-0512	●	●
323	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
324	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
324	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
391	BRACKET; ENG CONT	1-15419-581-1	01	1	0107-	●	●
396	BRACKET; CLIP (B)	1-47479-250-0	01	1	0107-	●	●
396	BRACKET; CLIP (A)	1-14319-130-1	01	1	0107-	●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0107-	●	●
404	CLIP; CABLE (B) ID=11 L=20	9-09525-035-0	01	1	0107-0606	●	●
404	CLIP; CABLE (B) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	03	1	0107-0512	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
409	SLEEVE ID=6 L=30	5-09360-352-0	01	1	0107-	●	●
410	CLIP; BAND L=140	5-09707-031-1	01	1	0107-	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0107-0605	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	0-91610-505-0	01	1	0606-	●	●
443	CLIP; CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-	●	●
443	CLIP; CABLE (B) ID=7 L=20	9-09524-635-0	02	1	0107-0606	●	●
443	CLIP; CABLE (B) ID=7 L=20	0-95234-635-0	02	1	0607-	●	●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0107-	●	●
446	CLIP; ENG CONT (A)	9-09917-514-0	01	1	0107-0404	●	●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	0405-0606	●	●
446	CLIP; ENG CONT (A) ID=11 L=20	0-95235-035-0	01	1	0607-	●	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	0107-0602	●	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
759	WIRE; CONT,FUEL CUT L=937	1-23230-201-0	01	1	0107-	●	●

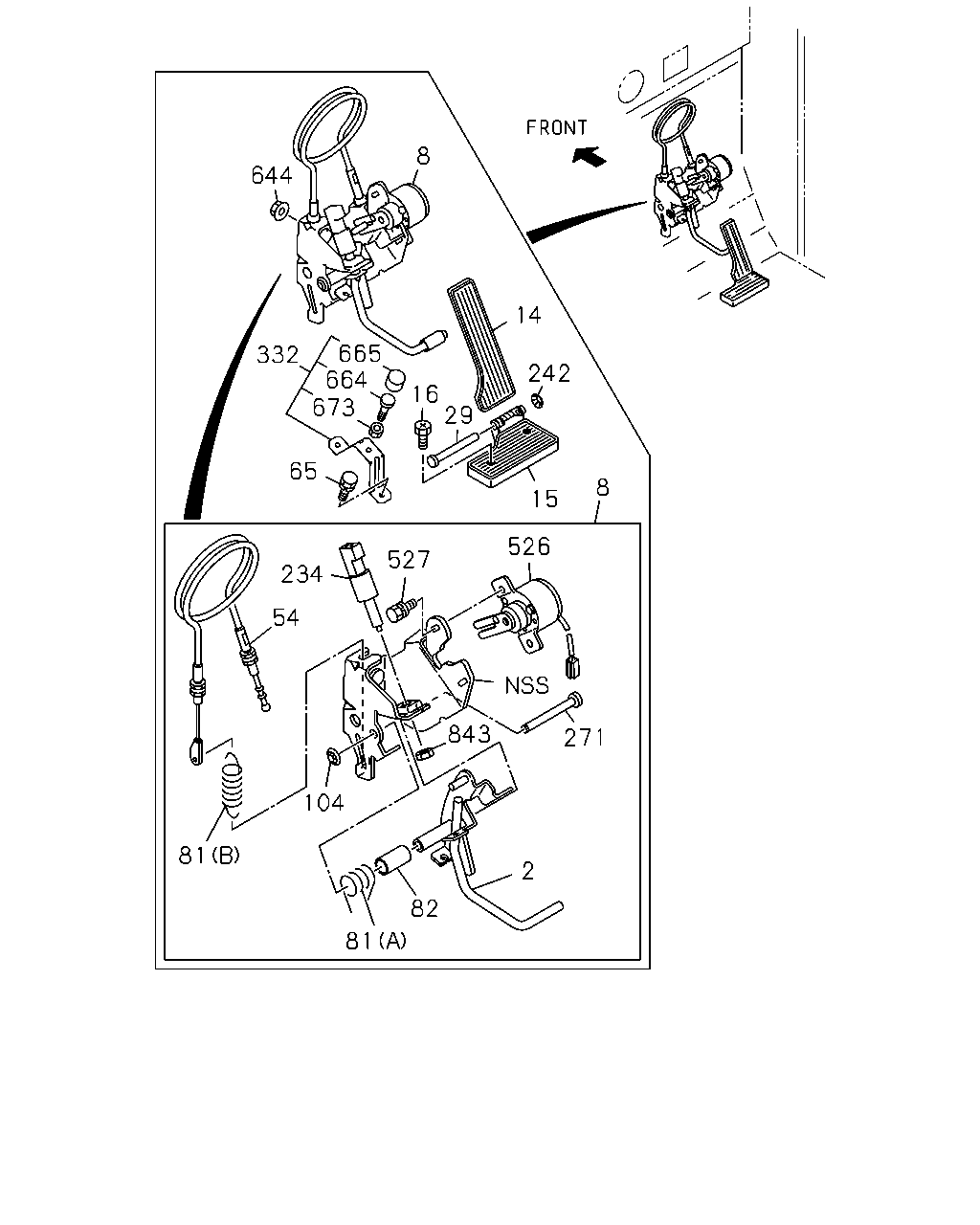

8 644 332 665 664 673 65 234 54 81 104 81 82 2 271 843 527 526 8 15 29 16 242 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT	1-71907-550-1	01	1	0107-	●	●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	0107-	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0107-	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0107-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0107-	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0107-	●	●
54	CABLE; ENG CONT L=850	1-71907-257-0	01	1	0107-	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	0107-0206	●	●
81	SPRING; RETURN,ENG CONT LEVER (B)	8-97997-917-0	01	1	0207-	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0107-	●	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	0107-	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	0107-	●	●
234	SWITCH; ACCEL	1-82380-131-2	01	1	0107-	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0107-	●	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0107-	●	●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0107-	●	●
526	SENSOR; ACCEL	1-81534-003-2	01	1	0107-	●	●
527	BOLT; ACCEL SENSOR M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-0206	●	●
527	BOLT; ACCEL SENSOR M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0207-	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0107-0304	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0305-	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0107-	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0107-	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0107-0512	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●
843	NUT M12	9-99111-412-0	01	1	0107-0512	●	●
843	NUT M12	0-91111-512-0	01	1	0601-	●	●
