◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-57 - EMISSION PIPING ▶
0-57 — EMISSION PIPING (#9947) — 36 parça
çizim 20404
712 713 49 712 713
BalonParca AdiParca NoAdetTipApplied Date A B
49 CLIP; HOSE
EURO3 SPECIFICATION<NJX> ID=10 & 10 		1-09709-277-1 01 1 0107- ● ●
712 NUT; FLEX HOSE
EURO3 SPECIFICATION<NJX> M12 		9-09840-280-0 02 1 0107- ● ●
713 WASHER; LK,FLEX HOSE
EURO3 SPECIFICATION<NJX> ID=12.2 		9-09150-512-0 02 1 0107-0603 ● ●
713 WASHER; LK,FLEX HOSE
EURO3 SPECIFICATION<NJX> ID=12.2 		0-91510-512-0 02 1 0604- ● ●

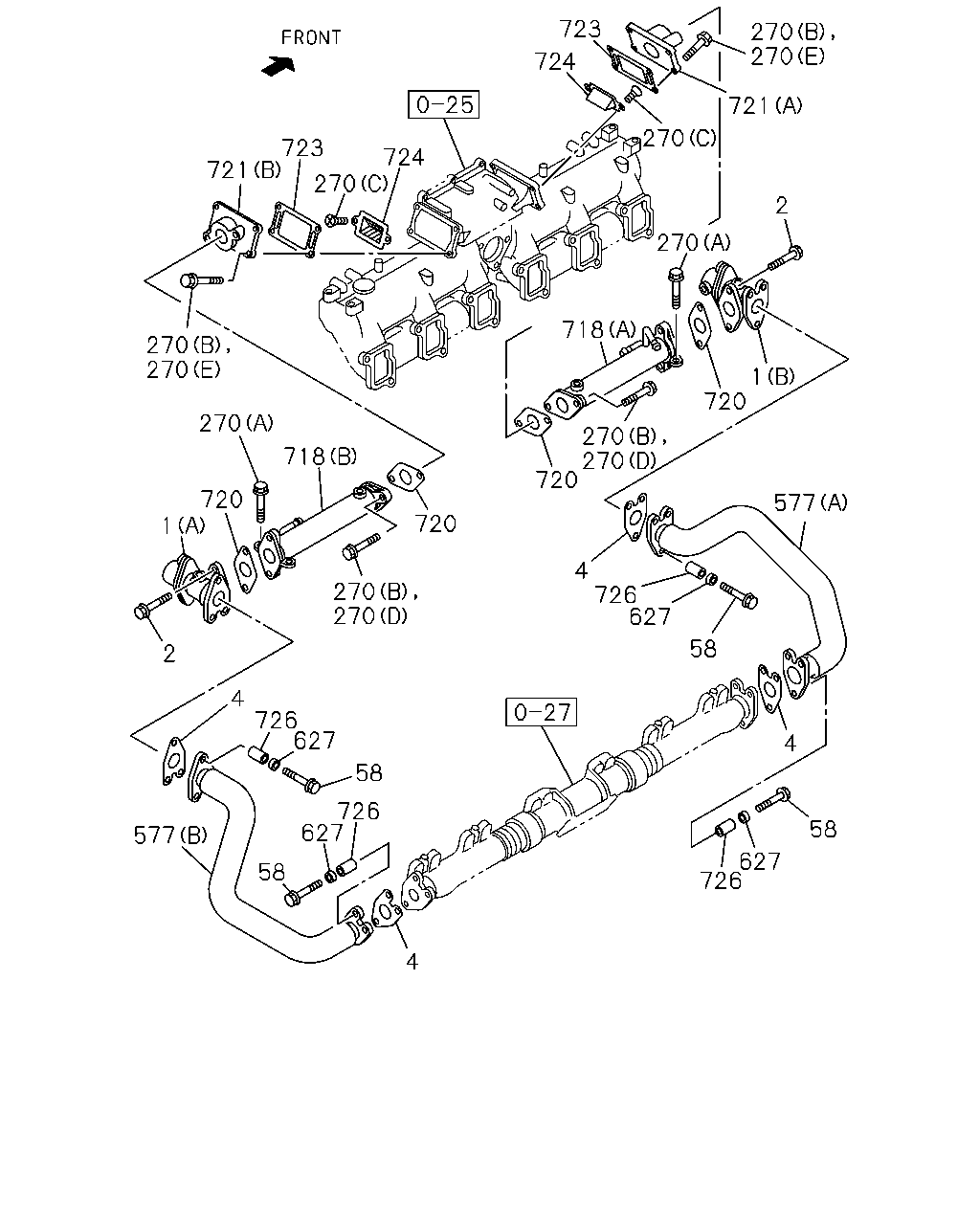

çizim 20408
723 270 270 724 721 270 723 721 724 270 2 270 718 270 270 1 720 270 270 270 720 718 720 577 720 1 4 726 627 270 270 58 2 4 726 627 4 58 726 627 58 577 627 726 58 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR
(B) 		1-16110-015-2 01 1 0107- ● ●
1 VALVE; EGR
(A) 		1-16110-016-2 01 1 0107- ● ●
2 BOLT; EGR VLV
M10X20 FLANGE 		0-28181-020-0 04 1 0107-0512 ● ●
2 BOLT; EGR VLV
M10X20 FLANGE 		0-28151-020-0 04 1 0601- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16157-015-0 04 1 0107- ● ●
58 BOLT; PIPE
M10X55 FLANGE 		8-94399-863-1 12 1 0107- ● ●
270 BOLT
(E) M10X35 FLANGE 		0-28181-035-0 08 1 0407-0512 ● ●
270 BOLT
(E) M10X35 FLANGE 		0-28151-035-0 08 1 0601- ● ●
270 BOLT
(A) M10X20 FLANGE 		0-28181-020-0 04 1 0107-0512 ● ●
270 BOLT
(A) M10X20 FLANGE 		0-28151-020-0 04 1 0601- ● ●
270 BOLT
(B) M10X30 FLANGE 		0-28181-030-0 12 1 0107-0406 ● ●
270 BOLT
(D) M10X30 FLANGE 		0-28181-030-0 04 1 0407-0512 ● ●
270 BOLT
(D) M10X30 FLANGE 		0-28151-030-0 04 1 0601- ● ●
270 BOLT
(C) M6X12 HEX SOCKET 		9-05820-612-0 04 1 0107- ● ●
577 PIPE; AIR,EGR
(A) 		1-16181-052-3 01 1 0107-0206 ● ●
577 PIPE; AIR,EGR
(A) 		1-16181-083-2 01 1 0207- ● ●
577 PIPE; AIR,EGR
(B) 		1-16181-053-3 01 1 0107-0206 ● ●
577 PIPE; AIR,EGR
(B) 		1-16181-084-2 01 1 0207- ● ●
627 WASHER; LK,EGR PIPE
T=2.2 		1-09556-015-0 12 1 0107- ● ●
718 COOLER; EGR
(A) 		1-16127-009-4 01 1 0107-0201 ● ●
718 COOLER; EGR
(A) 		1-16127-016-2 01 1 0202- ● ●
718 COOLER; EGR
(B) 		1-16127-011-3 01 1 0107-0201 ● ●
718 COOLER; EGR
(B) 		1-16127-017-2 01 1 0202- ● ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16157-016-0 04 1 0107- ● ●
721 DUCT; COOLER
(A) 		1-16183-035-1 01 1 0107-0406 ● ●
721 DUCT; COOLER
(A) 		1-16183-064-0 01 1 0407- ● ●
721 DUCT; COOLER
(B) 		1-16183-036-1 01 1 0107-0406 ● ●
721 DUCT; COOLER
(B) 		1-16183-065-0 01 1 0407- ● ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16185-004-0 02 1 0107- ● ●
724 VALVE; REED 8-98186-738-0 02 1 0107- ● ●
726 TUBE; DISTANCE
L=28 		8-94395-679-0 12 1 0107-0209 ● ●
726 TUBE; DISTANCE
L=28 		8-97250-073-1 12 1 0210- ● ●
