0-52 — OIL AND VACUUM PIPING; ENGINE (#9946) — 45 parça

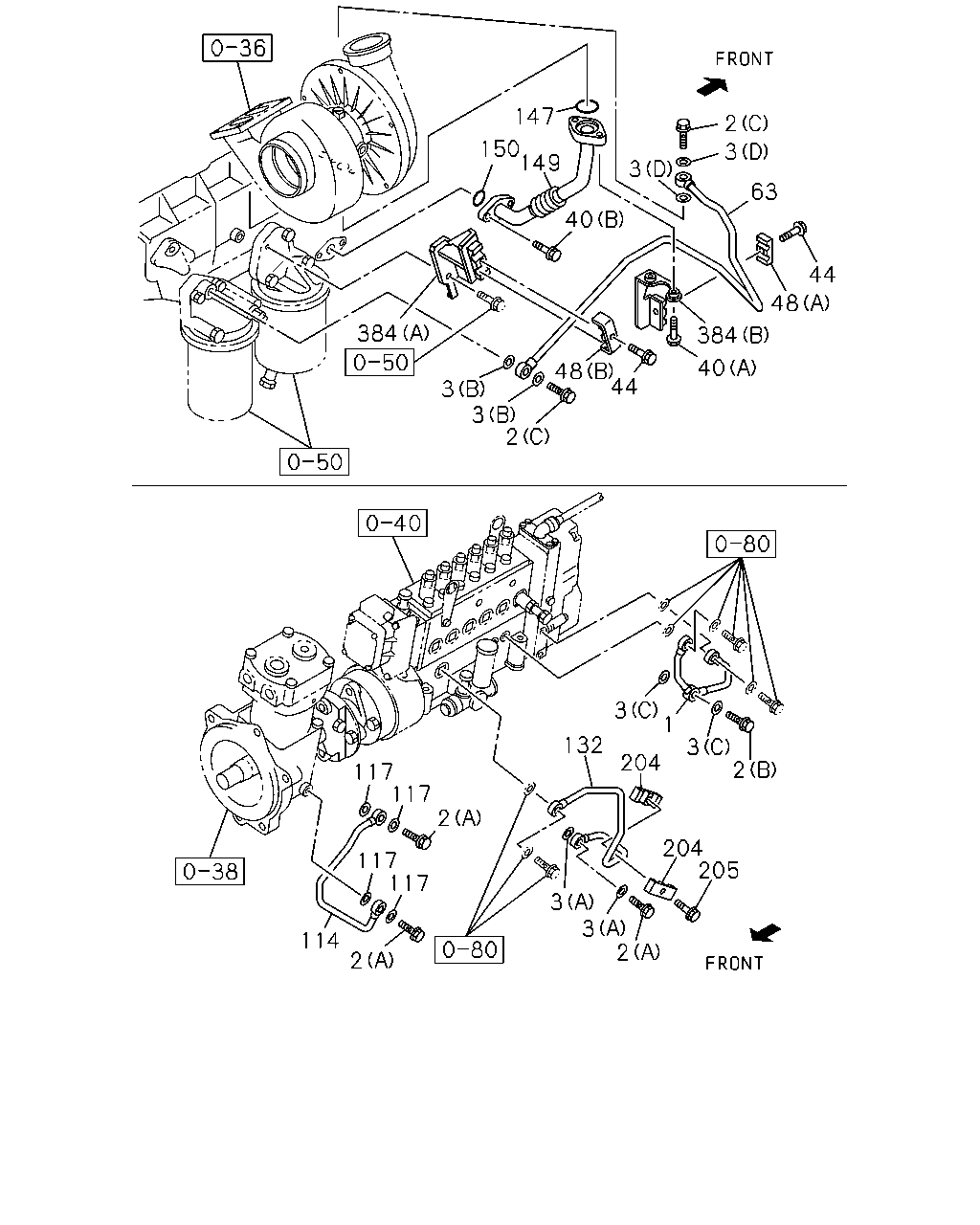

çizim 20777
147 2 150 149 3 3 63 40 44 48 384 384 40 48 44 3 3 2 3 1 132 3 2 204 117 117 2 204 205 117 117 3 3 2 114 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; OIL,INJ PUMP TO C/BL 1-13313-750-1 01 1 0107- ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 03 1 0107- ● ●
2 BOLT; EYE,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 0107- ● ●
2 BOLT; EYE,OIL PIPE
(C) M12X27 FLANGE 		1-09675-160-0 02 1 0107- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0107- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 02 1 0107- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=25 		1-09630-141-0 02 1 0107- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=12.2 		9-09571-412-0 02 1 0107- ● ●
40 BOLT; OIL PIPE
(A) M10X25 FLANGE 		0-28181-025-0 02 1 0107-0512 ● ●
40 BOLT; OIL PIPE
(A) M10X25 FLANGE 		0-28151-025-0 02 1 0601- ● ●
40 BOLT; OIL PIPE
(B) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0512 ● ●
40 BOLT; OIL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28080-630-0 02 1 0107-0512 ● ●
44 BOLT; CLIP,OIL PIPE
M6X30 FLANGE 		0-28050-630-0 02 1 0601- ● ●
48 CLIP; OIL PIPE
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0107- ● ●
48 CLIP; OIL PIPE
(B) ID=9 & 11 L=28 		1-09701-265-1 01 1 0107- ● ●
63 PIPE; OIL,TURBOCHARGER FEED 1-13313-978-0 01 1 0107- ● ●
114 PIPE ASM; OIL,BODY
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13313-643-0 01 1 0402- ●
114 PIPE ASM; OIL,BODY 1-13313-788-0 01 1 0107-0205 ● ●
114 PIPE ASM; OIL,BODY
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13314-027-0 01 1 0206- ●
114 PIPE ASM; OIL,BODY 1-13314-027-0 01 1 0206- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0107- ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-851-0 01 1 0107- ● ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-399-0 01 1 0107- ● ●
149 PIPE; OIL RETURN,TURBOCHARGER 1-13313-980-0 01 1 0107- ● ●
150 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		1-09623-450-0 01 1 0107- ● ●
204 CLIP; OIL PIPE 1-09701-132-1 02 1 0107- ● ●
205 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 0107-0512 ● ●
205 BOLT; CLIP
M6X30 FLANGE 		0-28050-630-0 01 1 0601- ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(A) 		1-13345-191-0 01 1 0107- ● ●
384 BRACKET; CLIP,OIL PIPE,TURBOCHARGER
(B) 		1-13345-213-0 01 1 0107- ● ●

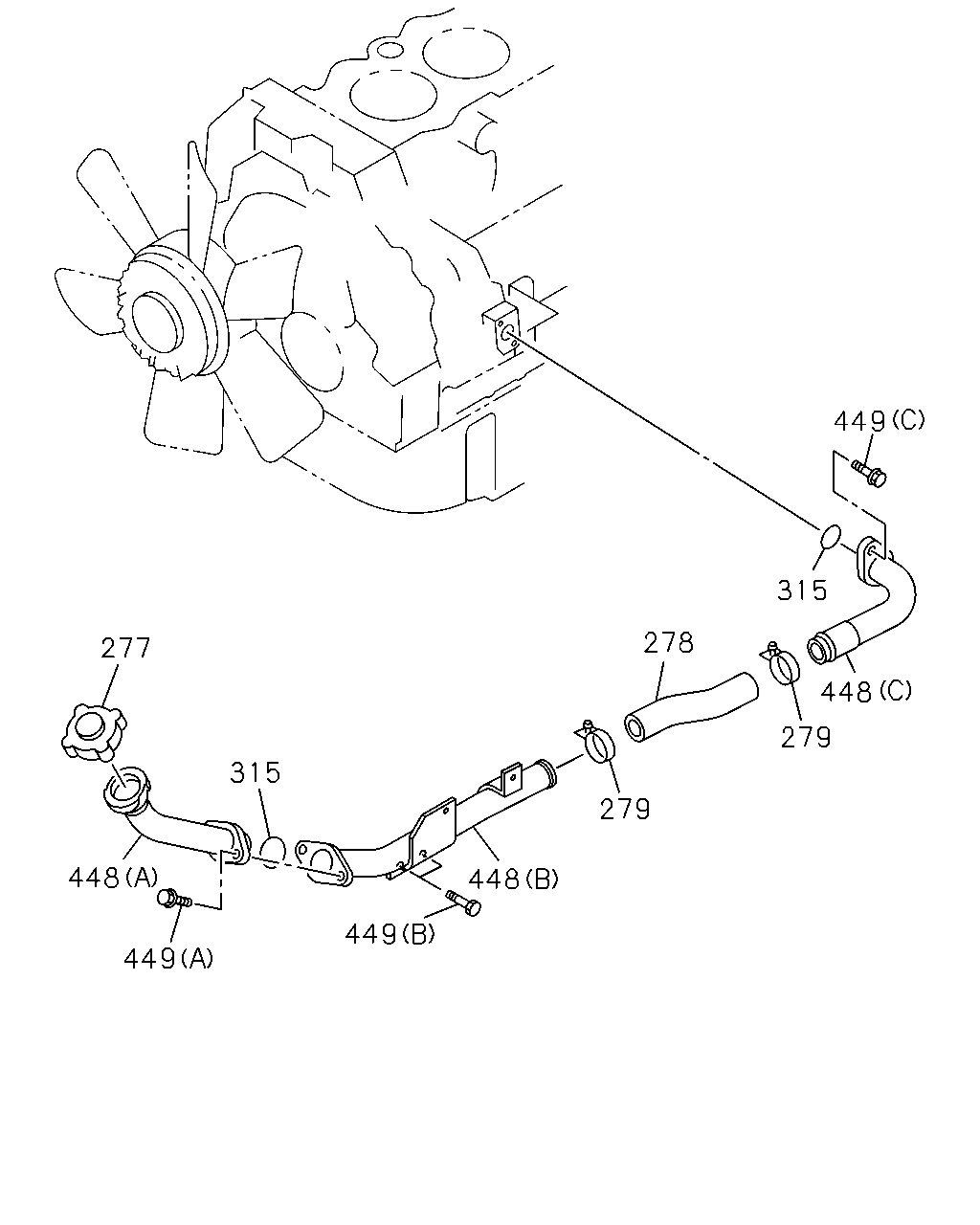

çizim 75440
315 278 277 279 315 279 448 448 449 449 449
BalonParca AdiParca NoAdetTipApplied Date A B
277 CAP; OIL FILLER 1-11750-020-0 01 1 0107- ● ●
278 HOSE; RUBBER,OIL FILLER 1-11749-154-0 01 1 0107- ● ●
279 CLIP; RUBBER HOSE
ID=48 		9-09915-512-1 02 1 0107- ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-299-0 01 1 0107- ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-299-0 01 1 0107- ● ●
448 FILLER; OIL
(C) 		1-11740-227-2 01 1 0107- ● ●
448 FILLER; OIL
(A) 		1-11741-175-4 01 1 0107- ● ●
448 FILLER; OIL
(B) 		1-11741-278-2 01 1 0107- ● ●
449 BOLT; OIL FILLER
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0107-0512 ● ●
449 BOLT; OIL FILLER
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
449 BOLT; OIL FILLER
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512 ● ●
449 BOLT; OIL FILLER
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
449 BOLT; OIL FILLER
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512 ● ●
449 BOLT; OIL FILLER
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
