Sayfa 0-39 - Isuzu EPC

0-39 — AIR COMPRESSOR; BRAKE (#9940) — 232 parça

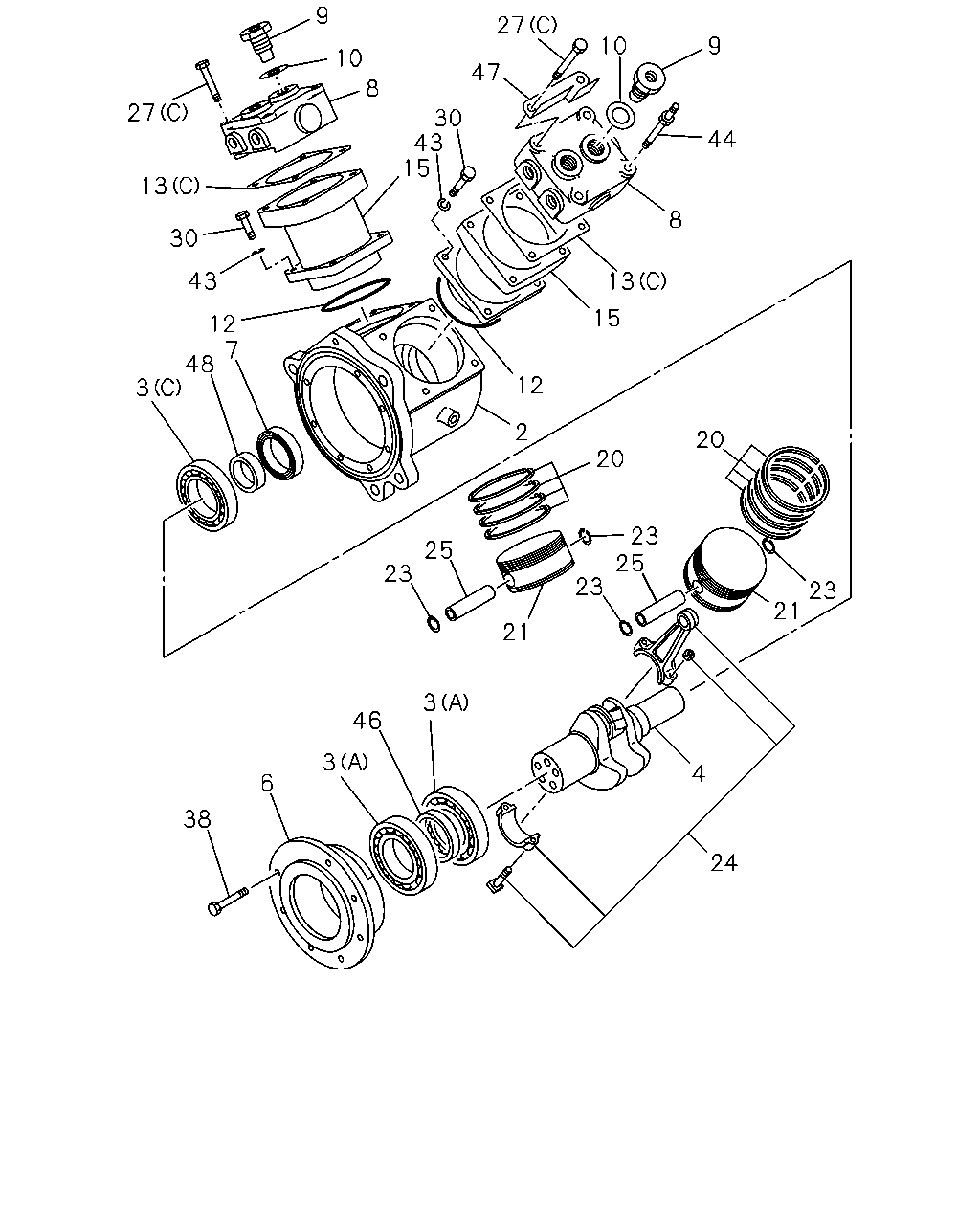

9 27 10 9 10 47 8 27 30 43 15 44 13 8 30 43 13 15 12 7 48 3 12 2 20 20 23 25 25 23 23 23 21 21 3 46 3 4 6 38 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-269-6	01	1	0402-	●
2	CRANKCASE; AIR CMPR	1-19151-286-2	01	1	0107-0107	●	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-286-3	01	1	0108-	●
2	CRANKCASE; AIR CMPR	1-19151-286-3	01	1	0108-		●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-09800-232-0	01	1	0402-	●
3	BEARING; AIR CMPR (B)	8-98171-672-0	01	1	0107-0107	●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98171-672-0	01	1	0108-	●
3	BEARING; AIR CMPR (B)	8-98171-672-0	01	1	0108-		●
3	BEARING; AIR CMPR (A)	1-09800-281-0	02	1	0107-0107	●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09800-281-0	02	1	0108-0310	●
3	BEARING; AIR CMPR (A)	1-09800-281-0	02	1	0108-0310		●
3	BEARING; AIR CMPR (A)	1-09800-246-0	02	1	0311-	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-088-0	01	1	0402-	●
4	CRANKSHAFT; AIR CMPR	1-19171-080-0	01	1	0107-0107	●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-080-0	01	1	0108-	●
4	CRANKSHAFT; AIR CMPR	1-19171-080-0	01	1	0108-		●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-068-1	01	1	0402-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-079-1	01	1	0107-0107	●	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-079-1	01	1	0108-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-079-1	01	1	0108-		●
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09625-534-0	01	1	0402-	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-619-0	01	1	0107-0107	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09625-619-0	01	1	0108-	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-619-0	01	1	0108-		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	02	1	0402-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-072-0	01	1	0107-0107	●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-072-0	01	1	0108-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-072-0	01	1	0108-		●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-021-1	02	1	0402-	●
10	SHIM; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19139-021-0	02	1	0402-	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	0402-	●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0107-0107	●	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-651-1	01	1	0108-	●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0108-		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19139-017-1	02	1	0402-	●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0107-0107	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-650-1	01	1	0108-	●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0108-		●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0107-0107	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-019-0	01	1	0108-	●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0108-		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	0402-	●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0107-0107	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-065-0	01	1	0108-	●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0108-		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	0402-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0107-0107	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-064-0	01	1	0108-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0108-		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	0402-	●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0107-0107	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-023-0	01	1	0108-	●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0108-		●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	04	1	0402-	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-001-0	02	1	0107-0107	●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-001-0	02	1	0108-	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-001-0	02	1	0108-		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-006-0	02	1	0402-	●
24	ROD ASM; CONN,AIR CMPR	1-19171-078-0	01	1	0107-0107	●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-078-0	01	1	0108-	●
24	ROD ASM; CONN,AIR CMPR	1-19171-078-0	01	1	0108-		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	02	1	0402-	●
25	PIN; PISTON,AIR CMPR	1-19167-004-0	01	1	0107-0107	●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-004-0	01	1	0108-	●
25	PIN; PISTON,AIR CMPR	1-19167-004-0	01	1	0108-		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X60	9-01066-060-0	07	1	0402-	●
27	BOLT; HD (A)	1-09044-071-0	01	1	0107-0107	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09044-071-0	01	1	0108-	●
27	BOLT; HD (A)	1-09044-071-0	01	1	0108-		●
27	BOLT; HD (B) M10X80	1-19119-024-0	04	1	0107-0107	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X80	1-19119-024-0	04	1	0108-	●
27	BOLT; HD (B) M10X80	1-19119-024-0	04	1	0108-		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	08	1	0402-	●
30	BOLT; CYL TO CRANKCASE M10X30	1-19119-026-0	04	1	0107-0107	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X30	1-19119-026-0	04	1	0108-	●
30	BOLT; CYL TO CRANKCASE M10X30	1-19119-026-0	04	1	0108-		●
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19159-016-0	07	1	0402-	●
38	BOLT; COVER FIX M8X30	0-20800-830-0	07	1	0107-0107	●	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X30	0-20800-830-0	07	1	0108-	●
38	BOLT; COVER FIX M8X30	0-20800-830-0	07	1	0108-		●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	08	1	0402-	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-019-1	01	1	0402-	●
46	SPACER; BRG AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-016-0	01	1	0402-	●
46	SPACER; BRG	1-19179-029-0	01	1	0107-0107	●	●
46	SPACER; BRG EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-029-0	01	1	0108-	●
46	SPACER; BRG	1-19179-029-0	01	1	0108-		●
47	BRACKET; PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-028-0	02	1	0402-	●
48	SLEEVE; CR/SHF AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-018-0	01	1	0402-	●
48	SLEEVE; CR/SHF	1-19179-027-0	01	1	0107-0107	●	●
48	SLEEVE; CR/SHF EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-027-0	01	1	0108-	●
48	SLEEVE; CR/SHF	1-19179-027-0	01	1	0108-		●

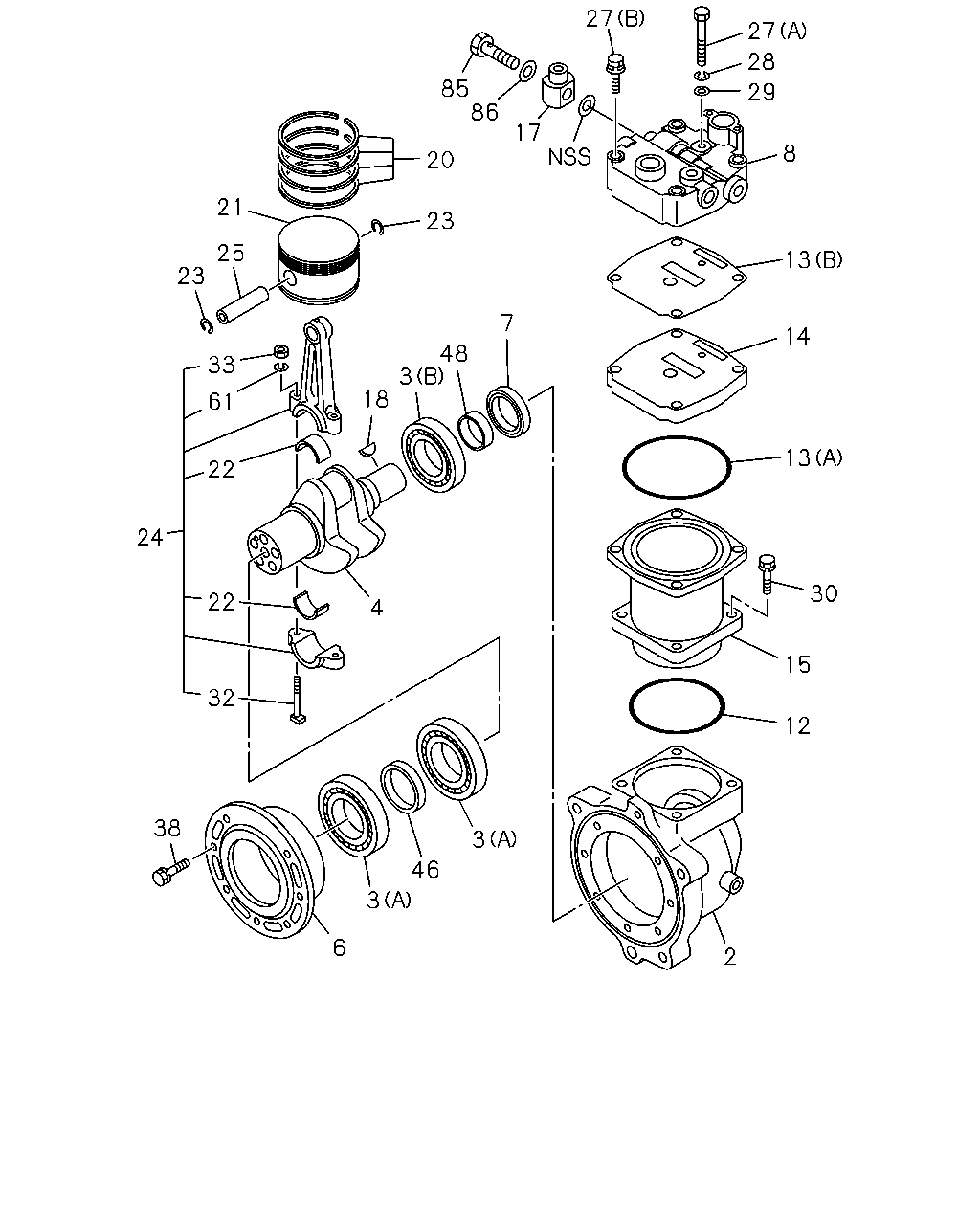

27 27 28 85 86 29 17 8 20 21 23 25 13 23 7 14 48 3 33 18 61 13 22 24 30 22 4 15 32 12 38 3 46 3 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-269-6	01	1	0402-	●
2	CRANKCASE; AIR CMPR	1-19151-286-2	01	1	0107-0107	●	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-286-3	01	1	0108-	●
2	CRANKCASE; AIR CMPR	1-19151-286-3	01	1	0108-		●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-09800-232-0	01	1	0402-	●
3	BEARING; AIR CMPR (B)	8-98171-672-0	01	1	0107-0107	●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-98171-672-0	01	1	0108-	●
3	BEARING; AIR CMPR (B)	8-98171-672-0	01	1	0108-		●
3	BEARING; AIR CMPR (A)	1-09800-281-0	02	1	0107-0107	●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09800-281-0	02	1	0108-0310	●
3	BEARING; AIR CMPR (A)	1-09800-281-0	02	1	0108-0310		●
3	BEARING; AIR CMPR (A)	1-09800-246-0	02	1	0311-	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-088-0	01	1	0402-	●
4	CRANKSHAFT; AIR CMPR	1-19171-080-0	01	1	0107-0107	●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-080-0	01	1	0108-	●
4	CRANKSHAFT; AIR CMPR	1-19171-080-0	01	1	0108-		●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-068-1	01	1	0402-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-079-1	01	1	0107-0107	●	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-079-1	01	1	0108-	●
6	COVER ASM; BRG,AIR CMPR	1-19156-079-1	01	1	0108-		●
7	SEAL; OIL,BRG COVER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09625-534-0	01	1	0402-	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-619-0	01	1	0107-0107	●	●
7	SEAL; OIL,BRG COVER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09625-619-0	01	1	0108-	●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-619-0	01	1	0108-		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-016-0	02	1	0402-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-072-0	01	1	0107-0107	●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-072-0	01	1	0108-	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-072-0	01	1	0108-		●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	0402-	●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0107-0107	●	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-651-1	01	1	0108-	●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0108-		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19139-017-1	02	1	0402-	●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0107-0107	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-650-1	01	1	0108-	●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0108-		●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0107-0107	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-019-0	01	1	0108-	●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0108-		●
14	PLATE; AIR CMPR	1-19110-064-1	01	1	0107-	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	0402-	●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0107-0107	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-065-0	01	1	0108-	●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0108-		●
17	ADAPTER; AIR CMPR	1-19119-034-1	01	1	0107-0107	●	●
17	ADAPTER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-034-1	01	1	0108-	●
17	ADAPTER; AIR CMPR	1-19119-034-1	01	1	0108-		●
18	KEY; AIR CMPR	9-08055-622-0	01	1	0107-0107	●	●
18	KEY; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	0108-	●
18	KEY; AIR CMPR	9-08055-622-0	01	1	0108-		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	0402-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0107-0107	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-064-0	01	1	0108-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0108-		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	0402-	●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0107-0107	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-023-0	01	1	0108-	●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0108-		●
22	METAL; CONNROD,AIR CMPR	1-19179-025-0	02	1	0107-0107	●	●
22	METAL; CONNROD,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-025-0	02	1	0108-	●
22	METAL; CONNROD,AIR CMPR	1-19179-025-0	02	1	0108-		●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-003-0	04	1	0402-	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-001-0	02	1	0107-0107	●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-001-0	02	1	0108-	●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-001-0	02	1	0108-		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-006-0	02	1	0402-	●
24	ROD ASM; CONN,AIR CMPR	1-19171-078-0	01	1	0107-0107	●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-078-0	01	1	0108-	●
24	ROD ASM; CONN,AIR CMPR	1-19171-078-0	01	1	0108-		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	02	1	0402-	●
25	PIN; PISTON,AIR CMPR	1-19167-004-0	01	1	0107-0107	●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-004-0	01	1	0108-	●
25	PIN; PISTON,AIR CMPR	1-19167-004-0	01	1	0108-		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X60	9-01066-060-0	07	1	0402-	●
27	BOLT; HD (A)	1-09044-071-0	01	1	0107-0107	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09044-071-0	01	1	0108-	●
27	BOLT; HD (A)	1-09044-071-0	01	1	0108-		●
27	BOLT; HD (B) M10X80	1-19119-024-0	04	1	0107-0107	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X80	1-19119-024-0	04	1	0108-	●
27	BOLT; HD (B) M10X80	1-19119-024-0	04	1	0108-		●
28	WASHER; LK,HD BOLT ID=8.2	9-09150-508-0	01	1	0107-0107	●	●
28	WASHER; LK,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.2	9-09150-508-0	01	1	0108-	●
28	WASHER; LK,HD BOLT ID=8.2	9-09150-508-0	01	1	0108-		●
29	WASHER; PL,HD BOLT ID=8.4	9-09160-508-0	01	1	0107-0107	●	●
29	WASHER; PL,HD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.4	9-09160-508-0	01	1	0108-	●
29	WASHER; PL,HD BOLT ID=8.4	9-09160-508-0	01	1	0108-		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	08	1	0402-	●
30	BOLT; CYL TO CRANKCASE M10X30	1-19119-026-0	04	1	0107-0107	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X30	1-19119-026-0	04	1	0108-	●
30	BOLT; CYL TO CRANKCASE M10X30	1-19119-026-0	04	1	0108-		●
32	BOLT; CONNROD	1-19179-021-0	02	1	0107-0107	●	●
32	BOLT; CONNROD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-021-0	02	1	0108-	●
32	BOLT; CONNROD	1-19179-021-0	02	1	0108-		●
33	NUT; CONNROD BOLT	1-19179-026-0	02	1	0107-0107	●	●
33	NUT; CONNROD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-026-0	02	1	0108-	●
33	NUT; CONNROD BOLT	1-19179-026-0	02	1	0108-		●
38	BOLT; COVER FIX AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19159-016-0	07	1	0402-	●
38	BOLT; COVER FIX M8X30	0-20800-830-0	07	1	0107-0107	●	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X30	0-20800-830-0	07	1	0108-	●
38	BOLT; COVER FIX M8X30	0-20800-830-0	07	1	0108-		●
46	SPACER; BRG AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-016-0	01	1	0402-	●
46	SPACER; BRG	1-19179-029-0	01	1	0107-0107	●	●
46	SPACER; BRG EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-029-0	01	1	0108-	●
46	SPACER; BRG	1-19179-029-0	01	1	0108-		●
48	SLEEVE; CR/SHF AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-018-0	01	1	0402-	●
48	SLEEVE; CR/SHF	1-19179-027-0	01	1	0107-0107	●	●
48	SLEEVE; CR/SHF EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-027-0	01	1	0108-	●
48	SLEEVE; CR/SHF	1-19179-027-0	01	1	0108-		●
61	WASHER; LK,CONNROD BOLT	1-19179-022-0	02	1	0107-0107	●	●
61	WASHER; LK,CONNROD BOLT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-022-0	02	1	0108-	●
61	WASHER; LK,CONNROD BOLT	1-19179-022-0	02	1	0108-		●
85	BOLT; ADAPTER M14X39 FLANGE	1-09675-089-0	01	1	0107-0107	●	●
85	BOLT; ADAPTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X39 FLANGE	1-09675-089-0	01	1	0108-	●
85	BOLT; ADAPTER M14X39 FLANGE	1-09675-089-0	01	1	0108-		●
86	GASKET; ADAPTER ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-0107	●	●
86	GASKET; ADAPTER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	0108-	●
86	GASKET; ADAPTER ID=14.2 OD=19.2	1-09630-085-0	02	1	0108-		●

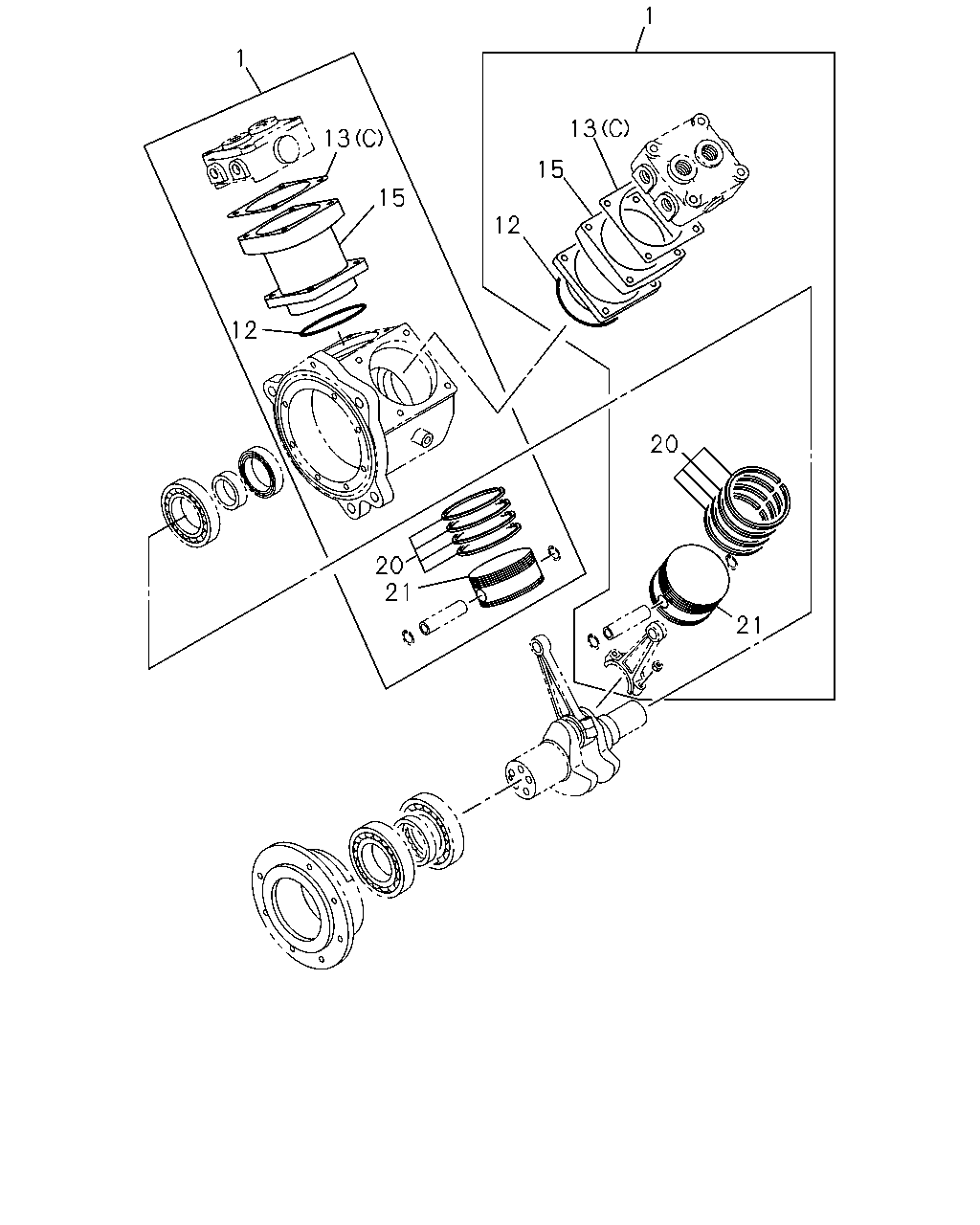

1 1 13 13 15 15 12 12 20 20 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-060-1	02	1	0402-	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19623-539-0	02	1	0402-	●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0107-0107	●	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-651-1	01	1	0108-	●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0108-		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19139-017-1	02	1	0402-	●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0107-0107	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-650-1	01	1	0108-	●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0108-		●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0107-0107	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-019-0	01	1	0108-	●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0108-		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-251-0	02	1	0402-	●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0107-0107	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-065-0	01	1	0108-	●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0108-		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-051-1	02	1	0402-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0107-0107	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-064-0	01	1	0108-	●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0108-		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-016-0	02	1	0402-	●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0107-0107	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-023-0	01	1	0108-	●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0108-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
