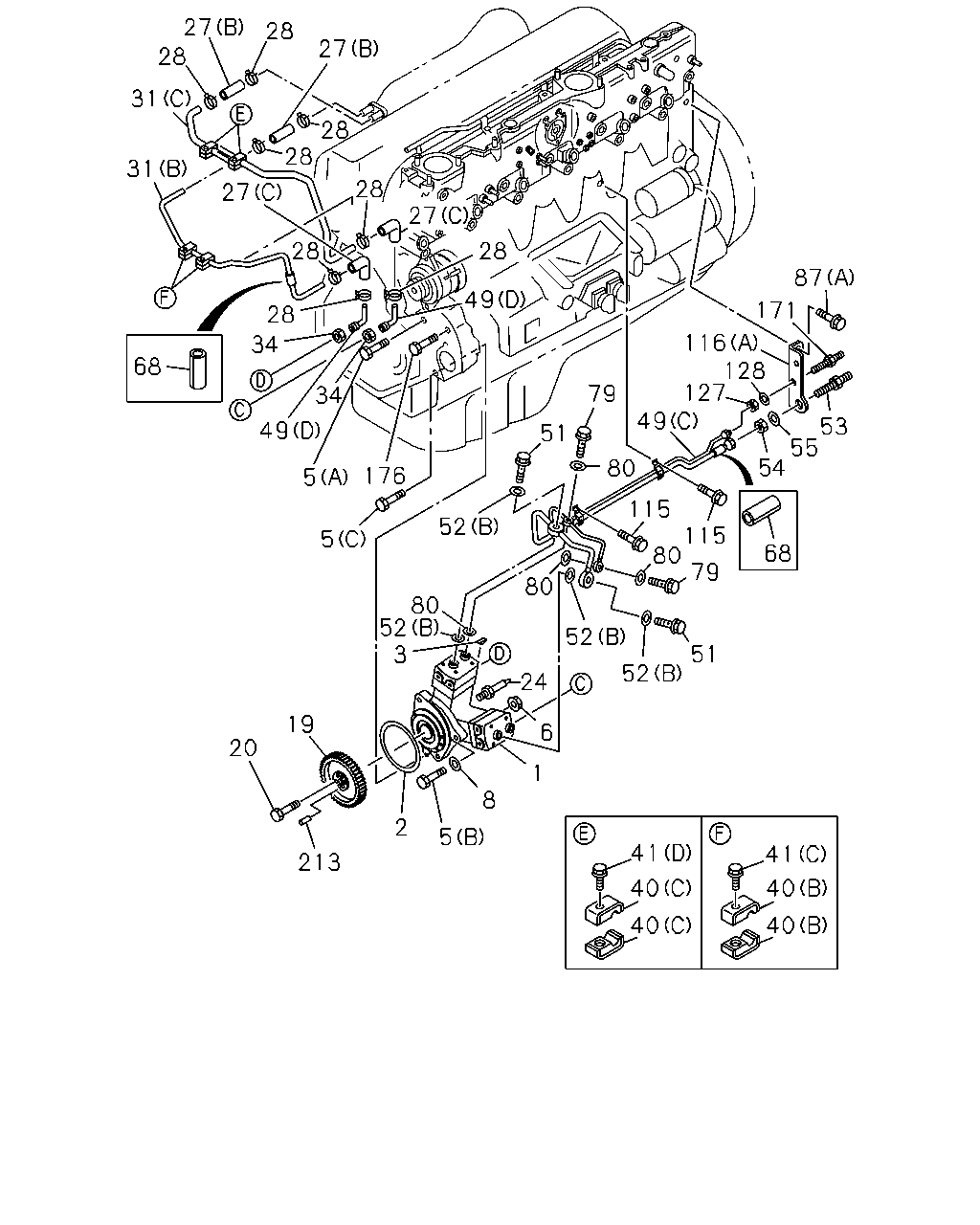

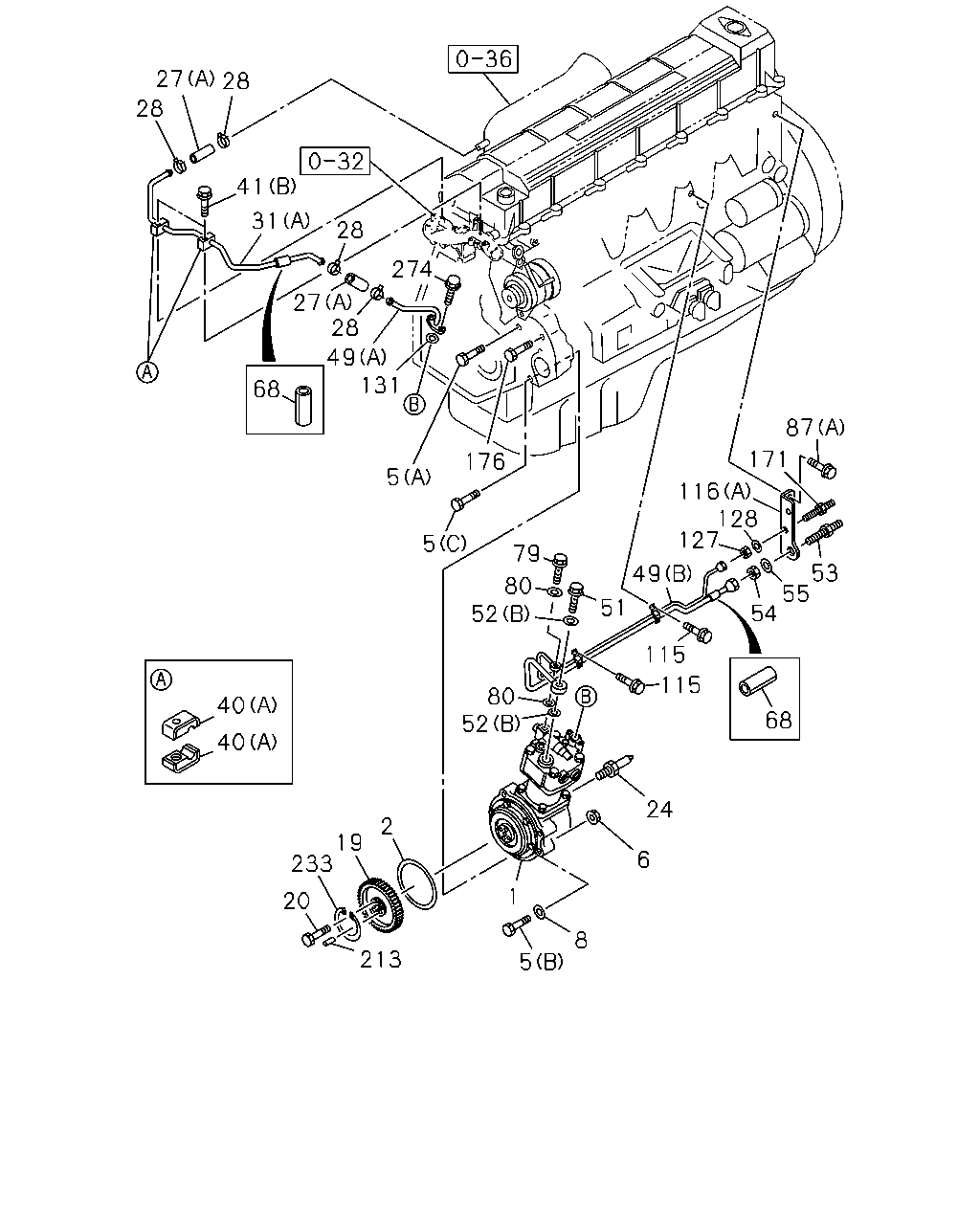

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#9939) — 236 parça

27 28 28 41 274 31 28 27 28 49 131 68 87 171 176 5 116 128 127 5 79 53 55 54 49 80 52 51 115 115 80 52 40 68 40 24 2 19 233 6 1 20 8 213 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0402-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-1	01	1	0107-0107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-328-7	01	1	0108-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-7	01	1	0108-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0107-	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0107-0512	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	0601-	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0107-	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0107-0512	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0107-	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0107-	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0107-	●	●
19	GEAR; INJ PUMP Z=54	1-12524-151-0	01	1	0107-0205	●	●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0206-	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0107-	●	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0107-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0402-	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-09360-916-0	02	1	0402-	●
27	HOSE; AIR CMPR,SUCTION (A) L=55	1-09360-784-0	02	1	0107-0107	●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) L=55	1-09360-784-0	02	1	0108-	●
27	HOSE; AIR CMPR,SUCTION (A) L=55	1-09360-784-0	02	1	0108-		●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0402-	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0107-0107	●	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=28.5	1-09707-150-0	04	1	0108-	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0108-		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-408-0	01	1	0402-0402	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-278-0	01	1	0403-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-409-0	01	1	0402-0402	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-455-0	01	1	0403-	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19193-279-0	01	1	0107-0107	●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-279-0	01	1	0108-	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19193-279-0	01	1	0108-		●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-09701-210-0	04	1	0403-	●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=17 L=17	1-09701-284-0	08	1	0402-0402	●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=17 L=17	1-09701-284-0	04	1	0403-	●
40	CLIP; AIR PIPE (A)	1-09701-281-0	04	1	0107-0107	●	●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09701-281-1	04	1	0108-	●
40	CLIP; AIR PIPE (A)	1-09701-281-1	04	1	0108-		●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (D) M6X70 FLANGE	0-28080-670-0	02	1	0403-0512	●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (D) M6X70 FLANGE	0-28050-670-0	02	1	0601-	●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X70 FLANGE	0-28080-870-0	02	1	0402-0402	●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X40 FLANGE	0-28080-840-0	02	1	0403-0512	●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●
41	BOLT; CLIP (B) M8X45 FLANGE	0-28080-845-0	02	1	0107-0107	●	●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M8X45 FLANGE	0-28080-845-0	02	1	0108-0512	●
41	BOLT; CLIP (B) M8X45 FLANGE	0-28080-845-0	02	1	0108-0512		●
41	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●	●
41	BOLT; CLIP (A) M6X30 FLANGE	0-28080-630-0	04	1	0107-0512	●	●
41	BOLT; CLIP (A) M6X30 FLANGE	0-28050-630-0	04	1	0601-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-132-0	01	1	0402-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	9-19119-032-0	02	1	0402-	●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0107-0107	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-122-1	01	1	0108-0608	●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0108-0608		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97613-246-0	01	1	0609-	●
49	PIPE; AIR,CHARGE (A)	8-97613-246-0	01	1	0609-		●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0107-0107	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-126-2	01	1	0108-	●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0108-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0107-0401	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0402-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-1	01	1	0402-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0107-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0107-0401	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0402-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	0402-	●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0107-	●	●
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0107-0512	●	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-	●	●
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0107-0603	●	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0107-0401	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0402-	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0402-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0107-0401	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0402-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0402-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0107-0401	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0402-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	02	1	0402-	●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512	●	●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0107-0512	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0107-0512	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0107-	●	●
116	BRACKET; AIR PIPE (B)	1-19199-339-1	01	1	0107-	●	●
127	NUT; UNION M12	9-09840-280-0	01	1	0107-	●	●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0107-0603	●	●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-	●	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0107-0107	●	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q). ID=26.8	1-09623-415-0	01	1	0108-0608	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0108-0608		●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5	8-94399-398-0	01	1	0609-	●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0609-		●
171	UNION M12 L=62.5	9-09223-206-1	01	1	0107-0607	●	●
171	UNION M12 L=62.5	0-92113-206-0	01	1	0608-	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0107-0512	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0107-	●	●
233	RING; FRICTION	1-12529-003-0	01	1	0107-0205	●	●
274	BOLT; PIPE M8X20 FLANGE	0-28080-820-0	02	1	0107-0107	●	●
274	BOLT; PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X20 FLANGE	0-28080-820-0	02	1	0108-0512	●
274	BOLT; PIPE M8X20 FLANGE	0-28080-820-0	02	1	0108-0512		●
274	BOLT; PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●
274	BOLT; PIPE M8X20 FLANGE	0-28050-820-0	02	1	0601-		●

27 28 28 27 31 28 28 31 28 27 27 28 28 87 49 171 28 116 128 127 49 34 68 34 79 53 55 54 49 51 80 176 5 115 52 115 80 79 5 68 80 80 52 3 52 51 52 24 19 6 20 1 8 2 5 41 41 213 40 40 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0402-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-1	01	1	0107-0107	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-328-7	01	1	0108-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-7	01	1	0108-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0107-	●	●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	0402-	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0107-0512	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	0-16956-400-0	01	1	0601-	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0107-	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0107-0512	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0107-	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0107-	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0107-	●	●
19	GEAR; INJ PUMP Z=54	1-12524-151-0	01	1	0107-0205	●	●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0206-	●	●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0107-	●	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0107-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0402-	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-09360-916-0	02	1	0402-	●
27	HOSE; AIR CMPR,SUCTION (A) L=55	1-09360-784-0	02	1	0107-0107	●	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) L=55	1-09360-784-0	02	1	0108-	●
27	HOSE; AIR CMPR,SUCTION (A) L=55	1-09360-784-0	02	1	0108-		●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0402-	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0107-0107	●	●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=28.5	1-09707-150-0	04	1	0108-	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0108-		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-408-0	01	1	0402-0402	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-278-0	01	1	0403-	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-409-0	01	1	0402-0402	●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-455-0	01	1	0403-	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19193-279-0	01	1	0107-0107	●	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-279-0	01	1	0108-	●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19193-279-0	01	1	0108-		●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0402-	●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-09701-210-0	04	1	0403-	●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=17 L=17	1-09701-284-0	08	1	0402-0402	●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=17 L=17	1-09701-284-0	04	1	0403-	●
40	CLIP; AIR PIPE (A)	1-09701-281-0	04	1	0107-0107	●	●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09701-281-1	04	1	0108-	●
40	CLIP; AIR PIPE (A)	1-09701-281-1	04	1	0108-		●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (D) M6X70 FLANGE	0-28080-670-0	02	1	0403-0512	●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (D) M6X70 FLANGE	0-28050-670-0	02	1	0601-	●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X70 FLANGE	0-28080-870-0	02	1	0402-0402	●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X40 FLANGE	0-28080-840-0	02	1	0403-0512	●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●
41	BOLT; CLIP (B) M8X45 FLANGE	0-28080-845-0	02	1	0107-0107	●	●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M8X45 FLANGE	0-28080-845-0	02	1	0108-0512	●
41	BOLT; CLIP (B) M8X45 FLANGE	0-28080-845-0	02	1	0108-0512		●
41	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●	●
41	BOLT; CLIP (A) M6X30 FLANGE	0-28080-630-0	04	1	0107-0512	●	●
41	BOLT; CLIP (A) M6X30 FLANGE	0-28050-630-0	04	1	0601-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-132-0	01	1	0402-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	9-19119-032-0	02	1	0402-	●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0107-0107	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-122-1	01	1	0108-0608	●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0108-0608		●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97613-246-0	01	1	0609-	●
49	PIPE; AIR,CHARGE (A)	8-97613-246-0	01	1	0609-		●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0107-0107	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-126-2	01	1	0108-	●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0108-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0107-0401	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	0402-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-175-1	01	1	0402-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0107-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0107-0401	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0402-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	0402-	●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0107-	●	●
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0107-0512	●	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-	●	●
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0107-0603	●	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0107-0401	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0402-	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0402-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0107-0401	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0402-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	0402-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0107-0401	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0402-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	02	1	0402-	●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512	●	●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0107-0512	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0107-0512	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0107-	●	●
116	BRACKET; AIR PIPE (B)	1-19199-339-1	01	1	0107-	●	●
127	NUT; UNION M12	9-09840-280-0	01	1	0107-	●	●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0107-0603	●	●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-	●	●
171	UNION M12 L=62.5	9-09223-206-1	01	1	0107-0607	●	●
171	UNION M12 L=62.5	0-92113-206-0	01	1	0608-	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0107-0512	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-	●	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0107-	●	●

152 76 69 152 271 76 69 271 116 87 41 52 52 35 29 29 29 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	CLIP; AIR PIPE	1-09701-132-1	08	1	0107-	●	●
35	BOLT; EYE,AIR PIPE M10X21 FLANGE	8-94396-711-0	04	1	0107-	●	●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (D) M6X70 FLANGE	0-28080-670-0	02	1	0403-0512	●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (D) M6X70 FLANGE	0-28050-670-0	02	1	0601-	●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X70 FLANGE	0-28080-870-0	02	1	0402-0402	●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X40 FLANGE	0-28080-840-0	02	1	0403-0512	●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X40 FLANGE	0-28050-840-0	02	1	0601-	●
41	BOLT; CLIP (B) M8X45 FLANGE	0-28080-845-0	02	1	0107-0107	●	●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M8X45 FLANGE	0-28080-845-0	02	1	0108-0512	●
41	BOLT; CLIP (B) M8X45 FLANGE	0-28080-845-0	02	1	0108-0512		●
41	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●	●
41	BOLT; CLIP (A) M6X30 FLANGE	0-28080-630-0	04	1	0107-0512	●	●
41	BOLT; CLIP (A) M6X30 FLANGE	0-28050-630-0	04	1	0601-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0107-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0107-0401	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-424-0	02	1	0402-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32	9-09571-424-0	02	1	0402-	●
69	NUT; FLEX HOSE M12	9-09840-280-0	02	1	0107-	●	●
76	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	02	1	0107-0603	●	●
76	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	02	1	0604-	●	●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512	●	●
87	BOLT; BRKT FIX (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0107-0512	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0107-	●	●
116	BRACKET; AIR PIPE (B)	1-19199-339-1	01	1	0107-	●	●
152	HOSE; FLEX L=280	1-09363-610-0	02	1	0107-	●	●
271	PIPE; AIR,EGR CONT (A)	1-19193-236-0	01	1	0107-	●	●
271	PIPE; AIR,EGR CONT (B)	1-19193-237-0	01	1	0107-	●	●

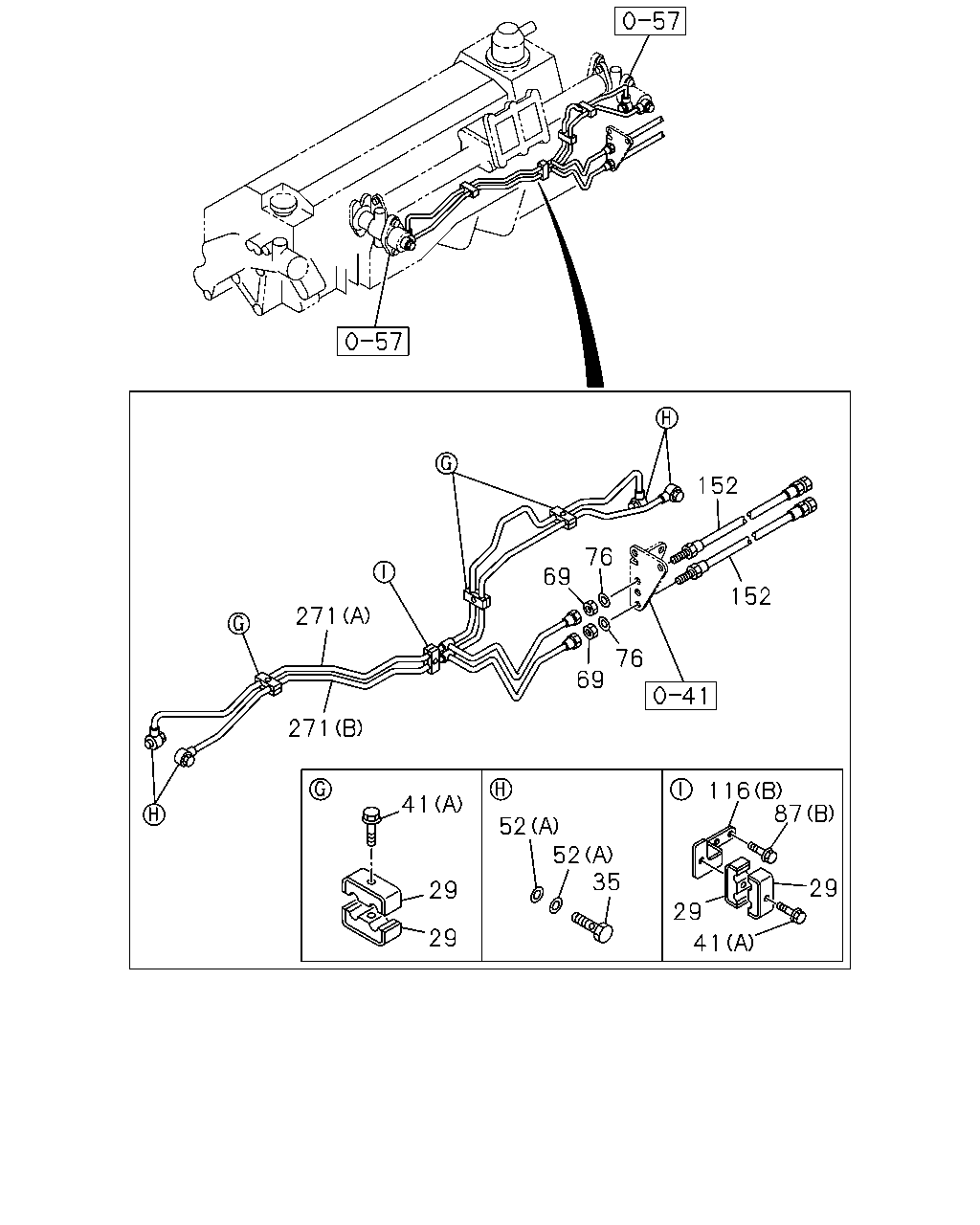

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
