◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#9932) — 43 parça

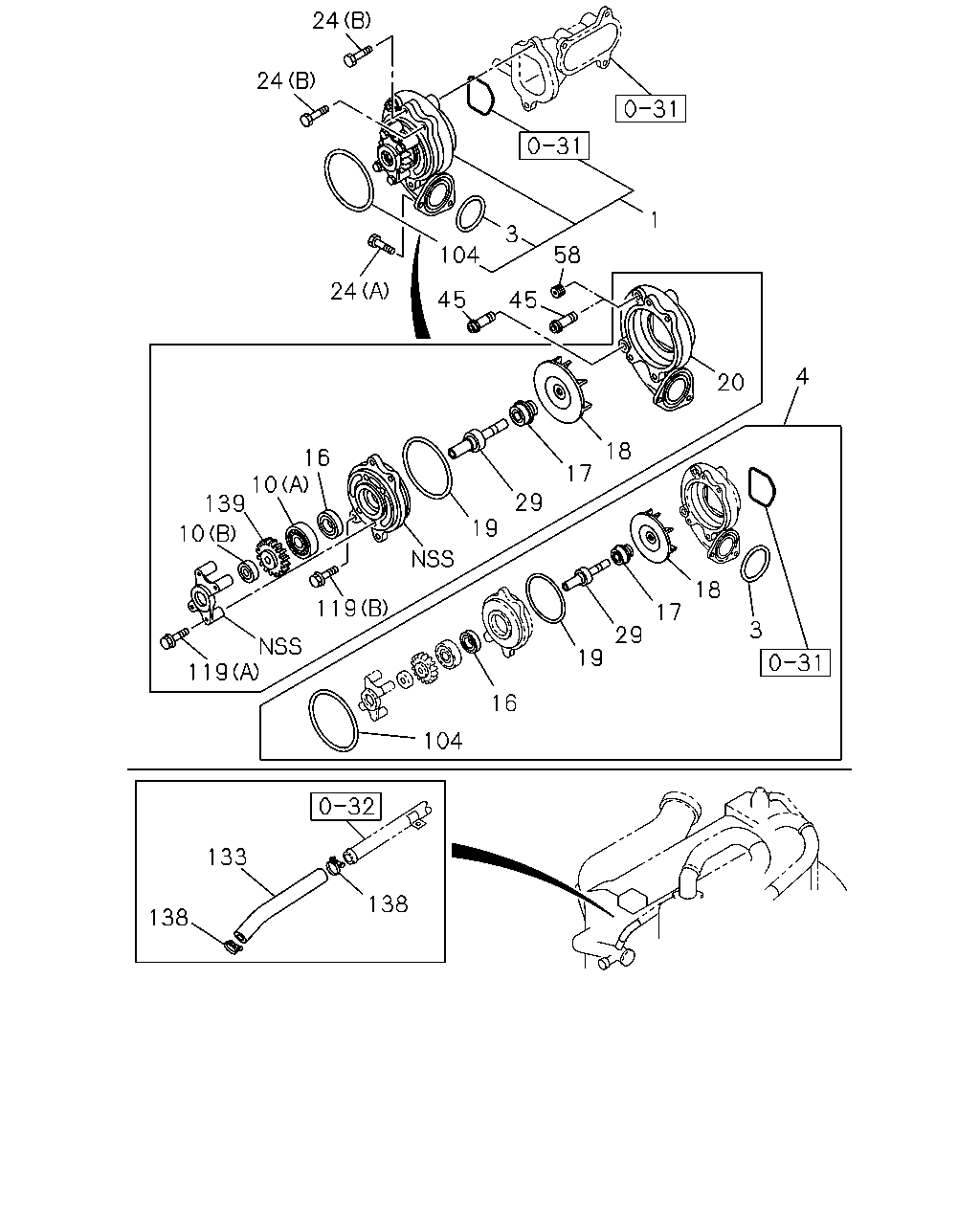

çizim 75725
24 24 1 3 58 104 24 45 45 4 20 18 16 17 10 139 29 19 10 18 119 17 3 29 19 119 16 104 133 138 138
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET 1-13650-151-0 01 1 0107-0108 ● ●
1 PUMP ASM; WATER,W/GASKET 1-13650-088-1 01 1 0109-0202 ● ●
1 PUMP ASM; WATER,W/GASKET 1-13650-162-0 01 1 0203-0303 ● ●
1 PUMP ASM; WATER,W/GASKET 1-13650-170-0 01 1 0304-0409 ● ●
1 PUMP ASM; WATER,W/GASKET 8-97606-249-2 01 1 0410-0603 ● ●
1 PUMP ASM; WATER,W/GASKET 8-97615-905-0 01 1 0604- ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-586-1 01 1 0107- ● ●
4 REPAIR KIT; WATER PUMP 1-87811-879-0 01 1 0107-0412 ● ●
4 REPAIR KIT; WATER PUMP 1-87812-922-0 01 1 0501-0603 ● ●
4 REPAIR KIT; WATER PUMP 1-87813-077-0 01 1 0604- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-252-0 01 1 0107- ● ●
10 BEARING; WATER PUMP
(B) 		1-09800-253-0 01 1 0107- ● ●
16 SEAL; OIL,WATER PUMP 1-09625-551-0 01 1 0107- ● ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0107- ● ●
18 IMPELLER; WATER PUMP 1-13621-060-0 01 1 0107-0603 ● ●
18 IMPELLER; WATER PUMP 8-97608-969-0 01 1 0604- ● ●
19 GASKET; COVER TO BODY 1-09623-587-0 01 1 0107-0501 ● ●
19 GASKET; COVER TO BODY 8-97606-729-0 01 1 0502- ● ●
20 COVER; WATER PUMP 1-13612-052-0 01 1 0107-0108 ● ●
20 COVER; WATER PUMP 1-13612-043-2 01 1 0109-0303 ● ●
20 COVER; WATER PUMP 1-13612-055-1 01 1 0304-0603 ● ●
20 COVER; WATER PUMP 8-97611-134-0 01 1 0604- ● ●
24 BOLT; WATER PUMP
(B) M10X95 FLANGE 		8-94397-027-1 02 1 0305- ● ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28181-025-0 02 1 0107-0512 ● ●
24 BOLT; WATER PUMP
(A) M10X25 FLANGE 		0-28151-025-0 02 1 0601- ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28181-090-0 04 1 0107-0304 ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28181-090-0 02 1 0305-0512 ● ●
24 BOLT; WATER PUMP
(B) M10X90 FLANGE 		0-28151-090-0 02 1 0601- ● ●
29 SHAFT; WATER PUMP 1-13631-078-1 01 1 0107- ● ●
45 JOINT; HTR HOSE,WATER PUMP 8-94119-532-0 02 1 0107-0303 ● ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 02 1 0304- ● ●
58 PLUG; HTR
PT3/8 		5-09605-005-0 01 1 0604- ● ●
104 GASKET; WATER PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-494-0 01 1 0107- ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28080-840-0 04 1 0107-0512 ● ●
119 BOLT; PUMP COVER
(A) M8X40 FLANGE 		0-28050-840-0 04 1 0601- ● ●
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0107-0512 ● ●
119 BOLT; PUMP COVER
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ● ●
133 HOSE; RUBBER,WATER PIPE
L=100 SERVICED BY L=270 		0-03230-270-0 01 1 0107-0206 ● ●
133 HOSE; RUBBER,WATER PIPE
L=100 SERVICED BY L=3000 		0-03580-300-0 01 1 0207- ● ●
138 CLIP; RUBBER HOSE
ID=44 		1-09704-077-0 02 1 0107- ● ●
139 GEAR; WATER PUMP,DRIVE 1-13641-168-0 01 1 0107-0202 ● ●
139 GEAR; WATER PUMP,DRIVE 1-13641-216-0 01 1 0203-0409 ● ●
139 GEAR; WATER PUMP,DRIVE 8-97606-219-0 01 1 0410- ● ●
