◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#993) — 43 parça

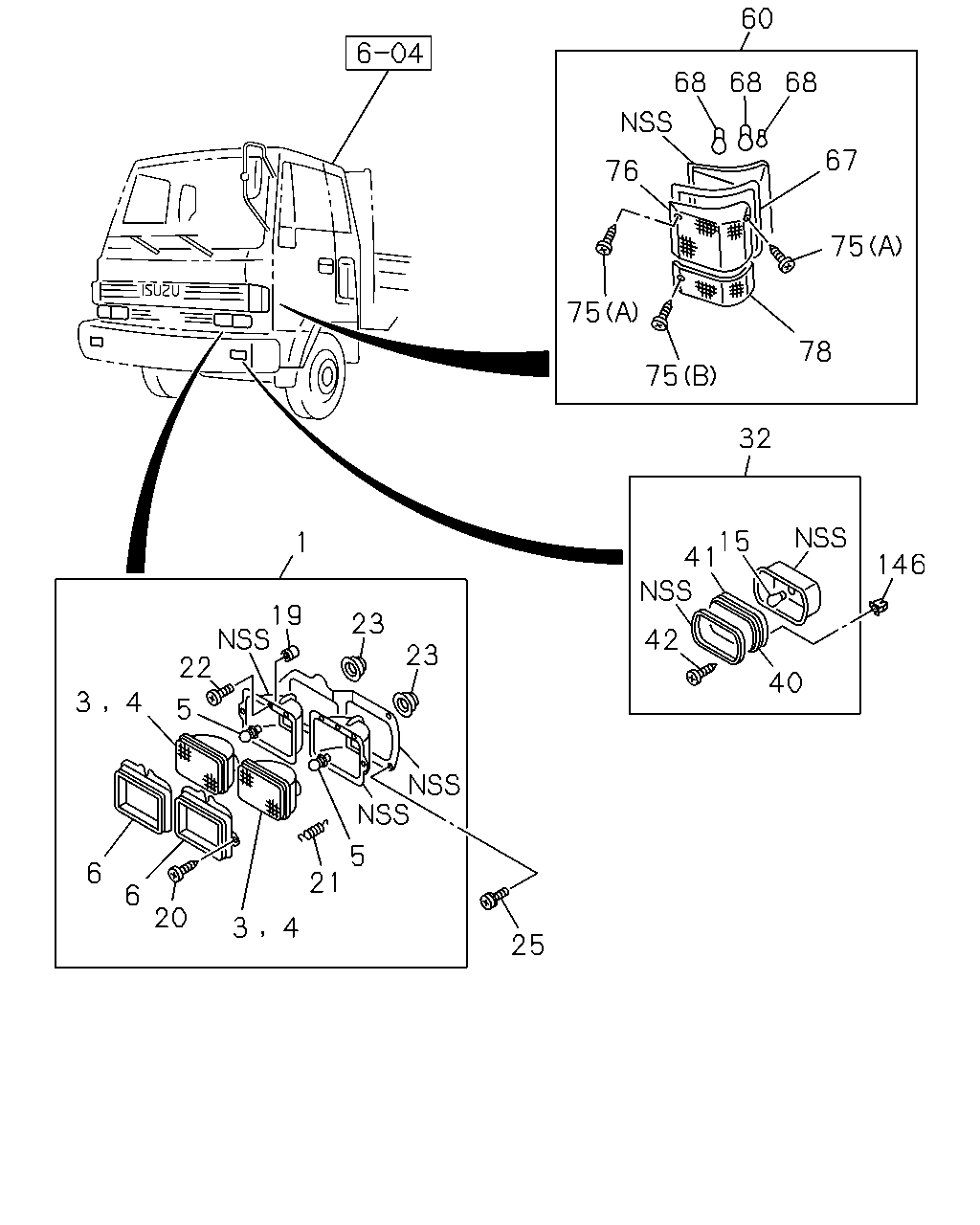

çizim 95652
60 68 68 68 67 76 75 75 78 75 32 15 41 1 146 19 22 23 42 23 40 3 4 5 5 6 21 6 20 3 4 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> BULB TYPE 		1-82110-247-3 01 1 9202- ● ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> BULB TYPE 		1-82110-246-3 01 1 9202- ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> BULB TYPE 		1-82110-245-3 01 1 9202- ● ●
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> BULB TYPE 		1-82110-244-3 01 1 9202- ● ●
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		1-82110-237-2 01 1 9202- ● ●
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		1-82110-236-2 01 1 9202- ● ●
3 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 24V 50/65W 		8-94111-275-0 02 1 9202- ● ●
3 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 24V 55W 		8-94111-276-0 02 1 9202- ● ●
4 HEADLAMP UNIT
AMBER HEADLAMPS<T75> TYPE 2 24V 55/50W 		8-94101-736-0 02 1 9202- ● ●
4 HEADLAMP UNIT
AMBER HEADLAMPS<T75> TYPE 1 24V 55W 		8-94101-742-0 02 1 9202- ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> TYPE 1 24V 70W 		1-82191-032-0 02 1 9202- ● ●
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> TYPE 2 24V 75/70W 		1-82191-037-0 02 1 9202- ● ●
5 BULB; HEADLAMP
AMBER HEADLAMPS<T75> 24V 55/50W 		5-82193-004-0 04 1 9202- ● ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> 24V 75/70W 		1-82193-006-0 02 1 9202- ● ●
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> 24V 70W 		1-82193-007-0 02 1 9202- ● ●
6 RIM; HEADLAMP 1-82114-027-0 04 1 9202- ● ●
15 BULB; FOG LAMP
24V 35W 		1-82193-005-0 02 1 9202- ● ●
19 NUT; HEADLAMP
D=7X7 L=7.5 		8-94291-927-0 08 1 9202- ● ●
20 SCREW; HEADLAMP 1-82119-023-0 16 1 9202- ● ●
21 SPRING; ADJ HEADLAMP 1-82119-021-0 04 1 9202- ● ●
22 SCREW; ADJ,HEADLAMP 1-82119-024-0 08 1 9202-9205 ● ●
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 08 1 9206- ● ●
23 COVER; BULB,HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		8-94160-623-0 04 1 9202- ● ●
25 SCREW; LAMP
M6X12 W/LK&PL WASHER 		1-09981-430-0 08 1 9202- ● ●
32 LAMP ASM; FOG 1-82110-210-3 01 1 9202- ● ●
32 LAMP ASM; FOG 1-82110-209-3 01 1 9202- ● ●
40 LENS; FOG LAMP 1-82115-008-0 01 1 9202- ● ●
40 LENS; FOG LAMP 1-82115-007-0 01 1 9202- ● ●
41 GASKET; LENS,FOG LAMP 1-82116-007-0 02 1 9202- ● ●
42 SCREW; LENS,FOG LAMP 1-82119-025-0 04 1 9202- ● ●
60 LAMP ASM; FRT COMB 1-82210-141-1 01 1 9202- ● ●
60 LAMP ASM; FRT COMB 1-82210-140-1 01 1 9202- ● ●
67 GASKET; FRT COMB LAMP 1-82216-015-0 01 1 9202- ● ●
67 GASKET; FRT COMB LAMP 1-82216-014-0 01 1 9202- ● ●
68 BULB; FRT COMB LAMP
24V 21W 		1-82194-036-0 04 1 9202- ● ●
68 BULB; FRT COMB LAMP
24V 5W 		1-82194-039-0 02 1 9202- ● ●
75 SCREW; FRT COMB LAMP
(B) 		1-82219-001-0 08 1 9202- ● ●
75 SCREW; FRT COMB LAMP
(A) 		1-82219-002-0 04 1 9202- ● ●
76 LENS; FRT COMB LAMP 1-82215-037-0 01 1 9202- ● ●
76 LENS; FRT COMB LAMP 1-82215-038-0 01 1 9202- ● ●
78 LENS ASM; FRT COMB 1-82215-034-0 01 1 9202- ● ●
78 LENS ASM; FRT COMB 1-82215-035-0 01 1 9202- ● ●
146 GROMMET; FOG LAMP
D=9.7X9.7 L=8 		8-94222-314-0 04 1 9202- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
