◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10867 - EXR RHD FUEL TANK 400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#9929) — 49 parça

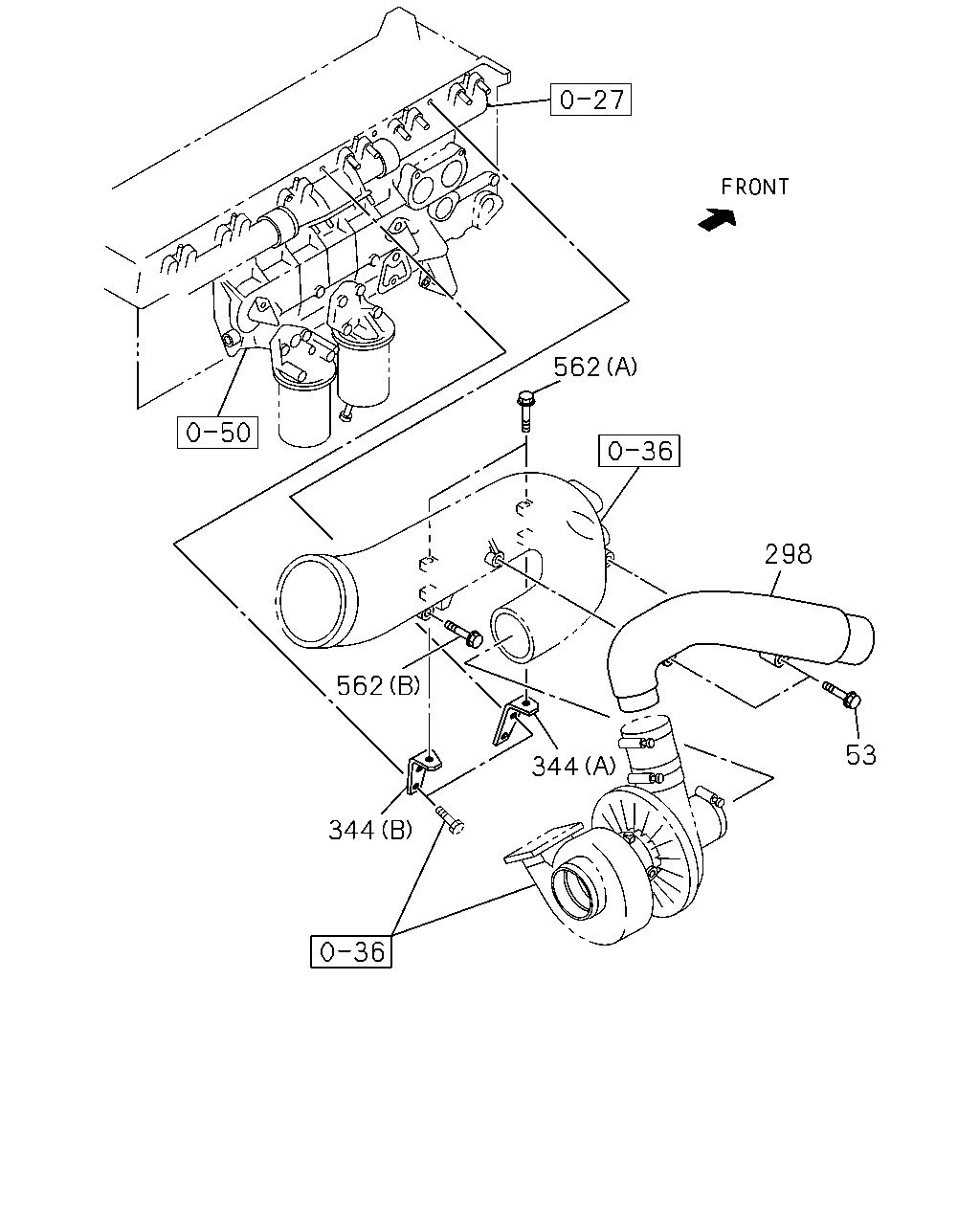

çizim 20695
562 298 562 53 344 344
BalonParca AdiParca NoAdetTipApplied Date A B
53 BOLT; INL PIPE
M10X60 FLANGE 		0-28181-060-0 02 1 0107-0512 ● ●
53 BOLT; INL PIPE
M10X60 FLANGE 		0-28151-060-0 02 1 0601- ● ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-709-0 01 1 0107- ● ●
344 BRACKET; INL PIPE
(A) 		1-14119-417-1 01 1 0107- ● ●
344 BRACKET; INL PIPE
(B) 		1-14119-418-1 01 1 0107- ● ●
562 BOLT; INL DUCT
(A) M10X100 FLANGE 		0-28081-000-0 02 1 0107-0512 ● ●
562 BOLT; INL DUCT
(A) M10X100 FLANGE 		0-28051-000-0 02 1 0601- ● ●
562 BOLT; INL DUCT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 0107-0512 ● ●
562 BOLT; INL DUCT
(B) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ● ●
çizim 75801
692 376 365 378 94 354 361 354
BalonParca AdiParca NoAdetTipApplied Date A B
94 BOLT
(B) M6X12 FLANGE 		0-28080-612-0 02 1 0107-0512 ● ●
94 BOLT
(B) M6X12 FLANGE 		0-28050-612-0 02 1 0601- ● ●
94 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512 ● ●
94 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
354 CLIP; AIR PIPE
EURO3 SPECIFICATION<NJX> (B) ID=7 L=20 		9-09524-635-0 02 1 0107-0606 ● ●
354 CLIP; AIR PIPE
EURO3 SPECIFICATION<NJX> (B) ID=7 L=20 		0-95234-635-0 02 1 0607- ● ●
354 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0107- ● ●
361 BOLT; CLIP
EURO3 SPECIFICATION<NJX> M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512 ● ●
361 BOLT; CLIP
EURO3 SPECIFICATION<NJX> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
365 NUT; CLIP
EURO3 SPECIFICATION<NJX> M8 FLANGE 		0-91150-208-0 02 1 0107-0201 ● ●
365 NUT; CLIP
EURO3 SPECIFICATION<NJX> M8 FLANGE 		0-91150-108-0 02 1 0202-0602 ● ●
365 NUT; CLIP
EURO3 SPECIFICATION<NJX> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
376 PIPE ASM; AIR UNION TO MAG VLV 1-49121-779-0 01 1 0107- ● ●
378 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ● ●
378 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
692 PIPE; AIR,MAG VLV
EURO3 SPECIFICATION<NJX> 		1-49122-740-0 01 1 0107- ● ●

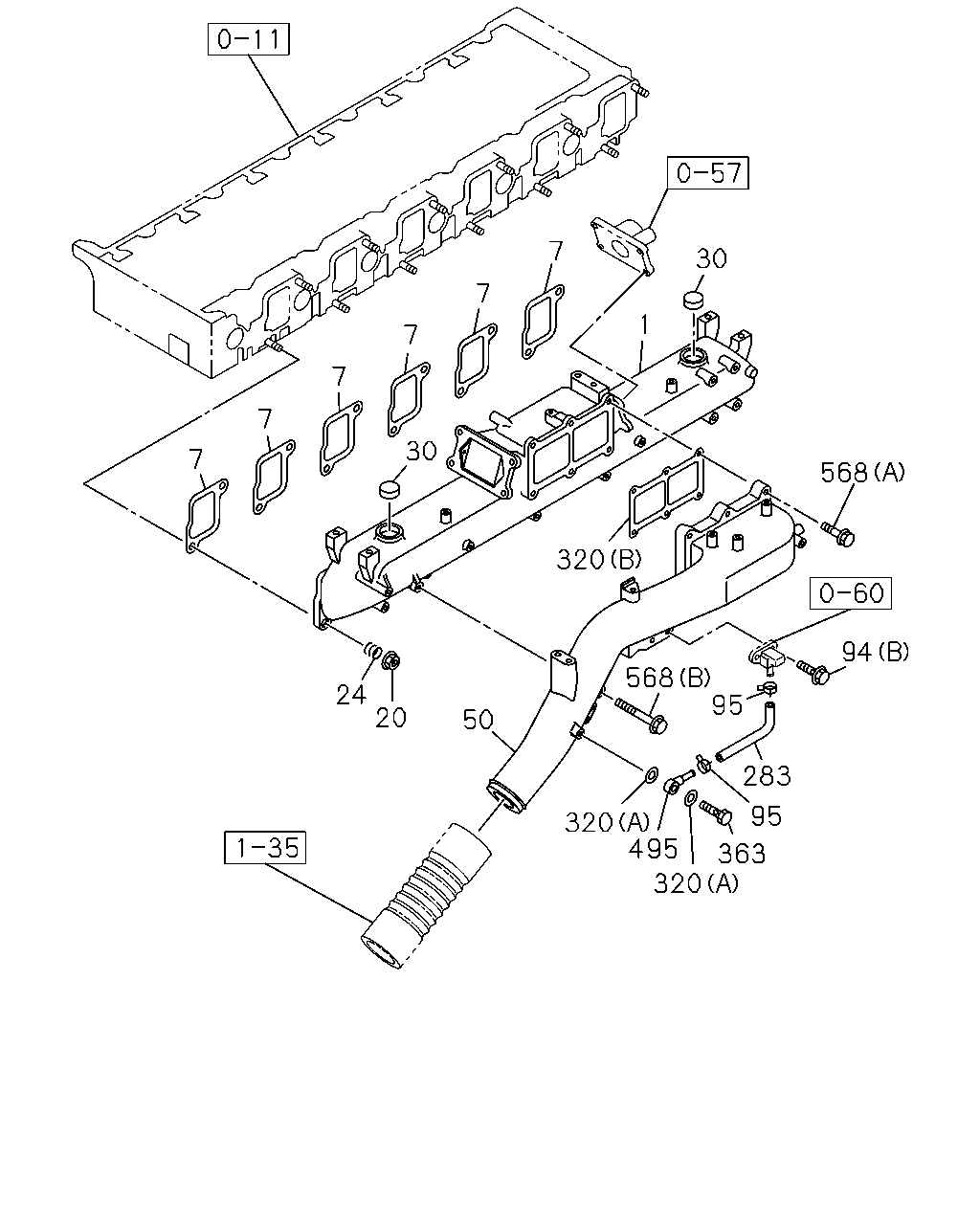

çizim 78616
7 30 7 1 7 7 7 30 7 568 320 94 568 95 24 20 50 283 95 320 495 363 320
BalonParca AdiParca NoAdetTipApplied Date A B
1 MANIFOLD; INL 1-14112-714-5 01 1 0107- ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-096-1 06 1 0107-0504 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97607-598-0 06 1 0505-0505 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-096-1 06 1 0506- ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 0107-0602 ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 0603- ● ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 0107- ● ●
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 02 1 0107- ● ●
50 PIPE; INL 1-14112-711-4 01 1 0107- ● ●
94 BOLT
(B) M6X12 FLANGE 		0-28080-612-0 02 1 0107-0512 ● ●
94 BOLT
(B) M6X12 FLANGE 		0-28050-612-0 02 1 0601- ● ●
94 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512 ● ●
94 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
95 CLIP; RUBBER HOSE
ID=11 WHITE 		5-09707-005-1 02 1 0107- ● ●
283 RUBBER 1-14119-416-0 01 1 0107- ● ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0107- ● ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-14115-094-1 01 1 0107- ● ●
363 BOLT; EYE
M8X24 		1-09675-206-0 01 1 0107-0306 ● ●
363 BOLT; EYE
M8X24 		8-97257-826-0 01 1 0307- ● ●
495 PIPE; BOOST SENSOR 8-94428-807-0 01 1 0107- ● ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28181-030-0 06 1 0107-0512 ● ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28151-030-0 06 1 0601- ● ●
568 BOLT; PIPE
(B) M10X80 FLANGE 		0-28181-080-0 01 1 0107-0512 ● ●
568 BOLT; PIPE
(B) M10X80 FLANGE 		0-28151-080-0 01 1 0601- ● ●
