◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10866 - EXD LHD FUEL TANK 400L ▶ 9 - Tools ▶ 9-01 - TOOLS ▶

9-01 — TOOLS (#9919) — 199 parça

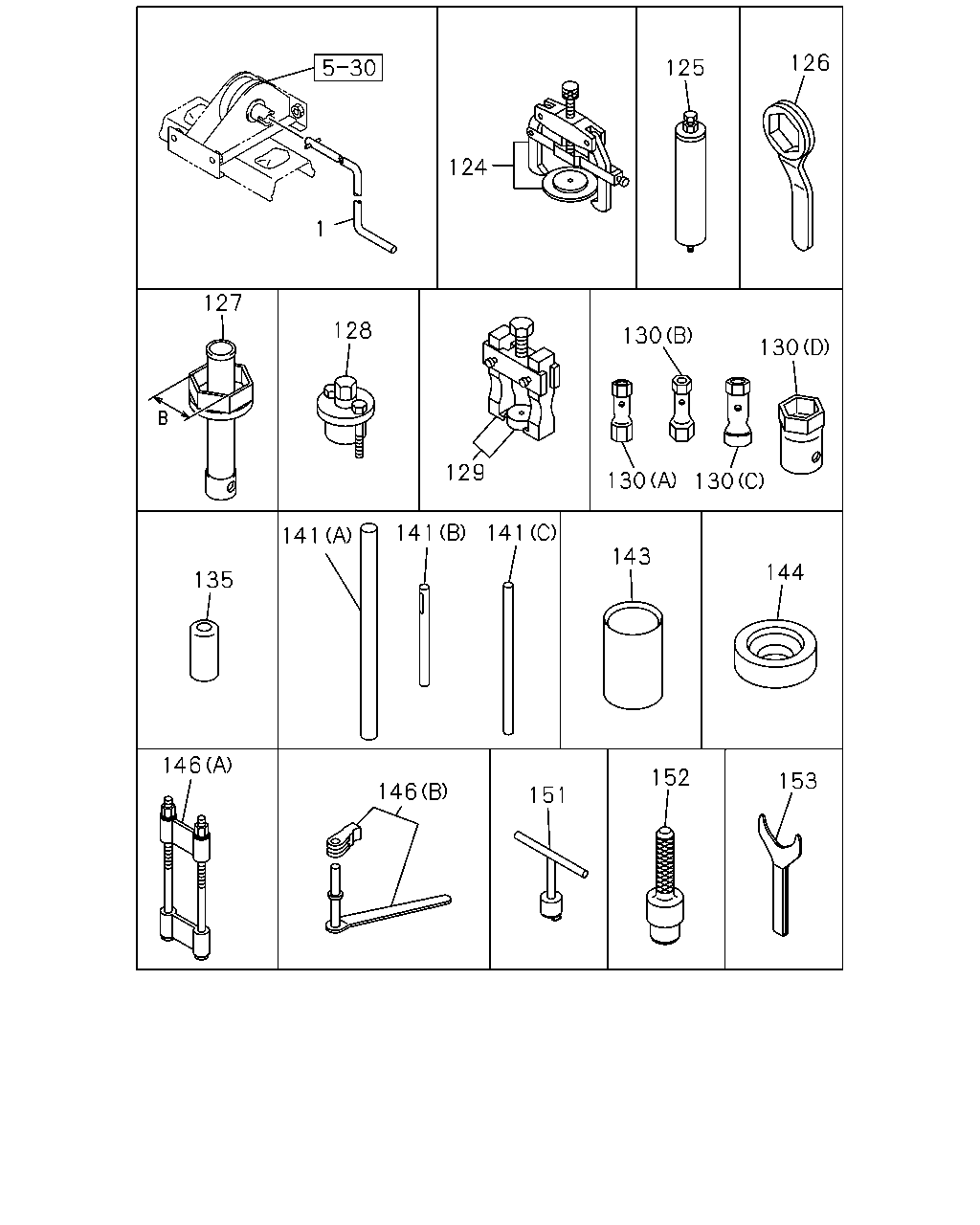

126 125 124 1 127 128 130 130 129 130 130 141 141 141 143 144 135 146 152 153 146 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER	9-23110-018-0	01	1	0107-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0107-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0107-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-0	01	1	0107-
127	WRENCH ASM; HUB BRG NUT L=400 B=116	9-85113-524-0	01	1	0107-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0107-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0107-
130	WRENCH; BOX (D) B=63	9-85111-368-0	01	1	0107-
130	WRENCH; BOX (C) B=46 & 54 L=165	9-85112-320-0	01	1	0107-
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	0107-
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	0107-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0107-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	0107-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	0107-
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	0107-
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	0107-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0107-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0107-
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	0107-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	0107-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	0107-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0107-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0107-

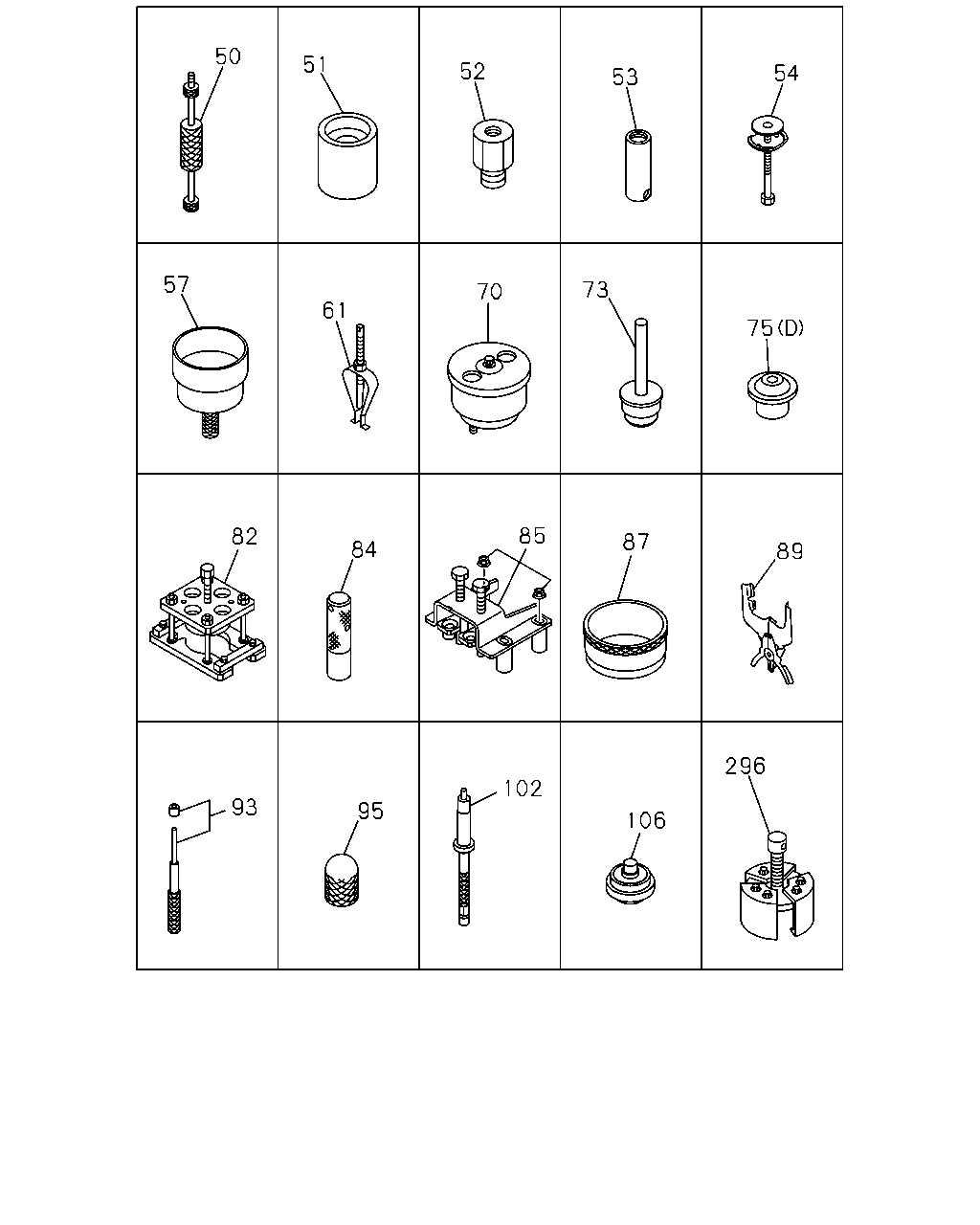

50 51 52 54 53 57 73 70 61 75 85 82 87 84 89 296 102 93 95 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	REPLACER; NOZZLE HOLDER L=300	1-85230-013-0	01	1	0107-
51	PULLER ASM; WATER PUMP	1-85220-047-0	01	1	0107-
52	REMOVER; WATER PUMP	1-85210-062-0	01	1	0107-
53	PULLER; TAPER BUSHING	1-85210-063-0	01	1	0107-
54	PULLER; THERMOSTAT SEAL	1-85210-067-0	01	1	0107-
57	TOOL; SETTING CRANK GEAR OD=162	1-85220-045-0	01	1	0107-
61	PULLER ASM; PILOT BRG	9-85210-157-0	01	1	0107-
70	TOOL; SETTING,OIL SEAL	1-85220-043-0	01	1	0107-
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	01	1	0107-
75	TOOL; SETTING,OIL SEAL (D)	1-85220-049-0	01	1	0107-
75	TOOL; SETTING,OIL SEAL MJD7S M/T(Y2Y) (C)	1-85221-096-0	01	1	0107-
75	TOOL; SETTING,OIL SEAL MJD7S M/T(Y2Y) (A)	1-85221-168-0	01	1	0107-
75	TOOL; SETTING,OIL SEAL MJD7S M/T(Y2Y) (B)	1-85221-169-0	01	1	0107-
82	PULLER ASM; CR/SHF GEAR	1-85210-064-0	01	1	0107-
84	REPLACER; VALVE SEAL EXHAUST	1-85221-184-0	01	1	0107-
84	REPLACER; VALVE SEAL INLET	1-85221-187-0	01	1	0107-
85	REPLACER ASM; VALVE SPR	1-85235-013-0	01	1	0107-
87	TOOL; PISTON	1-85220-059-0	01	1	0107-
89	TOOL; PISTON RING	1-85221-025-0	01	1	0107-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	0107-
95	SETTING TOOL; BRIDGE GUIDE	9-85221-324-0	01	1	0107-
102	ADAPTER; COMP GAGE	1-85317-019-0	01	1	0107-
106	TOOL; SETTING PILOT BRG	1-85221-057-0	01	1	0107-
296	REPLACER; SLINGER	1-85210-027-0	01	1	0107-

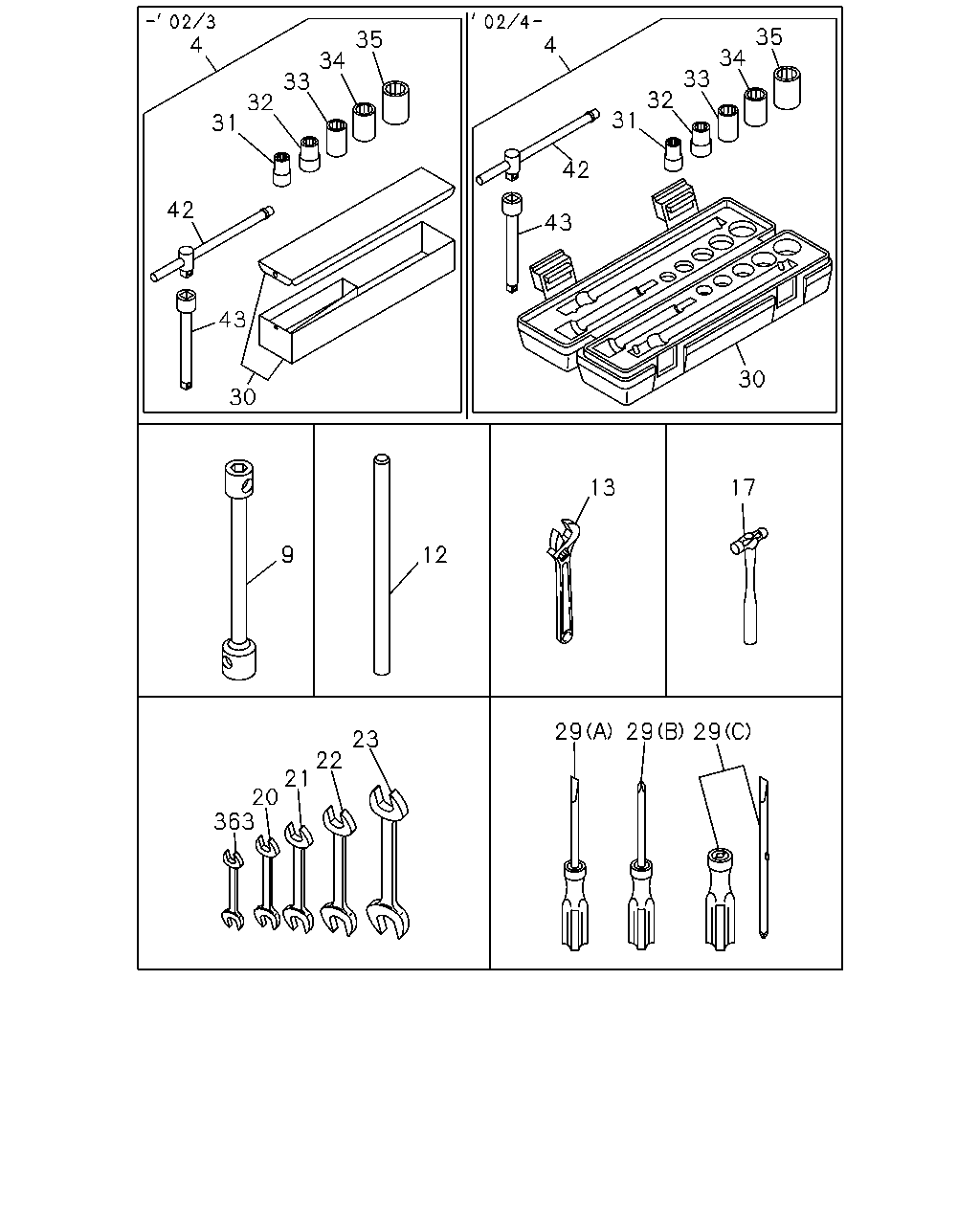

4 35 34 33 32 35 34 33 32 4 31 31 42 42 43 43 30 30 13 17 9 12 29 23 22 21 20 363 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	0107-0203
4	WRENCH KIT; SOCKET	1-85000-491-0	01	1	0204-
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	0107-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0107-
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	0107-
17	HAMMER	9-85121-406-0	01	1	0107-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	0107-0607
20	WRENCH; 10X12 10X12	0-95902-510-0	01	1	0608-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	0107-0607
21	WRENCH; 14X17 14X17	0-95902-514-0	01	1	0608-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	0107-0607
22	WRENCH; 19X22 19X22	0-95902-519-0	01	1	0608-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	0107-0607
23	WRENCH; 24X27 24X27	0-95902-524-0	01	1	0608-
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	0107-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	0107-
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	0107-
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	0107-0203
30	BOX; SOCKET WRENCH	1-85000-492-0	01	1	0204-
31	WRENCH; 12	9-09590-012-0	01	1	0107-0203
31	WRENCH; 12	1-85000-495-0	01	1	0204-
32	WRENCH; 14	9-09590-014-0	01	1	0107-0203
32	WRENCH; 14	1-85000-496-0	01	1	0204-
33	WRENCH; 17	9-09590-017-0	01	1	0107-0203
33	WRENCH; 17	1-85000-497-0	01	1	0204-
34	WRENCH; 19	9-09590-019-0	01	1	0107-0203
34	WRENCH; 19	1-85000-498-0	01	1	0204-
35	WRENCH; 22	9-09590-022-0	01	1	0107-0203
35	WRENCH; 22	1-85000-499-0	01	1	0204-
42	HANDLE; SLIDING	9-09590-512-0	01	1	0107-0203
42	HANDLE; SLIDING	1-85000-500-0	01	1	0204-
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	0107-0203
43	BAR; EXTENSION,SOCKET WRENCH	1-85000-501-0	01	1	0204-
363	WRENCH; OPEN END 8X10 8X10	9-99592-108-0	01	1	0107-0607
363	WRENCH; OPEN END 8X10 8X10	0-95902-508-0	01	1	0608-

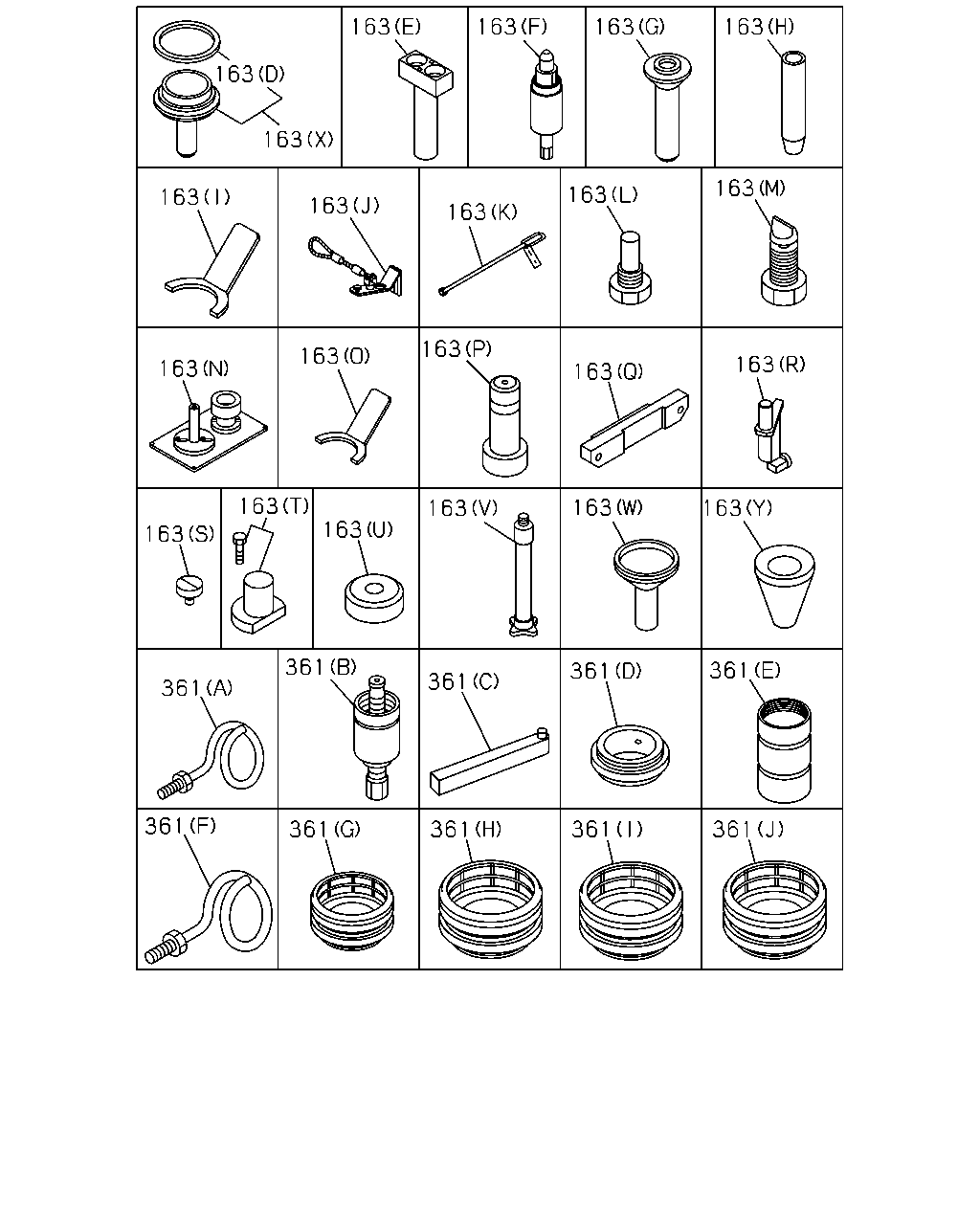

163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 361 361 361 361 361 361 361 361 361 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
163	TOOL; SETTING MJD7S M/T(Y2Y) (C) OD=150	1-85221-167-0	01	1	0107-
163	TOOL; SETTING MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) L=195	1-85221-162-1	01	1	0107-
163	TOOL; SETTING MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) L=150	1-85221-163-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-85221-193-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85221-194-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-85221-229-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-85221-230-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (H)	1-85221-231-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT	1-85221-232-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (J)	1-85221-233-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (K)	1-85221-234-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (L)	1-85221-235-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (M)	1-85221-236-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (N)	1-85221-237-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (O) MAIN SHAFT	1-85221-238-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (P)	1-85221-239-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (Q)	1-85221-240-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (R)	1-85221-241-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-242-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (T)	1-85221-243-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (U)	1-85221-244-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (V)	1-85221-245-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (W)	1-85221-246-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (X)	1-85221-247-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (Y)	1-85221-248-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (A) M10	1-85210-091-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85219-015-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-85219-017-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (D) TOP BRG	1-85219-018-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85219-019-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (F) M12	1-85219-020-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (G) COUNTER BRG RR	1-85219-021-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (H) TOP BRG	1-85219-022-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (I) COUNTER BRG FRT	1-85219-023-0	01	1	0107-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (J) TOP BRG,MAIN SHAFT SIDE	1-85219-024-0	01	1	0107-

40 39 38 37 115 36 189 193 237 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	WRENCH; 24	9-85111-377-0	01	1	0107-
37	WRENCH; 27	9-85111-375-0	01	1	0107-
38	WRENCH; 32	9-85111-358-0	01	1	0107-
39	WRENCH; 36	9-85111-374-0	01	1	0107-
40	WRENCH; 41	9-85111-356-0	01	1	0107-
115	PLIER	5-85171-001-0	01	1	0107-0212
115	PLIER	5-85171-002-0	01	1	0301-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	0107-
193	JACK ASM 15TON	1-85510-019-1	01	1	0107-
230	PUMP; GREASE	1-85556-007-3	01	1	0107-
237	BAG; TOOL	8-97130-902-0	01	1	0107-

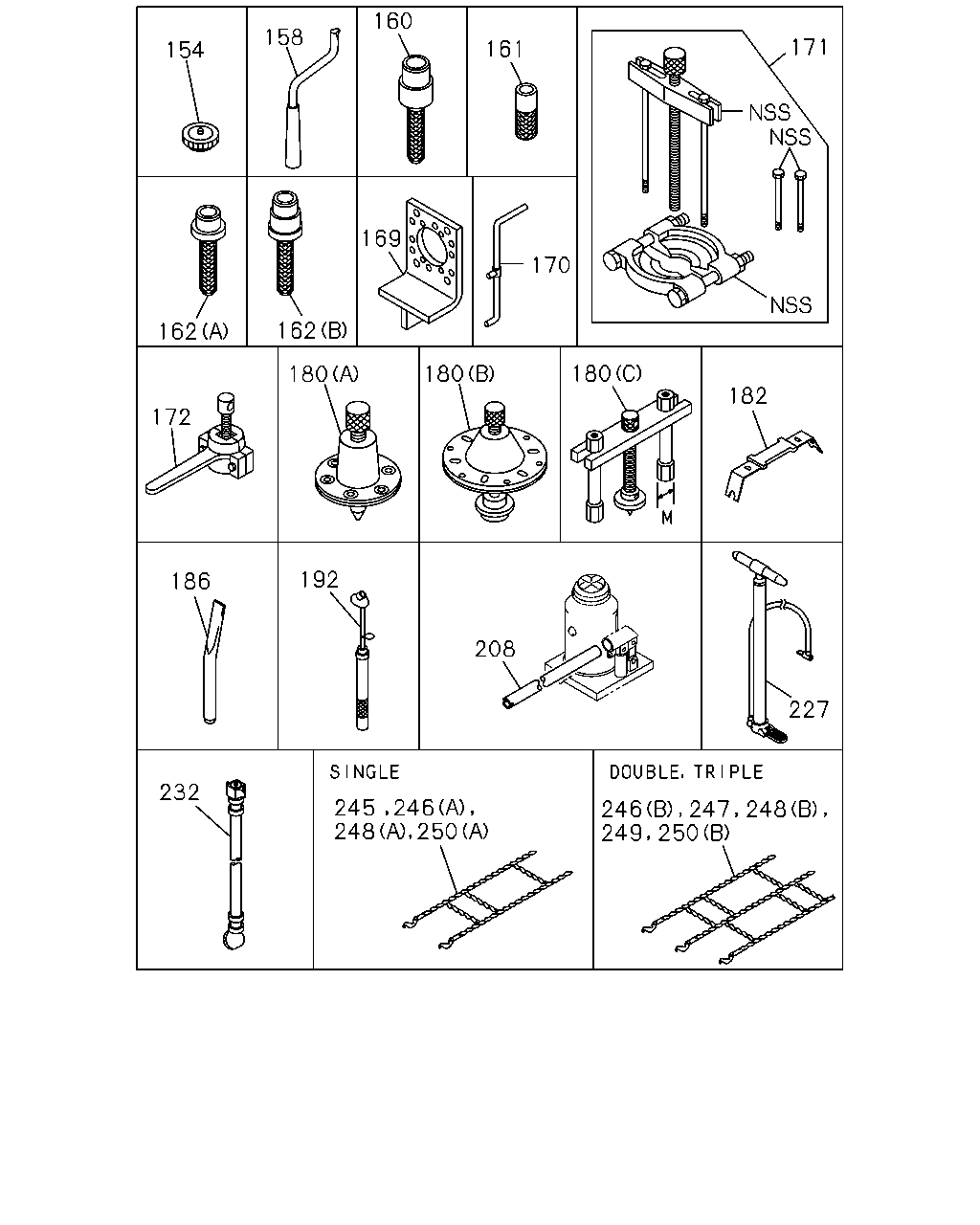

160 158 171 161 154 169 170 162 162 180 180 180 182 172 192 186 208 227 232 245 246 248 250 246 247 248 250 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0107-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0107-
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	0107-
161	REMOVER; TIE ROD ARM	1-85176-001-0	01	1	0107-
162	SETTING TOOL; NEEDLE BRG (A) L=181	1-85238-008-0	01	1	0107-
162	SETTING TOOL; NEEDLE BRG (B) L=213	1-85238-009-0	01	1	0107-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	0107-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	0107-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0107-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0107-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	0107-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	0107-
180	PULLER; FRT & RR HUB (C) M24	1-85210-057-0	01	1	0107-
182	REMOVER ASM	1-85239-008-0	01	1	0107-
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	0107-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0107-
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0107-
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0107-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0107-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	0107-
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	0107-
246	CHAIN; TIRE,1000-20,SINGLE (A) 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0107-
246	CHAIN; TIRE,1000-20,SINGLE (B) 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0107-
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	0107-
248	CHAIN; TIRE,1000-20,DOUBLE (A) 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	0107-
248	CHAIN; TIRE,1000-20,DOUBLE (B) 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	0107-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	0107-
250	CHAIN; TIRE,1000-20,TRIPLE (A) 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0107-
250	CHAIN; TIRE,1000-20,TRIPLE (B) 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0107-

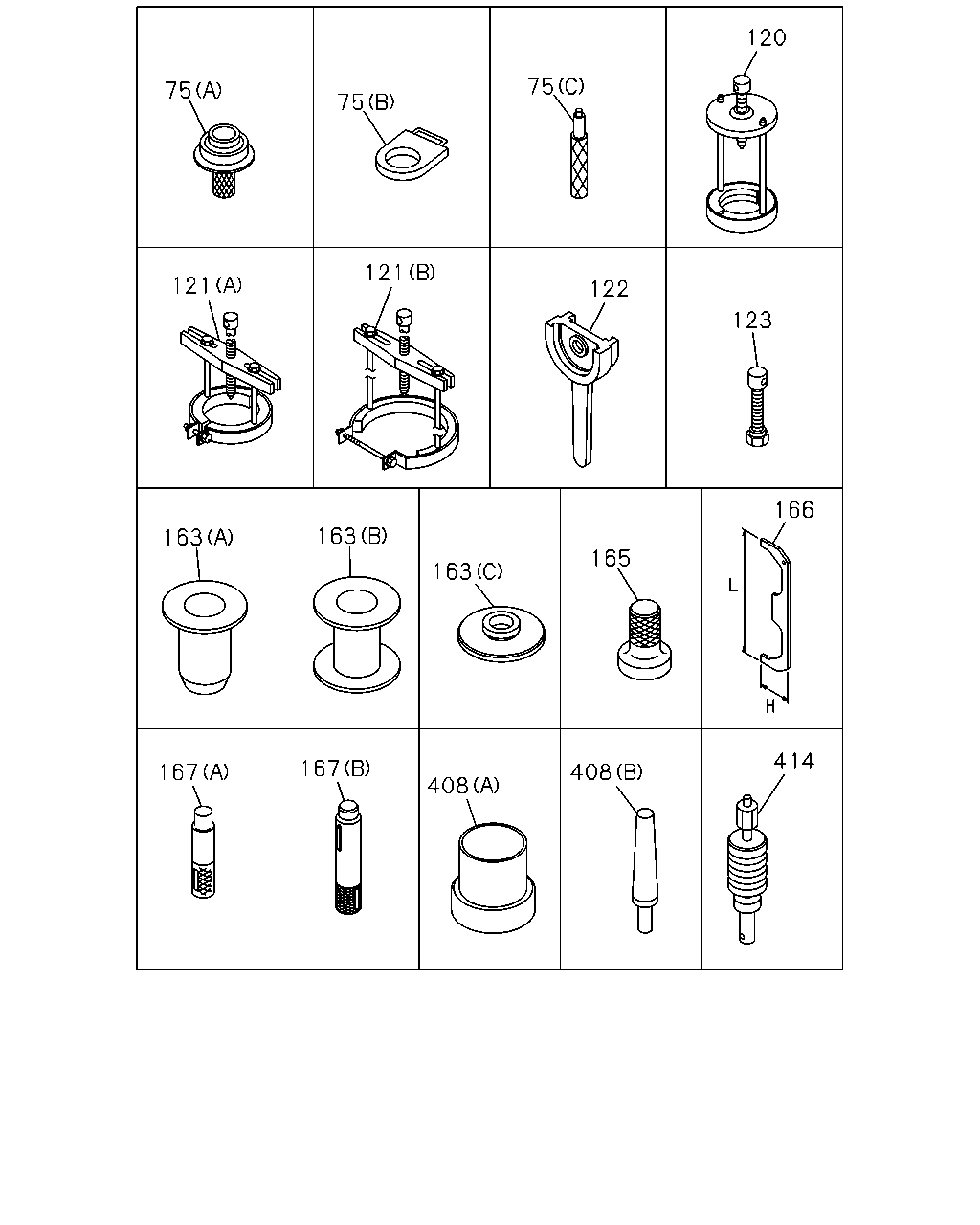

120 75 75 75 121 121 122 123 166 163 163 165 163 414 167 167 408 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
75	TOOL; SETTING,OIL SEAL (D)	1-85220-049-0	01	1	0107-
75	TOOL; SETTING,OIL SEAL MJD7S M/T(Y2Y) (C)	1-85221-096-0	01	1	0107-
75	TOOL; SETTING,OIL SEAL MJD7S M/T(Y2Y) (A)	1-85221-168-0	01	1	0107-
75	TOOL; SETTING,OIL SEAL MJD7S M/T(Y2Y) (B)	1-85221-169-0	01	1	0107-
120	PULLER ASM; MAIN REAR BRG MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) L=285	9-85210-184-0	01	1	0107-
121	PULLER ASM; COUNTER REAR MJD7S M/T(Y2Y) (A) OD=146	1-85210-074-0	01	1	0107-
121	PULLER ASM; COUNTER REAR MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B)	1-85210-069-0	01	1	0107-
122	PULLER ASM; COUNTER FRT MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	9-85210-129-1	01	1	0107-
123	PULLER; SPEEDOMETER BUSHING MJD7S M/T(Y2Y),MJX16P M/T(Y3Z)	9-85210-091-0	01	1	0107-
163	TOOL; SETTING MJD7S M/T(Y2Y) (C) OD=150	1-85221-167-0	01	1	0107-
163	TOOL; SETTING MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) L=195	1-85221-162-1	01	1	0107-
163	TOOL; SETTING MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) L=150	1-85221-163-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-85221-193-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85221-194-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-85221-229-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-85221-230-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (H)	1-85221-231-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT	1-85221-232-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (J)	1-85221-233-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (K)	1-85221-234-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (L)	1-85221-235-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (M)	1-85221-236-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (N)	1-85221-237-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (O) MAIN SHAFT	1-85221-238-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (P)	1-85221-239-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (Q)	1-85221-240-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (R)	1-85221-241-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-242-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (T)	1-85221-243-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (U)	1-85221-244-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (V)	1-85221-245-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (W)	1-85221-246-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (X)	1-85221-247-0	01	1	0107-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (Y)	1-85221-248-0	01	1	0107-
165	SETTING TOOL; PTO MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-85221-177-0	01	1	0107-
166	ALIGNER; CLU RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5	1-85253-015-0	01	1	0107-
167	ALIGNER; CLU PILOT MJX16P M/T(Y3Z) (B) L=300 OD=52.5	1-85253-025-0	01	1	0302-
167	ALIGNER; CLU PILOT (A) L=300 OD=41.1	1-85253-020-0	01	1	0107-0301
167	ALIGNER; CLU PILOT TRANSMISSION-ZF 16S151 OD(Y2N),MJD7S M/T(Y2Y) (A) L=300 OD=41.1	1-85253-020-0	01	1	0302-
408	TOOL; SETTING,SHIFT ASSISTER MJD7S M/T(Y2Y) (A)	1-85221-268-0	01	1	0107-
408	TOOL; SETTING,SHIFT ASSISTER MJD7S M/T(Y2Y) (B)	1-85221-269-0	01	1	0107-
414	PULLER; REV IDLE SHAFT MJD7S M/T(Y2Y)	9-85210-095-0	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
