Isuzu WW
▶
TRUCKS
▶
EXD
▶
10866 - EXD LHD FUEL TANK 400L
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶
8-75 — CONDENSER
(#9916) — 32 parça
◀

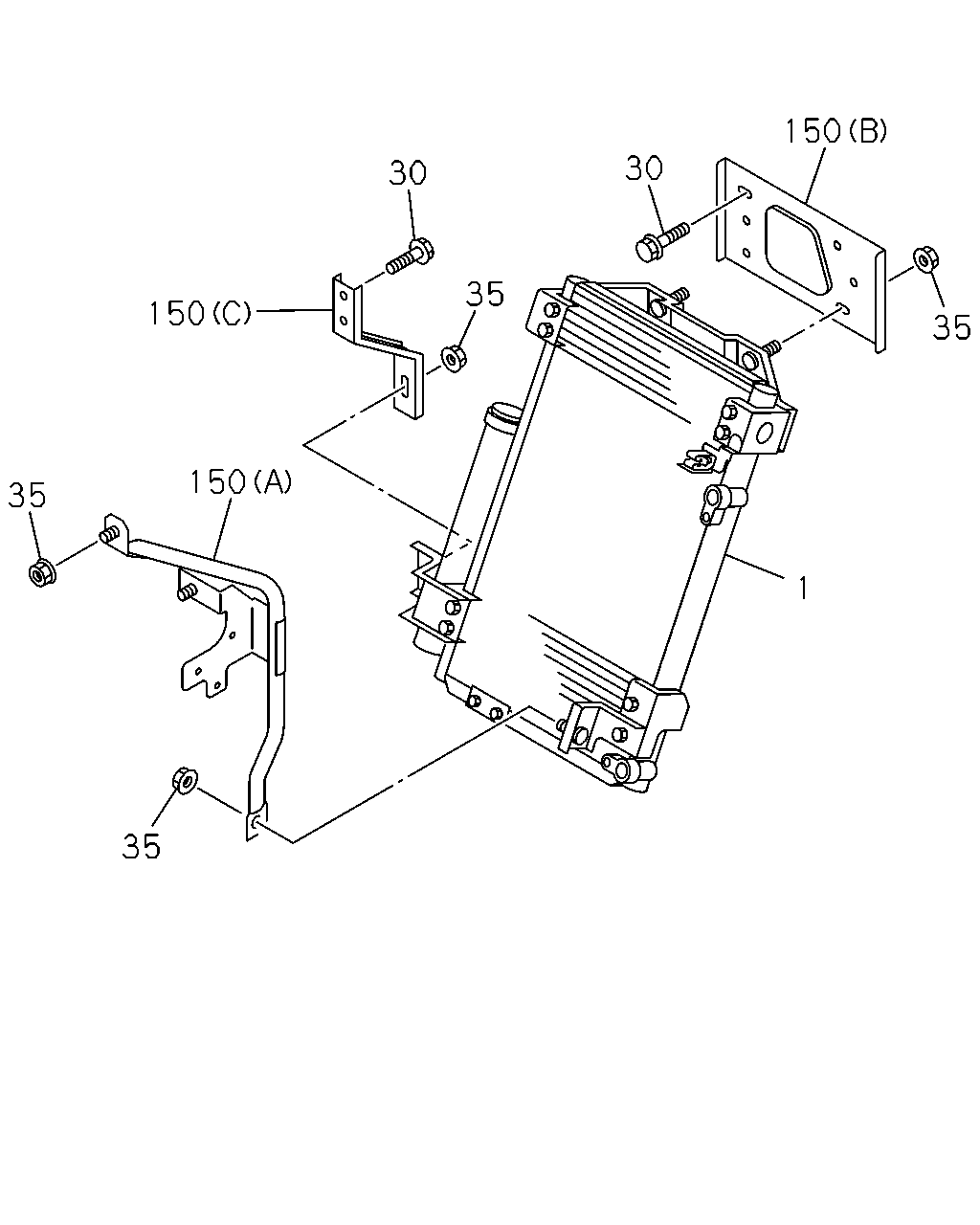

[875A] FIXING (7 parça)
[875A] COMPONENT (25 parça)
▶
150
30
30
35
150
35
150
35
1
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83534-237-2
01
1
0107-
30
BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0107-
35
NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91150-108-0
05
1
0107-0602
35
NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
05
1
0603-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83573-136-0
01
1
0107-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83573-137-0
01
1
0107-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83573-138-0
01
1
0107-

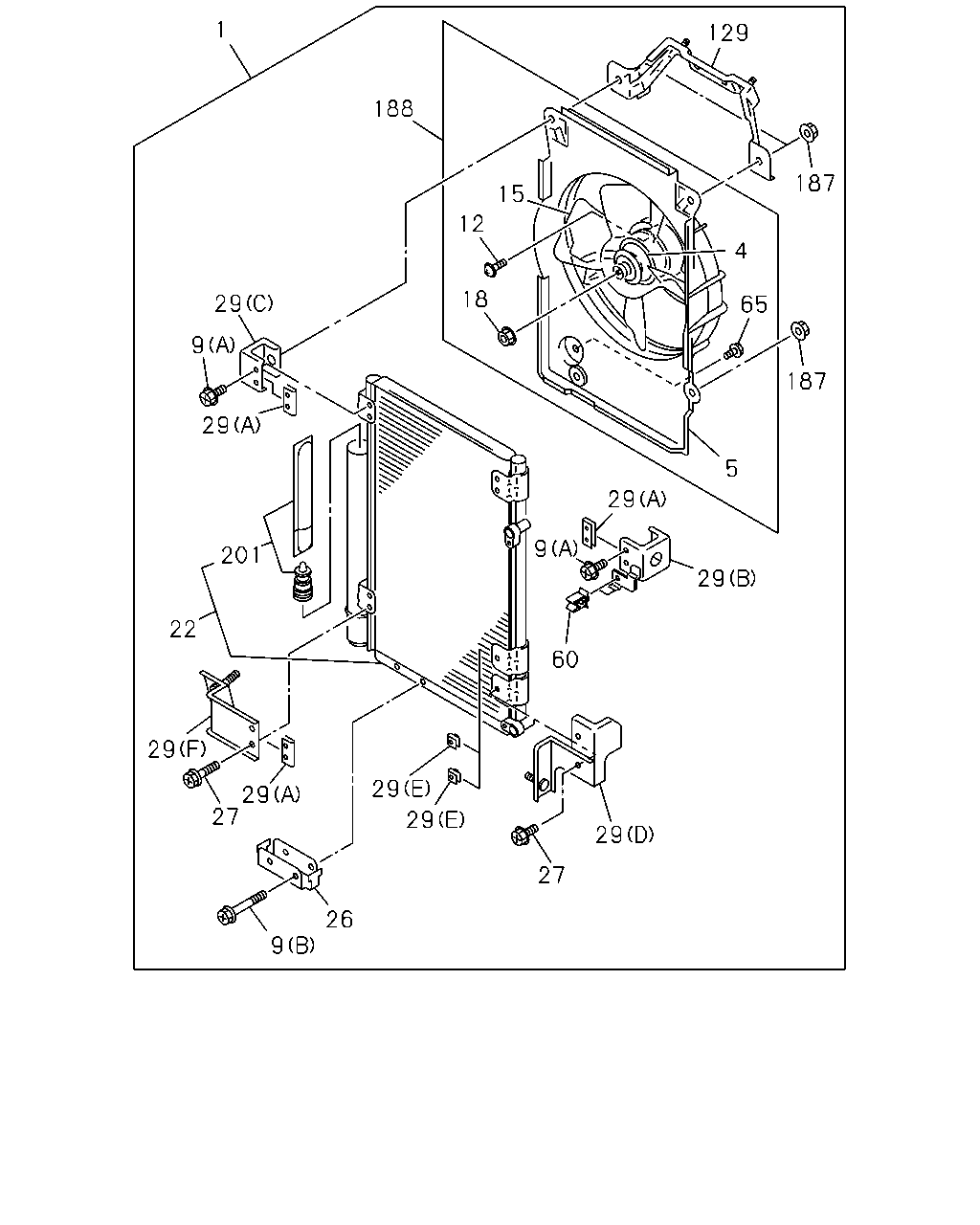

129
188
187
15
12
4
18
29
65
9
187
29
5
29
9
201
29
22
60
29
29
29
27
29
29
27
26
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83534-237-2
01
1
0107-
4
MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60)
1-83561-139-3
01
1
0107-
5
SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-362-1
01
1
0107-
9
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16
1-83539-315-0
04
1
0107-0512
9
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16
8-97096-525-0
04
1
0601-
9
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25
8-97178-770-0
02
1
0107-
12
BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-314-0
03
1
0107-
15
FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83561-140-0
01
1
0107-
18
NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-313-0
01
1
0107-
22
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83534-245-1
01
1
0107-
26
BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-205-0
01
1
0107-
27
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16
1-83539-315-0
04
1
0107-0512
27
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16
8-97096-525-0
04
1
0601-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83573-010-0
03
1
0107-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83573-125-0
01
1
0107-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83573-126-0
01
1
0107-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (D)
1-83573-204-0
01
1
0107-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (F)
1-83573-213-0
01
1
0107-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (E)
8-97180-263-0
02
1
0107-
60
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83574-266-0
01
1
0107-
65
BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16
8-97096-525-0
01
1
0107-
129
BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-129-0
01
1
0107-
187
NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6
1-83539-354-0
04
1
0107-
188
BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60)
1-83561-162-1
01
1
0107-
201
DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
1-83535-098-0
01
1
0107-
