Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#9907) — 218 parça

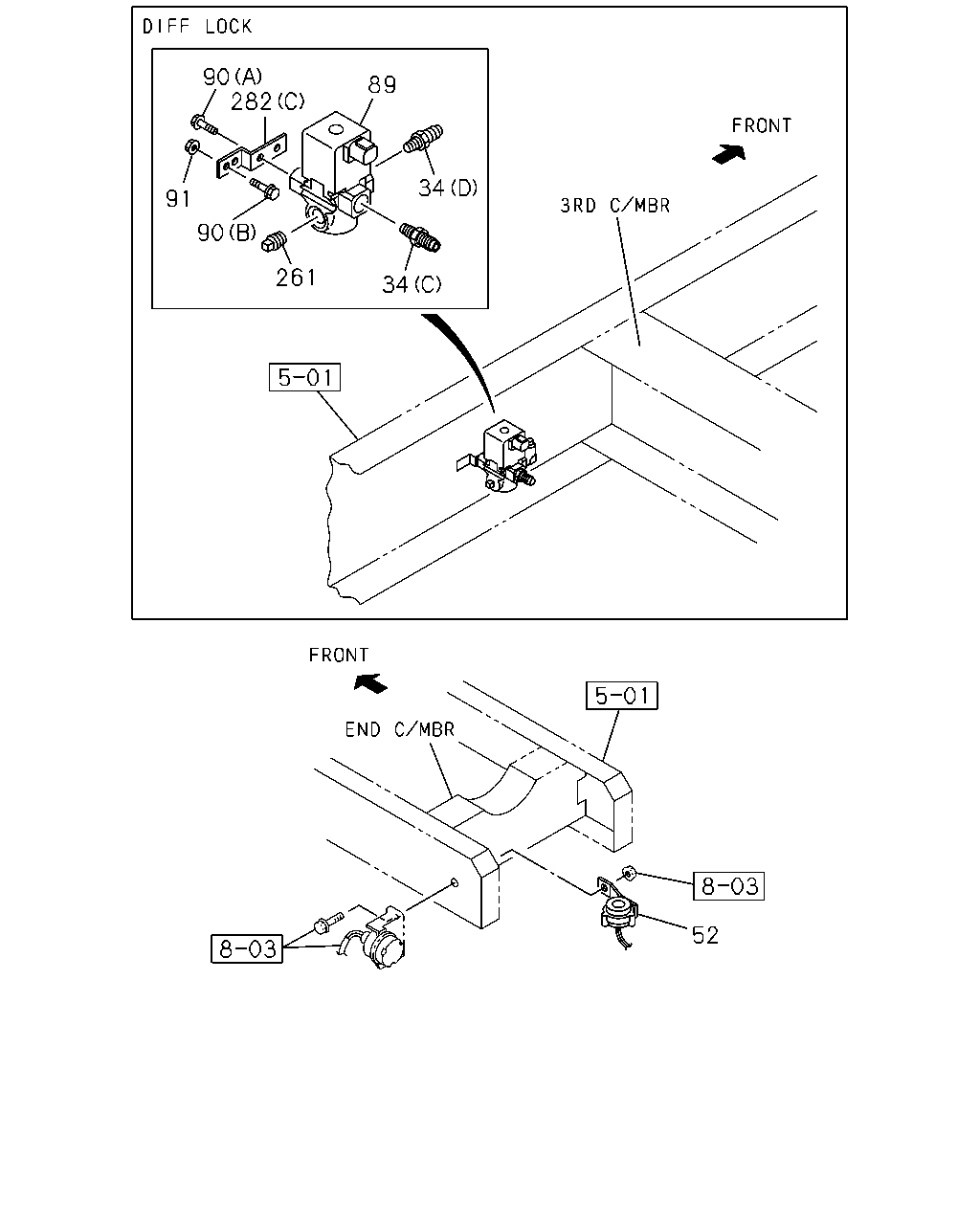

90 282 89 34 91 90 261 34 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-088-1	01	1	0107-
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N>	1-82563-871-2	01	1	0107-
90	BOLT; MAG VLV DIFF LOCK<C3N> (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
90	BOLT; MAG VLV DIFF LOCK<C3N> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
90	BOLT; MAG VLV DIFF LOCK<C3N> (B) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
90	BOLT; MAG VLV DIFF LOCK<C3N> (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
91	NUT; MAG VLV DIFF LOCK<C3N> M8 FLANGE	0-91150-108-0	02	1	0107-0602
91	NUT; MAG VLV DIFF LOCK<C3N> M8 FLANGE	0-91180-108-0	02	1	0603-
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0107-
282	BRACKET; MAG VLV DIFF LOCK<C3N> (C)	1-82569-278-0	01	1	0107-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0107-

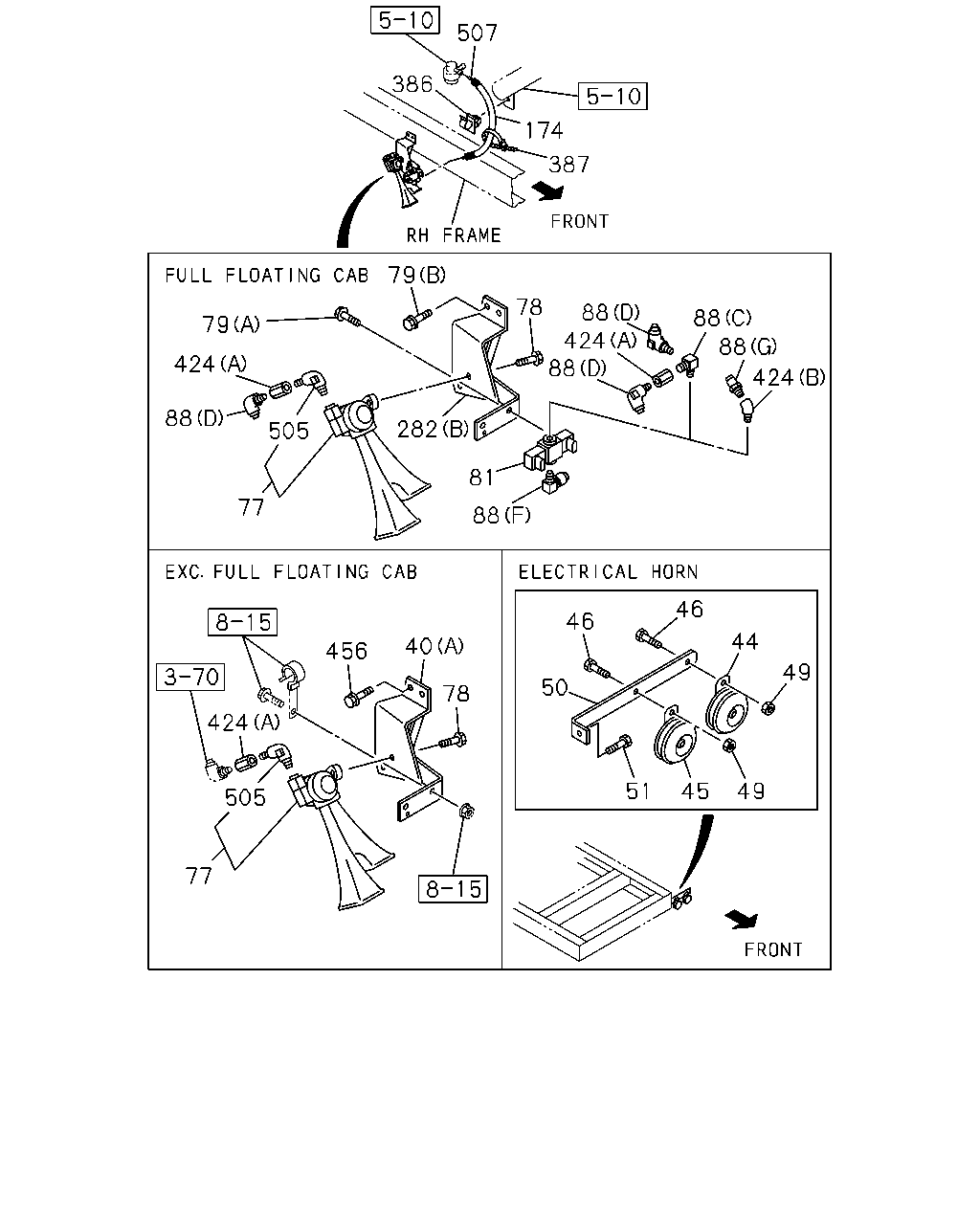

507 386 174 387 79 78 88 424 88 88 79 88 424 424 88 282 505 81 77 88 46 46 44 40 456 49 50 78 424 505 51 45 49 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0107-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-1	01	1	0107-0110
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-82569-339-0	01	1	0107-
44	HORN; HIGH NOTE ELECTRICAL HORN(WB7)	1-83410-061-1	01	1	0109-
45	HORN; LOW NOTE ELECTRICAL HORN(WB7)	1-83410-062-1	01	1	0109-
46	BOLT; HORN TO BODY ELECTRICAL HORN(WB7) M8X25 FLANGE	0-28680-825-0	02	1	0109-0512
46	BOLT; HORN TO BODY ELECTRICAL HORN(WB7) M8X25 FLANGE	0-28650-825-0	02	1	0601-
49	NUT; HORN TO BODY ELECTRICAL HORN(WB7) M8 FLANGE	0-91150-108-0	02	1	0109-0602
49	NUT; HORN TO BODY ELECTRICAL HORN(WB7) M8 FLANGE	0-91180-108-0	02	1	0603-
50	BRACKET; HORN ELECTRICAL HORN(WB7)	1-53458-901-0	01	1	0107-
51	BOLT; HORN TO BRKT ELECTRICAL HORN(WB7) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
51	BOLT; HORN TO BRKT ELECTRICAL HORN(WB7) M8X30 FLANGE	0-28650-830-0	01	1	0601-
77	HORN ASM	1-83430-041-1	01	1	0107-0108
77	HORN ASM EXC. ELECTRICAL HORN(WB7)	1-83430-041-2	01	1	0109-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0107-0108
78	BOLT; AIR HORN EXC. ELECTRICAL HORN(WB7) M8X20 FLANGE	0-28680-820-0	02	1	0109-0512
78	BOLT; AIR HORN EXC. ELECTRICAL HORN(WB7) M8X20 FLANGE	0-28650-820-0	02	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0107-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0107-0512
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0107-
88	CONNECTOR; MAG VLV ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (G) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0207-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0107-0206
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN(WB7) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0207-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	0107-0206
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN(WB7) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	0207-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
174	COVER SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0107-0108
174	COVER FULL FLOATING CAB(W16) L=770	1-83129-347-0	01	1	0109-0109
174	COVER FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0110-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0107-
282	BRACKET; MAG VLV DIFF LOCK<C3N> (C)	1-82569-278-0	01	1	0107-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0107-
386	CLIP; HARNESS ID=9.5	5-09709-020-0	01	1	0107-0206
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0207-0605
386	CLIP; HARNESS FULL FLOATING CAB(W16) L=250	5-09707-030-1	01	1	0606-
387	CLIP; BAND FULL FLOATING CAB(W16) L=250	5-09707-030-1	01	1	0107-0206
424	ADAPTER ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (B) R1/4 & RC1/4	1-09664-211-0	01	1	0207-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0107-0206
424	ADAPTER FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN(WB7) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0207-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0107-0110
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	0107-0110
505	JOINT; AIR HORN	1-83439-006-0	01	1	0107-0108
505	JOINT; AIR HORN EXC. ELECTRICAL HORN(WB7)	1-83439-006-0	01	1	0109-
507	TUBE; NYLON FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0107-0108
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0109-

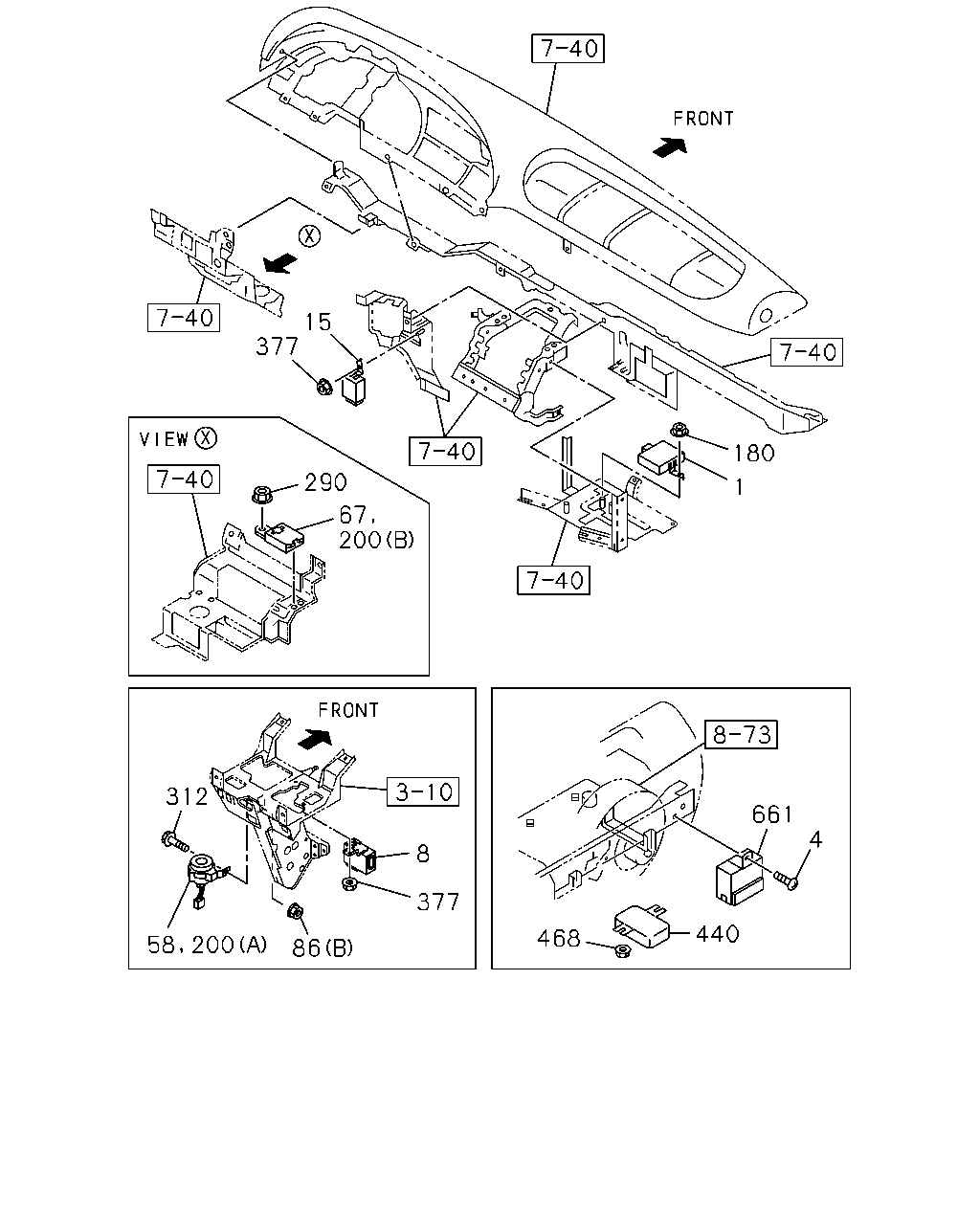

15 377 180 290 1 67 200 312 661 4 8 377 440 468 86 58 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0107-
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0107-
8	RELAY; WIPER DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ)	1-83316-002-4	01	1	0107-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0107-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0107-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0107-
86	NUT; BUZZER (A) M8 FLANGE	0-91150-108-0	01	1	0107-0602
86	NUT; BUZZER (A) M8 FLANGE	0-91180-108-0	01	1	0603-
86	NUT; BUZZER (B) M10 FLANGE	0-91150-210-0	01	1	0107-0602
86	NUT; BUZZER (B) M10 FLANGE	0-91180-210-0	01	1	0603-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0107-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
200	BUZZER; WARNING,AIR SUSP (B)	1-83460-051-1	01	1	0107-
200	BUZZER; WARNING,AIR SUSP (A) METRO DENSO	1-83460-094-2	01	1	0107-0404
200	BUZZER; WARNING,AIR SUSP (A)	1-83460-105-0	01	1	0405-
290	NUT M6 FLANGE	0-91150-106-0	01	1	0107-0602
290	NUT M6 FLANGE	0-91180-106-0	01	1	0603-
312	BOLT; BUZZER M10X35 FLANGE	0-28681-035-0	01	1	0107-0512
312	BOLT; BUZZER M10X35 FLANGE	0-28651-035-0	01	1	0601-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0107-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0107-0602
377	NUT; RELAY DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6 FLANGE	0-91150-106-0	01	1	0107-0602
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0603-
377	NUT; RELAY DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	0603-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0107-
468	NUT; MODULE ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91150-106-0	02	1	0107-0301
468	NUT; MODULE M6 FLANGE	0-91150-106-0	02	1	0302-0602
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0603-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0107-

41 39 33 39 261 40 34 34 298 40 714 36 261 34 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
36	BOLT; MAG VLV,PTO CONT TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
36	BOLT; MAG VLV,PTO CONT TRANSMISSION-ZF 16S151 OD(Y2N) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0107-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-1	01	1	0107-0110
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-82569-339-0	01	1	0107-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	0107-0602
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0603-
132	CONNECTOR; OUTLET,MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0107-
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0107-
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	0107-
298	NUT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE	0-91150-108-0	02	1	0107-0602
298	NUT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE	0-91180-108-0	02	1	0603-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	0107-

275 282 284 283 299 65 66 64 65 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	0107-
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (A) L=860	1-82699-449-2	01	1	0107-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0107-0504
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28680-825-0	04	1	0505-0512
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0107-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	02	1	0605-
275	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
275	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0107-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0107-
282	BRACKET; MAG VLV DIFF LOCK<C3N> (C)	1-82569-278-0	01	1	0107-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0107-
283	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0602
283	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
283	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91150-210-0	01	1	0107-0602
283	NUT; BRKT ANTI NOISE EQUIPMENT<SV9> M10 FLANGE	0-91180-210-0	01	1	0603-
284	BOLT; MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-
299	SOCKET; PARKING ANTILOCK BRAKE SYSTEM(BFA)	1-82699-396-1	01	1	0107-

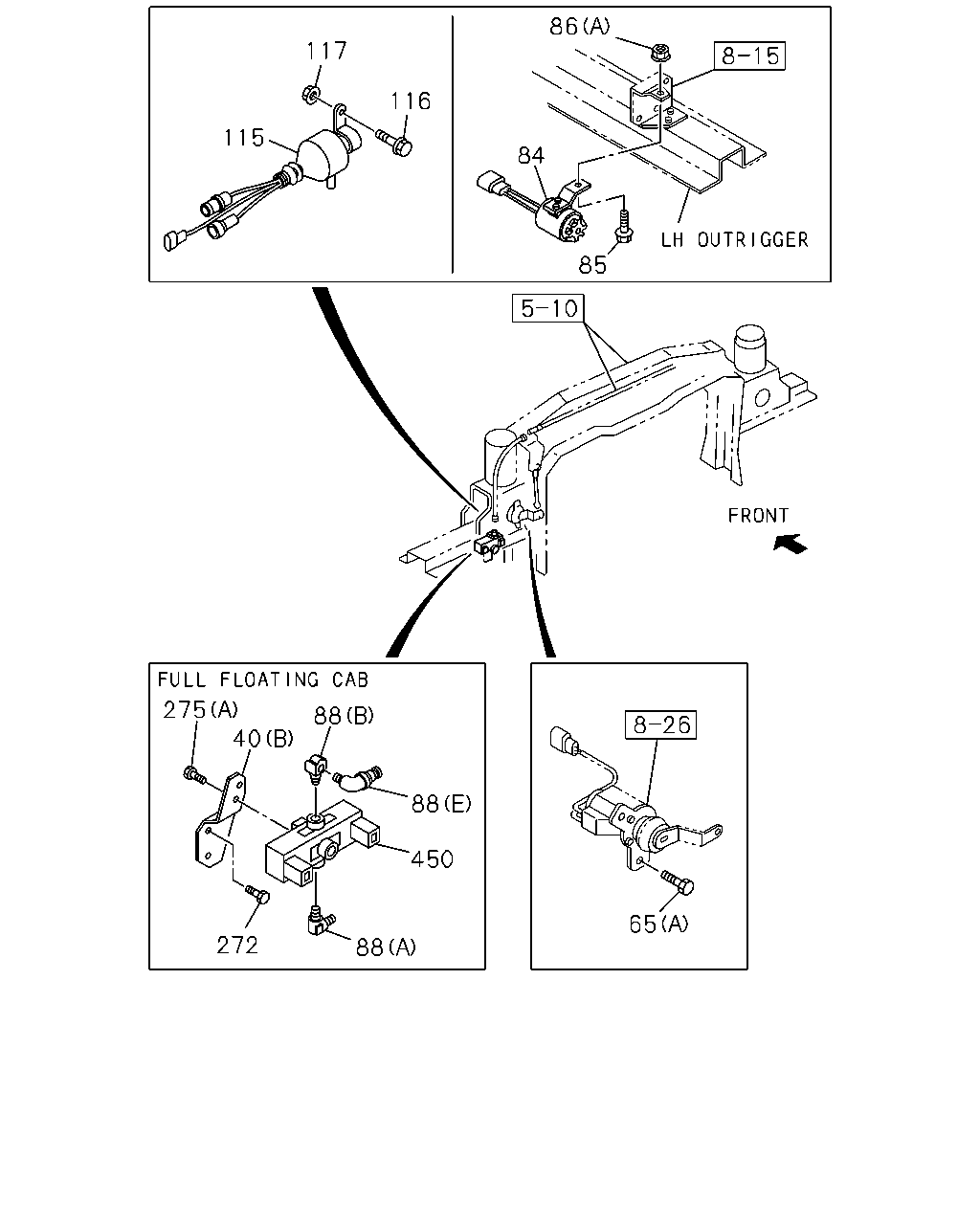

86 117 116 115 84 85 275 40 88 88 450 65 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-888-0	01	1	0107-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-1	01	1	0107-0110
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	0107-
40	BRACKET; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-82569-339-0	01	1	0107-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0107-0504
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28680-825-0	04	1	0505-0512
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28080-616-0	02	1	0107-0512
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) (A) M6X16 FLANGE	0-28050-616-0	02	1	0601-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-2	01	1	0107-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0107-0201
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-0512
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28050-816-0	01	1	0601-
86	NUT; BUZZER (A) M8 FLANGE	0-91150-108-0	01	1	0107-0602
86	NUT; BUZZER (A) M8 FLANGE	0-91180-108-0	01	1	0603-
86	NUT; BUZZER (B) M10 FLANGE	0-91150-210-0	01	1	0107-0602
86	NUT; BUZZER (B) M10 FLANGE	0-91180-210-0	01	1	0603-
88	CONNECTOR; MAG VLV ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (G) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0207-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0107-0206
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN(WB7) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0207-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0107-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	0107-0206
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) EXC. ELECTRICAL HORN(WB7) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	03	1	0207-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0107-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> HITACHI	1-81171-087-0	01	1	0107-0210
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-075-1	01	1	0211-
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	0107-0512
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28050-816-0	02	1	0601-
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE	0-91150-108-0	02	1	0107-0602
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	02	1	0603-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X30 FLANGE	0-28681-030-0	02	1	0107-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X20 FLANGE	0-28681-020-0	02	1	0202-0512
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X20 FLANGE	0-28651-020-0	02	1	0601-0605
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X20 FLANGE	0-28651-020-0	01	1	0606-
275	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
275	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0107-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0107-

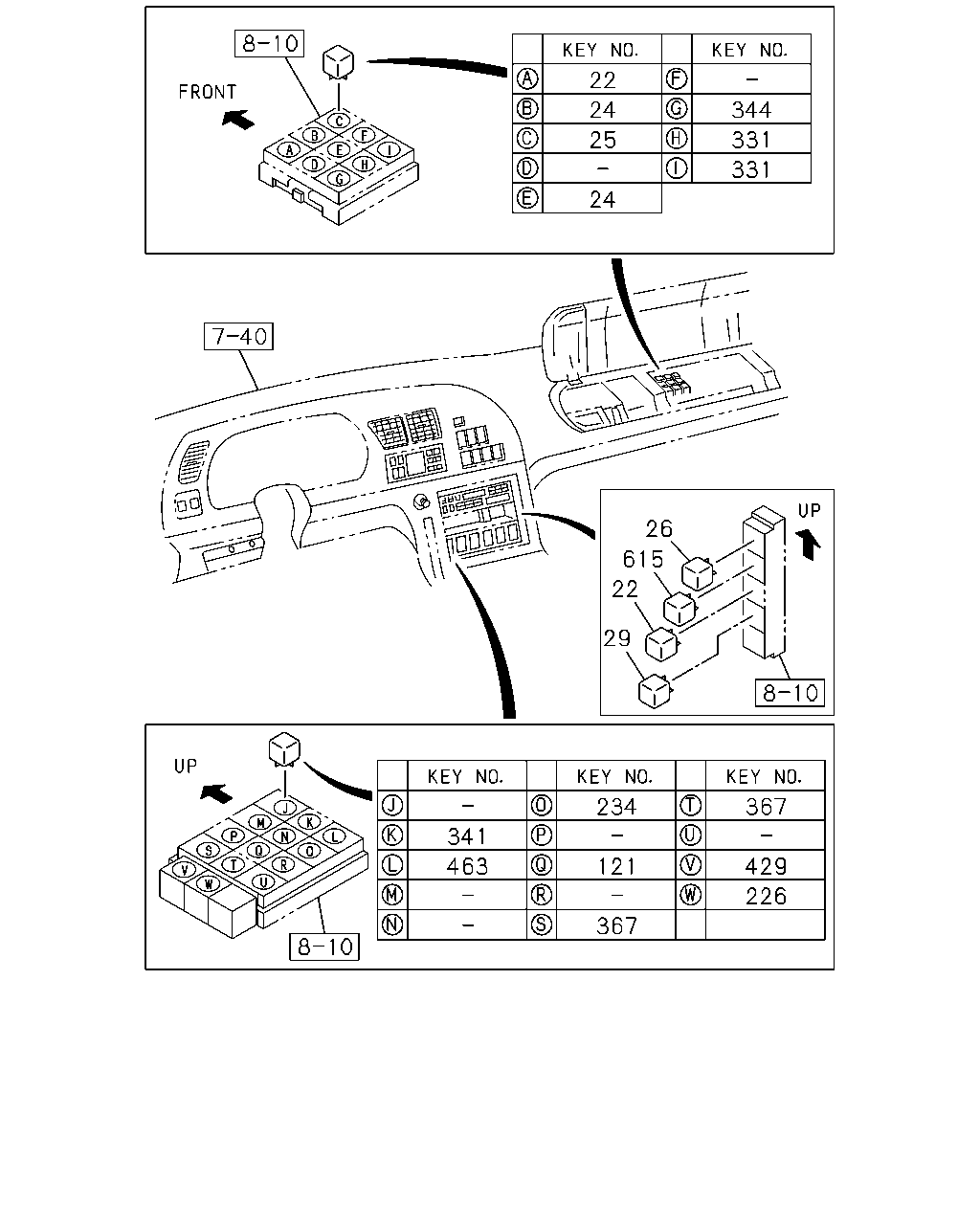

22 24 344 25 331 331 24 26 615 22 29 234 367 341 429 463 121 226 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	02	1	0107-0111
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	0107-0111
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
29	RELAY; HORN ELECTRICAL HORN(WB7) 24V 12.5A MITUBA	8-97062-815-1	01	1	0109-0111
29	RELAY; HORN ELECTRICAL HORN(WB7) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
234	RELAY; AIR SUSPENSION 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	0107-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
344	RELAY; LAMP CORNERING LAMP<TDS> 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111
344	RELAY; LAMP CORNERING LAMP<TDS> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
367	RELAY; NEUTRAL AUTO CAB TILT<WV2> 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
429	RELAY; POWER CUT 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111
429	RELAY; POWER CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-
463	RELAY; ABS SIGNAL ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC	8-97173-035-1	01	1	0107-
615	RELAY; TRAILER 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-

566 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0107-0604
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-
566	HARNESS; REMOTE CONT	1-82626-888-1	01	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
