Isuzu WW
▶
TRUCKS
▶
EXD
▶
10866 - EXD LHD FUEL TANK 400L
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
▶

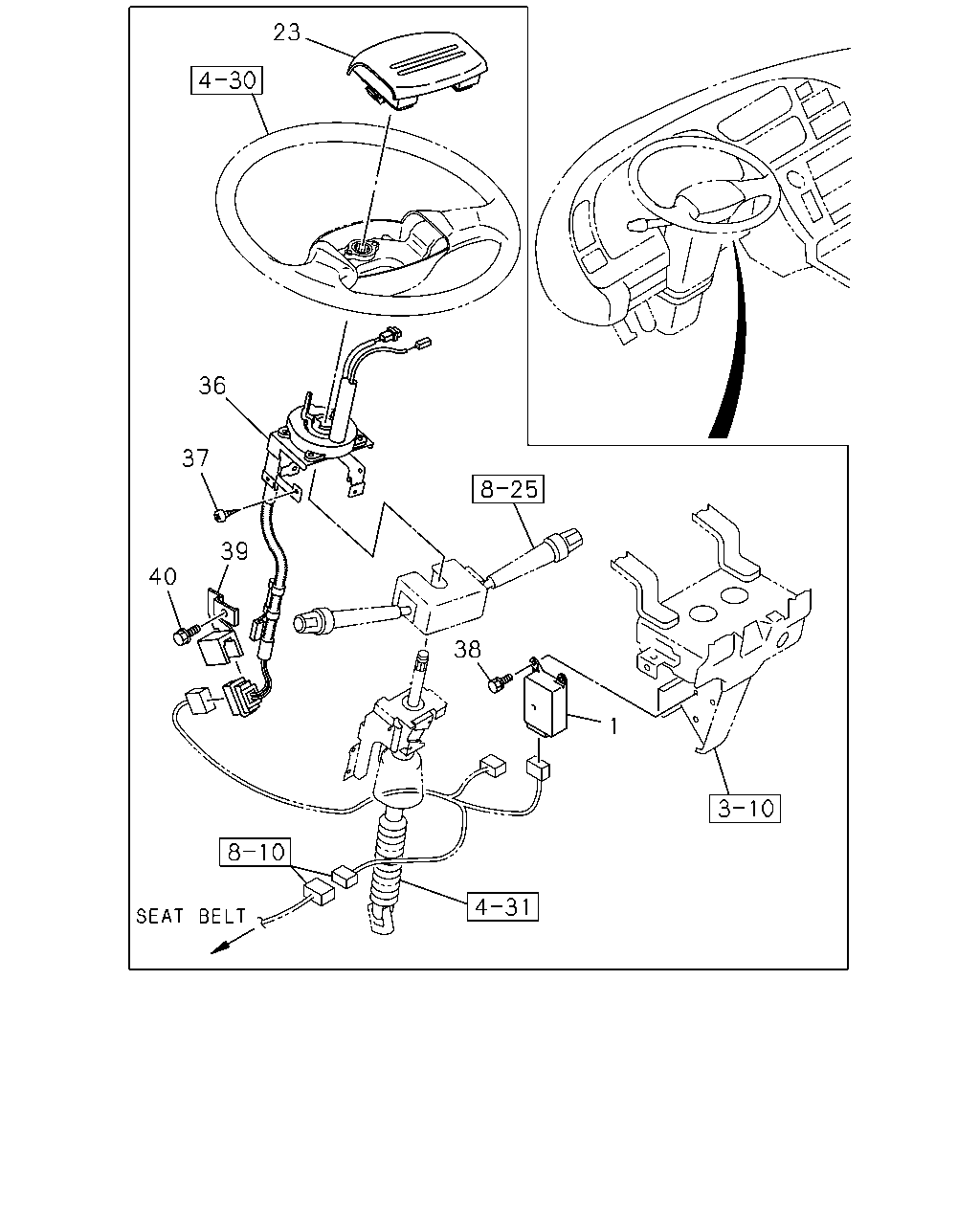

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
(#9906) — 11 parça
23
36
37
39
40
38
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONTROL UNIT; SIR
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ)
1-80190-069-0
01
1
0107-0110
1
CONTROL UNIT; SIR
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ)
1-80190-087-0
01
1
0111-0309
1
CONTROL UNIT; SIR
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ)
1-80190-120-0
01
1
0310-0404
1
CONTROL UNIT; SIR
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ)
1-80190-131-1
01
1
0405-
23
AIR BAG UNIT
AIR BAG(TFQ)
1-75630-003-6
01
1
0107-
36
COIL; SRS
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ)
1-82698-074-3
01
1
0107-
37
SCREW; BRKT
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M5X10 W/LK+PL WASHER
9-03920-510-0
04
1
0107-0604
37
SCREW; BRKT
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
0605-
38
BOLT; CONT UNIT
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6X18 W/PL WASHER
8-97105-796-1
03
1
0107-
39
HOLDER; CONNECTOR
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ)
1-82699-955-1
01
1
0107-
40
BOLT; BRKT
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
0107-
