8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#9905) — 52 parça
◀

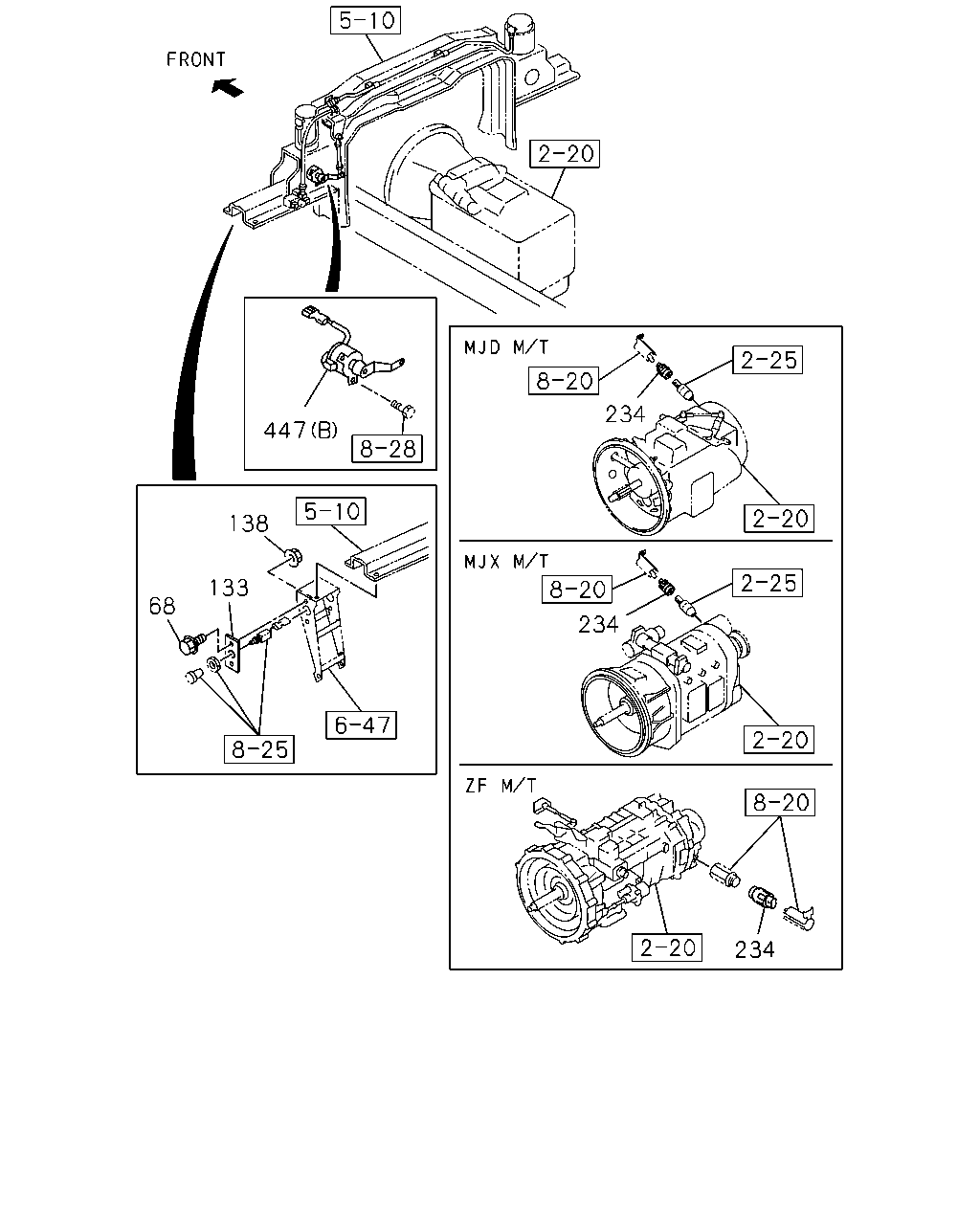

[826A] FRAME SIDE NO.2 AND T/M SIDE (12 parça)

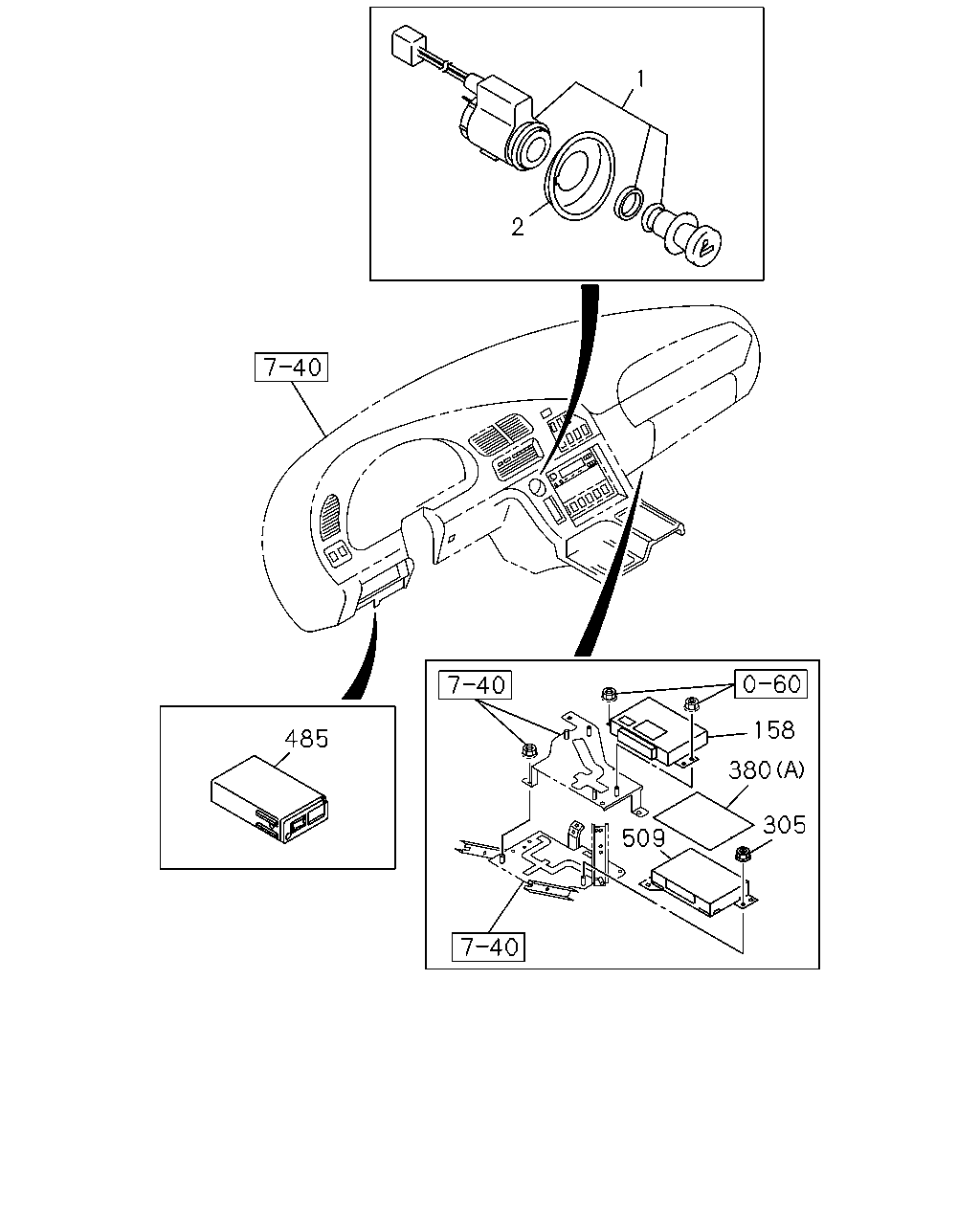

[826A] INST PANEL SIDE (11 parça)

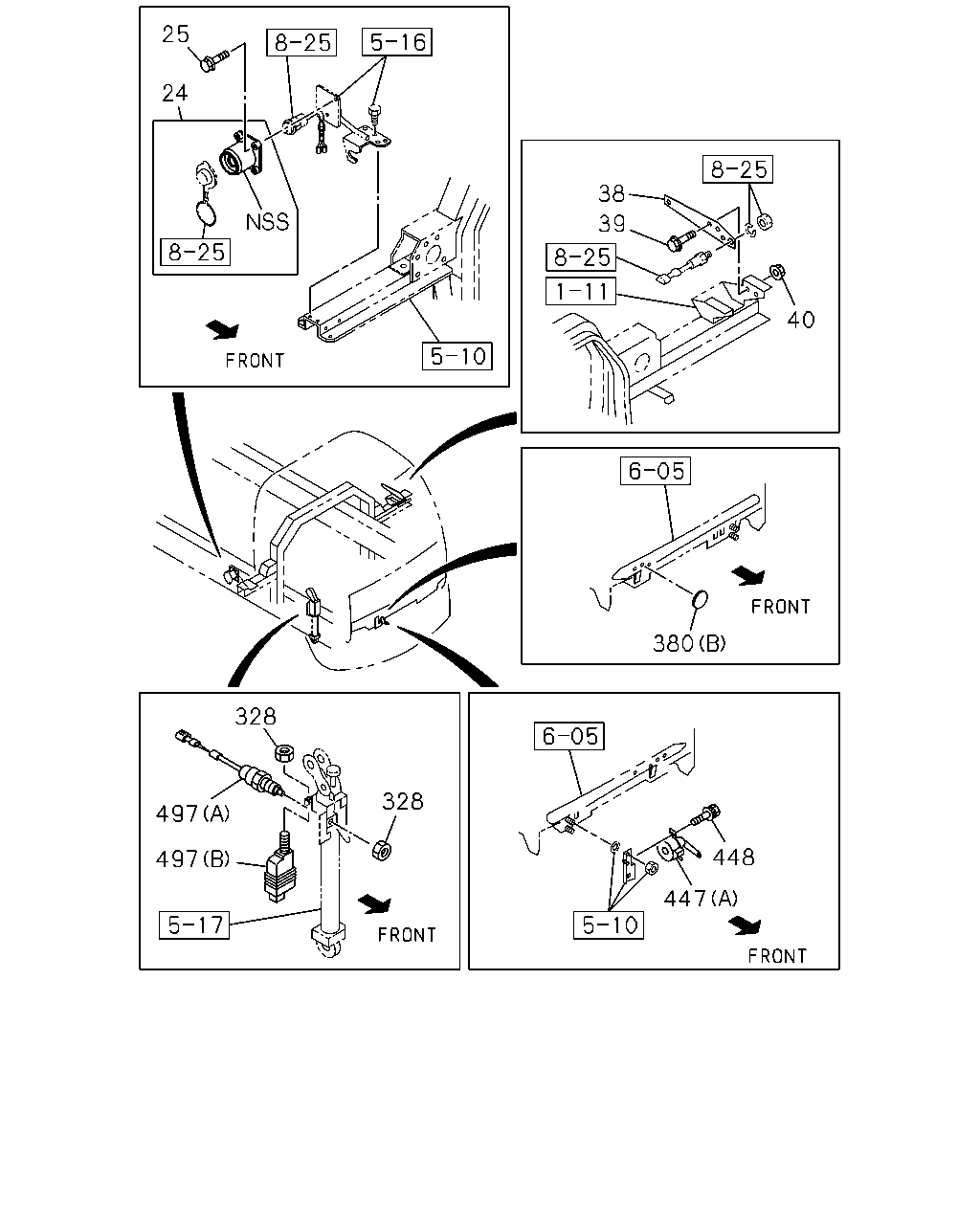

[826A] FRAME SIDE NO.1 (18 parça)

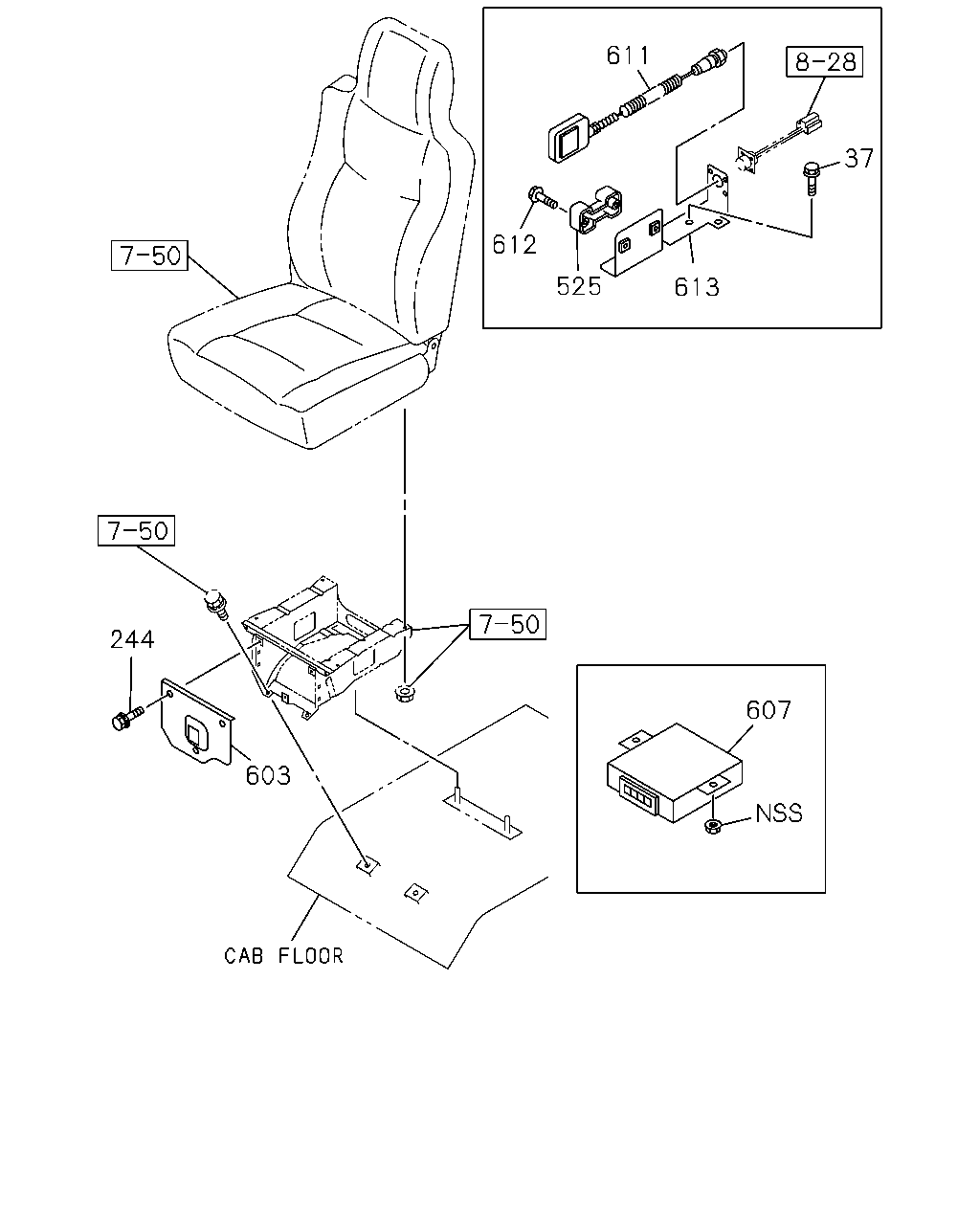

[826A] SEAT SIDE (11 parça)
▶
234
447
138
133
68
234
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
02
1
0107-0403
68
BOLT; BRKT
INSPECTION LAMP<T95> M8X25 FLANGE
0-28680-825-0
02
1
0404-0512
68
BOLT; BRKT
INSPECTION LAMP<T95> M8X25 FLANGE
0-28650-825-0
02
1
0601-
133
BRACKET; SWITCH
1-82699-815-0
01
1
0107-0403
133
BRACKET; SWITCH
INSPECTION LAMP<T95>
1-82699-815-0
01
1
0404-
138
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0107-0403
138
NUT; BRKT
INSPECTION LAMP<T95> M8 FLANGE
0-91150-108-0
02
1
0404-0602
138
NUT; BRKT
INSPECTION LAMP<T95> M8 FLANGE
0-91180-108-0
02
1
0603-0605
234
SENSOR; VEHICLE SPD
1-80240-001-1
01
1
0107-0202
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-0
01
1
0203-
447
SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A)
1-80250-010-1
01
1
0107-
447
SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B)
1-80250-011-1
01
1
0107-
1
2
158
485
380
305
509
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-97064-970-1
01
1
0107-0108
1
LIGHTER; CIGAR
8-97320-325-0
01
1
0109-
2
BEZEL; CIGAR LIGHTER
1-73998-883-2
01
1
0107-
158
CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA)
1-80119-133-0
01
1
0107-
305
NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE
0-91150-106-0
02
1
0107-0602
305
NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE
0-91180-106-0
02
1
0603-
380
SEAL
(B) OD=25 BLACK
1-76798-019-0
01
1
0401-
380
SEAL
FULL FLOATING CAB(W16) (A) 450X350
1-76770-008-0
01
1
0212-
485
CONTROL UNIT; SPEED SENSOR
1-80190-038-1
01
1
0107-0205
485
CONTROL UNIT; SPEED SENSOR
1-80190-059-1
01
1
0206-
509
CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16)
1-80150-042-1
01
1
0107-
25
24
38
39
40
380
328
328
497
448
497
447
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BOX; SW,CAB TILT
AUTO CAB TILT<WV2>
1-82389-007-1
01
1
0107-
25
BOLT; SW BOX
AUTO CAB TILT<WV2> M6X16 FLANGE
0-28080-616-0
02
1
0107-0512
25
BOLT; SW BOX
AUTO CAB TILT<WV2> M6X16 FLANGE
0-28050-616-0
02
1
0601-
38
BRACKET; SW,STARTER SUB
1-82699-741-0
01
1
0107-
39
BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE
0-28680-820-0
02
1
0107-0512
39
BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE
0-28650-820-0
02
1
0601-
40
NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE
0-91150-108-0
02
1
0107-0602
40
NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE
0-91180-108-0
02
1
0603-
328
NUT
M16
9-99111-416-0
02
1
0107-0512
328
NUT
M16
0-91111-516-0
02
1
0601-
380
SEAL
(B) OD=25 BLACK
1-76798-019-0
01
1
0401-
380
SEAL
FULL FLOATING CAB(W16) (A) 450X350
1-76770-008-0
01
1
0212-
447
SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A)
1-80250-010-1
01
1
0107-
447
SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B)
1-80250-011-1
01
1
0107-
448
BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0107-0407
448
BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0408-
497
SWITCH; CAB TILT
(A) STAMP NC
1-82380-125-1
01
1
0107-
497
SWITCH; CAB TILT
(B)
1-82380-128-1
01
1
0107-
611
37
612
525
613
244
607
603
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; BRKT FIX
M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
0107-
244
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0107-
525
HOLDER; SW
1-82389-018-0
01
1
0107-
603
COVER; CONT UNIT,SEAT STAND
1-75557-497-1
01
1
0107-
607
CONTROL UNIT; AIR SUSPENSION
1-80150-096-2
01
1
0107-
611
SWITCH ASM; AIR SUS
1-82380-162-0
01
1
0107-
612
SCREW; HOLDER
M6X14 W/PL WASHER
9-03900-614-0
02
1
0107-0604
612
SCREW; HOLDER
M6X14 W/PL WASHER
0-36210-614-0
02
1
0605-
613
BRACKET; HOLDER,SW
1-79907-097-1
01
1
0107-0309
613
BRACKET; HOLDER,SW
1-79907-118-0
01
1
0310-0407
613
BRACKET; HOLDER,SW
1-79907-126-1
01
1
0408-
