8-15 — FIXING PARTS; WIRING HARNESS (#9901) — 468 parça

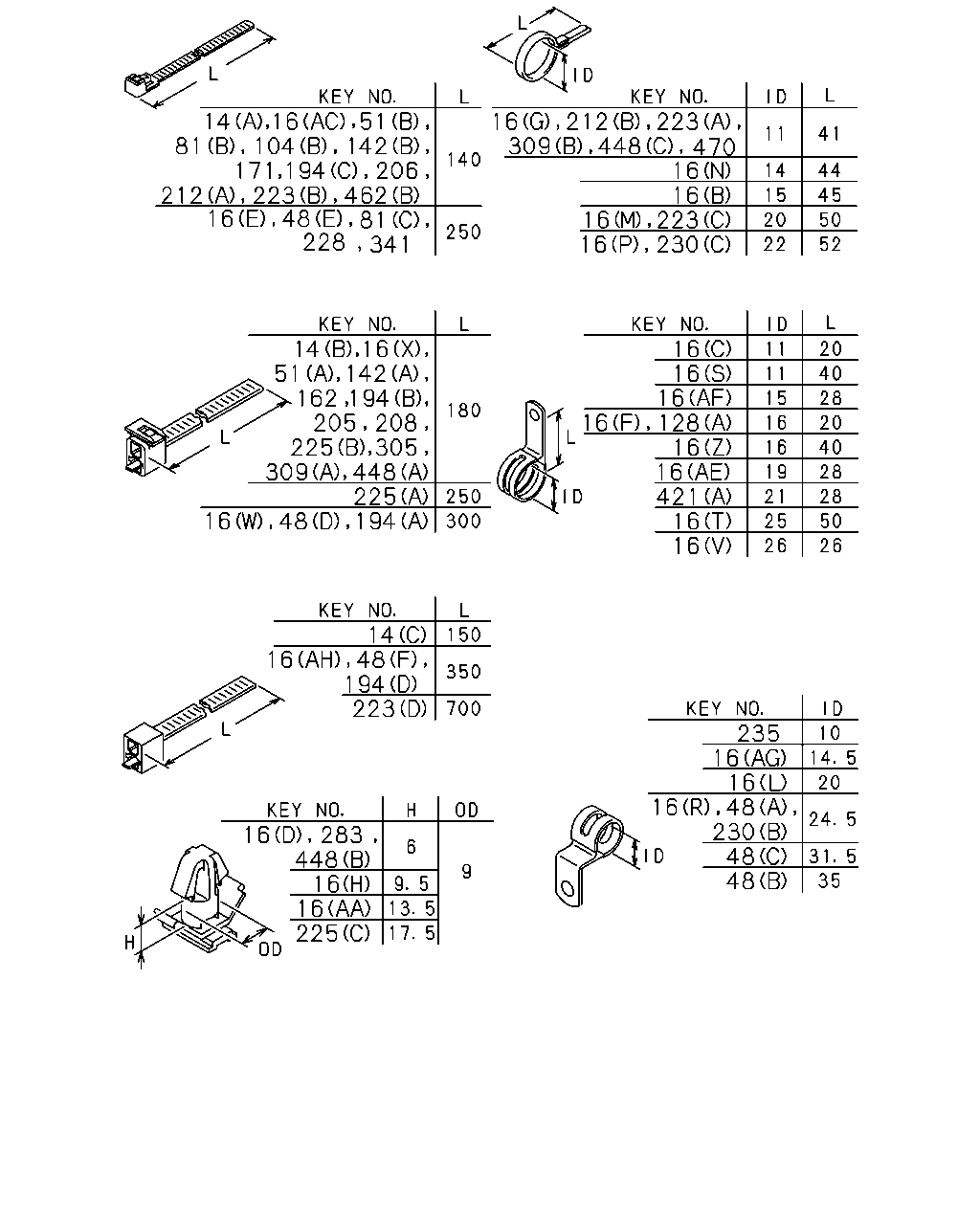

çizim 19861
81 104 142 171 228 341 16 16 51 142 225 48 194 16 16 16 16 128 16 16 421 16 16 16 14 194 223 16 235 16 16 230 48 48 448 16 16 225 14 16 51 194 206 212 223 462 16 48 81 14 16 162 194 205 208 225 305 309 448 48 16 283 16 212 223 309 448 470 16 223 230 16 16 48
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 0107-
14 CLIP; BAND,HARNESS
AIR DRYER<PS7> (B) L=180 		1-09707-162-1 01 1 0107-
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) L=150 		1-09707-145-1 02 1 0107-
14 CLIP; BAND,HARNESS
TAIWAN EQUIPMENT(WW5) EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN), AIR BAG(TFQ) (A) L=140 		5-09707-031-1 01 1 0107-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AC) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. MJD7 M/T<X9J> (AC) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
MJD7 M/T<X9J> (AC) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0201-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (AE) ID=19 L=28 		9-09525-856-0 01 1 0107-0606
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (AE) ID=19 L=28 		0-95235-856-0 01 1 0607-
16 CLIP; HARNESS
(B) ID=15 L=45 		1-09700-402-0 01 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 01 1 0107-0107
16 CLIP; HARNESS
(AF) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 07 1 0107-0107
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (G) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-0107
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-0107
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0212-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 0107-
16 CLIP; HARNESS
(Q) ID=15 L=35 		1-09700-507-0 01 1 0107-0107
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (C) ID=11 L=20 		9-09525-035-0 01 1 0108-0606
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (C) ID=11 L=20 		0-95235-035-0 01 1 0607-
16 CLIP; HARNESS
(K) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0107-0402
16 CLIP; HARNESS
(K) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 0107-0109
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0107
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-0108
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (AG) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0107-0108
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0109-0112
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0109-0112
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
(T) ID=25 L=50 		1-09701-019-0 02 1 0107-0107
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(V) ID=26 L=26 		1-09701-236-0 01 1 0107-
16 CLIP; HARNESS
(W) L=300 		1-09707-001-1 03 1 0107-0504
16 CLIP; HARNESS
(AH) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(X) L=180 		1-09707-162-1 03 1 0107-0107
16 CLIP; HARNESS
(X) L=180 		1-09707-162-1 02 1 0107-
16 CLIP; HARNESS
(Y) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0107-
16 CLIP; HARNESS
(Y) W/SPONGE RUBBER 		1-09709-150-0 01 1 0107-
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 08 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(AA) OD=9 H=13.5 		1-09709-180-0 01 1 0107-
16 CLIP; HARNESS
(AB) ID=6-10 & 6-10 		1-09709-192-1 01 1 0107-0107
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (D) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 0107-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (E) L=250 		5-09707-030-1 03 1 0107-
16 CLIP; HARNESS
(AC) L=140 		5-09707-031-1 02 1 0107-
16 CLIP; HARNESS
(AD) ID=7-10 		8-94472-578-0 01 1 0107-
16 CLIP; HARNESS
(AE) ID=14-20 		8-97061-603-0 03 1 0107-
16 CLIP; HARNESS
(F) ID=16 L=20 		9-09525-535-0 03 1 0107-0606
16 CLIP; HARNESS
(F) ID=16 L=20 		0-95235-535-0 03 1 0607-
16 CLIP; HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0110-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0107-0107
16 CLIP; HARNESS
INSPECTION LAMP<T95> (X) L=180 		1-09707-162-1 01 1 0107-0107
16 CLIP; HARNESS
INSPECTION LAMP<T95> (X) L=180 		1-09707-162-1 01 1 0108-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (X) L=180 		1-09707-162-1 01 1 0108-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0107-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 10 1 0107-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AC) L=140 		5-09707-031-1 07 1 0107-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=20 		9-09525-035-0 02 1 0107-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) ID=11 L=20 		9-09525-035-0 02 1 0206-0606
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=20 		9-09525-035-0 02 1 0206-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (I) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-0107
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
ZF M/T<X9E> (D) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
INSPECTION LAMP<T95> (D) OD=9 H=6 		1-09709-178-0 01 1 0107-0205
16 CLIP; HARNESS
INSPECTION LAMP<T95> (D) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
MJD7 M/T<X9J> (D) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (E) L=250 		5-09707-030-1 01 1 0107-0205
16 CLIP; HARNESS
MJD7 M/T<X9J> (AF) L=36 		8-94224-891-1 01 1 0206-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (S) ID=11 L=40 		9-09525-075-0 01 1 0107-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (S) ID=11 L=40 		0-95235-075-0 01 1 0607-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (H) OD=9 H=9.5 		1-09709-179-0 01 1 0107-0107
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (A) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0107-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (F) ID=16 L=20 		9-09525-535-0 01 1 0107-0107
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (F) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (F) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (F) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (F) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (F) ID=16 L=20 		9-09525-535-0 01 1 0206-0606
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (F) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (Z) ID=16 L=40 		9-09525-576-0 01 1 0107-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. MJD7 M/T<X9J> (Z) ID=16 L=40 		9-09525-576-0 01 1 0206-0606
16 CLIP; HARNESS
MJD7 M/T<X9J> (Z) ID=16 L=40 		9-09525-576-0 01 1 0206-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. MJD7 M/T<X9J> (Z) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
MJD7 M/T<X9J> (Z) ID=16 L=40 		0-95235-576-0 01 1 0607-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-
48 CLIP; FRAME HARNESS
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 0107-
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0107-
48 CLIP; FRAME HARNESS
(C) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 0107-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 05 1 0107-0504
48 CLIP; FRAME HARNESS
(F) L=350 		1-09707-183-0 05 1 0505-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 06 1 0107-0504
48 CLIP; FRAME HARNESS
(F) L=350 		1-09707-183-0 06 1 0505-
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 01 1 0107-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0107-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0107-
81 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0107-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0107-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 02 1 0107-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 08 1 0107-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 02 1 0107-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5 		8-94178-108-0 02 1 0107-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0107-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0107-
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0111-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 02 1 0107-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0107-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 06 1 0107-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0107-0504
194 CLIP; BAND
(D) L=350 		1-09707-183-0 01 1 0505-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 03 1 0107-0112
194 CLIP; BAND
(B) L=180 		1-09707-162-1 02 1 0201-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0107-0305
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0107-0112
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0306-
205 CLIP; BACK LAMP HARNESS
L=180 		1-09707-162-1 01 1 0107-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0107-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0112-
212 CLIP; HORN HARNESS
ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) L=140 		5-09707-031-1 01 1 0112-
212 CLIP; HORN HARNESS
ELECTRICAL HORN(WB7) EXC. FULL FLOATING CAB(W16) (B) ID=11 L=41 		1-09700-403-0 01 1 0112-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 08 1 0107-
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 0107-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (D) L=700 		1-09707-190-0 01 1 0107-
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 08 1 0107-
225 CLIP; AIR TANK HARNESS
(A) L=250 		5-09707-030-1 01 1 0107-
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (C) OD=9 H=17.5 		1-09709-181-0 01 1 0107-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 02 1 0107-
230 CLIP; C/MBR HARNESS
(A) ID=25 L=54 		1-09700-392-0 01 1 0110-
230 CLIP; C/MBR HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0110-
230 CLIP; C/MBR HARNESS
(C) ID=22 L=52 		9-09917-431-0 01 1 0110-
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0107-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0107-
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) ID=11 L=41 		1-09700-403-0 02 1 0107-0109
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) ID=11 L=41 		1-09700-403-0 01 1 0110-
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) L=180 		1-09707-162-1 01 1 0107-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 01 1 0107-
421 CLIP; FLOOR HARNESS
(A) ID=21 L=28 		1-09700-673-1 02 1 0107-
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0107-0207
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0107-
448 CLIP; AIR SUSP HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0107-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0107-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0107-0107
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0107-

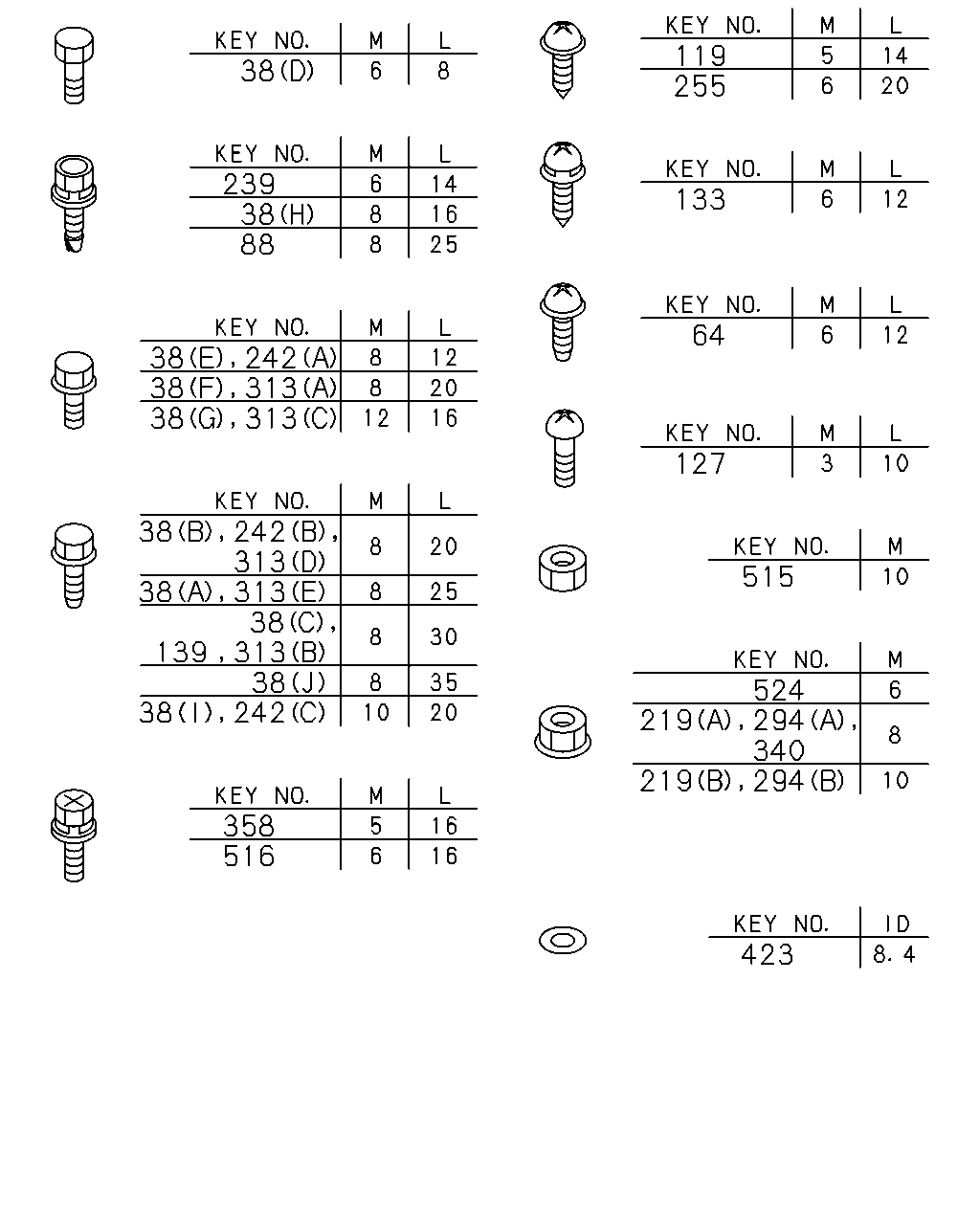

çizim 75326
119 255 38 239 38 88 133 64 127 313 38 313 38 515 38 139 524 294 340 219 358 516 423 219 294 38 242 38 313 38 313 38 242 313 38 242
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0201-0205
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 04 1 0206-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(J) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(J) M8X35 FLANGE 		0-28680-835-0 01 1 0201-0512
38 BOLT; CLIP,HARNESS
(J) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(D) M6X8 		0-20800-608-0 01 1 0107-
38 BOLT; CLIP,HARNESS
(E) M8X12 FLANGE 		0-28080-812-0 01 1 0107-0512
38 BOLT; CLIP,HARNESS
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(F) M8X20 FLANGE 		0-28080-820-0 01 1 0107-0512
38 BOLT; CLIP,HARNESS
(F) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (B) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0107
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0112
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (B) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0112
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (B) M8X20 FLANGE 		0-28680-820-0 03 1 0201-0205
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (B) M8X20 FLANGE 		0-28680-820-0 05 1 0206-0512
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) (B) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0107-0109
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0110-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0110-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0107-0108
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28080-825-0 01 1 0109-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28050-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 04 1 0107-0512
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 07 1 0107-0403
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 06 1 0404-0512
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 06 1 0601-
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		1-09044-079-0 01 1 0107-
38 BOLT; CLIP,HARNESS
(H) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0107-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0205
38 BOLT; CLIP,HARNESS
MJD7 M/T<X9J> (B) M8X20 FLANGE 		0-28680-820-0 02 1 0206-0512
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0206-0512
38 BOLT; CLIP,HARNESS
MJD7 M/T<X9J> (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (I) M10X20 FLANGE 		0-28781-020-0 01 1 0107-0512
38 BOLT; CLIP,HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (I) M10X20 FLANGE 		0-28751-020-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0205
38 BOLT; CLIP,HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X20 FLANGE 		0-28680-820-0 03 1 0206-0512
38 BOLT; CLIP,HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (B) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0107-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0107-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0107-
127 SCREW; FACIA HARNESS CLIP
M3X10 		9-93490-310-0 04 1 0405-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0107-0107
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
219 NUT
MJD7 M/T<X9J> (B) M10 FLANGE 		0-91150-210-0 01 1 0206-0602
219 NUT
MJD7 M/T<X9J> (B) M10 FLANGE 		0-91180-210-0 01 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0109
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 02 1 0107-0109
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0110-0602
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 02 1 0110-0602
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0110-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 06 1 0107-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 10 1 0107-0107
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0107-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 10 1 0111-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 10 1 0603-
219 NUT
(B) M10 FLANGE 		0-91250-210-0 01 1 0107-0110
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0107-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28080-812-0 01 1 0107-0512
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
242 BOLT; BRKT,HARNESS
(C) M10X20 FLANGE 		0-28681-020-0 02 1 0107-0512
242 BOLT; BRKT,HARNESS
(C) M10X20 FLANGE 		0-28651-020-0 02 1 0601-0605
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0107-0604
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74365-620-0 02 1 0605-
294 NUT
MJD7S M/T(Y2Y) (B) M10 FLANGE 		0-91150-210-0 01 1 0107-0602
294 NUT
MJD7S M/T(Y2Y) (B) M10 FLANGE 		0-91180-210-0 01 1 0603-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0602
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0602
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 02 1 0107-0602
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91180-108-0 02 1 0603-
313 BOLT; BRKT
(E) M8X25 FLANGE 		0-28650-825-0 01 1 0606-
313 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) (D) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0304
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0305-0512
313 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) (D) M8X20 FLANGE 		0-28680-820-0 01 1 0305-0512
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0605
313 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) (D) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0605
313 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) (D) M8X20 FLANGE 		0-28650-820-0 01 1 0606-
313 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N) (C) M12X16 		0-28181-216-0 01 1 0107-0108
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0107-0211
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0107-0211
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 0212-0304
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0107-0512
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0107-0512
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0107-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0107-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0212-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0107-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 0107-
515 NUT; BRKT
M10 		9-09110-510-0 02 1 0107-0512
515 NUT; BRKT
M10 		0-91110-510-0 02 1 0601-0605
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 0107-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 0603-

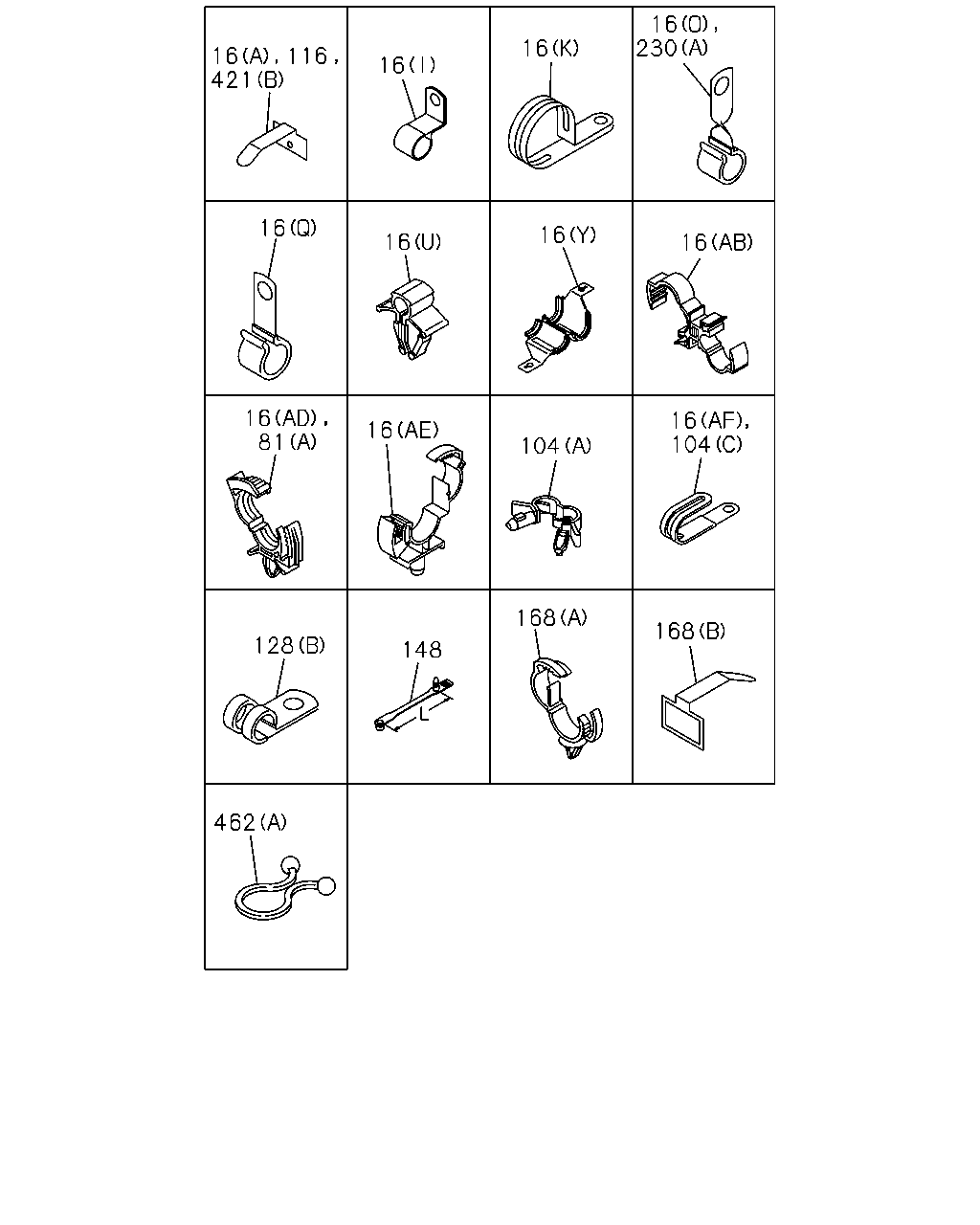

çizim 78062
16 230 16 16 116 421 16 16 16 16 16 16 81 16 104 16 104 168 168 128 148 462
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AC) L=140 		5-09707-031-1 01 1 0201-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. MJD7 M/T<X9J> (AC) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
MJD7 M/T<X9J> (AC) L=140 		5-09707-031-1 01 1 0206-
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0201-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (AE) ID=19 L=28 		9-09525-856-0 01 1 0107-0606
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (AE) ID=19 L=28 		0-95235-856-0 01 1 0607-
16 CLIP; HARNESS
(B) ID=15 L=45 		1-09700-402-0 01 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 01 1 0107-0107
16 CLIP; HARNESS
(AF) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 07 1 0107-0107
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (G) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-0107
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-0107
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0212-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 0107-
16 CLIP; HARNESS
(Q) ID=15 L=35 		1-09700-507-0 01 1 0107-0107
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (C) ID=11 L=20 		9-09525-035-0 01 1 0108-0606
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (C) ID=11 L=20 		0-95235-035-0 01 1 0607-
16 CLIP; HARNESS
(K) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0107-0402
16 CLIP; HARNESS
(K) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(L) ID=20 H=23 L=27 		1-09700-861-0 01 1 0107-0109
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0107
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-0108
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (AG) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0109-
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0107-0108
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0109-0112
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0109-0112
16 CLIP; HARNESS
(R) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
(T) ID=25 L=50 		1-09701-019-0 02 1 0107-0107
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(V) ID=26 L=26 		1-09701-236-0 01 1 0107-
16 CLIP; HARNESS
(W) L=300 		1-09707-001-1 03 1 0107-0504
16 CLIP; HARNESS
(AH) L=350 		1-09707-183-0 03 1 0505-
16 CLIP; HARNESS
(X) L=180 		1-09707-162-1 03 1 0107-0107
16 CLIP; HARNESS
(X) L=180 		1-09707-162-1 02 1 0107-
16 CLIP; HARNESS
(Y) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0107-
16 CLIP; HARNESS
(Y) W/SPONGE RUBBER 		1-09709-150-0 01 1 0107-
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 08 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (D) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(AA) OD=9 H=13.5 		1-09709-180-0 01 1 0107-
16 CLIP; HARNESS
(AB) ID=6-10 & 6-10 		1-09709-192-1 01 1 0107-0107
16 CLIP; HARNESS
(D) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (D) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 0107-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (E) L=250 		5-09707-030-1 03 1 0107-
16 CLIP; HARNESS
(AC) L=140 		5-09707-031-1 02 1 0107-
16 CLIP; HARNESS
(AD) ID=7-10 		8-94472-578-0 01 1 0107-
16 CLIP; HARNESS
(AE) ID=14-20 		8-97061-603-0 03 1 0107-
16 CLIP; HARNESS
(F) ID=16 L=20 		9-09525-535-0 03 1 0107-0606
16 CLIP; HARNESS
(F) ID=16 L=20 		0-95235-535-0 03 1 0607-
16 CLIP; HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(N) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 02 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0110-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0107-0107
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 0107-0107
16 CLIP; HARNESS
INSPECTION LAMP<T95> (X) L=180 		1-09707-162-1 01 1 0107-0107
16 CLIP; HARNESS
INSPECTION LAMP<T95> (X) L=180 		1-09707-162-1 01 1 0108-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (X) L=180 		1-09707-162-1 01 1 0108-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0107-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 10 1 0107-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AC) L=140 		5-09707-031-1 07 1 0107-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=20 		9-09525-035-0 02 1 0107-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) ID=11 L=20 		9-09525-035-0 02 1 0206-0606
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=20 		9-09525-035-0 02 1 0206-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (I) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-0107
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (D) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
ZF M/T<X9E> (D) OD=9 H=6 		1-09709-178-0 03 1 0107-0107
16 CLIP; HARNESS
INSPECTION LAMP<T95> (D) OD=9 H=6 		1-09709-178-0 01 1 0107-0205
16 CLIP; HARNESS
INSPECTION LAMP<T95> (D) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
MJD7 M/T<X9J> (D) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (E) L=250 		5-09707-030-1 01 1 0107-0205
16 CLIP; HARNESS
MJD7 M/T<X9J> (AF) L=36 		8-94224-891-1 01 1 0206-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (S) ID=11 L=40 		9-09525-075-0 01 1 0107-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (S) ID=11 L=40 		0-95235-075-0 01 1 0607-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (H) OD=9 H=9.5 		1-09709-179-0 01 1 0107-0107
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (A) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0107-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (F) ID=16 L=20 		9-09525-535-0 01 1 0107-0107
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (F) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (F) ID=16 L=20 		9-09525-535-0 01 1 0108-0108
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (F) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (F) ID=16 L=20 		9-09525-535-0 01 1 0109-0205
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (F) ID=16 L=20 		9-09525-535-0 01 1 0206-0606
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (F) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (Z) ID=16 L=40 		9-09525-576-0 01 1 0107-0205
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. MJD7 M/T<X9J> (Z) ID=16 L=40 		9-09525-576-0 01 1 0206-0606
16 CLIP; HARNESS
MJD7 M/T<X9J> (Z) ID=16 L=40 		9-09525-576-0 01 1 0206-0606
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. MJD7 M/T<X9J> (Z) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
MJD7 M/T<X9J> (Z) ID=16 L=40 		0-95235-576-0 01 1 0607-
81 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0107-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0107-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 02 1 0107-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 08 1 0107-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) L=140 		5-09707-031-1 02 1 0107-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5 		8-94178-108-0 02 1 0107-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0107-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0201-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0107-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> L=20 SET=10 PIECE 		1-09987-246-2 03 1 0201-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0107-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0107-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0107-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0107-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0107-
230 CLIP; C/MBR HARNESS
(A) ID=25 L=54 		1-09700-392-0 01 1 0110-
230 CLIP; C/MBR HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0110-
230 CLIP; C/MBR HARNESS
(C) ID=22 L=52 		9-09917-431-0 01 1 0110-
421 CLIP; FLOOR HARNESS
(A) ID=21 L=28 		1-09700-673-1 02 1 0107-
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0107-0207
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0107-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301-

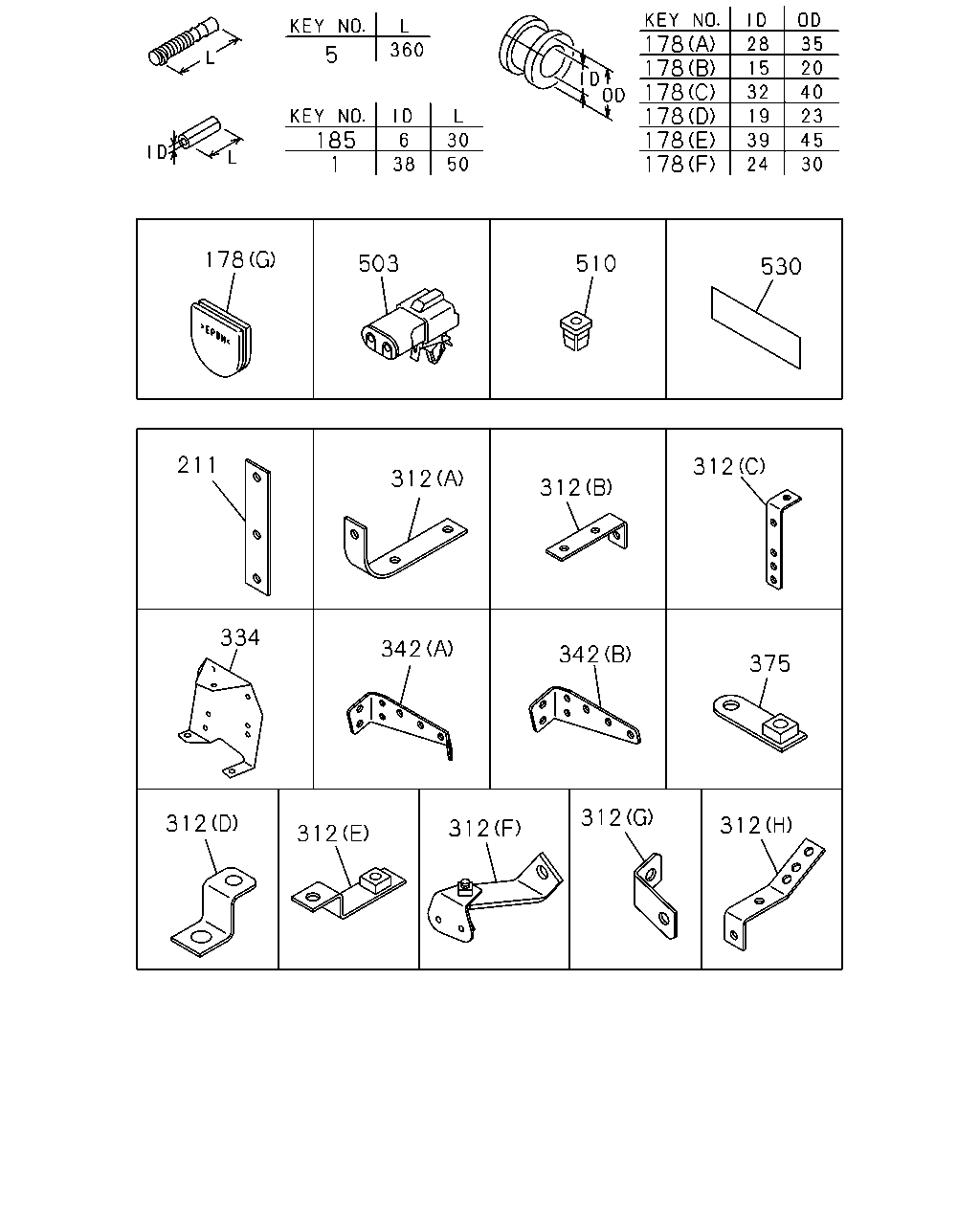

çizim 79407
178 178 178 178 178 178 5 185 1 178 510 503 530 211 312 312 312 334 342 342 375 312 312 312 312 312
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) ID=38.1 L=50 		5-09360-835-0 01 1 0107-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0107-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0107-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0107-
178 GROMMET; HARNESS
(E) ID=39 OD=45 T=19 		1-09332-077-0 01 1 0107-
178 GROMMET; HARNESS
(F) ID=24 OD=30 T=22 		1-09332-104-0 02 1 0107-
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=24 OD=30 T=22 		1-09332-104-0 02 1 0107-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0107-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 02 1 0107-
178 GROMMET; HARNESS
(C) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0107-
178 GROMMET; HARNESS
(G) 		1-82699-891-0 01 1 0107-
178 GROMMET; HARNESS
(D) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0107-0107
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (D) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0107-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=12 		9-09956-725-0 01 1 0107-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0107-
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) L=117 		1-47478-116-0 02 1 0107-
312 BRACKET; CLIP HARNESS
MJX16P M/T(Y3Z) (H) 		1-47479-849-0 01 1 0306-
312 BRACKET; CLIP HARNESS
MJX16P M/T(Y3Z) (C) 		1-82698-358-0 01 1 0306-
312 BRACKET; CLIP HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (E) L=80 H=20 		1-82699-304-0 01 1 0107-
312 BRACKET; CLIP HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (F) 		1-47477-902-0 01 1 0107-0108
312 BRACKET; CLIP HARNESS
MJD7S M/T(Y2Y) (D) 		1-82699-425-0 01 1 0107-
312 BRACKET; CLIP HARNESS
(B) L=90 B=25 		1-47476-630-0 01 1 0107-0211
312 BRACKET; CLIP HARNESS
(G) 		1-82699-199-0 01 1 0212-0304
312 BRACKET; CLIP HARNESS
(A) 		1-47478-769-0 01 1 0107-
312 BRACKET; CLIP HARNESS
(C) 		1-82698-358-0 01 1 0107-0305
312 BRACKET; CLIP HARNESS
(C) 		1-82698-358-0 01 1 0107-0305
312 BRACKET; CLIP HARNESS
MJD7S M/T(Y2Y) (C) 		1-82698-358-0 02 1 0306-
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (C) 		1-82698-358-0 02 1 0306-
334 BRACKET 1-53458-709-1 01 1 0107-
342 BRACKET; HARNESS CAB MTG
TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		1-82698-224-0 01 1 0107-
342 BRACKET; HARNESS CAB MTG
EXC. ZF M/T<X9E> (B) 		1-82699-625-0 01 1 0107-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0107-
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0107-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0107-
530 SEAL; HARNESS
180X40 		1-72498-019-0 05 1 0107-0208
530 SEAL; HARNESS
180X40 		1-72498-019-0 01 1 0209-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0107-0207
530 SEAL; HARNESS
180X40 		1-72498-019-0 08 1 0208-
530 SEAL; HARNESS
180X40 		1-72498-019-0 06 1 0107-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
