◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10866 - EXD LHD FUEL TANK 400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#9900) — 144 parça

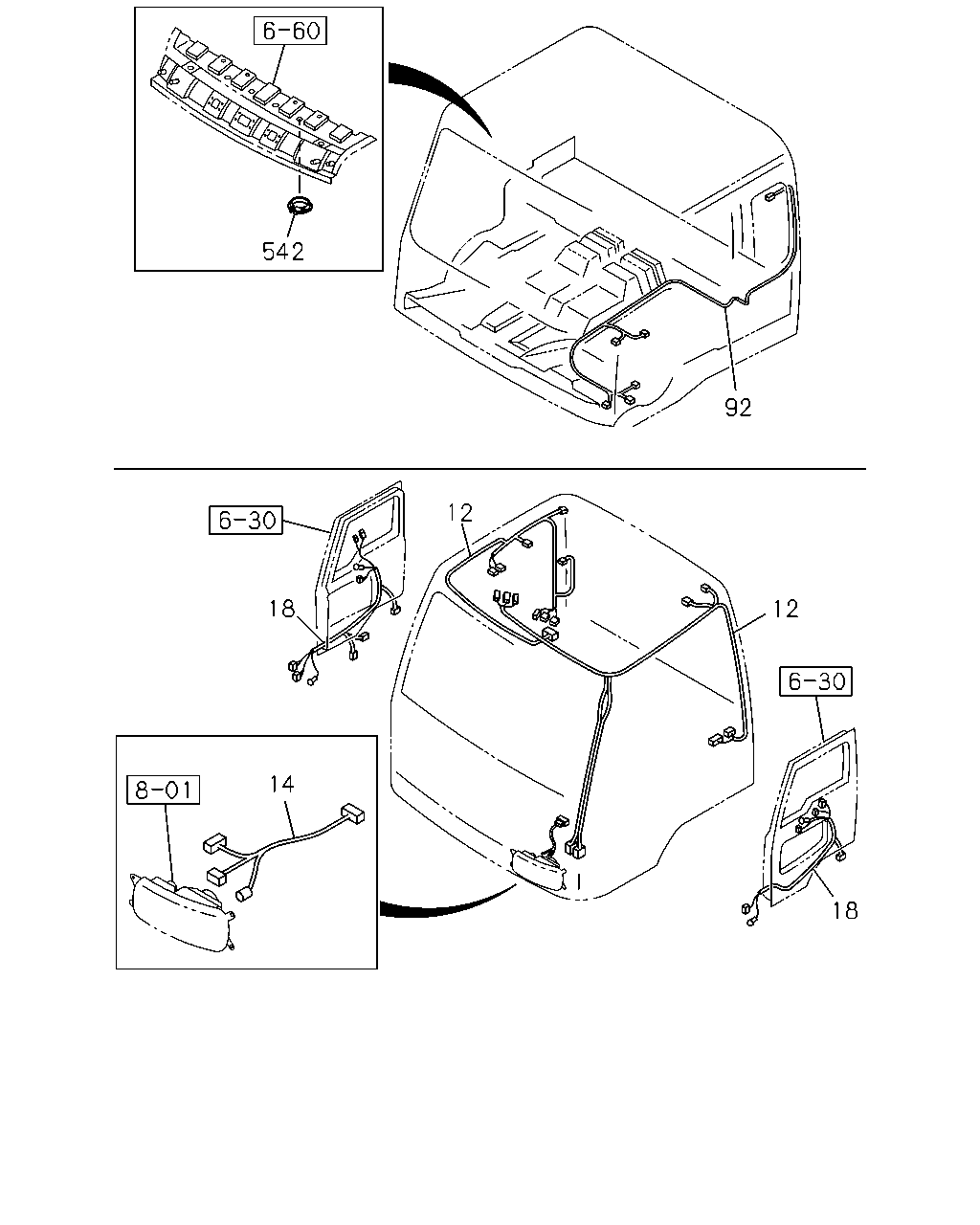

çizim 19919
542 92 12 18 12 14 18
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
HIGH ROOF<S2F> PASENGER SIDE 		1-82629-924-2 01 1 0107-
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F> PASENGER SIDE 		1-82629-920-2 01 1 0107-
12 HARNESS; ROOF
SPEAKER SYSTEM 4 SPEAKER<NBV> DRIVER SIDE 		1-82628-107-0 01 1 0107-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82670-022-2 02 1 0107-
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-82625-150-2 02 1 0107-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-582-0 01 1 0107-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-584-0 01 1 0107-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 0107-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 0107-
92 HARNESS; FLOOR
DRIVER SIDE 		1-82660-396-2 01 1 0107-
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 0107-

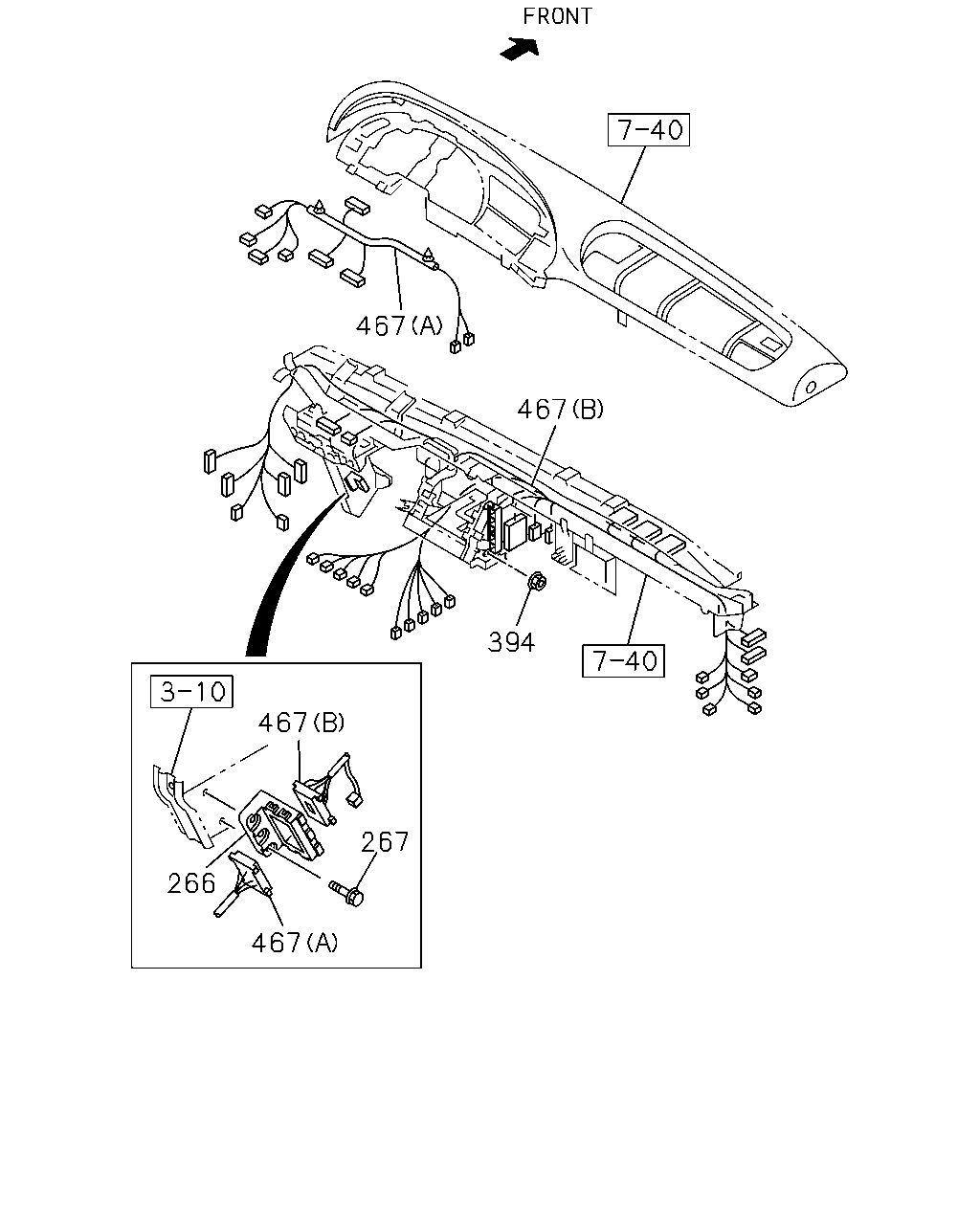

çizim 21411
467 467 394 467 267 266 467
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0107-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0107-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91150-106-0 01 1 0401-0602
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 0603-
467 HARNESS; FACIA
(A) UPPER 		1-82629-927-1 01 1 0107-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER 		1-82660-448-0 01 1 0107-0108
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER 		1-82660-536-3 01 1 0109-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-450-0 01 1 0107-0108
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-538-4 01 1 0109-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-449-0 01 1 0107-0108
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-537-3 01 1 0109-
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) LOWER 		1-82660-445-0 01 1 0107-0108
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) LOWER 		1-82660-533-3 01 1 0109-
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> ,DELUXE CAB(W14) (B) LOWER 		1-82660-447-0 01 1 0107-0108
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> ,DELUXE CAB(W14) (B) LOWER 		1-82660-535-4 01 1 0109-
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> (B) LOWER 		1-82660-446-0 01 1 0107-0108
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> (B) LOWER 		1-82660-534-3 01 1 0109-

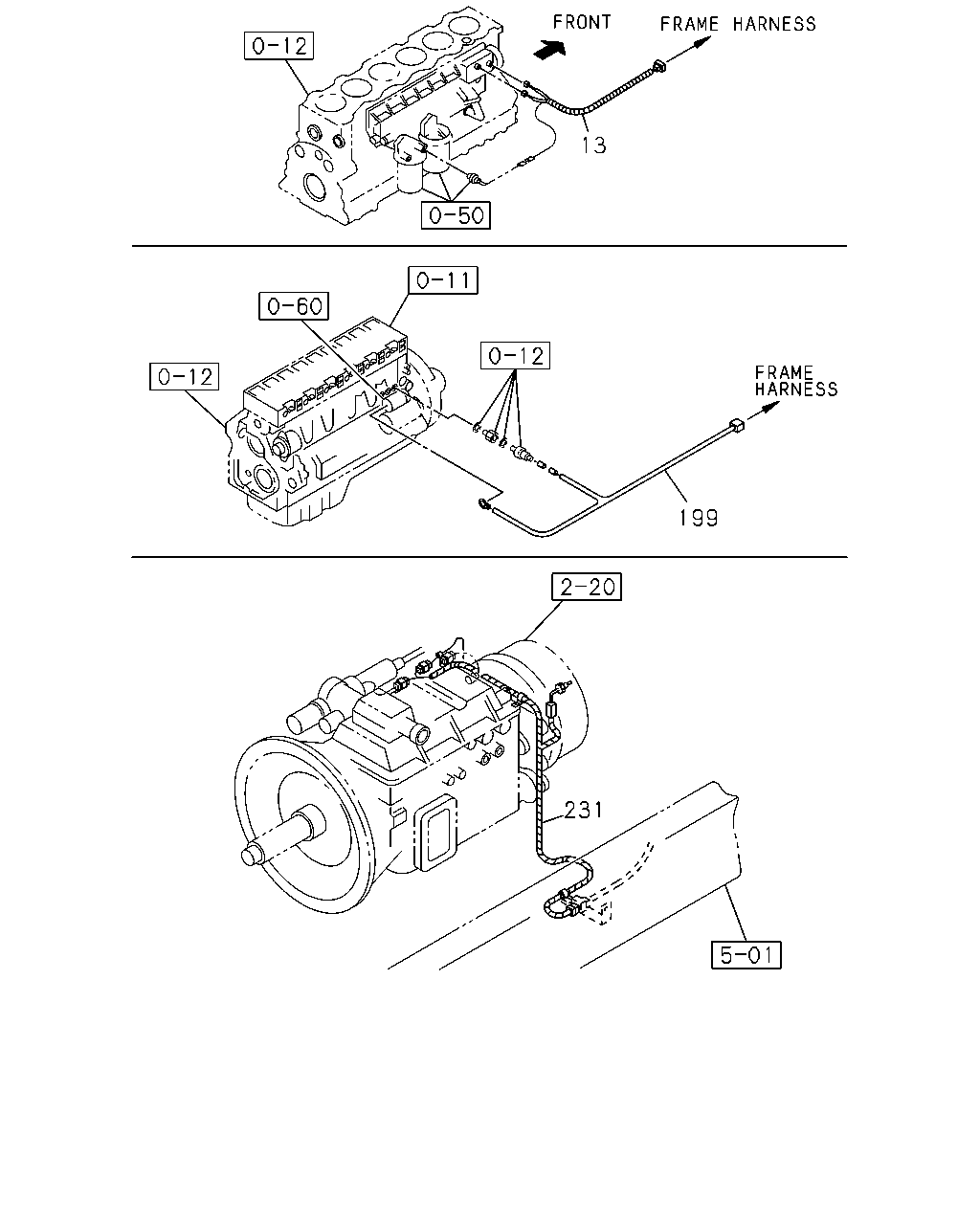

çizim 75327
13 199 231
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG 1-82640-553-4 01 1 0107-
199 HARNESS; STARTER 1-82641-024-1 01 1 0107-
231 HARNESS; TRANS
MJD7S M/T(Y2Y) 		1-82674-849-1 01 1 0107-
231 HARNESS; TRANS
MJX16P M/T(Y3Z) 		1-82674-246-2 01 1 0107-
231 HARNESS; TRANS
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-82674-852-0 01 1 0107-0107
231 HARNESS; TRANS
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-82675-056-0 01 1 0108-

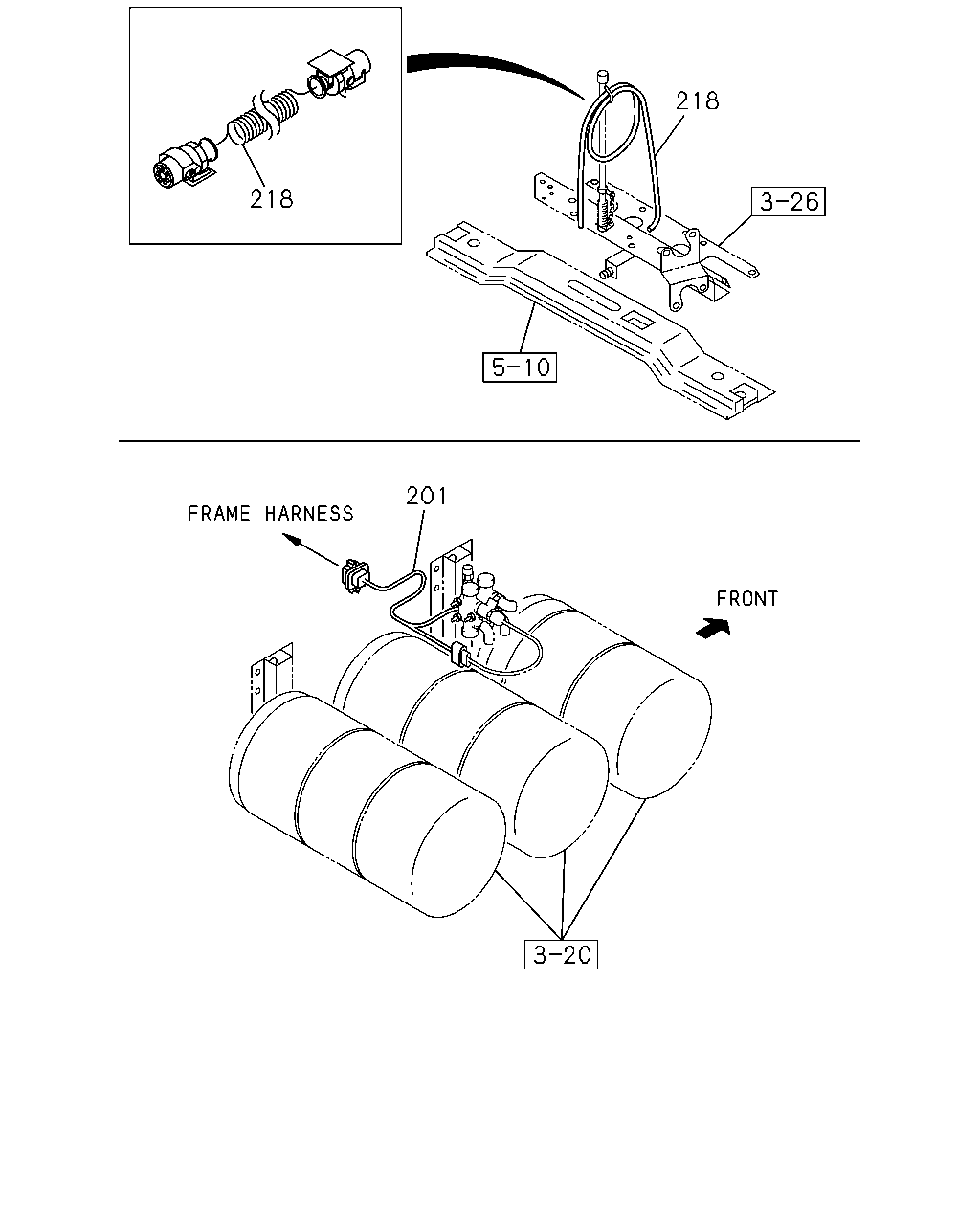

çizim 75463
218 218 201
BalonParca AdiParca NoAdetTipApplied Date
201 HARNESS; AIR TANK 1-82673-731-0 01 1 0107-
218 CABLE; JUMPER,ABS
ANTILOCK BRAKE SYSTEM(BFA) L=4000 		1-82659-187-3 01 1 0107-

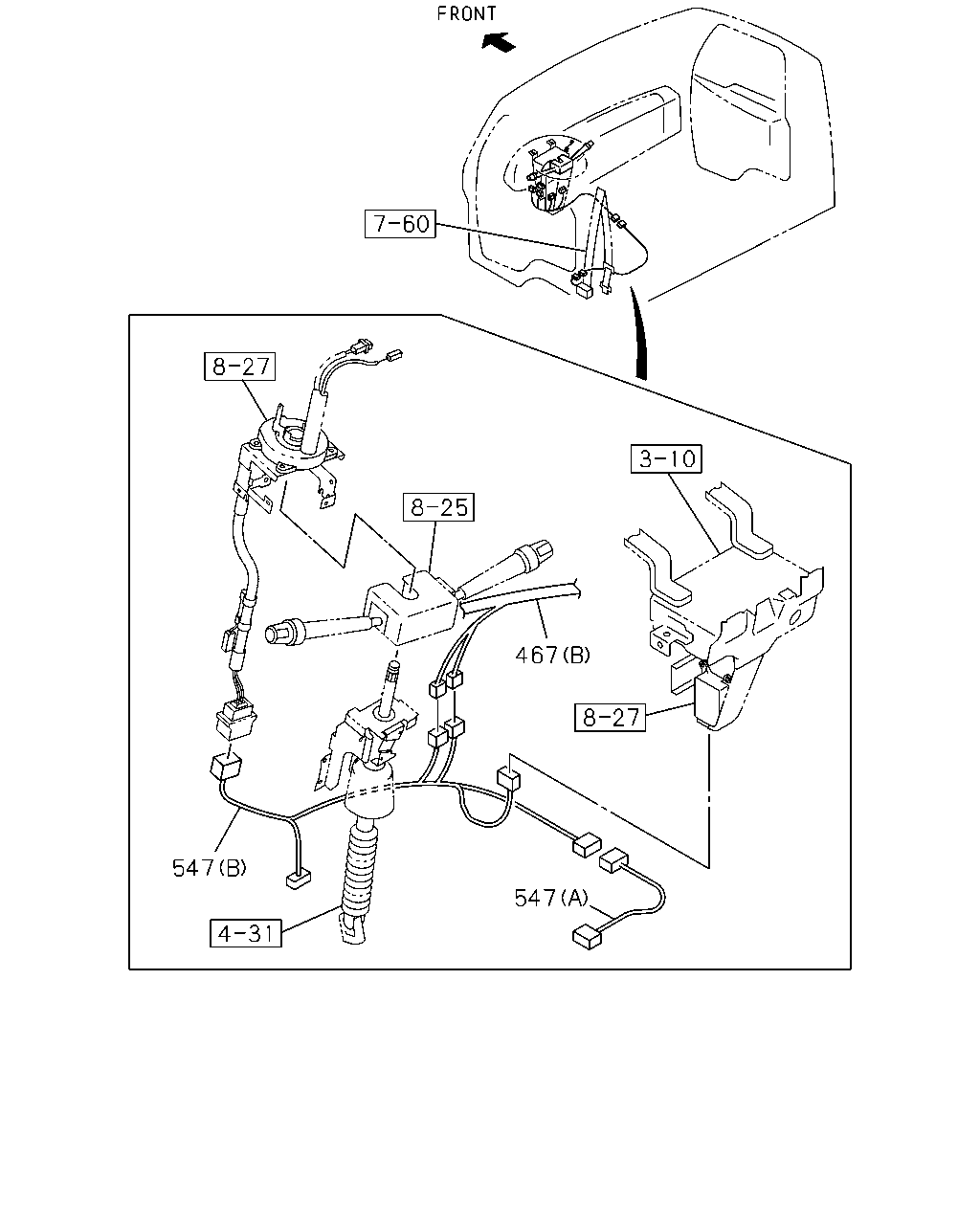

çizim 75557
467 547 547
BalonParca AdiParca NoAdetTipApplied Date
467 HARNESS; FACIA
(A) UPPER 		1-82629-927-1 01 1 0107-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER 		1-82660-448-0 01 1 0107-0108
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER 		1-82660-536-3 01 1 0109-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-450-0 01 1 0107-0108
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-538-4 01 1 0109-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-449-0 01 1 0107-0108
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-537-3 01 1 0109-
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) LOWER 		1-82660-445-0 01 1 0107-0108
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) LOWER 		1-82660-533-3 01 1 0109-
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> ,DELUXE CAB(W14) (B) LOWER 		1-82660-447-0 01 1 0107-0108
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> ,DELUXE CAB(W14) (B) LOWER 		1-82660-535-4 01 1 0109-
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> (B) LOWER 		1-82660-446-0 01 1 0107-0108
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> (B) LOWER 		1-82660-534-3 01 1 0109-
547 HARNESS; CABLE,SRS
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (A) CAB FLOOR SIDE 		1-82626-429-5 01 1 0107-0111
547 HARNESS; CABLE,SRS
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (A) CAB FRONT SIDE 		1-82661-062-2 01 1 0112-
547 HARNESS; CABLE,SRS
DRIVER SEAT BELT W/PRE TENSION REDUCER(TFN) AIR BAG(TFQ) (B) INST PANEL SIDE 		1-82628-251-0 01 1 0107-

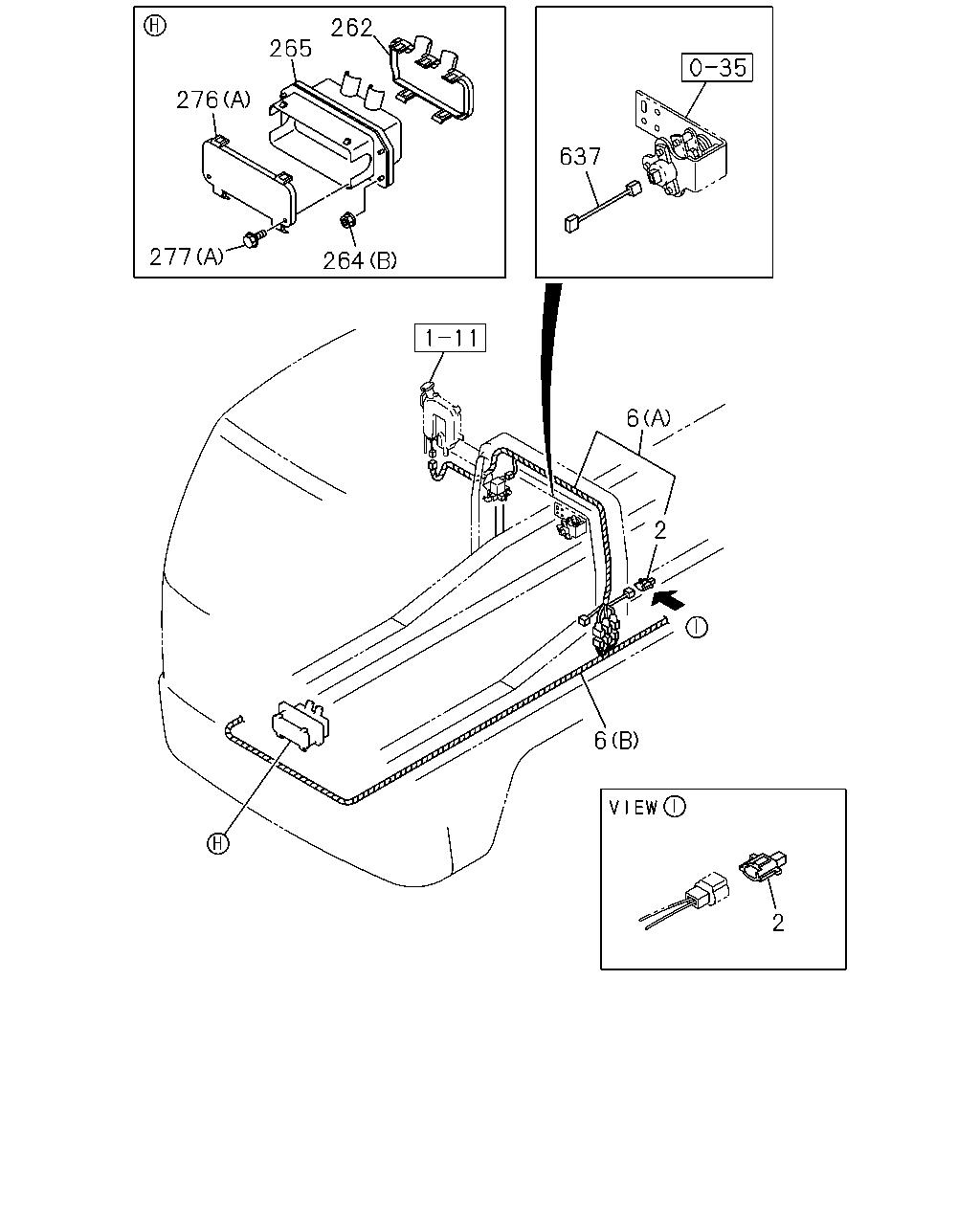

çizim 75751
262 265 276 637 277 264 6 2 6 2
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) GRAY 2P-1.3A 		1-81514-015-0 01 1 0107-
2 DIODE; CABLE HARNESS
EXC. FULL FLOATING CAB(W16) GRAY 2P-1.3A 		1-81514-015-0 01 1 0107-
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82675-004-0 01 1 0107-0108
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82675-044-4 01 1 0109-
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-003-0 01 1 0107-0108
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-043-4 01 1 0109-
6 HARNESS; FRAME
EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82675-001-0 01 1 0107-0108
6 HARNESS; FRAME
EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82675-041-4 01 1 0109-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-842-2 01 1 0107-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-841-2 01 1 0107-
6 HARNESS; FRAME
EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-840-2 01 1 0107-
6 HARNESS; FRAME
FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) MEMBER 		1-82675-002-0 01 1 0107-0108
6 HARNESS; FRAME
FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) MEMBER 		1-82675-042-4 01 1 0109-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0107-
264 NUT; CONNECTOR BOX
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0602
264 NUT; CONNECTOR BOX
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
264 NUT; CONNECTOR BOX
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0107-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0107-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0107-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 0107-
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0107-0512
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0107-
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 0207-

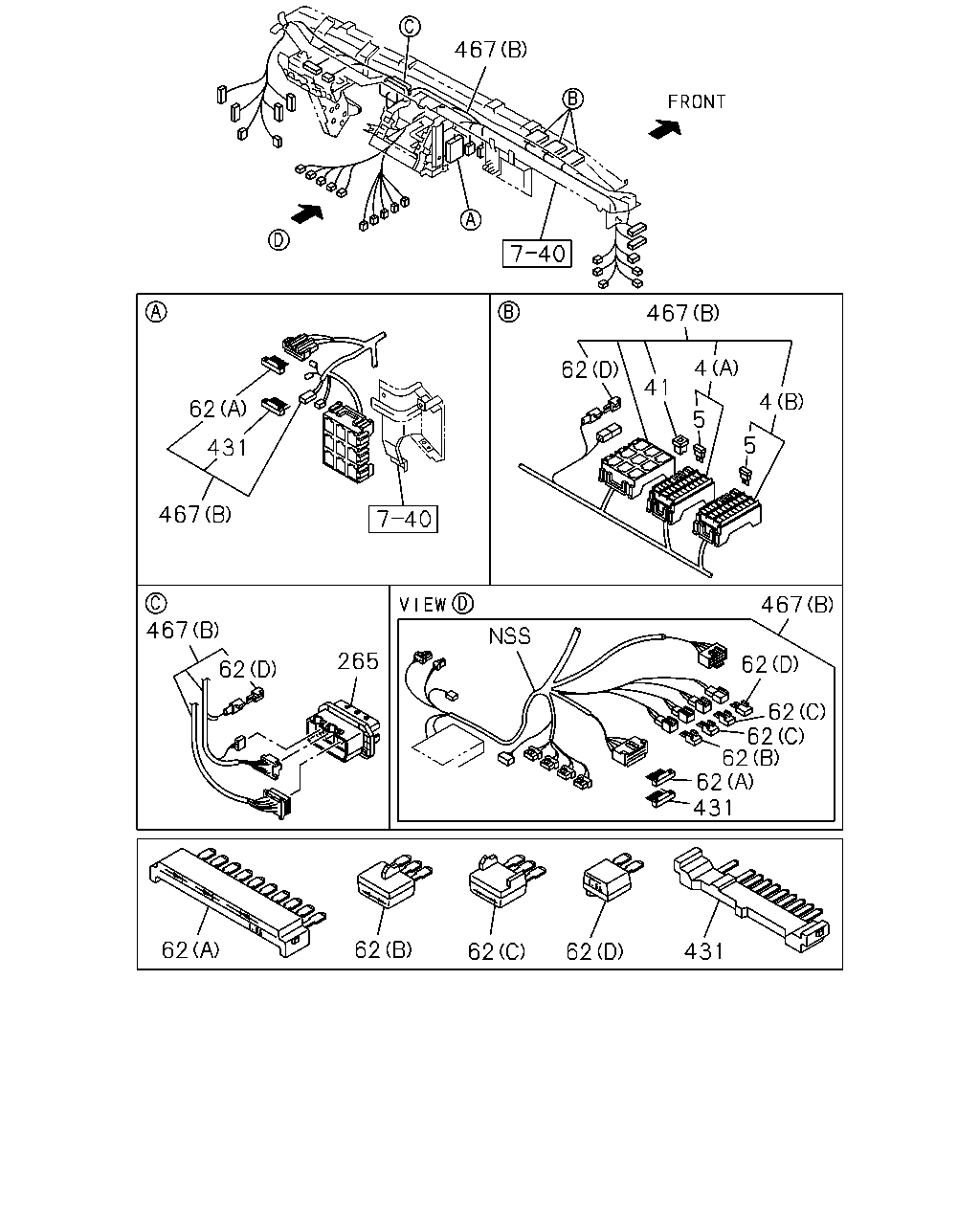

çizim 75752
467 467 4 62 41 4 62 5 5 431 467 467 467 265 62 62 62 62 62 62 431 62 62 431 62 62
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX24 10AX2 		1-82510-473-0 01 1 0107-
4 BOX ASM; FUSE,HARNESS
(B) 15AX20 25AX2 		1-82510-520-0 01 1 0107-
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 02 1 0107-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 20 1 0107-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 0107-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 24 1 0107-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0107-
62 DIODE; HARNESS
TAIWAN EQUIPMENT(WW5) EXC. DELUXE CAB(W14) (D) BLACK 2P-1.5A 		8-94422-639-1 07 1 0409-
62 DIODE; HARNESS
TAIWAN EQUIPMENT(WW5) EXC. DELUXE CAB(W14) (B) BLACK 3P-1.5A 		8-94422-640-1 03 1 0409-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0107-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 03 1 0107-
62 DIODE; HARNESS
(D) BLACK 2P-1.5A 		8-94422-639-1 07 1 0107-0402
62 DIODE; HARNESS
(D) BLACK 2P-1.5A 		8-94422-639-1 06 1 0403-0408
62 DIODE; HARNESS
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (D) BLACK 2P-1.5A 		8-94422-639-1 06 1 0409-
62 DIODE; HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 0107-0408
62 DIODE; HARNESS
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) BLACK 3P-1.5A 		8-94422-640-1 01 1 0409-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0107-
431 CONNECTOR; JOINT
10P BROWN 		1-82699-601-0 02 1 0107-
467 HARNESS; FACIA
(A) UPPER 		1-82629-927-1 01 1 0107-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER 		1-82660-448-0 01 1 0107-0108
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) (B) LOWER 		1-82660-536-3 01 1 0109-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-450-0 01 1 0107-0108
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) EXC. CORNERING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-538-4 01 1 0109-
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-449-0 01 1 0107-0108
467 HARNESS; FACIA
ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. CORNERING LAMP<TDS> (B) LOWER 		1-82660-537-3 01 1 0109-
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) LOWER 		1-82660-445-0 01 1 0107-0108
467 HARNESS; FACIA
CORNERING LAMP<TDS> TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) LOWER 		1-82660-533-3 01 1 0109-
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> ,DELUXE CAB(W14) (B) LOWER 		1-82660-447-0 01 1 0107-0108
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> ,DELUXE CAB(W14) (B) LOWER 		1-82660-535-4 01 1 0109-
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> (B) LOWER 		1-82660-446-0 01 1 0107-0108
467 HARNESS; FACIA
TAIWAN EQUIPMENT(WW5) DELUXE CAB(W14) EXC. ANTILOCK BRAKE SYSTEM(BFA),CORNERING LAMP<TDS> (B) LOWER 		1-82660-534-3 01 1 0109-

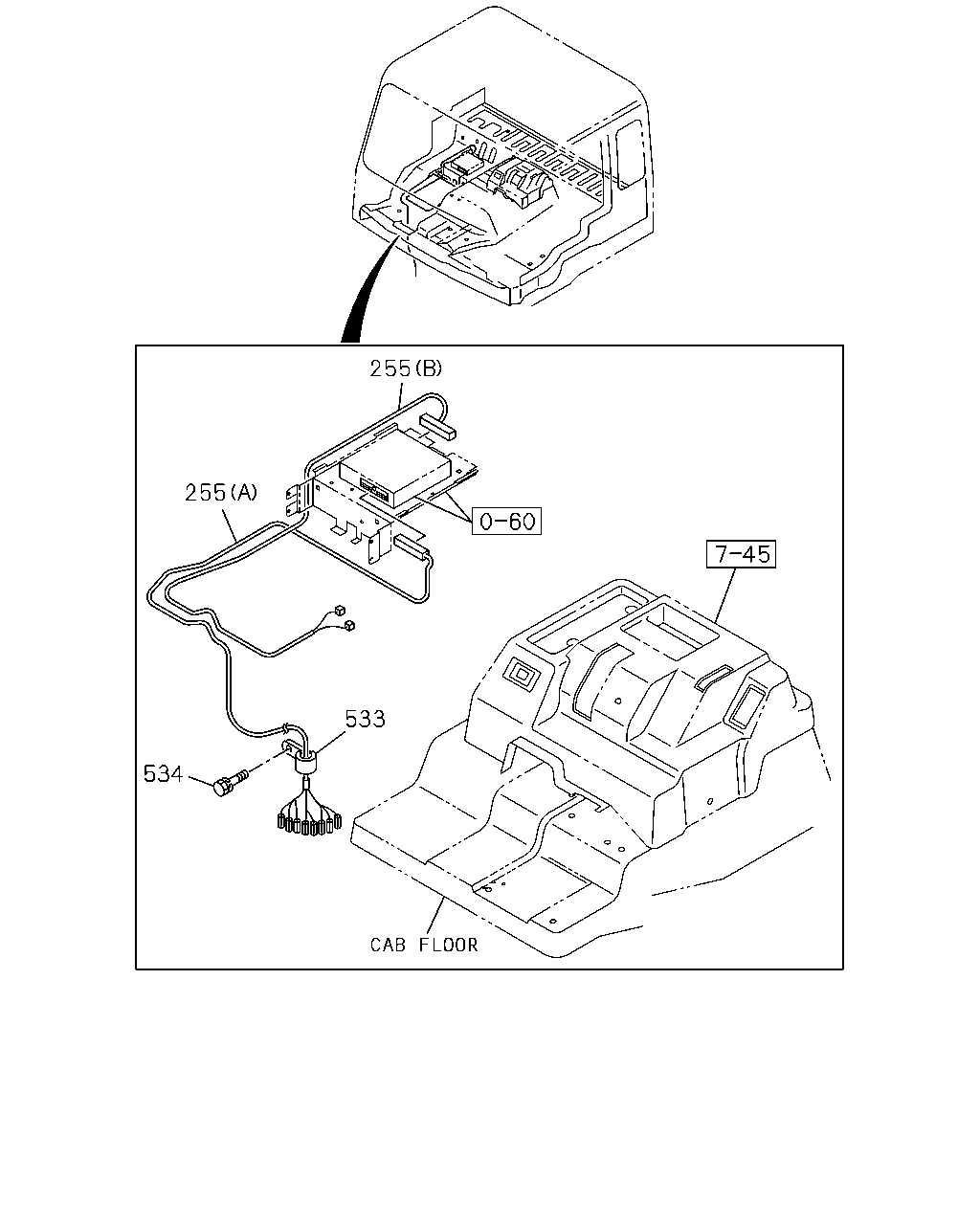

çizim 78133
255 255 533 534
BalonParca AdiParca NoAdetTipApplied Date
255 HARNESS; ELEC GOV
(A) 		1-82660-376-2 01 1 0107-
255 HARNESS; ELEC GOV
(B) 		1-82660-382-2 01 1 0107-
533 CLIP
ID=32 L=35 		1-09701-244-0 02 1 0209-
533 CLIP
ID=32 L=35 		1-09701-244-0 02 1 0107-0109
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0107-

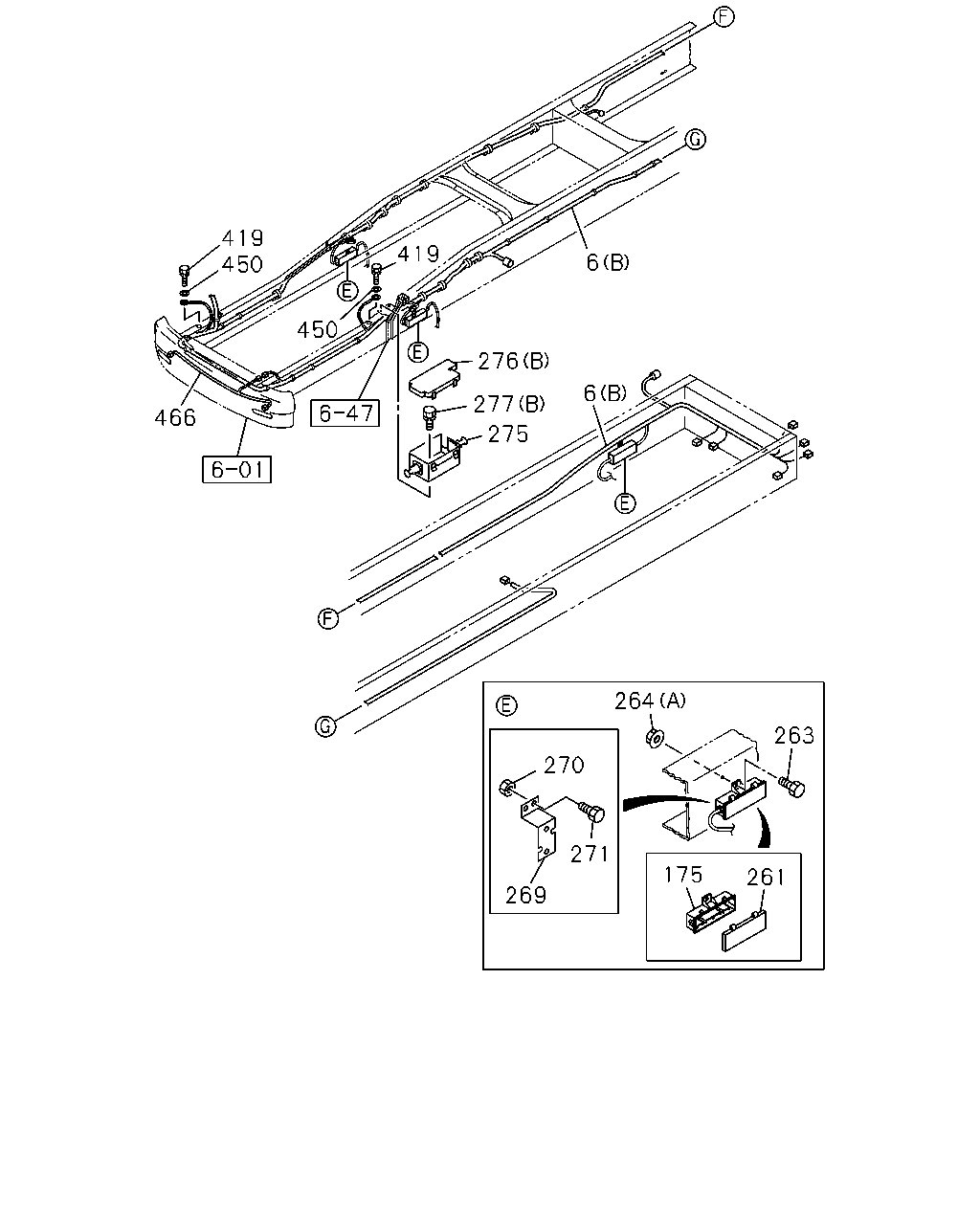

çizim 79201
419 450 419 6 450 276 6 277 466 275 264 263 270 271 175 261 269
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82675-004-0 01 1 0107-0108
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) FULL FLOATING CAB(W16) (B) FRAME 		1-82675-044-4 01 1 0109-
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-003-0 01 1 0107-0108
6 HARNESS; FRAME
ANTILOCK BRAKE SYSTEM(BFA) EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82675-043-4 01 1 0109-
6 HARNESS; FRAME
EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82675-001-0 01 1 0107-0108
6 HARNESS; FRAME
EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82675-041-4 01 1 0109-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-842-2 01 1 0107-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-841-2 01 1 0107-
6 HARNESS; FRAME
EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82674-840-2 01 1 0107-
6 HARNESS; FRAME
FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) MEMBER 		1-82675-002-0 01 1 0107-0108
6 HARNESS; FRAME
FULL FLOATING CAB(W16) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) MEMBER 		1-82675-042-4 01 1 0109-
175 BOX; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-467-0 03 1 0107-
261 COVER; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-320-0 03 1 0107-
263 BOLT; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X20 W/LK&PL WASHER 		1-09980-622-0 02 1 0107-
263 BOLT; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 W/LK&PL WASHER 		8-94279-144-0 01 1 0107-
264 NUT; CONNECTOR BOX
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0602
264 NUT; CONNECTOR BOX
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
264 NUT; CONNECTOR BOX
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0107-
269 BRACKET; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-547-0 02 1 0107-
270 NUT; BRKT,CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 04 1 0107-0602
270 NUT; BRKT,CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0603-
271 BOLT; BRKT CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28680-830-0 04 1 0107-0512
271 BOLT; BRKT CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 04 1 0601-
275 BOX ASM; FRAME HARNESS 1-82699-474-1 01 1 0107-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0107-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 0107-
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0107-0512
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0601-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0107-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0107-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 0107-
466 HARNESS; BUMPER 1-82639-281-0 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
