7-40 — INSTRUMENT PANEL AND BOX (#99) — 71 parça

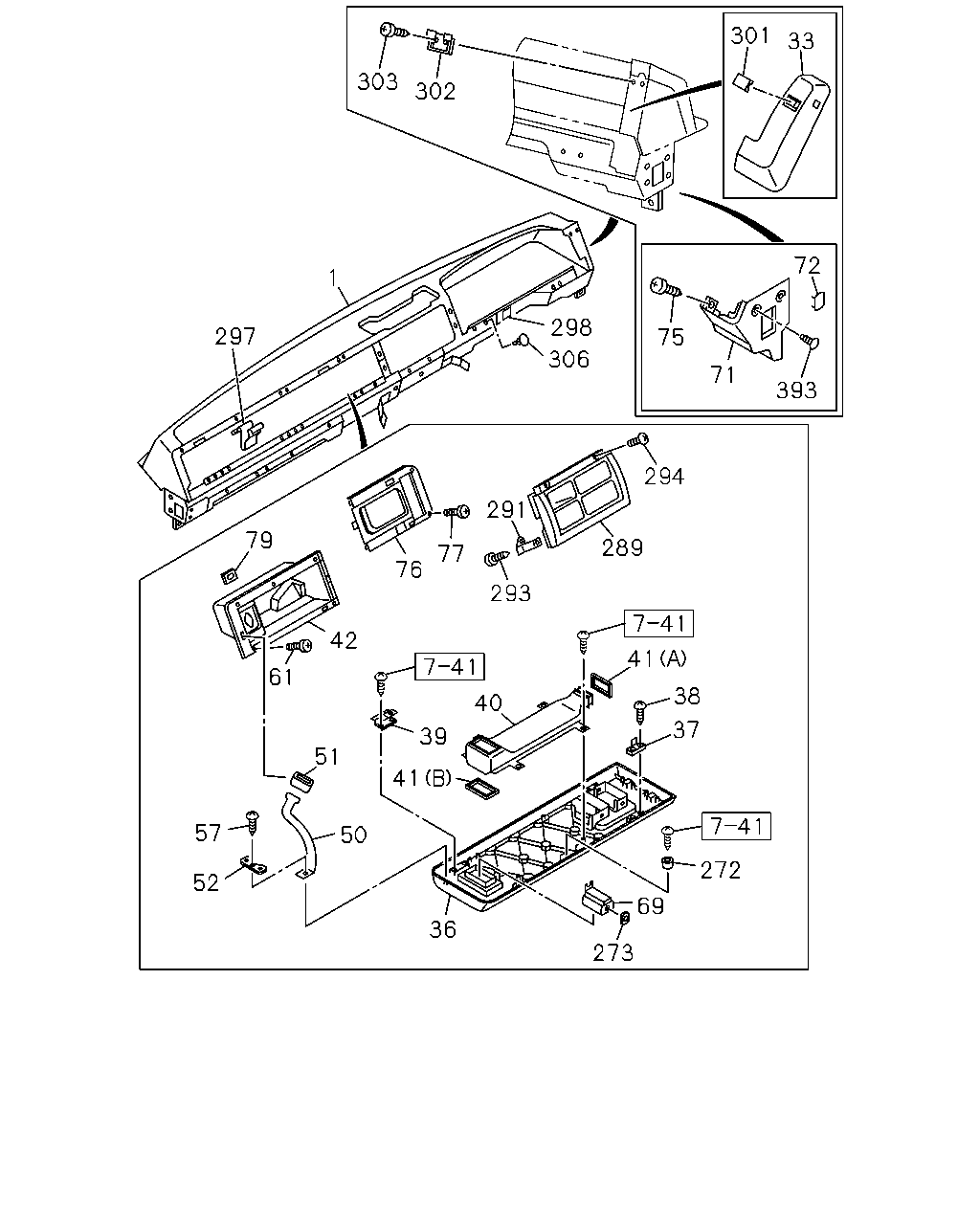

301 33 303 302 72 1 298 297 75 306 71 393 294 291 79 289 77 76 293 42 41 61 38 40 37 39 51 41 57 50 272 52 69 36 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; INST	1-65680-831-0	01	1	9202-	●	●
33	LID; CHECK HOLE,CLU FLUID	1-73927-067-0	01	1	9202-	●	●
36	BEZEL; INST SIDE CLUSTER DARK GRAY	1-72548-108-0	01	1	9202-	●	●
37	FASTENER; MALE,SIDE CLUSTER BEZEL	1-72557-051-1	02	1	9202-	●	●
38	SCREW; BEZEL,INST CLUSTER SIDE M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9202-	●	●
39	HINGE; BEZEL,INST SIDE CLUSTER	1-72558-013-2	01	1	9202-	●	●
39	HINGE; BEZEL,INST SIDE CLUSTER	1-72558-012-2	01	1	9202-	●	●
40	DUCT; VENT,SIDE CLUSTER BEZEL	1-76378-215-1	01	1	9202-	●	●
41	SEAL; SIDE CLUSTER BEZEL (A)	1-76377-090-0	01	1	9202-	●	●
41	SEAL; SIDE CLUSTER BEZEL (B)	1-76377-091-0	01	1	9202-	●	●
42	BOX; GLOVE,INST PNL	1-72538-025-6	01	1	9202-	●	●
50	STOPPER; LID,GLOVE BOX,INST CLUSTER	1-72548-047-4	02	1	9202-	●	●
51	CUSHION; STOPPER,GLOVE BOX	1-72548-069-0	02	1	9202-	●	●
52	PLATE; STOPPER,GLOVE BOX	1-72548-073-0	02	1	9202-	●	●
57	SCREW; GLOVE BOX STOPPER	1-09981-388-1	06	1	9202-	●	●
61	SCREW; GLOVE BOX M6X16 W/PL WASHER	1-09981-176-0	05	1	9202-	●	●
69	GRILLE; SIDE,AIR OUTLET	1-76367-050-1	03	1	9202-	●	●
71	GARNISH; INST CLUSTER SIDE	1-72437-038-0	01	1	9202-	●	●
72	COVER; HOLE,INST CLUSTER GARNISH A/T<X9D>	1-73927-066-0	01	1	9202-	●
75	SCREW; GARNISH,INST CLUSTER M5X14 W/PL WASHER	5-09981-050-0	01	1	9202-	●	●
76	COVER; VENT DUCT,PASSENGER SIDE	1-73928-317-6	01	1	9202-	●	●
77	SCREW; VENT DUCT COVER M6X16 W/PL WASHER	1-09981-176-0	02	1	9202-	●	●
79	SEAL; SIDE DEFROSTER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76377-092-0	01	1	9202-	●	●
272	CUSHION; SIDE CLUSTER BEZEL	1-72548-046-0	01	1	9202-	●	●
273	BUSHING; SIDE CLUSTER BEZEL	1-72547-048-1	03	1	9202-	●	●
289	BEZEL; CENTER,INST CLUSTER	1-72437-036-0	01	1	9202-	●	●
291	FASTENER; INST CLUSTER	1-72437-005-3	02	1	9202-	●	●
293	SCREW; FASTENER,BEZEL M5X14 W/PL WASHER	5-09981-050-0	02	1	9202-	●	●
294	SCREW; BEZEL M6X16 W/PL WASHER	1-09981-176-0	02	1	9202-	●	●
297	FASTENER; FEMALE,SIDE CLUSTER BEZEL	1-72558-014-1	02	1	9202-	●	●
298	PIECE; DIST,CLUSTER BEZEL	1-72548-077-0	01	1	9202-	●	●
301	COVER; CHECK HOLE LID,CLU FLUID A/T<X9D>	1-73928-353-0	01	1	9202-	●
302	CATCH; CHECK HOLE LID,CLU FLUID	1-73927-069-0	01	1	9202-	●	●
303	SCREW; CATCH,CHECK HOLE LID,CLU FLUID M5X14 W/PL WASHER	5-09981-050-0	02	1	9202-	●	●
306	BUTTON; CLIP,INST CLUSTER,DRIVER SIDE AUTO ENG SHUTOFF<KB6>	1-72448-261-0	02	1	9202-	●	●
306	BUTTON; CLIP,INST CLUSTER,DRIVER SIDE EXC. AUTO ENG SHUTOFF<KB6>	1-72448-261-0	01	1	9202-	●	●
393	FASTENER; GARNISH PANEL	1-09987-195-0	02	1	9202-	●	●

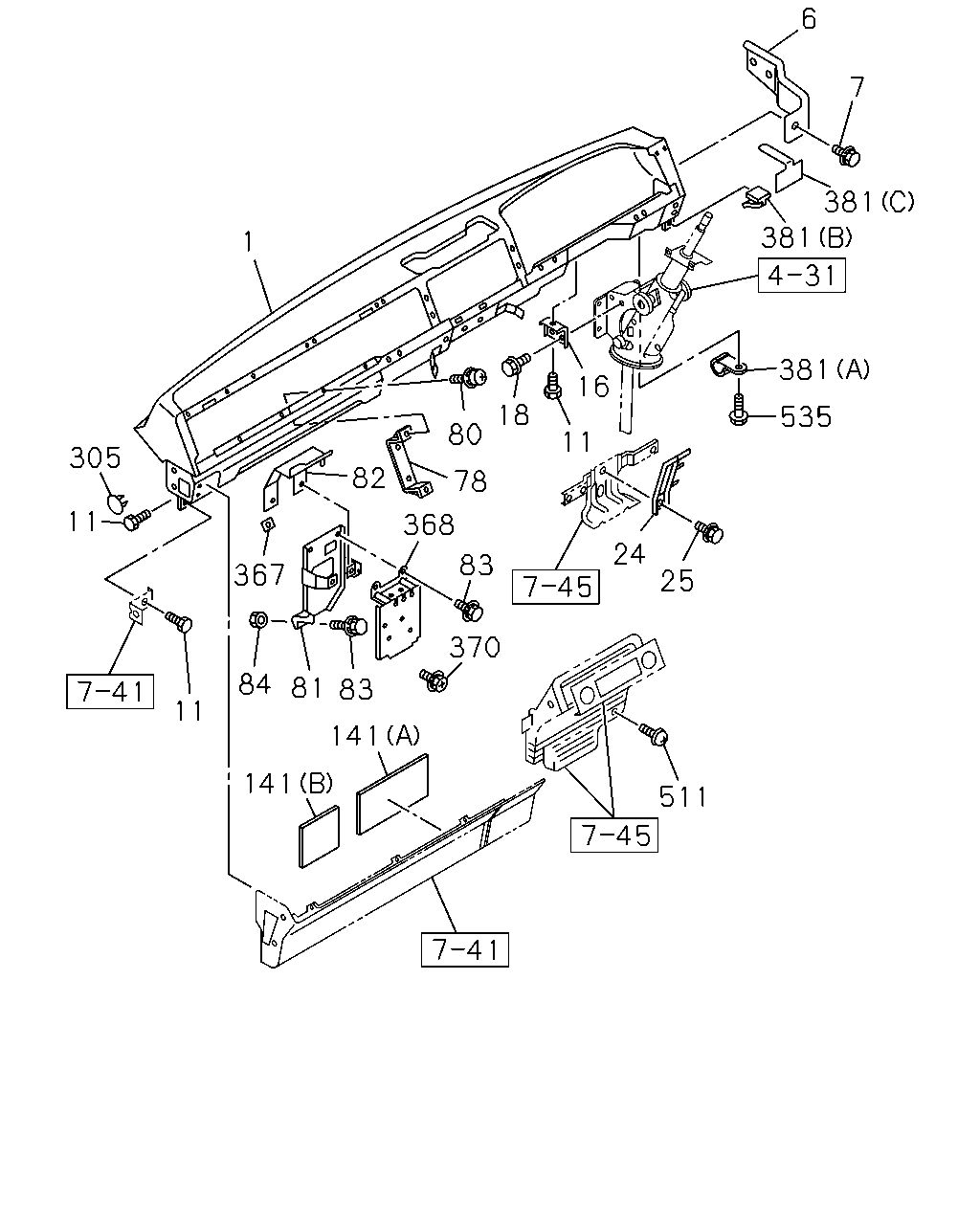

6 7 381 381 1 381 16 18 535 80 11 305 82 78 11 368 24 83 367 25 370 84 81 83 11 141 141 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; INST	1-65680-831-0	01	1	9202-	●	●
6	SUPPORT; INST PANEL	1-65670-592-2	01	1	9202-	●	●
6	SUPPORT; INST PANEL	1-65670-591-2	01	1	9202-	●	●
7	BOLT; SUPPORT,INST PNL M6X16 W/LK&PL WASHER	1-09980-440-0	04	1	9202-	●	●
11	BOLT; INST PNL M8X20 W/PL WASHER	1-09981-479-0	08	1	9202-	●	●
16	BRACKET; INST PNL	1-65680-836-0	01	1	9202-	●	●
18	BOLT; BRKT M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9202-	●	●
24	STAY; INST CLUSTER	1-65680-448-2	01	1	9202-	●	●
25	BOLT; STAY,INST CLUSTER M6X16 W/LK&PL WASHER	9-01960-616-0	02	1	9202-9204	●	●
25	BOLT; STAY,INST CLUSTER M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9205-	●	●
78	SUPPORT; VENT DUCT,PASSENGER SIDE	1-65680-372-3	01	1	9202-	●	●
80	SCREW; SUPPORT,VENT DUCT M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9202-	●	●
81	BRACKET; ELEC CONT UNIT	1-73998-404-6	01	1	9202-	●	●
82	BRACKET; CONT UNIT,ELEC	1-73998-409-7	01	1	9202-	●	●
83	BOLT; BRKT,CONT UNIT W/ PAINT M6X16 W/LK&PL WASHER	1-09980-458-0	01	1	9202-9304	●	●
83	BOLT; BRKT,CONT UNIT M6X16 W/LK&PL WASHER	1-09980-586-0	01	1	9305-	●	●
83	BOLT; BRKT,CONT UNIT W/0 PAINT M6X16 W/LK&PL WASHER	9-01960-616-0	01	1	9202-9204	●	●
83	BOLT; BRKT,CONT UNIT W/0 PAINT M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9205-	●	●
83	BOLT; BRKT,CONT UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	9-01960-620-0	03	1	9202-9204	●	●
83	BOLT; BRKT,CONT UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	0-50140-620-0	03	1	9205-	●	●
83	BOLT; BRKT,CONT UNIT EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	9-01960-620-0	02	1	9202-9204	●	●
83	BOLT; BRKT,CONT UNIT EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9205-	●	●
84	NUT; CONT UNIT BRKT M6 FLANGE	5-09440-004-0	01	1	9202-	●	●
141	PROTECTOR; EDGE AIR CON MANUAL CONTROL(C60) (A)	1-72378-024-0	01	1	9202-	●
141	PROTECTOR; EDGE (B)	1-72378-028-0	01	1	9202-	●	●
305	PLUG; SIDE PANEL,INST CLUSTER D4.6X14.7 BLACK	1-09983-104-0	02	1	9202-	●	●
367	SEAL; CONT UNIT BRKT 25X25	8-94272-533-0	01	1	9202-	●	●
368	BRACKET; SUB,ELEC CONT UNIT	1-73998-408-6	01	1	9202-	●	●
370	SCREW; BRKT,ELEC CONT UNIT M6X16 W/LK&PL WASHER	1-09981-141-0	04	1	9202-	●	●
381	CLIP; HARNESS POWER WINDOW<A30> (B) 1 SET=5 PIECE	1-09987-214-0	03	1	9206-	●
381	CLIP; HARNESS POWER WINDOW<A30> (C)	8-94138-987-0	02	1	9208-	●
381	CLIP; HARNESS (A) ID=31 L=50	1-09700-870-1	01	1	9209-	●	●
511	SCREW; CENTER CONSOLE M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9202-	●	●
535	BOLT; CLIP M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9209-9211	●	●
