8-01 — LAMP; FRONT AND FRONT SIDE (#9897) — 131 parça

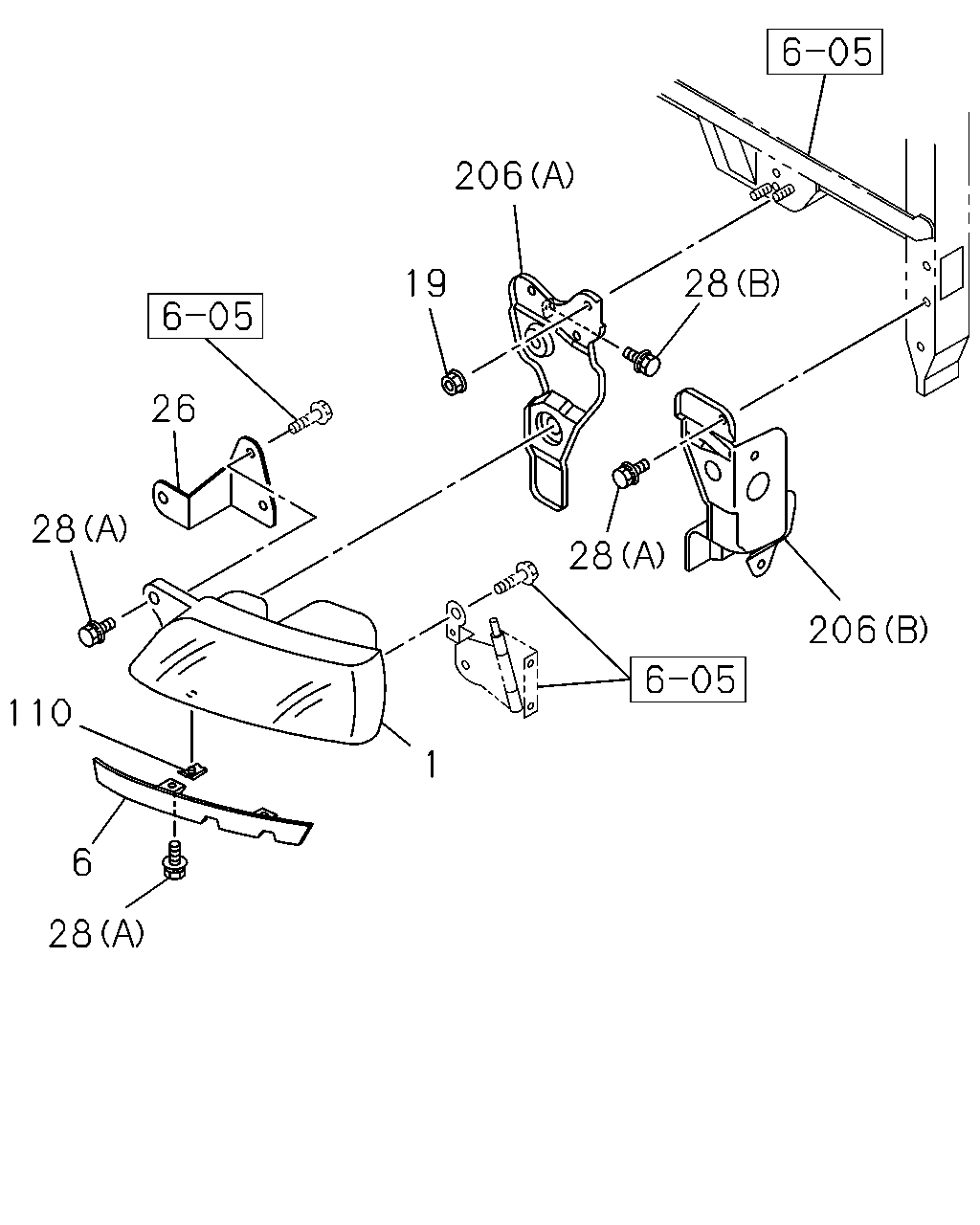

206 19 28 26 28 28 206 110 1 6 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	1-82110-399-2	01	1	0107-0509
1	LAMP ASM; HEAD	8-97609-417-0	01	1	0510-
1	LAMP ASM; HEAD	1-82110-400-2	01	1	0107-0509
1	LAMP ASM; HEAD	8-97609-418-0	01	1	0510-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-024-0	01	1	0107-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-023-0	01	1	0107-
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0107-
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-085-0	01	1	0107-
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-084-0	01	1	0107-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (E) M10X30 FLANGE	0-28681-030-0	06	1	0107-0512
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (E) M10X30 FLANGE	0-28651-030-0	06	1	0601-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0107-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0107-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0107-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0107-
110	CLIP; RIM,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-213-0	04	1	0107-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0107-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0107-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-762-3	01	1	0107-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-761-3	01	1	0107-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-574-3	01	1	0107-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-573-3	01	1	0107-

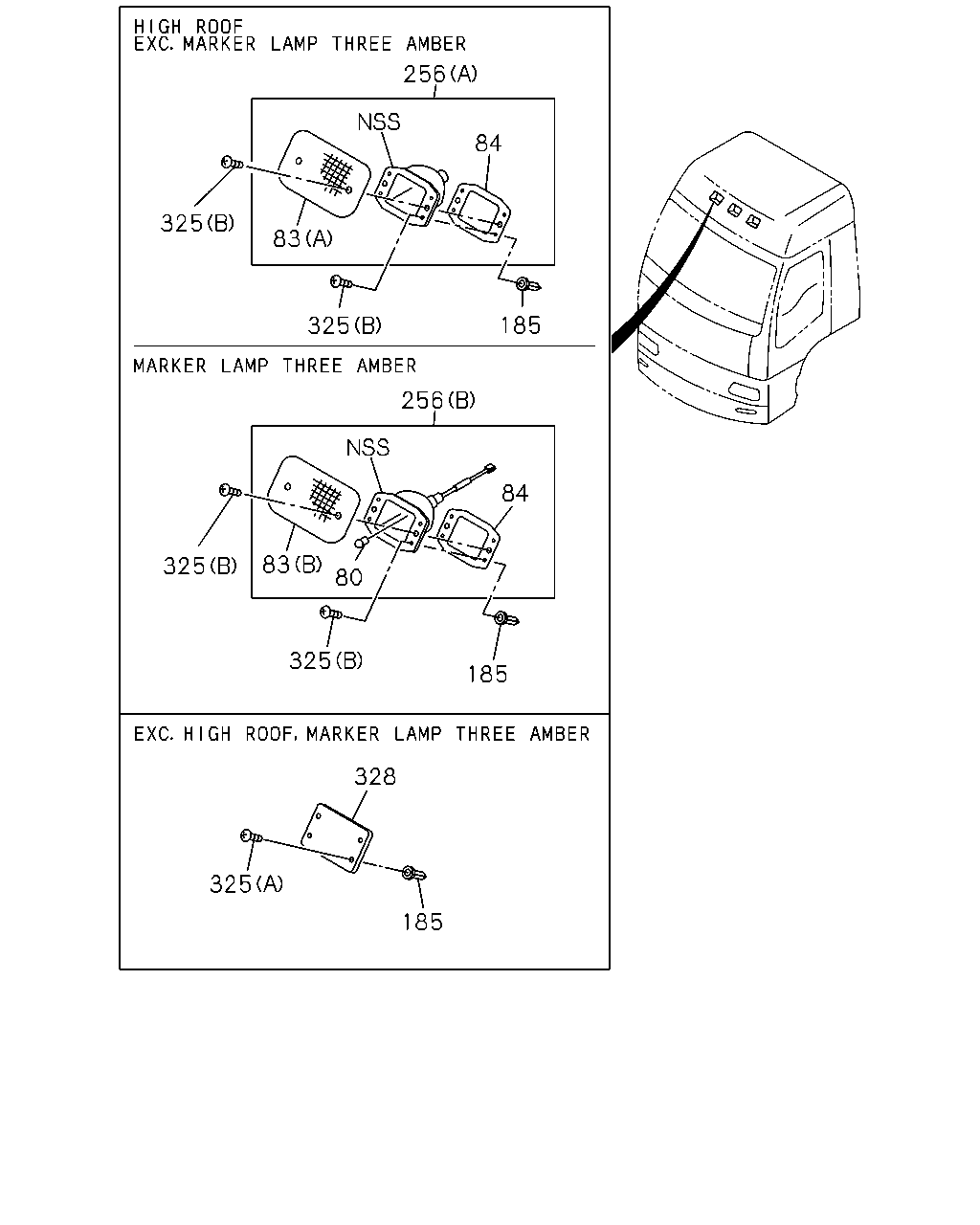

256 84 325 83 185 325 256 84 83 325 80 325 185 328 325 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BULB; MARKER LAMP MARKER LAMP THREE AMBER<WD9> 24V 12W	9-82691-302-0	03	1	0107-
83	LENS; MARKER LAMP HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> (B)	1-86830-320-0	03	1	0107-
83	LENS; MARKER LAMP HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (A)	1-86830-321-0	03	1	0107-
83	LENS; MARKER LAMP MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B)	1-82215-068-0	03	1	0107-
84	GASKET; MARKER LAMP MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F>	1-86830-153-0	03	1	0107-
84	GASKET; MARKER LAMP HIGH ROOF<S2F>	1-86830-153-0	03	1	0107-
185	GROMMET; SCREW M5 SCREW GROMMET	1-09983-131-0	12	1	0107-
256	LAMP; MARKER HIGH ROOF<S2F> MARKER LAMP THREE AMBER<WD9> (B) ROOF MARKER W/BLUB	1-82210-229-0	03	1	0107-
256	LAMP; MARKER HIGH ROOF<S2F> EXC. MARKER LAMP THREE AMBER<WD9> (A) ROOF MARKER WO/BLUB	1-82210-230-0	03	1	0107-
256	LAMP; MARKER MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B) ROOF MARKER W/BLUB	1-86830-170-0	03	1	0107-
325	SCREW; SPD INDICATOR LAMP HIGH ROOF<S2F> (B) M5X20 TAPPING	0-71090-520-0	18	1	0107-
325	SCREW; SPD INDICATOR LAMP MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B) M5X20 TAPPING	0-71090-520-0	18	1	0107-
325	SCREW; SPD INDICATOR LAMP EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9> (A) M5X14 TAPPING	9-07066-514-0	12	1	0107-0603
325	SCREW; SPD INDICATOR LAMP EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9> (A) M5X14 TAPPING	0-71040-514-0	12	1	0604-
328	COVER; LAMP EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9>	1-76217-122-1	03	1	0107-

1 12 14 15 23 5 340 4 13 211 13 13 18 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	1-82110-399-2	01	1	0107-0509
1	LAMP ASM; HEAD	8-97609-417-0	01	1	0510-
1	LAMP ASM; HEAD	1-82110-400-2	01	1	0107-0509
1	LAMP ASM; HEAD	8-97609-418-0	01	1	0510-
4	HEADLAMP UNIT	1-82119-132-0	01	1	0107-
4	HEADLAMP UNIT	1-82119-133-0	01	1	0107-
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	0107-
12	HARNESS; HEADLAMP	1-82118-012-0	02	1	0107-
13	CLIP; HEADLAMP (A)	1-82119-084-0	04	1	0107-
13	CLIP; HEADLAMP (B)	8-94381-588-0	14	1	0107-
14	CAP; BULB,LAMP	1-86830-148-0	02	1	0107-
15	BULB; FOG LAMP 24V 55W	1-82194-079-0	02	1	0107-
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	0107-
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	0107-
202	GEAR UNIT; HEADLAMP	1-86830-139-0	04	1	0107-
211	TUBE; HEADLAMP	1-86830-330-0	01	1	0107-
211	TUBE; HEADLAMP	1-86830-331-0	01	1	0107-
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	0107-

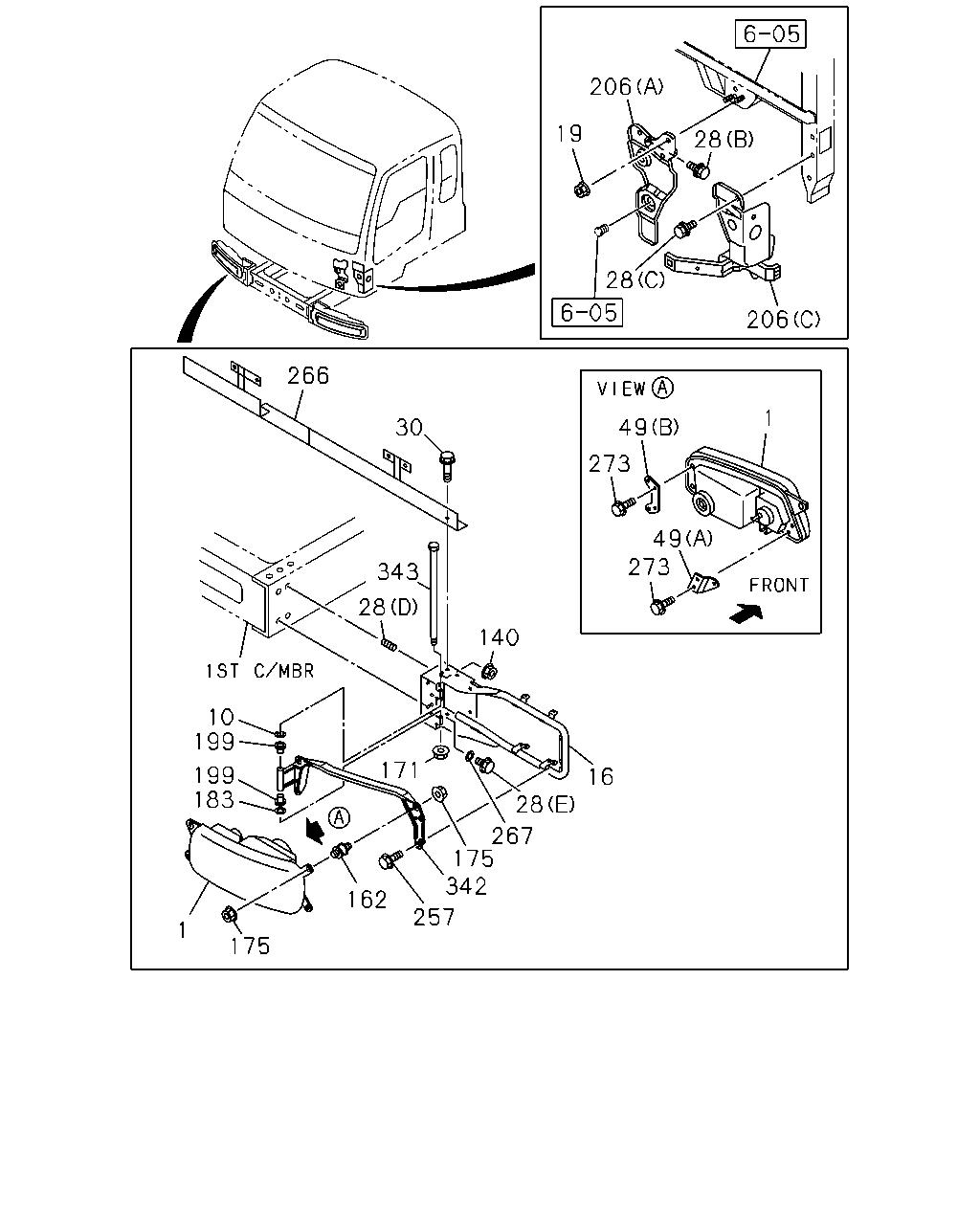

206 19 28 28 206 266 1 30 49 273 49 273 343 28 140 10 199 171 199 183 16 28 267 175 342 162 257 1 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	1-82110-399-2	01	1	0107-0509
1	LAMP ASM; HEAD	8-97609-417-0	01	1	0510-
1	LAMP ASM; HEAD	1-82110-400-2	01	1	0107-0509
1	LAMP ASM; HEAD	8-97609-418-0	01	1	0510-
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> ID=8.4	9-09160-508-0	02	1	0107-0605
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> ID=8.4 OD=16	0-91610-508-0	02	1	0606-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-119-2	01	1	0107-0206
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-155-2	02	1	0207-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-120-2	01	1	0107-0206
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0107-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (E) M10X30 FLANGE	0-28681-030-0	06	1	0107-0512
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (E) M10X30 FLANGE	0-28651-030-0	06	1	0601-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0107-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0107-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0107-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0107-
30	BOLT; STAY M10X25 FLANGE	0-28681-025-0	04	1	0107-0512
30	BOLT; STAY M10X25 FLANGE	0-28651-025-0	04	1	0601-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-100-0	02	1	0107-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-101-0	01	1	0107-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-102-0	01	1	0107-
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	02	1	0107-0602
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91180-210-0	02	1	0603-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-086-0	08	1	0107-
171	NUT BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91150-106-0	02	1	0107-0602
171	NUT BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91180-106-0	02	1	0603-
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	0107-0602
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91180-108-0	16	1	0603-
183	WASHER; HEADLAMP BUMPER W/HEADLAMPS<SLB> ID=8.5	9-09855-333-0	02	1	0107-
199	BUSHING BUMPER W/HEADLAMPS<SLB>	5-15549-001-1	04	1	0107-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0107-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0107-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-762-3	01	1	0107-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-761-3	01	1	0107-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-574-3	01	1	0107-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-573-3	01	1	0107-
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28080-820-0	04	1	0107-0512
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28050-820-0	04	1	0601-
266	STAY; BRKT,HEADLAMP	1-82117-128-1	01	1	0107-
267	WASHER; PL,STAY BUMPER W/HEADLAMPS<SLB> ID=10.5 OD=22	9-09164-610-0	04	1	0207-0605
267	WASHER; PL,STAY BUMPER W/HEADLAMPS<SLB> ID=10.5 OD=22	0-91614-610-0	04	1	0606-
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28680-616-0	08	1	0107-0512
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28650-616-0	08	1	0601-
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB>	1-82117-087-2	01	1	0107-
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB>	1-82117-088-2	01	1	0107-
343	SHAFT; HINGE BUMPER W/HEADLAMPS<SLB>	1-82119-096-1	02	1	0107-

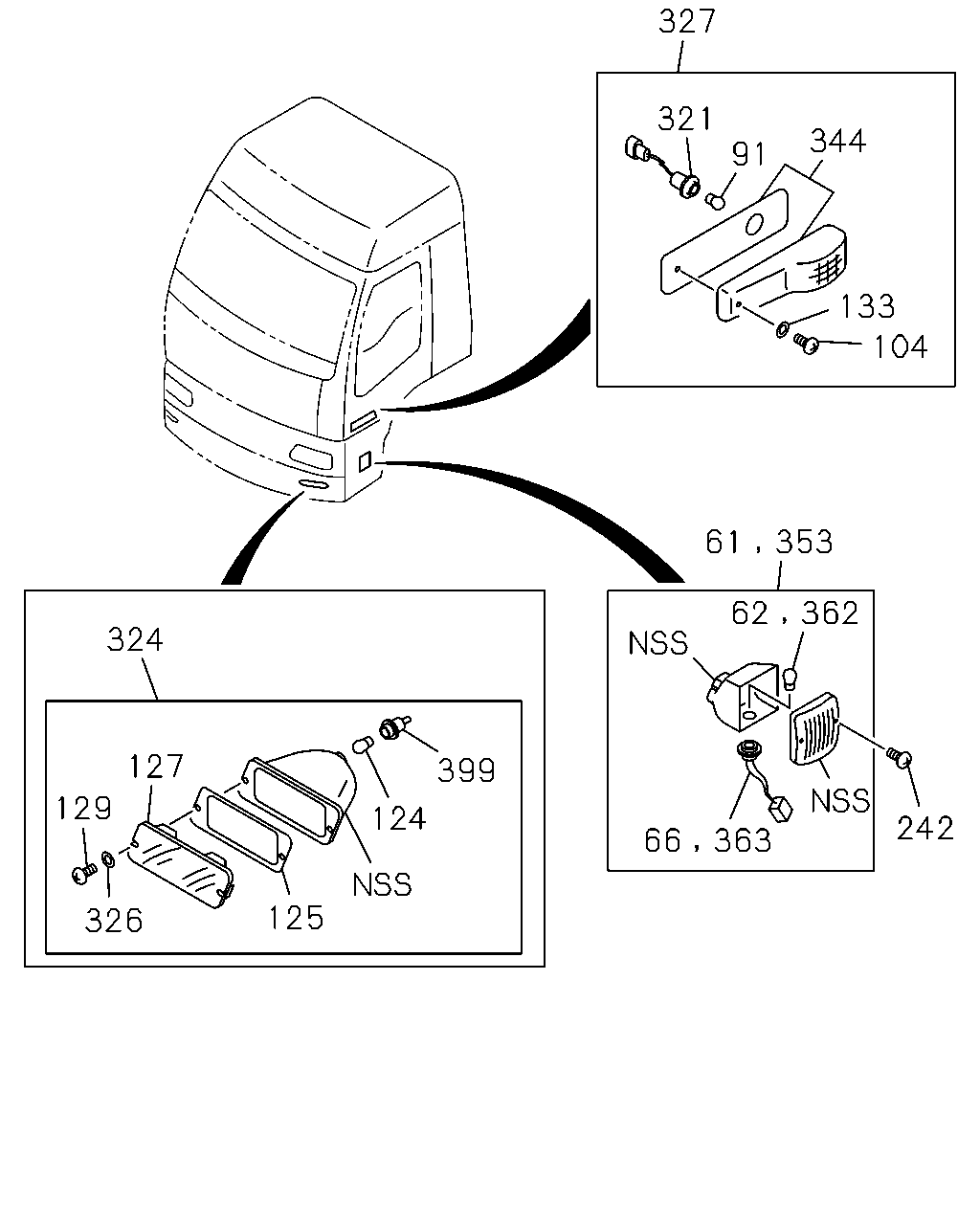

327 321 344 91 133 104 61 353 324 127 399 129 124 242 125 326 62 362 363 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	LAMP ASM; CORNERING CORNERING LAMP<TDS>	1-86830-247-2	01	1	0107-
61	LAMP ASM; CORNERING CORNERING LAMP<TDS> 24V 30W	1-86830-187-2	01	1	0107-
62	BULB; CORNERING LAMP CORNERING LAMP<TDS> 24V 30/10W	1-82194-065-0	01	1	0107-
62	BULB; CORNERING LAMP CORNERING LAMP<TDS> 24V 30W	8-97010-179-0	01	1	0107-
66	HARNESS; CORNERING LAMP CORNERING LAMP<TDS>	1-86830-297-0	01	1	0107-
66	HARNESS; CORNERING LAMP CORNERING LAMP<TDS>	1-86830-146-0	01	1	0107-
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0107-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0107-
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-036-0	02	1	0107-
125	GASKET; FRT TURN SIGNAL	1-82216-033-0	02	1	0107-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-065-0	01	1	0107-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-064-0	01	1	0107-
129	SCREW; FRT TURN SIGNAL	1-82219-026-0	04	1	0107-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	0107-0206
242	SCREW; CORNERING LAMP CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	04	1	0107-0207
242	SCREW; CORNERING LAMP CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71090-420-0	04	1	0208-
242	SCREW; CORNERING LAMP EXC. CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	02	1	0107-0207
242	SCREW; CORNERING LAMP EXC. CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71090-420-0	02	1	0208-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0107-
324	LAMP; FRT FLASHER	1-82210-203-1	01	1	0107-
324	LAMP; FRT FLASHER	1-82210-202-1	01	1	0107-
326	WASHER; PL,FRT TURN SIGNAL	1-82216-032-0	04	1	0107-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0107-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0107-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	0107-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	0107-
353	LAMP ASM; STEP EXC. CORNERING LAMP<TDS> 24V 5W	1-86830-248-2	01	1	0107-
362	BULB; STEP LAMP EXC. CORNERING LAMP<TDS> 24V 5W	1-82194-042-0	01	1	0107-
363	HARNESS; STEP LAMP EXC. CORNERING LAMP<TDS>	1-86830-296-0	01	1	0107-
399	SOCKET; TURN SIGNAL	1-82219-034-0	02	1	0107-
