◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10866 - EXD LHD FUEL TANK 400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#9893) — 12 parça

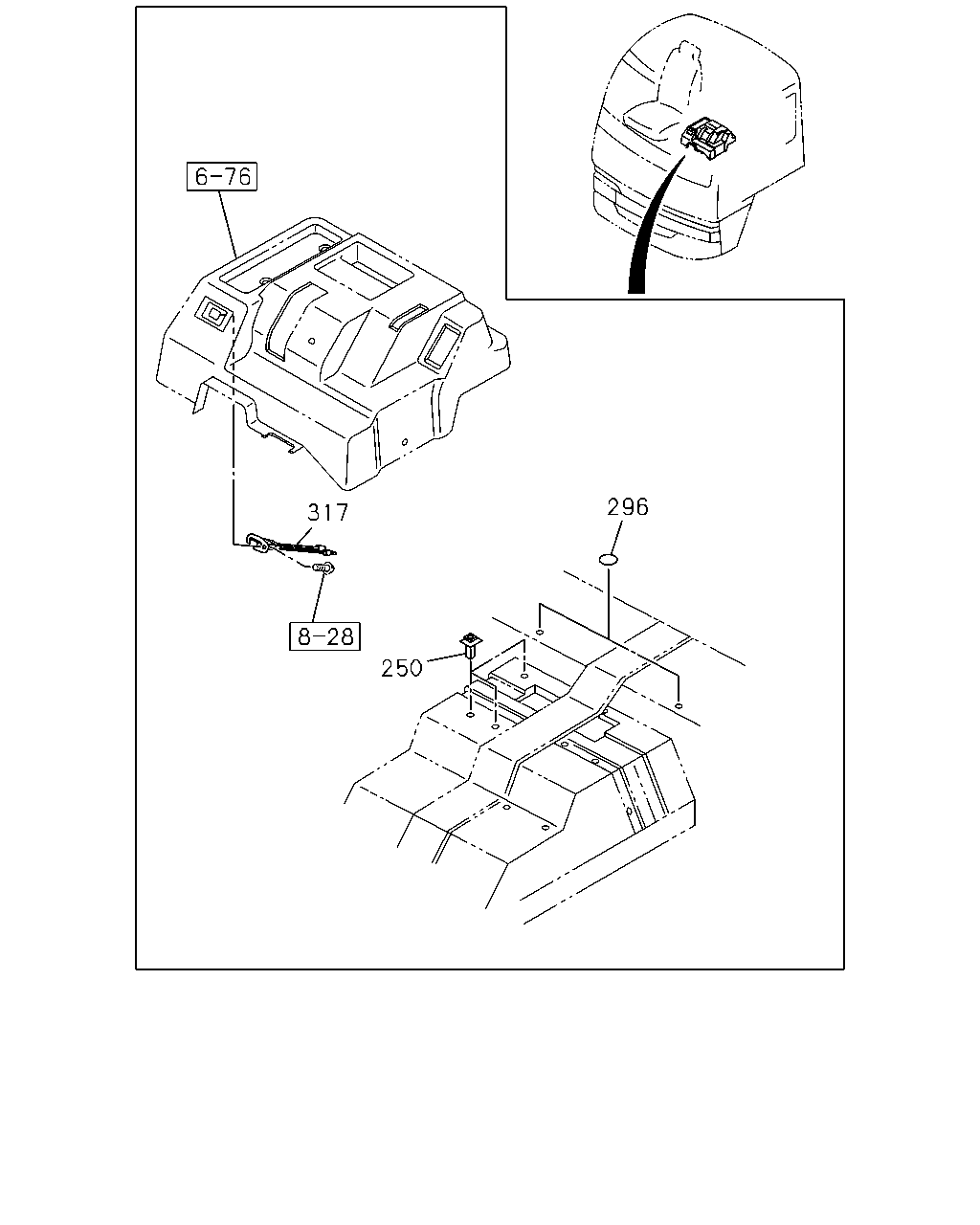

çizim 22164
296 317 250
BalonParca AdiParca NoAdetTipApplied Date
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0107-0312
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0401-
296 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0107-0303
296 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0304-
317 CONSENT 1-82523-020-2 01 1 0107-
çizim 75414
315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW 1-82359-069-2 18 1 0107-
315 COVER; HOLE,SW 1-82359-069-2 01 1 0107-
315 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82359-069-2 01 1 0107-
315 COVER; HOLE,SW
EXC. DIFF LOCK<C3N> 		1-82359-069-2 01 1 0107-
315 COVER; HOLE,SW
EXC. MARKER LAMP THREE AMBER<WD9> 		1-82359-069-2 01 1 0107-
315 COVER; HOLE,SW 1-82359-069-2 01 1 0107-
315 COVER; HOLE,SW 1-82359-069-2 01 1 0107-
