7-40 — INSTRUMENT PANEL AND BOX (#9891) — 107 parça

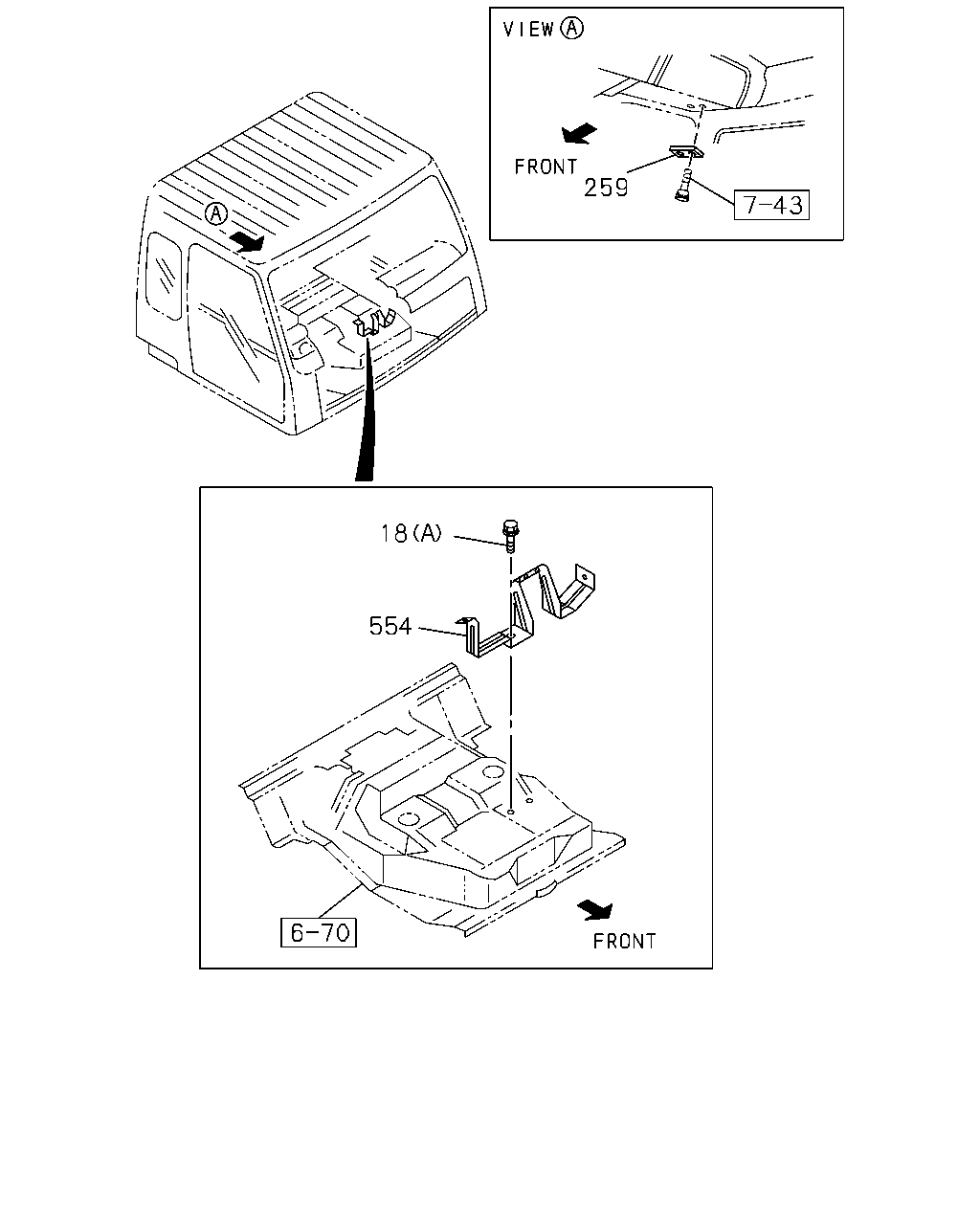

çizim 22159
259 18 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0107-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0107-
18 BOLT; BRKT
DELUXE CAB(W14) EXC. ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0107-
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 0107-

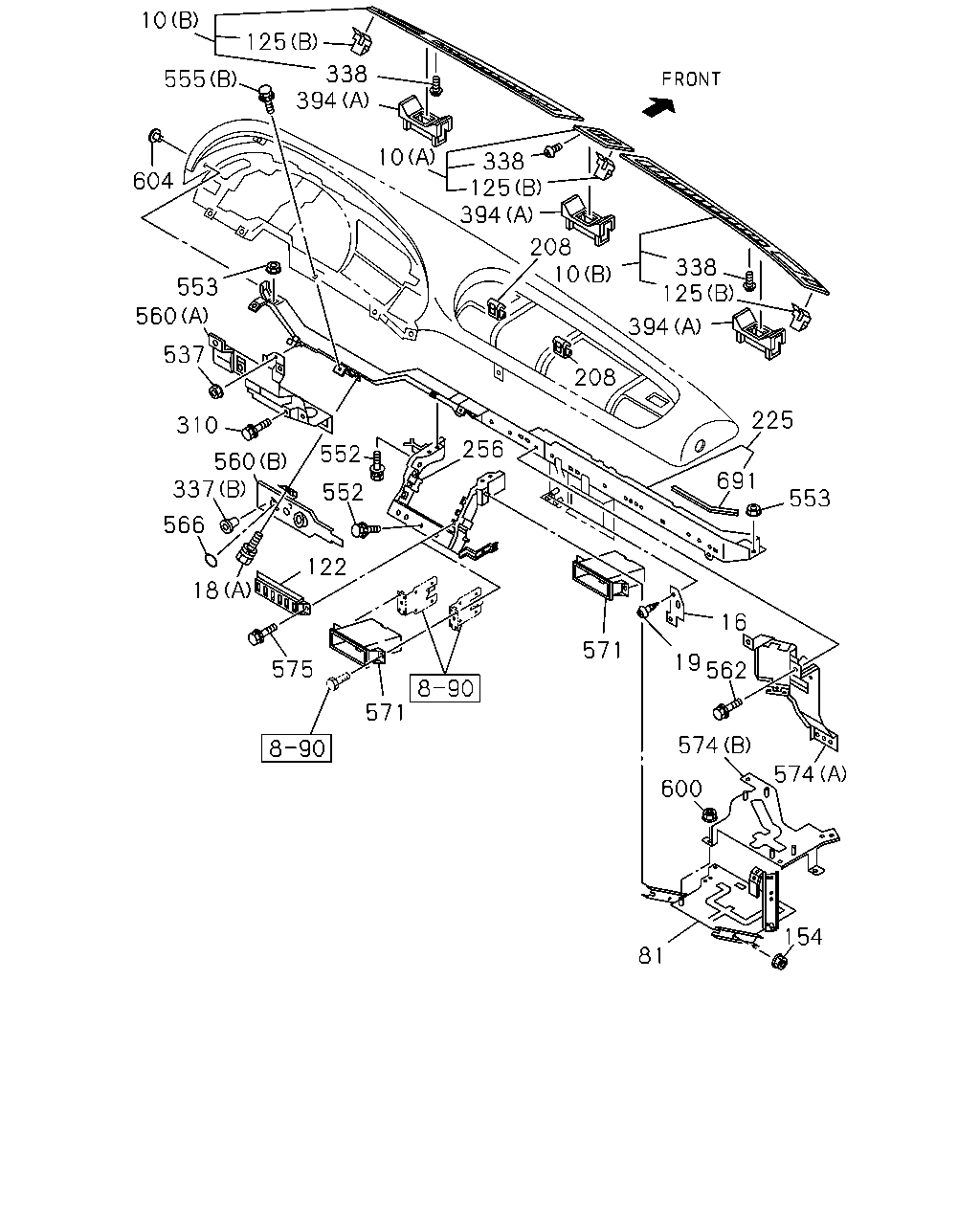

çizim 22160
10 125 338 394 555 10 338 125 394 604 208 10 338 125 553 560 394 537 208 225 310 256 552 560 337 691 552 553 566 122 18 16 571 19 562 575 571 574 574 600 154 81
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-72437-540-6 01 1 0107-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-601-6 01 1 0107-
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) W/SPEAKER NET 		1-72437-600-6 01 1 0107-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-73908-023-2 01 1 0107-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0107-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0107-
18 BOLT; BRKT
DELUXE CAB(W14) EXC. ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14 		8-94279-325-0 02 1 0107-
81 BRACKET; ELEC CONT UNIT 1-73907-648-4 01 1 0107-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0107-
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 0107-
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97217-066-0 10 1 0107-0309
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97217-066-0 10 1 0406-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0107-0602
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0107-
225 FRAME; FACIA 1-65671-727-5 01 1 0107-
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 0107-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0107-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 0107-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0107-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0107-
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14 		8-94279-325-0 12 1 0107-0208
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14 		8-94148-576-1 12 1 0209-0309
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14 		8-94279-325-0 22 1 0310-0405
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14 		8-94279-325-0 12 1 0406-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0107-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0107-0407
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0107-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0107-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0107-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0107-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0107-
560 BRACKET
(A) 		1-65681-045-6 01 1 0107-
560 BRACKET
(B) 		1-65681-160-0 01 1 0107-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0107-
566 PLUG; HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0107-
571 BEZEL; POCKET 1-72438-151-3 01 1 0107-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0107-
574 PANEL; RELAY BOX
(A) 		1-73907-407-3 01 1 0107-
574 PANEL; RELAY BOX
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-73907-647-3 01 1 0107-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
600 NUT; PANEL
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91150-106-0 03 1 0107-0602
600 NUT; PANEL
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91180-106-0 03 1 0603-
604 CLIP; INST PAD 1-09983-123-0 01 1 0107-
691 FINISHER; HARNESS PROTECTOR
L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0107-

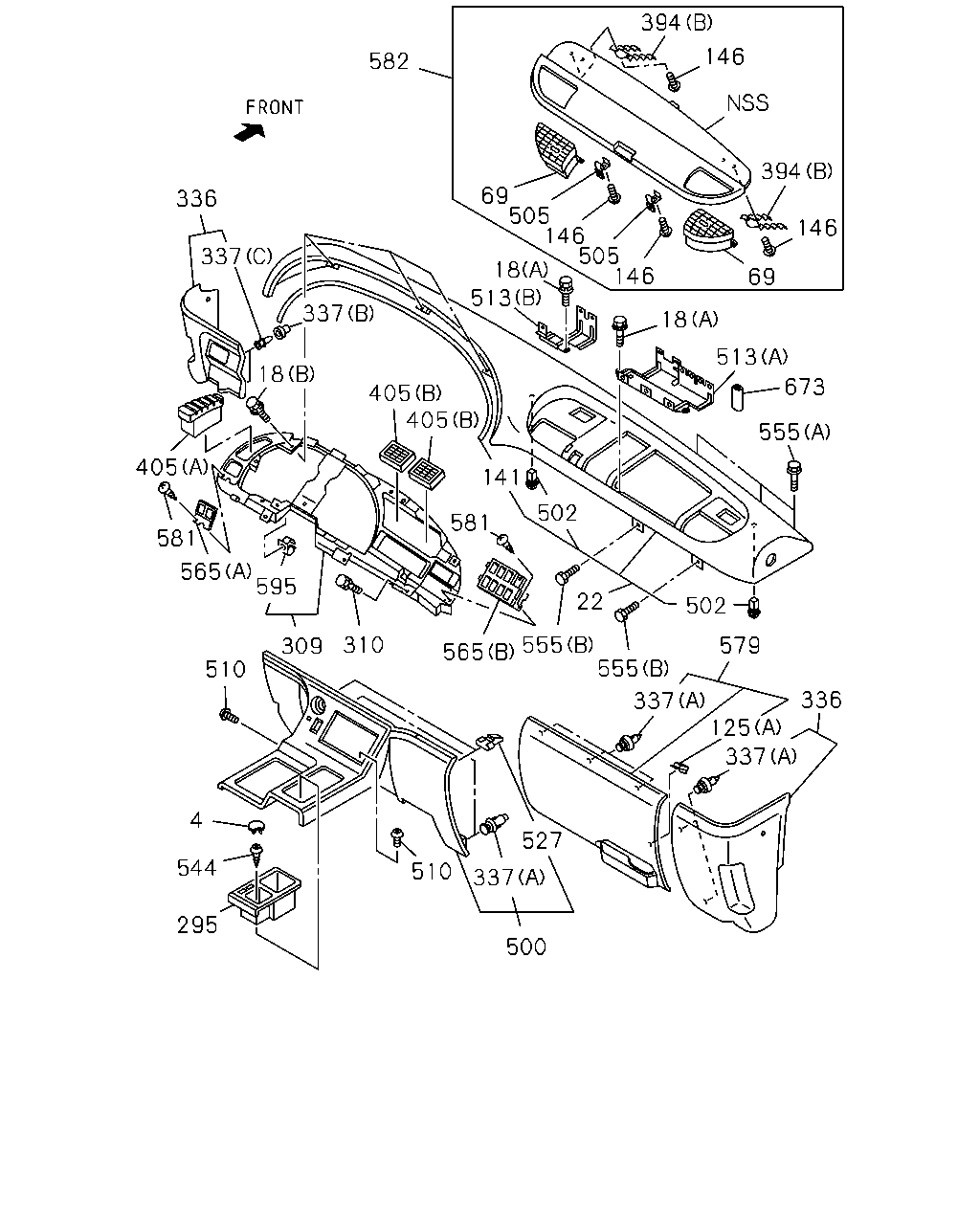

çizim 22163
394 146 582 394 69 505 146 146 336 146 337 18 69 337 18 513 18 673 405 405 555 405 141 581 502 581 565 595 22 502 310 555 565 555 579 309 510 336 337 125 337 4 527 544 510 337 295 500 505 513
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0107-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0107-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0107-
18 BOLT; BRKT
DELUXE CAB(W14) EXC. ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
18 BOLT; BRKT
ZF M/T<X9E> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
22 PAD; INST 1-72317-351-2 01 1 0107-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0107-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0107-
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 0107-
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97217-066-0 10 1 0107-0309
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97217-066-0 18 1 0310-0405
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97217-066-0 10 1 0406-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0107-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0107-
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 0107-
309 PANEL; SW,INST 1-72418-018-3 01 1 0107-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0107-
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0107-
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0107-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 0107-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0107-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0107-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0107-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0107-0407
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408-
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 0107-
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 0107-
500 CLUSTER; INST CENTER 1-72437-642-1 01 1 0107-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0107-
505 LOCK; LID 1-72558-024-2 02 1 0107-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0107-
513 BRACKET; RELAY
(A) 		8-97865-168-3 01 1 0107-
513 BRACKET; RELAY
DELUXE CAB(W14) EXC. ZF M/T<X9E> (B) 		1-73907-327-3 01 1 0107-
513 BRACKET; RELAY
ZF M/T<X9E> (B) 		1-73907-327-3 01 1 0107-
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 0107-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0107-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0107-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0107-
565 BEZEL; SW PANEL
(A) 		1-72418-021-1 01 1 0107-
565 BEZEL; SW PANEL
(B) 		1-72418-020-1 01 1 0107-
579 COVER; INST PNL 1-72438-195-1 01 1 0107-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0107-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0107-
595 NUT; HOOK 1-72418-013-0 10 1 0107-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0107-
