Isuzu WW
▶
TRUCKS
▶
EXD
▶
10866 - EXD LHD FUEL TANK 400L
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

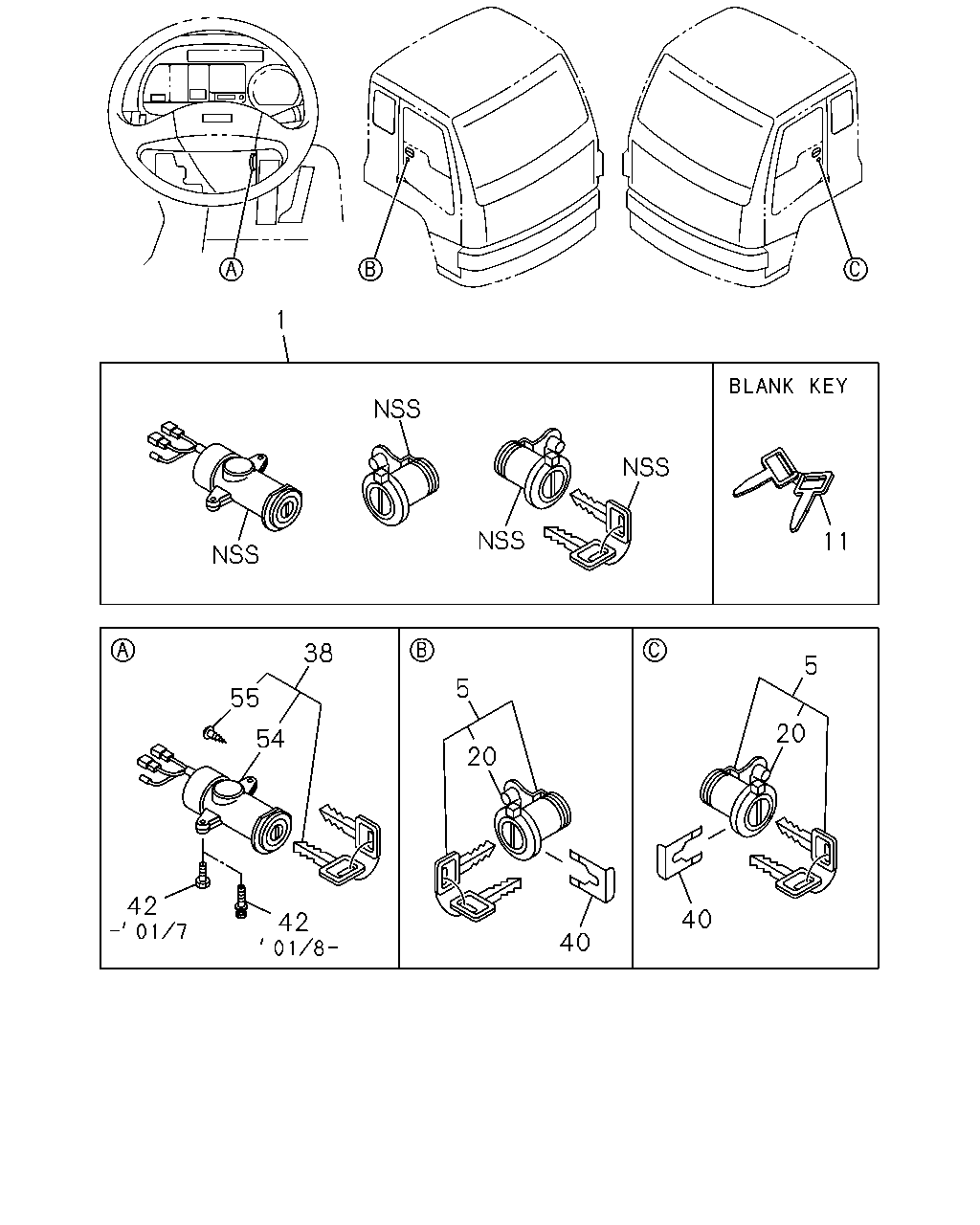

7-30 — LOCK CYLINDER SET
(#9890) — 13 parça
1
11
38
5
5
55
20
54
20
42
40
42
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
1-79138-199-4
01
1
0107-
5
CYLINDER ASM; DOOR LOCK
1-79138-202-2
01
1
0107-
5
CYLINDER ASM; DOOR LOCK
1-79138-203-2
01
1
0107-
11
KEY; BLANK
WO/RESIN
1-79137-129-1
AR
1
0107-
11
KEY; BLANK
W/RESIN
1-79137-130-1
AR
1
0107-
20
SNAP; DOOR LOCK CYL
PINK
1-79138-192-0
01
1
0107-
20
SNAP; DOOR LOCK CYL
GREEN
1-79138-193-0
01
1
0107-
38
LOCK ASM; STRG
1-79138-201-2
01
1
0107-
40
CLIP; CYL LK
1-79137-033-1
02
1
0107-
42
BOLT; STRG LOCK
M8X30 W/PL WASHER
1-09981-482-2
02
1
0107-0107
42
BOLT; STRG LOCK
CUT BOLT M8X30 W/PL WASHER
1-09980-621-1
02
1
0108-
54
SWITCH ASM; STRG LOCK CYL
1-79137-050-1
01
1
0107-
55
SCREW; SWITCH
M3X10 W/LK WASHER
9-03910-310-0
02
1
0107-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
