7-45 — CONSOLE BOX (#989) — 15 parça

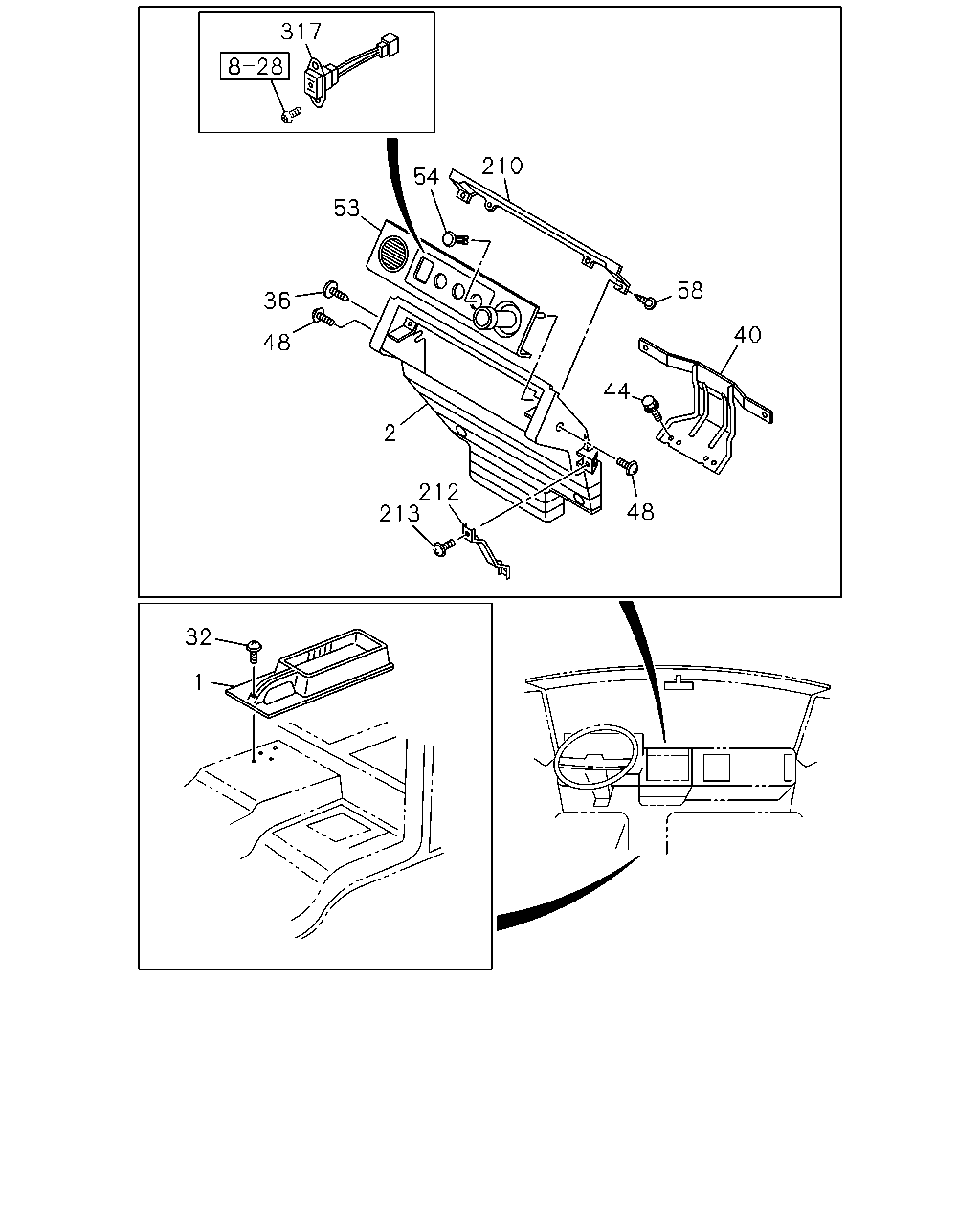

çizim 92449
317 210 54 53 58 36 40 48 44 2 212 213 48 32 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BOX; PARCEL
DELUXE CAB(W14) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-111-0 01 1 9202- ● ●
2 CONSOLE; CENTER
DARK GRAY 		1-72448-289-0 01 1 9202- ● ●
32 SCREW; PARCEL BOX
DELUXE CAB(W14) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20 		1-09981-446-0 04 1 9202- ● ●
36 FASTENER; CENTER CONSOLE
BLACK 		8-94104-935-0 01 1 9407- ● ●
40 BRACKET; SUPPORT,CENTER CONSOLE 1-65680-424-1 01 1 9202- ● ●
44 BOLT; SUPPORT,CTR CONSOLE
M6X16 W/LK&PL WASHER 		1-09980-458-0 02 1 9202-9307 ● ●
44 BOLT; SUPPORT,CTR CONSOLE
M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9308- ● ●
48 SCREW; BRKT,CENTER CONSOLE
M6X16 W/LK&PL WASHER 		1-09981-367-0 02 1 9202- ● ●
53 PANEL; SW,CENTER CONSOLE 1-72448-242-2 01 1 9202- ● ●
54 BUTTON; CLIP,CTR CONSOLE 1-72447-390-0 03 1 9202- ● ●
58 SCREW; SW PNL
M5X14 W/PL WASHER 		5-09981-050-0 04 1 9202- ● ●
210 REINFORCEMENT; CTR CONSOLE 1-72448-243-2 01 1 9202- ● ●
212 SUPPORT; CONSOLE TO COMPT 1-65680-588-0 01 1 9202- ● ●
213 SCREW; CONSOLE TO COMPT 1-09981-388-1 01 1 9202- ● ●
317 CONSENT
24V 10A 		1-82523-012-2 01 1 9202- ● ●
