6-47 — MUD GUARD AND INSULATOR (#9875) — 220 parça

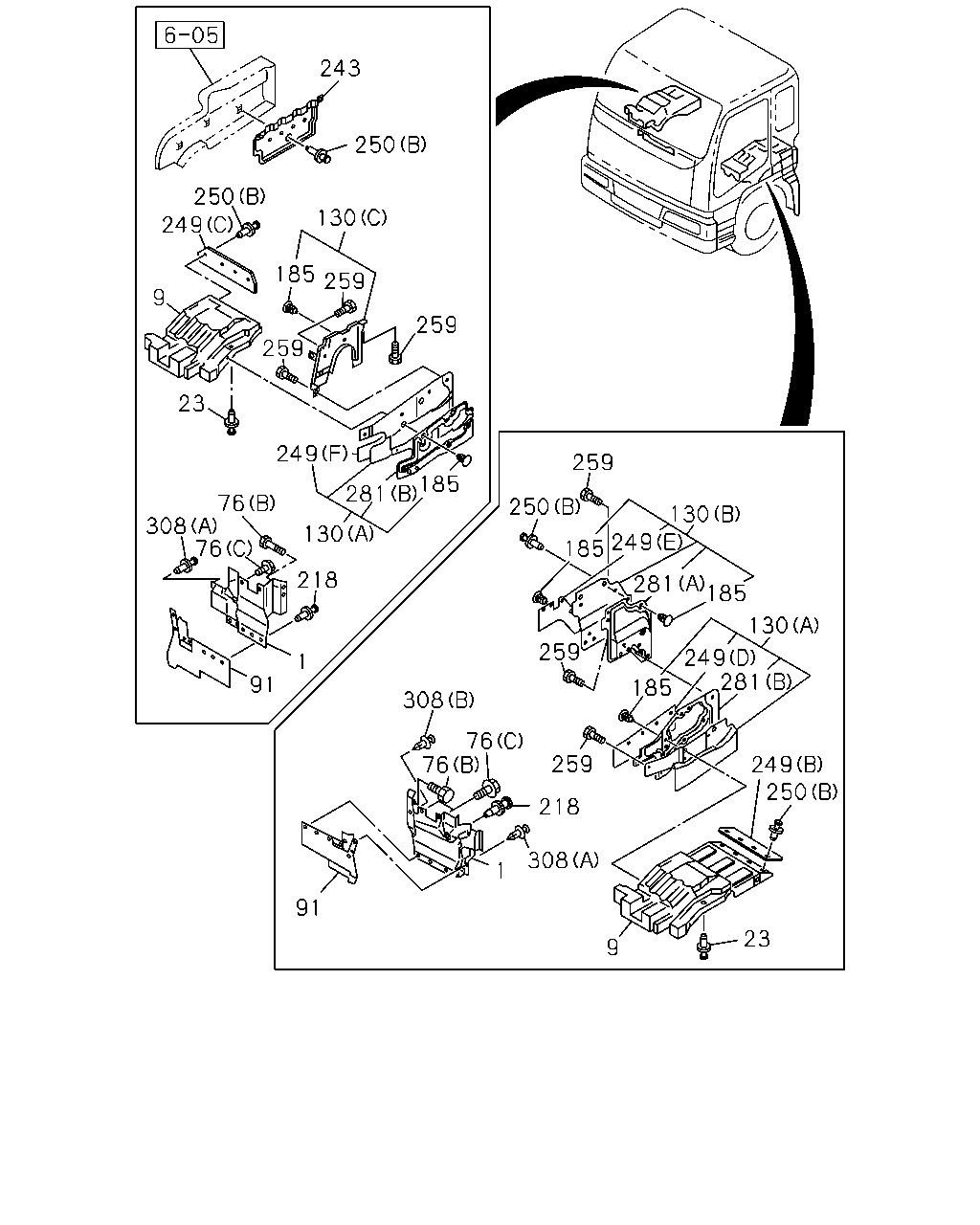

çizim 21106
243 250 250 130 249 185 259 9 259 259 23 249 259 185 281 76 308 76 250 130 249 185 130 218 281 185 130 259 249 281 1 91 185 308 76 76 259 249 250 218 308 1 91 23 9
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0107-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0107-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0107-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0107-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0107-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0107-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0107-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0107-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0107-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0107-
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-79937-943-1 01 1 0403-
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-79947-028-2 01 1 0403-
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-79947-029-2 01 1 0403-
130 PANEL; SHUTTER NOISE
(A) 		1-79937-960-2 01 1 0107-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (A) 		1-79937-960-4 01 1 0403-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-993-1 01 1 0107-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (B) 		1-79937-993-3 01 1 0403-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-945-1 01 1 0107-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (C) 		1-79937-945-1 01 1 0403-
130 PANEL; SHUTTER NOISE
(A) 		1-79937-990-3 01 1 0107-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (E) 		1-53192-782-7 01 1 0107-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (E) 		1-53192-790-5 01 1 0107-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-328-1 01 1 0107-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-329-1 01 1 0107-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0403-
185 CLIP; HEAT INSULATOR
EXC. TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 08 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 17 1 0107-0402
185 CLIP; HEAT INSULATOR
TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 06 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0107-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0107-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-0402
185 CLIP; HEAT INSULATOR
TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 10 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0107-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-0402
185 CLIP; HEAT INSULATOR
TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 09 1 0403-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 0107-0511
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0107-
249 RUBBER; SHUTTER
(C) 		1-79937-979-1 01 1 0107-
249 RUBBER; SHUTTER
(B) 		1-79937-981-1 01 1 0107-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0107-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0107-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0107-
249 RUBBER; SHUTTER
(F) 		1-79937-989-1 01 1 0107-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0107-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0107-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0107-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0107-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0107-
281 INSULATOR; NOISE
(A) 		1-71907-167-0 01 1 0107-0402
281 INSULATOR; NOISE
TAIWAN EQUIPMENT(WW5) (A) 		1-71907-167-0 01 1 0403-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0107-0402
281 INSULATOR; NOISE
TAIWAN EQUIPMENT(WW5) (B) 		1-71907-171-2 01 1 0403-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0107-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0107-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0107-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0107-

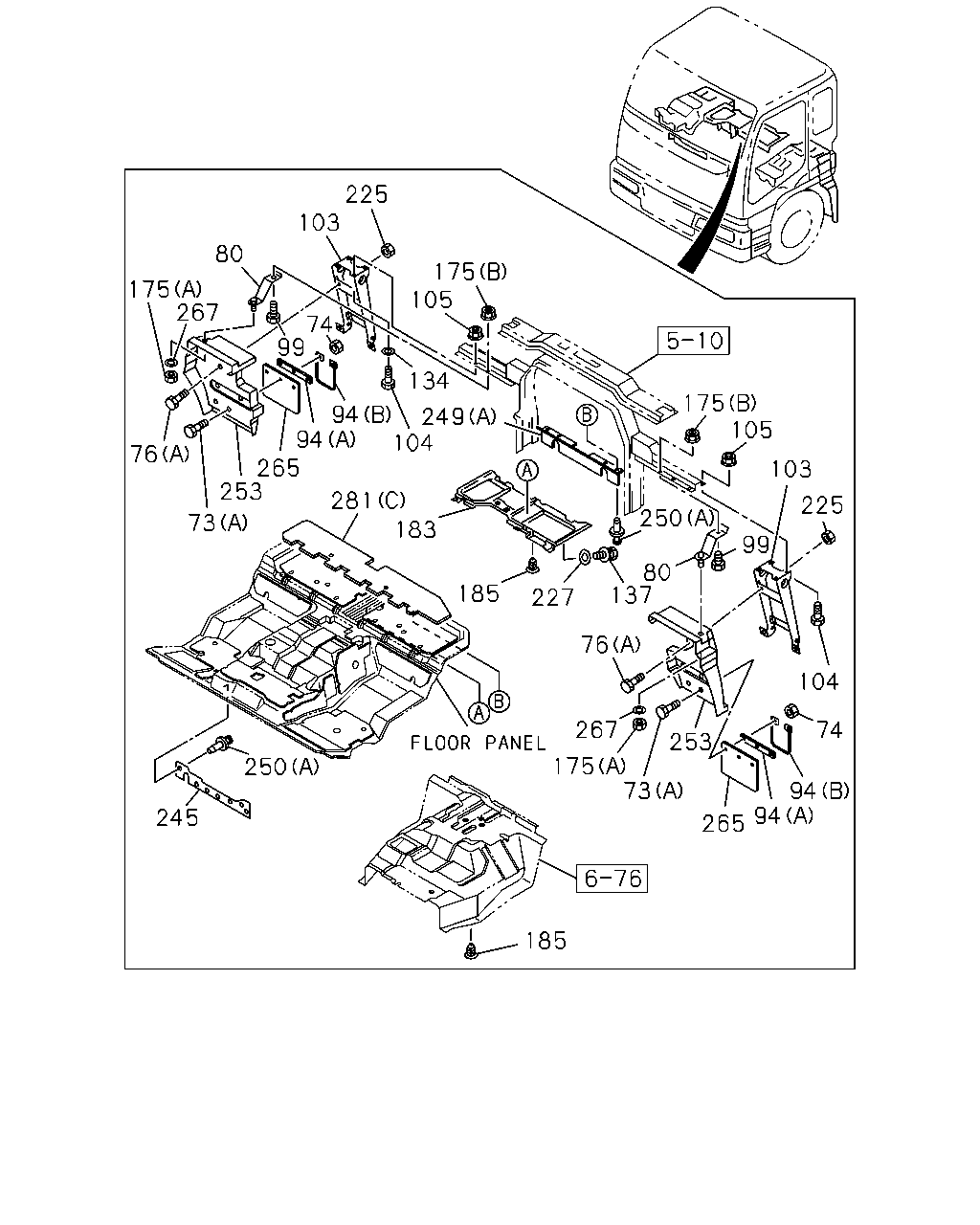

çizim 21107
225 103 80 175 105 175 267 74 99 134 175 105 94 249 94 104 265 253 76 103 281 183 225 250 73 99 80 137 185 227 76 104 267 74 253 175 73 250 94 94 245 265 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 08 1 0107-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0107-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0107-0602
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0107-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 0107-0602
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 03 1 0603-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0107-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0107-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0107-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0107-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0107-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 0107-
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28681-020-0 02 1 0107-0512
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28651-020-0 02 1 0601-
103 BRACKET ASM; RR MUD FLAP 1-79931-347-1 01 1 0107-
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 01 1 0107-
104 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 0107-0512
104 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 08 1 0601-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 0107-0602
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0603-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0107-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0107-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0602
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 0107-0602
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-
183 INSULATOR; HEAT,BED PAN 1-71907-539-4 01 1 0107-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 0401-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 08 1 0403-
185 CLIP; HEAT INSULATOR
EXC. TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 08 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 17 1 0107-0402
185 CLIP; HEAT INSULATOR
TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 06 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0107-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0107-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0401-0402
185 CLIP; HEAT INSULATOR
TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 10 1 0403-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0107-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-0402
185 CLIP; HEAT INSULATOR
TAIWAN EQUIPMENT(WW5) ID=6.2 L=11.4 		8-97808-623-0 09 1 0403-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 0107-0602
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0603-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0107-
245 RUBBER; SHUTTER,RAD 1-79947-023-0 01 1 0107-0301
245 RUBBER; SHUTTER,RAD 1-79937-949-1 01 1 0302-
249 RUBBER; SHUTTER
(C) 		1-79937-979-1 01 1 0107-
249 RUBBER; SHUTTER
(B) 		1-79937-981-1 01 1 0107-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0107-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0107-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0107-
249 RUBBER; SHUTTER
(F) 		1-79937-989-1 01 1 0107-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0107-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0107-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 0107-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 0107-
253 GUARD; MUD 1-79931-067-7 01 1 0107-
253 GUARD; MUD 1-79931-065-7 01 1 0107-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0107-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 0107-0605
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0606-
281 INSULATOR; NOISE
(A) 		1-71907-167-0 01 1 0107-0402
281 INSULATOR; NOISE
TAIWAN EQUIPMENT(WW5) (A) 		1-71907-167-0 01 1 0403-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 0107-0402
281 INSULATOR; NOISE
TAIWAN EQUIPMENT(WW5) (B) 		1-71907-171-2 01 1 0403-
281 INSULATOR; NOISE
(B) 		1-79937-956-1 01 1 0107-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0107-
çizim 22051
114 71 251
BalonParca AdiParca NoAdetTipApplied Date
71 RUBBER; SEAL 1-21593-092-1 01 1 0107-0609
71 RUBBER; SEAL 1-21593-118-0 01 1 0610-
114 BOLT
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
114 BOLT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-0605
114 BOLT
M8X25 FLANGE 		0-28650-825-0 01 1 0606-
114 BOLT
M8X20 FLANGE 		0-28680-820-0 05 1 0107-0512
114 BOLT
M8X20 FLANGE 		0-28650-820-0 05 1 0601-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0107-
251 CLIP; NOISE INSULATOR
(B) 		5-09987-033-0 05 1 0107-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> (A) 		8-94279-048-0 14 1 0107-

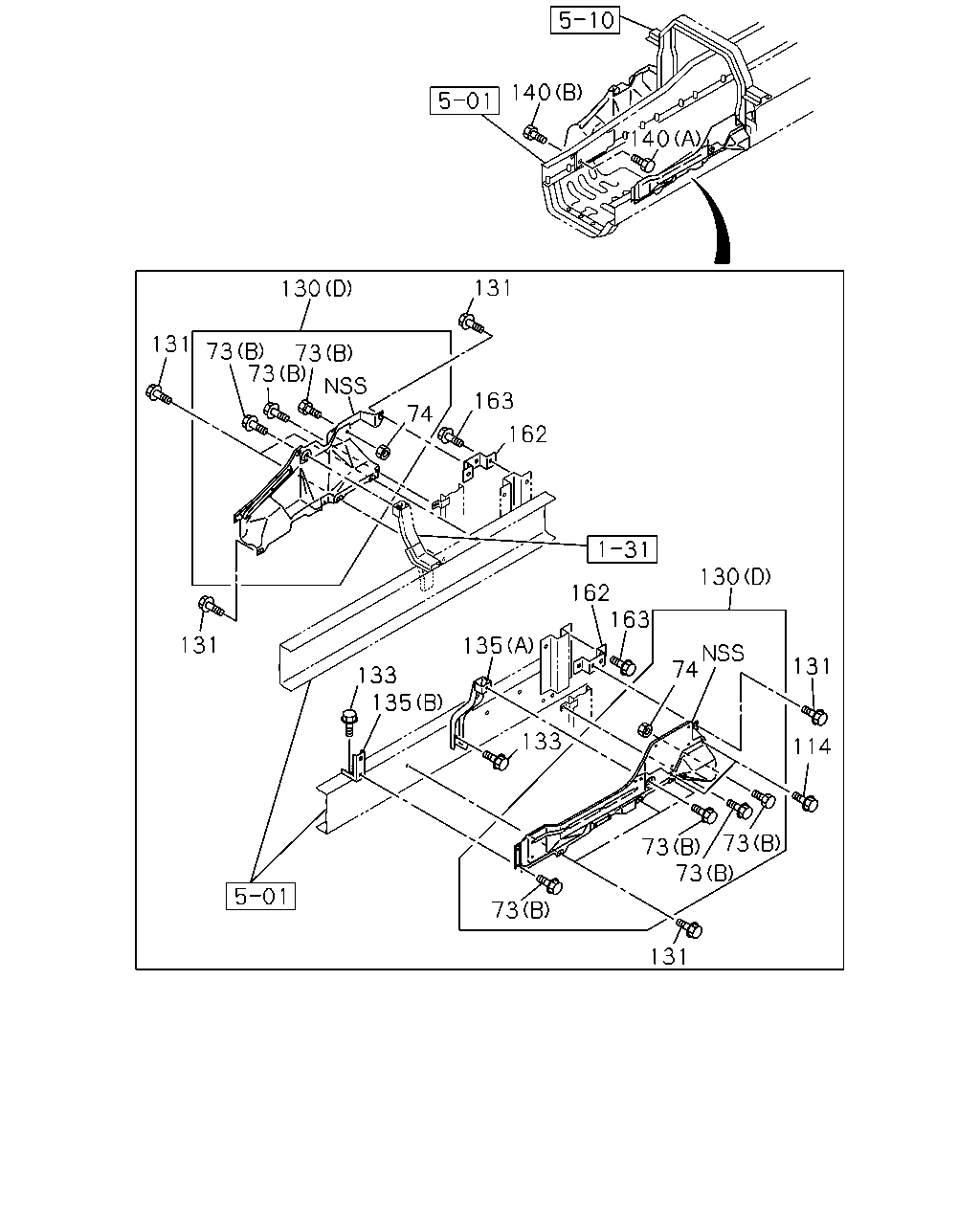

çizim 75571
140 140 131 130 131 73 73 73 74 163 162 130 162 163 131 135 74 131 133 135 133 114 73 73 73 73 131
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 08 1 0107-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0107-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0107-0602
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0107-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 0107-0602
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 03 1 0603-
114 BOLT
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
114 BOLT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-0605
114 BOLT
M8X25 FLANGE 		0-28650-825-0 01 1 0606-
114 BOLT
M8X20 FLANGE 		0-28680-820-0 05 1 0107-0512
114 BOLT
M8X20 FLANGE 		0-28650-820-0 05 1 0601-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0107-
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-79937-943-1 01 1 0403-
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-79947-028-2 01 1 0403-
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-79947-029-2 01 1 0403-
130 PANEL; SHUTTER NOISE
(A) 		1-79937-960-2 01 1 0107-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (A) 		1-79937-960-4 01 1 0403-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-993-1 01 1 0107-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (B) 		1-79937-993-3 01 1 0403-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-945-1 01 1 0107-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (C) 		1-79937-945-1 01 1 0403-
130 PANEL; SHUTTER NOISE
(A) 		1-79937-990-3 01 1 0107-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (E) 		1-53192-782-7 01 1 0107-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (E) 		1-53192-790-5 01 1 0107-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-328-1 01 1 0107-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-329-1 01 1 0107-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0107-
133 BOLT; FRAME
M8X35 FLANGE 		0-28680-835-0 04 1 0107-0512
133 BOLT; FRAME
M8X35 FLANGE 		0-28650-835-0 04 1 0601-
135 BRACKET; SIDE PANEL
(B) 		1-53441-507-0 01 1 0107-
135 BRACKET; SIDE PANEL
(A) 		1-53441-598-1 01 1 0107-
140 BOLT; SIDE PANEL
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
140 BOLT; SIDE PANEL
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
140 BOLT; SIDE PANEL
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
140 BOLT; SIDE PANEL
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
162 BRACKET 1-53441-520-0 02 1 0107-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0107-0512
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-

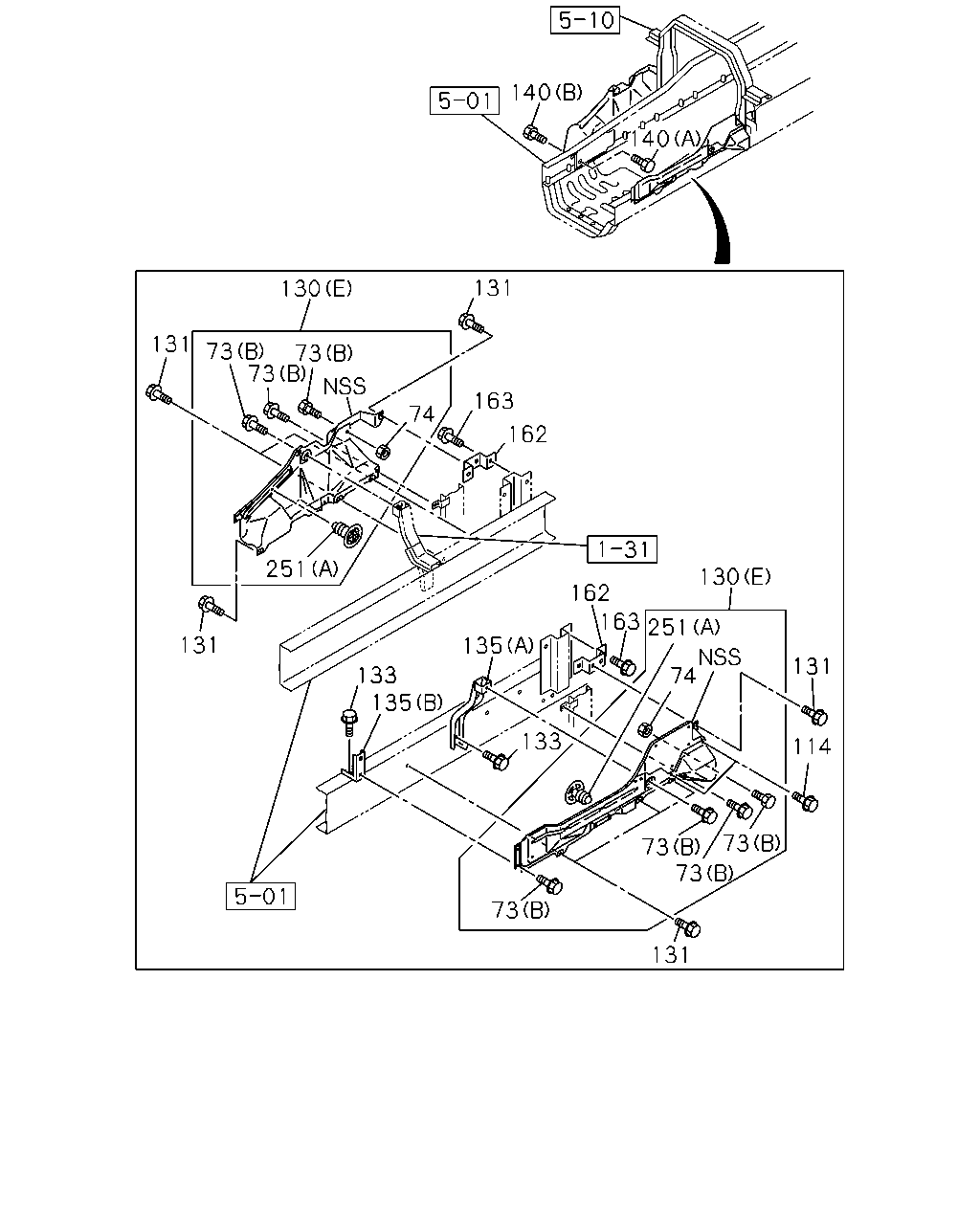

çizim 76650
140 140 131 130 131 73 73 73 163 74 162 251 130 162 163 251 131 135 74 131 133 135 133 114 73 73 73 73 131
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 08 1 0107-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0601-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0107-
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0107-0602
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 0107-0602
74 NUT
ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 02 1 0603-
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 0107-0602
74 NUT
EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91180-108-0 03 1 0603-
114 BOLT
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
114 BOLT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-0605
114 BOLT
M8X25 FLANGE 		0-28650-825-0 01 1 0606-
114 BOLT
M8X20 FLANGE 		0-28680-820-0 05 1 0107-0512
114 BOLT
M8X20 FLANGE 		0-28650-820-0 05 1 0601-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0107-
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (C) 		1-79937-943-1 01 1 0403-
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-79947-028-2 01 1 0403-
130 PANEL; SHUTTER NOISE
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-79947-029-2 01 1 0403-
130 PANEL; SHUTTER NOISE
(A) 		1-79937-960-2 01 1 0107-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (A) 		1-79937-960-4 01 1 0403-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-993-1 01 1 0107-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (B) 		1-79937-993-3 01 1 0403-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-945-1 01 1 0107-0402
130 PANEL; SHUTTER NOISE
TAIWAN EQUIPMENT(WW5) (C) 		1-79937-945-1 01 1 0403-
130 PANEL; SHUTTER NOISE
(A) 		1-79937-990-3 01 1 0107-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (E) 		1-53192-782-7 01 1 0107-
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> (E) 		1-53192-790-5 01 1 0107-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-328-1 01 1 0107-
130 PANEL; SHUTTER NOISE
EXC. ANTI NOISE EQUIPMENT<SV9> (D) 		1-53193-329-1 01 1 0107-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0107-
133 BOLT; FRAME
M8X35 FLANGE 		0-28680-835-0 04 1 0107-0512
133 BOLT; FRAME
M8X35 FLANGE 		0-28650-835-0 04 1 0601-
135 BRACKET; SIDE PANEL
(B) 		1-53441-507-0 01 1 0107-
135 BRACKET; SIDE PANEL
(A) 		1-53441-598-1 01 1 0107-
140 BOLT; SIDE PANEL
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
140 BOLT; SIDE PANEL
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
140 BOLT; SIDE PANEL
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
140 BOLT; SIDE PANEL
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
162 BRACKET 1-53441-520-0 02 1 0107-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0107-0512
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-
251 CLIP; NOISE INSULATOR
(B) 		5-09987-033-0 05 1 0107-
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> (A) 		8-94279-048-0 14 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
