6-35 — FRONT DOOR TRIM (#9872) — 46 parça

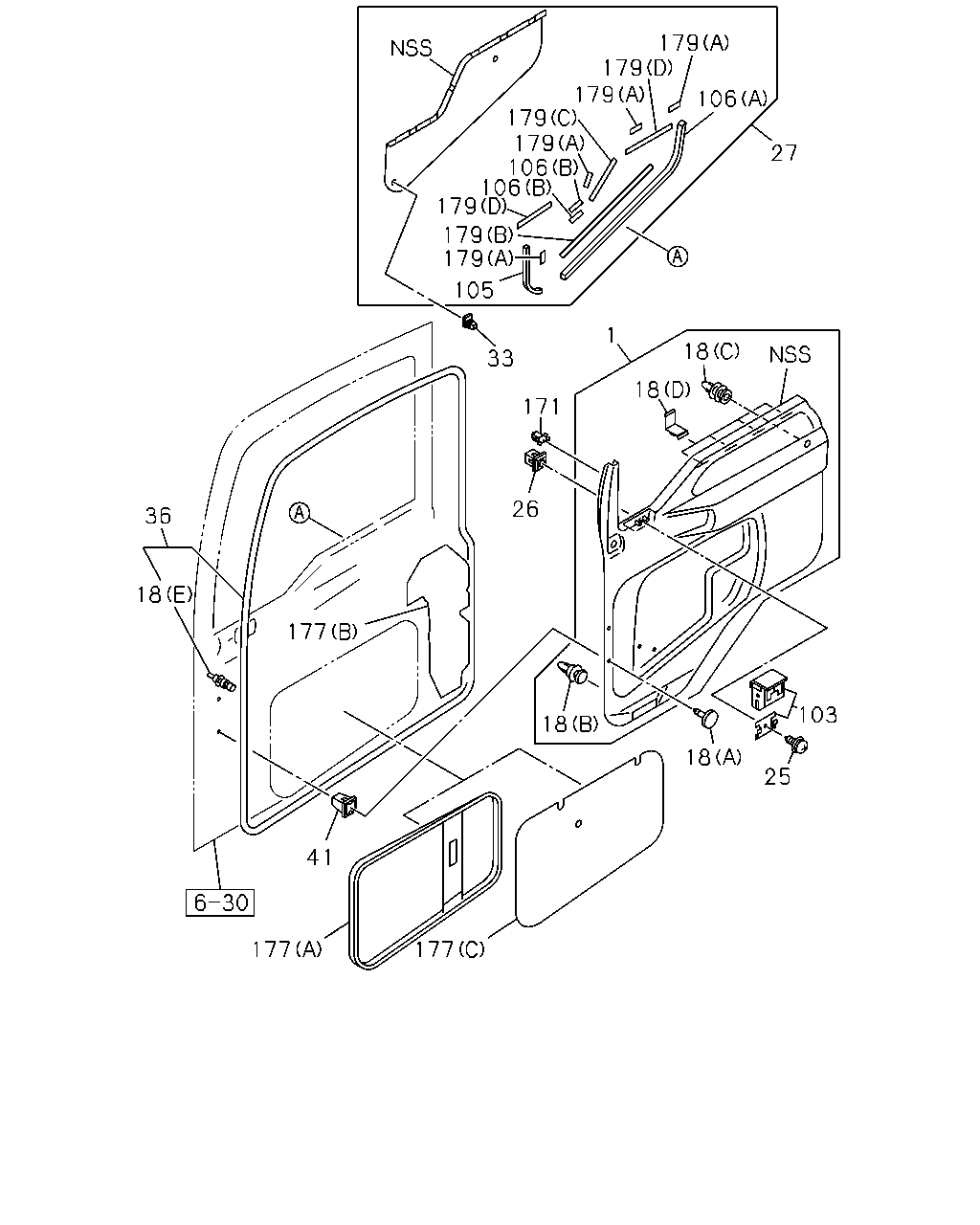

çizim 79422
179 179 179 179 179 106 106 179 106 27 179 179 105 1 18 33 18 171 26 36 18 177 103 18 18 25 41 177 177
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73338-539-0 01 1 0107-
1 PAD; TRIM,FRT DOOR
POWER WINDOW<A30> 		1-73337-509-0 01 1 0107-
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW<A30> 		1-73338-538-0 01 1 0107-
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW<A30> 		1-73337-510-0 01 1 0107-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 05 1 0107-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 05 1 0107-
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0107-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 0107-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 0107-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 05 1 0107-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 05 1 0107-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0107-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0107-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0107-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0107-
27 PANEL; ORNAMENT,DOOR 1-76218-096-7 01 1 0107-
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-76218-095-7 01 1 0107-
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-76218-125-7 01 1 0107-
33 GROMMET; DOOR ORNAMENT 1-09983-149-1 02 1 0107-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 0107-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 0107-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0107-
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 0107-0111
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112-
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 0107-0111
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0107-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0107-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0107-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0107-
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0107-
106 SEAL; DOOR ORNAMENT
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) 		1-76218-104-0 02 1 0107-
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 0107-
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 0107-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0107-
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-052-2 01 1 0107-
177 SEAL; WATER,DOOR
POWER WINDOW<A30> (A) 		1-76778-035-6 01 1 0107-
177 SEAL; WATER,DOOR
EXC. POWER WINDOW<A30> (C) 		1-76778-047-3 02 1 0107-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0107-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0107-
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 01 1 0107-
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 01 1 0107-
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 01 1 0107-
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 01 1 0107-
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 02 1 0107-
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 02 1 0107-
