6-31 — FRONT DOOR GLASS AND REGULATOR (#9870) — 114 parça

129 132 72 129 132 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0107-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0107-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0107-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0107-
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0107-
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0107-
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0107-
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0107-

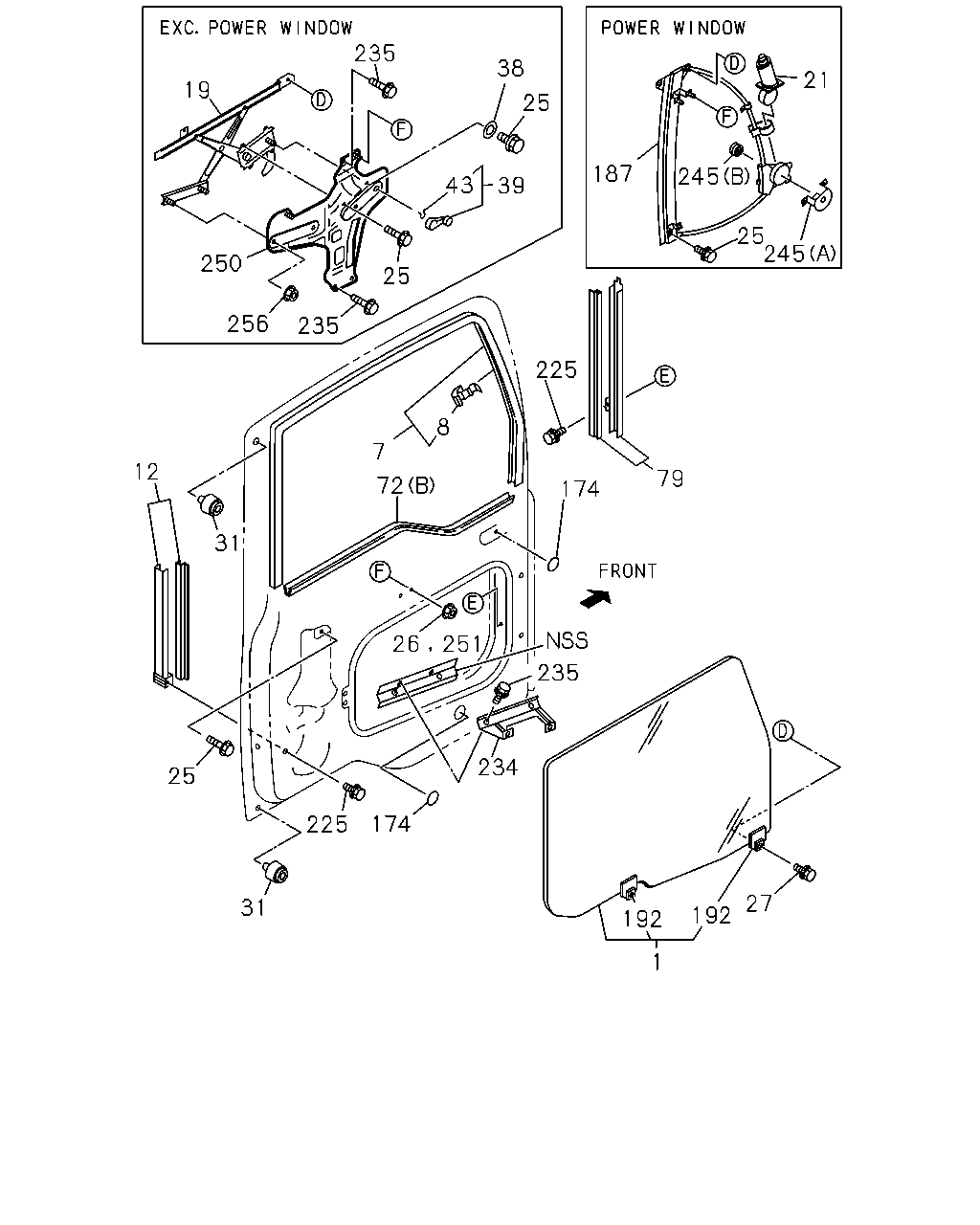

235 19 21 25 187 38 43 39 245 250 25 245 256 235 25 225 8 7 72 31 79 174 12 235 234 27 174 225 192 192 31 1 26 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-095-2	01	1	0107-
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0107-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0107-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0107-
7	GLASS RUN; FRT DOOR	1-74318-022-8	01	1	0107-
7	GLASS RUN; FRT DOOR	1-74318-021-8	01	1	0107-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0107-
12	CHANNEL; GLASS RUN,FRT	1-74338-071-2	01	1	0107-
12	CHANNEL; GLASS RUN,FRT	1-74338-070-2	01	1	0107-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-134-4	01	1	0107-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-144-4	01	1	0107-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-176-0	01	1	0107-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-177-0	01	1	0107-
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0107-
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0107-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	10	1	0601-
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	06	1	0107-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0107-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0107-
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0107-
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> BLACK	8-94371-427-0	02	1	0107-
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30>	8-94220-591-0	02	1	0107-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0107-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0107-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0107-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0107-
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-2	01	1	0107-
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-2	01	1	0107-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	14	1	0107-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	16	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	20	1	0107-0212
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	22	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=52 BLACK	1-76798-041-0	02	1	0107-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-179-3	01	1	0107-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-3	01	1	0107-
192	HOLDER; DOOR GLASS	1-74427-170-0	04	1	0107-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0107-0512
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	0601-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0107-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0107-
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	08	1	0601-
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0107-0405
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0107-0405
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	02	1	0107-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-181-0	01	1	0107-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-180-0	01	1	0107-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-148-0	01	1	0107-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-149-0	01	1	0107-
251	NUT; BRKT EXC. POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	04	1	0107-
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0107-

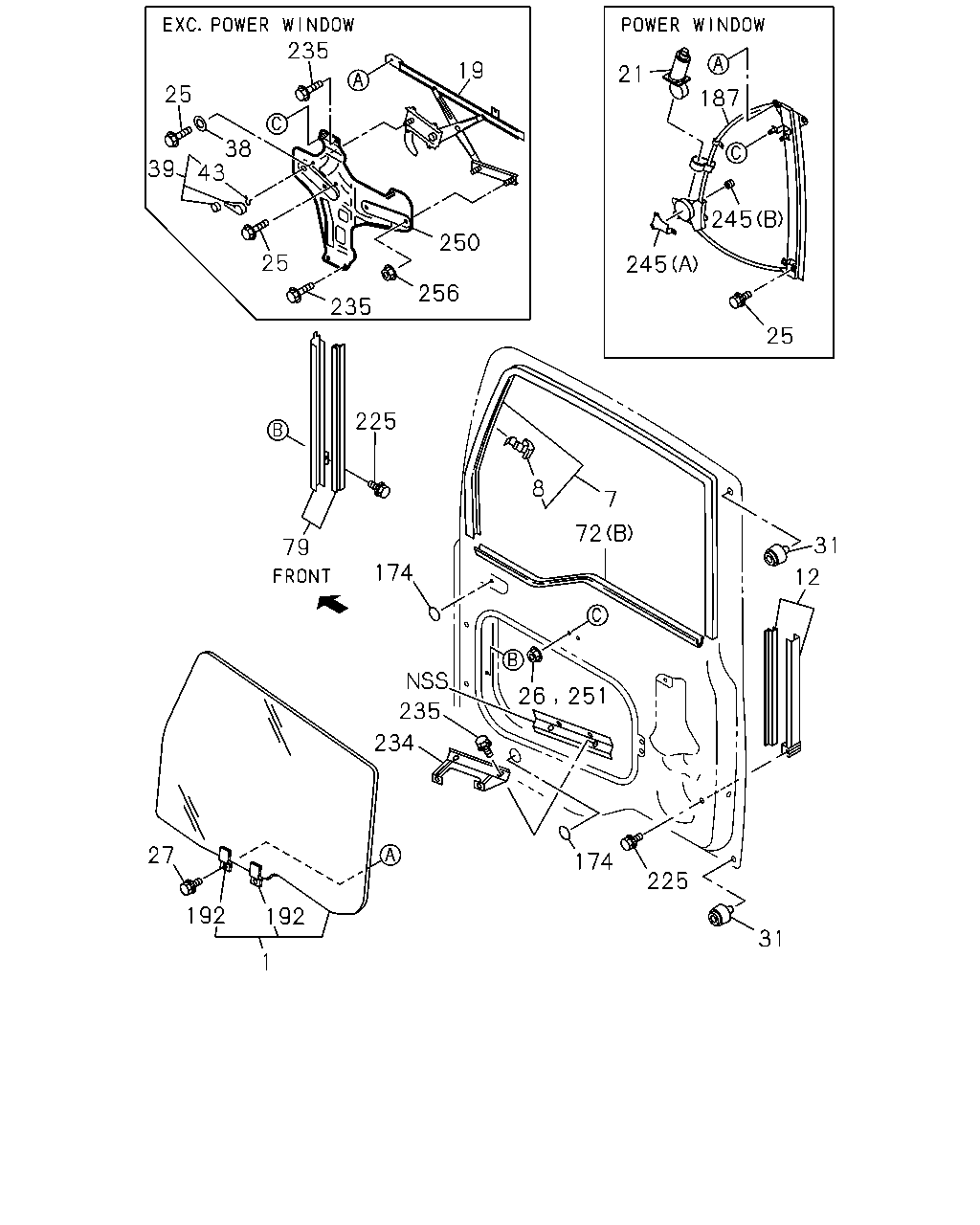

235 38 21 19 25 245 187 43 39 25 245 250 25 256 235 225 8 7 12 79 72 174 31 235 234 25 225 174 192 27 31 192 1 26 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-095-2	01	1	0107-
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0107-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0107-
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0107-
7	GLASS RUN; FRT DOOR	1-74318-022-8	01	1	0107-
7	GLASS RUN; FRT DOOR	1-74318-021-8	01	1	0107-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0107-
12	CHANNEL; GLASS RUN,FRT	1-74338-071-2	01	1	0107-
12	CHANNEL; GLASS RUN,FRT	1-74338-070-2	01	1	0107-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-134-4	01	1	0107-
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-144-4	01	1	0107-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-176-0	01	1	0107-
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-177-0	01	1	0107-
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0107-
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0107-0405
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	10	1	0601-
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	06	1	0107-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0107-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0107-
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0107-
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> BLACK	8-94371-427-0	02	1	0107-
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30>	8-94220-591-0	02	1	0107-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0107-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0107-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0107-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0107-
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-2	01	1	0107-
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-2	01	1	0107-
174	SEAL; LOCATION HOLE POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	14	1	0107-0212
174	SEAL; LOCATION HOLE POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	16	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	20	1	0107-0212
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	22	1	0301-
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> OD=52 BLACK	1-76798-041-0	02	1	0107-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-179-3	01	1	0107-
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-3	01	1	0107-
192	HOLDER; DOOR GLASS	1-74427-170-0	04	1	0107-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0107-0512
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	0601-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0107-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0107-
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	08	1	0601-
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0107-0405
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0107-0405
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	02	1	0107-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-181-0	01	1	0107-
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-180-0	01	1	0107-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-148-0	01	1	0107-
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-149-0	01	1	0107-
251	NUT; BRKT EXC. POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	04	1	0107-
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0107-
