Isuzu WW
▶
TRUCKS
▶
EXD
▶
10866 - EXD LHD FUEL TANK 400L
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-30 - FRONT DOOR AND HINGE
▶

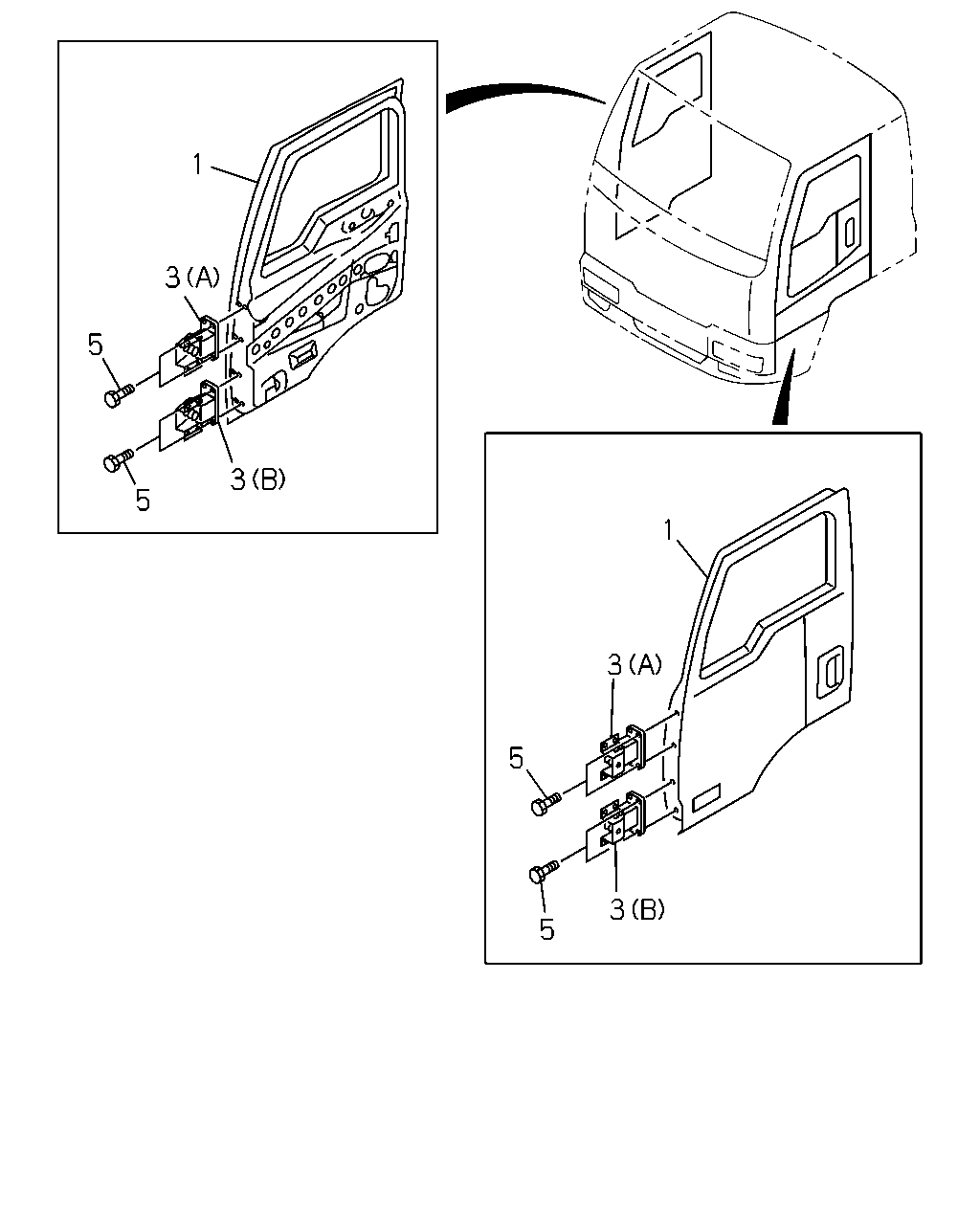

6-30 — FRONT DOOR AND HINGE
(#9869) — 10 parça
1
3
5
3
5
1
3
5
3
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
1-64080-391-2
01
1
0107-
1
DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
1-64080-390-2
01
1
0107-
1
DOOR ASM; FRT,WO/TRIM
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>
1-64080-388-2
01
1
0107-
3
HINGE; DOOR FRT
(A) UPPER
1-64780-088-3
01
1
0107-
3
HINGE; DOOR FRT
(A) UPPER
1-64780-088-3
01
1
0107-
3
HINGE; DOOR FRT
(B) LOWER
1-64780-089-3
01
1
0107-
3
HINGE; DOOR FRT
(B) LOWER
1-64780-089-3
01
1
0107-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
16
1
0107-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0107-
5
BOLT; HINGE
M8X29.5 W/LK+PL WASHER
8-94279-209-0
08
1
0107-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
