10866 - EXD LHD FUEL TANK 400L
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-20 - SIDE PANEL AND STEP
▶
6-20 — SIDE PANEL AND STEP
(#9868) — 124 parça
◀

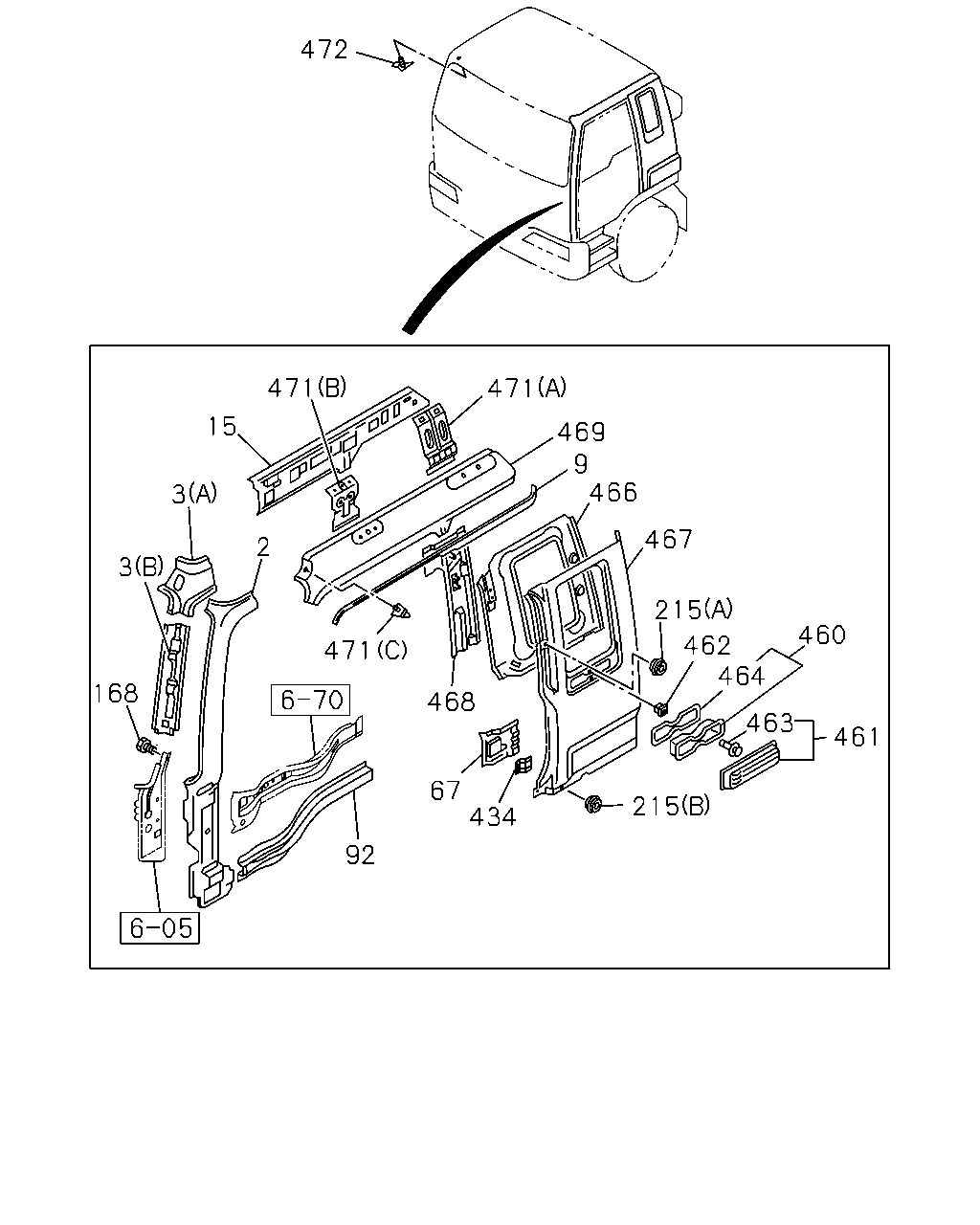

[620A] SIDE PANEL (45 parça)

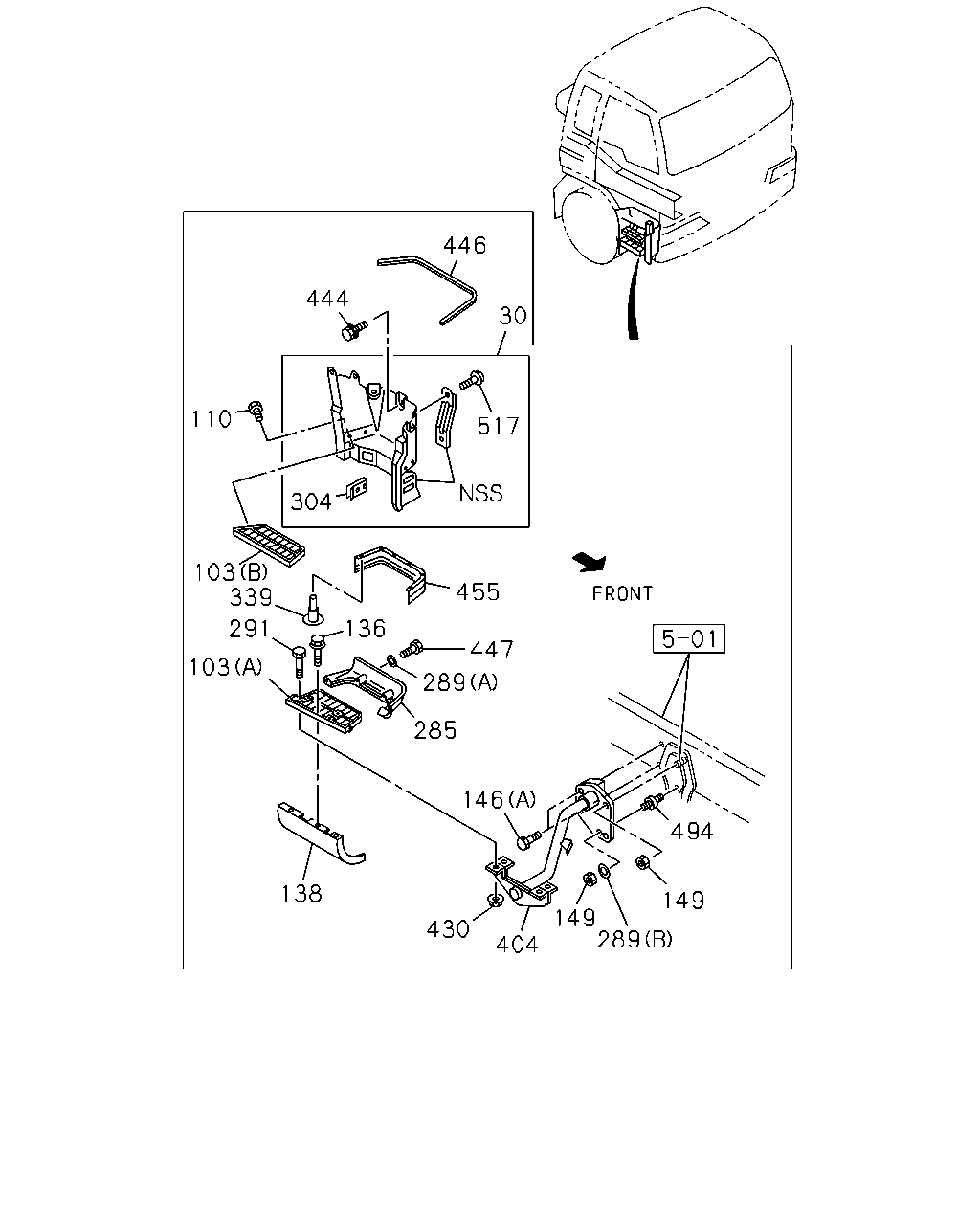

[620A] STEP;RH (40 parça)

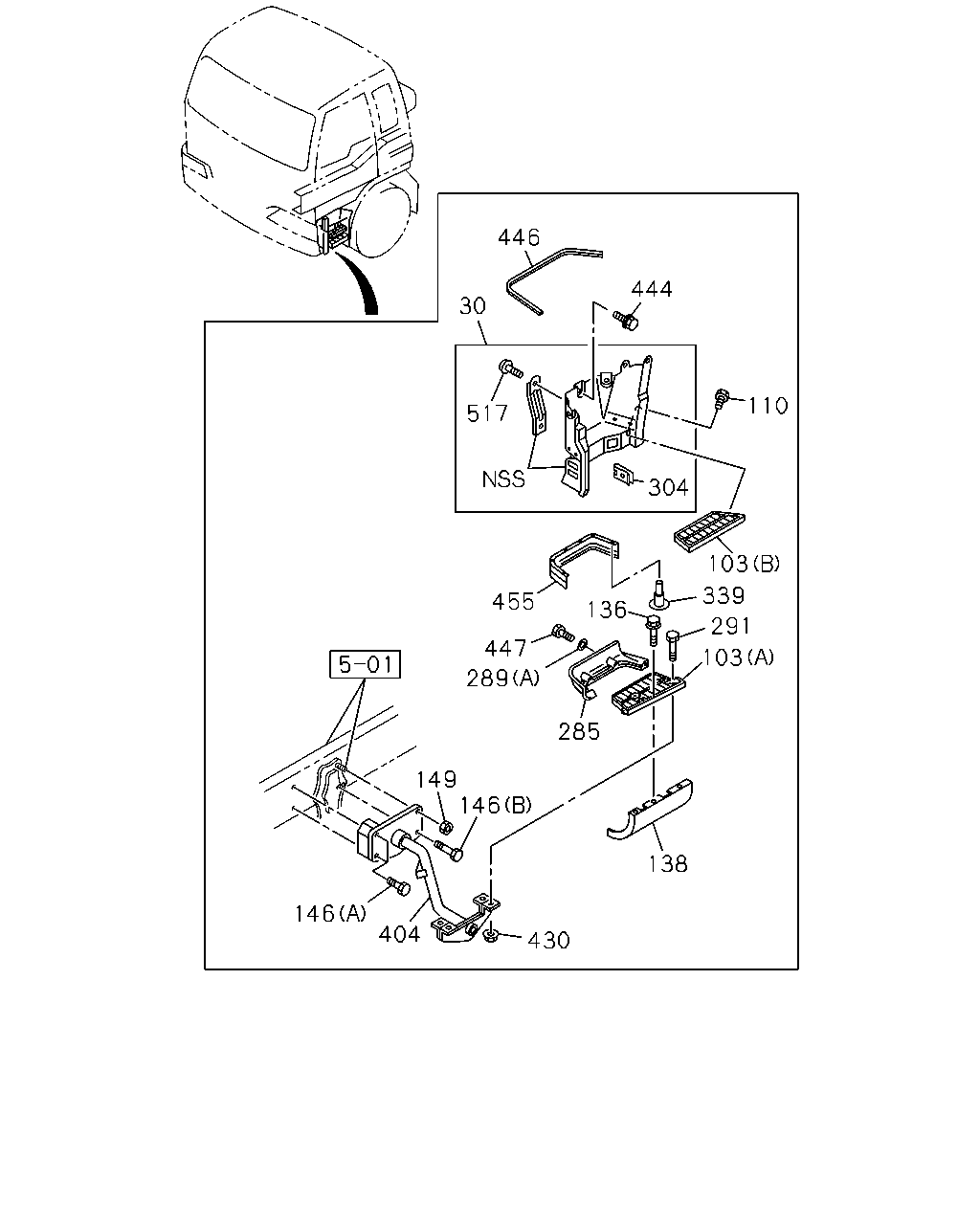

[620A] STEP;LH (39 parça)
▶
472
471
471
15
469
9
466
3
467
2
3
215
460
462
464
471
168
468
463
461
67
434
215
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
PILLAR; FRT
1-61281-410-2
01
1
0107-
2
PILLAR; FRT
1-61281-409-2
01
1
0107-
3
PANEL; CLOSING,FRT PILLAR
(A)
1-61281-170-5
01
1
0107-
3
PANEL; CLOSING,FRT PILLAR
(B)
1-61281-344-5
01
1
0107-
3
PANEL; CLOSING,FRT PILLAR
(A)
1-61281-169-5
01
1
0107-
3
PANEL; CLOSING,FRT PILLAR
(B)
1-61281-343-5
01
1
0107-
9
MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F>
1-61270-792-4
01
1
0107-
9
MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F>
1-61270-791-4
01
1
0107-
9
MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F>
1-61281-281-5
01
1
0107-
9
MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F>
1-61281-280-5
01
1
0107-
15
PANEL; CANT RAIL SIDE
1-61281-178-8
01
1
0107-
15
PANEL; CANT RAIL SIDE
1-61281-177-8
01
1
0107-
67
PANEL; INNER,RR PILLAR LWR
1-61281-195-5
01
1
0107-
67
PANEL; INNER,RR PILLAR LWR
1-61281-194-5
01
1
0107-
92
PANEL; SIDE SILL,CAB
1-61281-212-8
01
1
0107-
92
PANEL; SIDE SILL,CAB
1-61281-211-9
01
1
0107-
168
BOLT; BODY SIDE PANEL
M6X10 FLANGE
0-28080-610-0
04
1
0107-0512
168
BOLT; BODY SIDE PANEL
M6X10 FLANGE
0-28050-610-0
04
1
0601-
215
GROMMET; RR PILLAR
(A) OD=23.5
1-09983-101-0
02
1
0107-
215
GROMMET; RR PILLAR
(B) OD=28.5
8-94279-711-0
02
1
0107-
434
PATCH; ASSIST GRIP
1-61270-763-1
01
1
0107-
434
PATCH; ASSIST GRIP
1-61270-763-1
01
1
0107-
460
VENTILATOR; BODY SIDE
1-76378-292-4
02
1
0107-
461
ORNAMENT; VENTILATOR
1-76378-303-6
01
1
0107-
461
ORNAMENT; VENTILATOR
1-76378-302-6
01
1
0107-
462
GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2
1-09983-151-1
08
1
0107-
463
PIN; ORNAMENT
D4.2X13
1-09983-161-0
08
1
0107-
464
SEAL; VENTILATOR
1-76378-299-0
02
1
0107-
466
PANEL; INNER,BACK CORNER
1-61281-416-1
01
1
0107-
466
PANEL; INNER,BACK CORNER
1-61281-415-1
01
1
0107-
467
PANEL; OUTER,BACK CORNER
1-61281-203-3
01
1
0107-
467
PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> TAIWAN EQUIPMENT(WW5)
1-61270-939-1
01
1
0107-
467
PANEL; OUTER,BACK CORNER
BAGGAGE BOX CAB RR SIDE<TBM> EXC. TAIWAN EQUIPMENT(WW5)
1-61270-773-2
01
1
0107-
467
PANEL; OUTER,BACK CORNER
EXC. BAGGAGE BOX CAB RR SIDE<TBM>,TAIWAN EQUIPMENT(WW5)
1-61281-204-3
01
1
0107-
467
PANEL; OUTER,BACK CORNER
TAIWAN EQUIPMENT(WW5) EXC. BAGGAGE BOX CAB RR SIDE<TBM>
1-61281-476-2
01
1
0107-
468
REINFORCEMENT; SEAT BELT ANCHOR
1-61281-418-2
01
1
0107-
468
REINFORCEMENT; SEAT BELT ANCHOR
1-61281-417-2
01
1
0107-
469
ROOF; SIDE
1-61281-199-8
01
1
0107-
469
ROOF; SIDE
1-61281-198-8
01
1
0107-
471
PATCH; AIR DEFLECTOR
(A)
1-61281-202-3
01
1
0107-
471
PATCH; AIR DEFLECTOR
(A)
1-61281-202-3
01
1
0107-
471
PATCH; AIR DEFLECTOR
(B)
1-61281-201-3
01
1
0107-
471
PATCH; AIR DEFLECTOR
(C)
1-61281-233-4
01
1
0107-
471
PATCH; AIR DEFLECTOR
(B)
1-61281-200-3
01
1
0107-
472
PATCH; STAY,ROOF
1-61270-943-1
01
1
0107-
446
444
30
110
517
304
103
339
455
291
136
447
103
289
285
146
494
138
149
149
289
430
404
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
CLOSING; SIDE STEP
1-71907-465-0
01
1
0107-
30
CLOSING; SIDE STEP
1-71907-464-0
01
1
0107-
103
PLATE; STEP
(A)
1-53414-181-0
01
1
0107-
103
PLATE; STEP
(B)
1-71907-249-1
01
1
0107-
103
PLATE; STEP
(A)
1-53414-180-0
01
1
0107-
103
PLATE; STEP
(B)
1-71907-174-1
01
1
0107-
110
BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER
8-94279-216-0
08
1
0107-0204
110
BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER
8-94279-218-0
08
1
0205-
136
BOLT; OVER FENDER
M5X22
8-97029-303-1
06
1
0107-
138
FENDER; OVER
1-79931-263-0
01
1
0107-
138
FENDER; OVER
1-79931-264-0
01
1
0107-
146
BOLT; STEP BRKT
(A) M12X70 FLANGE
0-28081-270-0
04
1
0107-0512
146
BOLT; STEP BRKT
(A) M12X70 FLANGE
0-28051-270-0
04
1
0601-
146
BOLT; STEP BRKT
(B) M12X30 FLANGE
0-28081-230-0
01
1
0107-0512
146
BOLT; STEP BRKT
(B) M12X30 FLANGE
0-28051-230-0
01
1
0601-
149
NUT; STEP BRKT
M12 FLANGE
0-91150-212-0
03
1
0107-0602
149
NUT; STEP BRKT
M12 FLANGE
0-91180-212-0
03
1
0603-
285
PLATE; STEP,1ST STEP
1-53414-047-2
01
1
0107-
285
PLATE; STEP,1ST STEP
1-53414-182-0
01
1
0107-
289
WASHER; PL,STEP
(A) ID=6.4 OD=18
9-09160-706-0
08
1
0107-0605
289
WASHER; PL,STEP
(A) ID=6.4 OD=18
0-91610-706-0
08
1
0606-
289
WASHER; PL,STEP
(B) ID=15
9-09651-069-0
01
1
0107-
291
BOLT; STEP PLATE
M8X30 FLANGE
0-28680-830-0
08
1
0107-0112
291
BOLT; STEP PLATE
M8X35 FLANGE
0-28080-835-0
08
1
0201-0512
291
BOLT; STEP PLATE
M8X35 FLANGE
0-28050-835-0
08
1
0601-
304
NUT; SPIRE
M6
1-09984-182-0
04
1
0107-
339
FASTENER; SIDE
ID=6X6 OD=8
1-09987-194-0
12
1
0107-
404
BRACKET
1-53414-200-0
01
1
0107-
404
BRACKET
1-53414-201-0
01
1
0107-
430
NUT; PANEL
M8 FLANGE
0-91150-108-0
08
1
0107-0602
430
NUT; PANEL
M8 FLANGE
0-91180-108-0
08
1
0603-
444
BOLT; CLOSING
M8X24.5 W/LK&PL WASHER
8-94279-208-0
06
1
0107-
446
FINISHER; STEP
ID=18 L=80
1-71996-051-0
02
1
0107-
447
BOLT; PANEL
M6X12 FLANGE
0-28080-612-0
08
1
0107-0512
447
BOLT; PANEL
M6X12 FLANGE
0-28050-612-0
08
1
0601-
455
PROTECTOR; STEP
1-71907-186-1
01
1
0107-
455
PROTECTOR; STEP
1-71907-187-1
01
1
0107-
494
STUD; BRKT
M12X35,M14X45 L=100
1-09029-075-0
01
1
0107-
517
SCREW; TAP
M5X10 TAPPING W/PL WASHER
0-74100-510-0
04
1
0107-0604
517
SCREW; TAP
M5X10 TAPPING W/PL WASHER
0-74160-510-0
04
1
0605-
446
444
30
110
517
304
103
339
455
136
291
447
103
289
285
149
146
138
146
404
430
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
CLOSING; SIDE STEP
1-71907-465-0
01
1
0107-
30
CLOSING; SIDE STEP
1-71907-464-0
01
1
0107-
103
PLATE; STEP
(A)
1-53414-181-0
01
1
0107-
103
PLATE; STEP
(B)
1-71907-249-1
01
1
0107-
103
PLATE; STEP
(A)
1-53414-180-0
01
1
0107-
103
PLATE; STEP
(B)
1-71907-174-1
01
1
0107-
110
BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER
8-94279-216-0
08
1
0107-0204
110
BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER
8-94279-218-0
08
1
0205-
136
BOLT; OVER FENDER
M5X22
8-97029-303-1
06
1
0107-
138
FENDER; OVER
1-79931-263-0
01
1
0107-
138
FENDER; OVER
1-79931-264-0
01
1
0107-
146
BOLT; STEP BRKT
(A) M12X70 FLANGE
0-28081-270-0
04
1
0107-0512
146
BOLT; STEP BRKT
(A) M12X70 FLANGE
0-28051-270-0
04
1
0601-
146
BOLT; STEP BRKT
(B) M12X30 FLANGE
0-28081-230-0
01
1
0107-0512
146
BOLT; STEP BRKT
(B) M12X30 FLANGE
0-28051-230-0
01
1
0601-
149
NUT; STEP BRKT
M12 FLANGE
0-91150-212-0
03
1
0107-0602
149
NUT; STEP BRKT
M12 FLANGE
0-91180-212-0
03
1
0603-
285
PLATE; STEP,1ST STEP
1-53414-047-2
01
1
0107-
285
PLATE; STEP,1ST STEP
1-53414-182-0
01
1
0107-
289
WASHER; PL,STEP
(A) ID=6.4 OD=18
9-09160-706-0
08
1
0107-0605
289
WASHER; PL,STEP
(A) ID=6.4 OD=18
0-91610-706-0
08
1
0606-
289
WASHER; PL,STEP
(B) ID=15
9-09651-069-0
01
1
0107-
291
BOLT; STEP PLATE
M8X30 FLANGE
0-28680-830-0
08
1
0107-0112
291
BOLT; STEP PLATE
M8X35 FLANGE
0-28080-835-0
08
1
0201-0512
291
BOLT; STEP PLATE
M8X35 FLANGE
0-28050-835-0
08
1
0601-
304
NUT; SPIRE
M6
1-09984-182-0
04
1
0107-
339
FASTENER; SIDE
ID=6X6 OD=8
1-09987-194-0
12
1
0107-
404
BRACKET
1-53414-200-0
01
1
0107-
404
BRACKET
1-53414-201-0
01
1
0107-
430
NUT; PANEL
M8 FLANGE
0-91150-108-0
08
1
0107-0602
430
NUT; PANEL
M8 FLANGE
0-91180-108-0
08
1
0603-
444
BOLT; CLOSING
M8X24.5 W/LK&PL WASHER
8-94279-208-0
06
1
0107-
446
FINISHER; STEP
ID=18 L=80
1-71996-051-0
02
1
0107-
447
BOLT; PANEL
M6X12 FLANGE
0-28080-612-0
08
1
0107-0512
447
BOLT; PANEL
M6X12 FLANGE
0-28050-612-0
08
1
0601-
455
PROTECTOR; STEP
1-71907-186-1
01
1
0107-
455
PROTECTOR; STEP
1-71907-187-1
01
1
0107-
517
SCREW; TAP
M5X10 TAPPING W/PL WASHER
0-74100-510-0
04
1
0107-0604
517
SCREW; TAP
M5X10 TAPPING W/PL WASHER
0-74160-510-0
04
1
0605-
