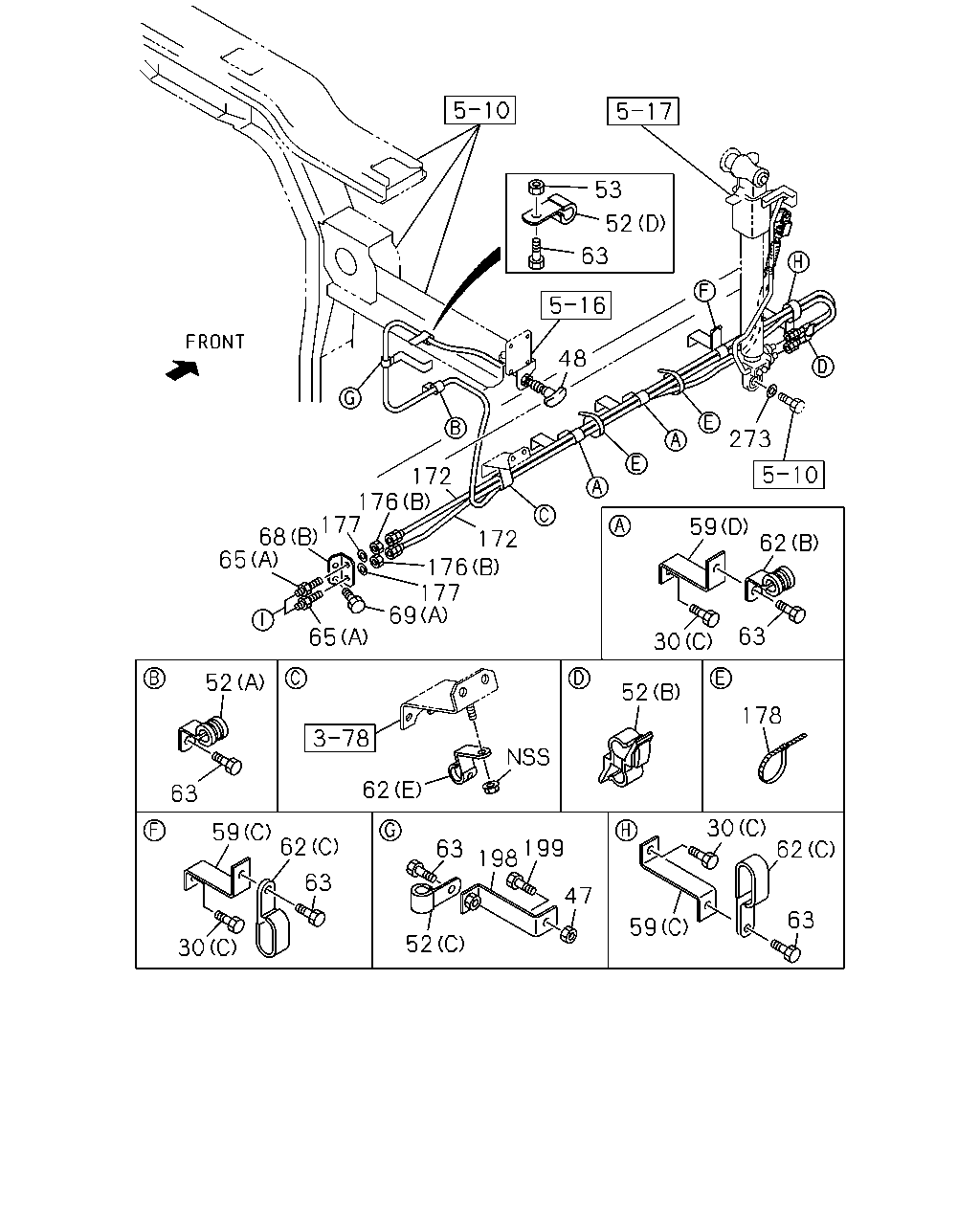

5-15 — CAB MOUNTING; CAB SIDE (#9859) — 181 parça

53 52 63 48 273 172 176 177 68 65 59 172 176 177 69 62 63 65 30 52 52 178 62 63 30 59 62 199 198 63 62 63 47 63 59 52 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT FIX (C) M8X30 FLANGE	0-28680-830-0	04	1	0109-0512
30	BOLT; BRKT FIX (C) M8X30 FLANGE	0-28650-830-0	04	1	0601-
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (B) M10X20 FLANGE	0-28681-020-0	02	1	0107-0512
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-
47	NUT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	0107-0410
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	0107-
52	CLIP; CONT CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	0107-
52	CLIP; CONT CABLE (C) ID=7 L=20	9-09524-635-0	01	1	0107-0606
52	CLIP; CONT CABLE (C) ID=7 L=20	0-95234-635-0	01	1	0607-
52	CLIP; CONT CABLE (D) ID=7 L=50	9-09524-685-0	01	1	0107-0606
52	CLIP; CONT CABLE (D) ID=7 L=50	0-95234-685-0	01	1	0607-
53	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0107-0602
53	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-
59	BRACKET; CLIP (C)	1-47476-200-0	02	1	0109-
59	BRACKET; CLIP (D) L=90	1-82699-856-0	02	1	0109-
59	BRACKET; CLIP (A)	1-47477-317-0	01	1	0107-
59	BRACKET; CLIP MANUAL CAB TILT<SHK> (B)	1-53458-915-0	02	1	0107-
62	CLIP; OIL PIPE (E) ID=18 H=23 L=28	1-09700-860-0	02	1	0107-
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0107-
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0107-0606
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	9-09534-825-0	02	1	0107-0606
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	02	1	0607-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	0-95324-825-0	02	1	0607-
62	CLIP; OIL PIPE FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20	1-09700-603-0	03	1	0107-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (B) L=140	5-09707-031-0	03	1	0107-
63	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0606-
63	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	06	1	0107-0512
63	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	06	1	0601-0605
63	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0606-
65	UNION; OIL PIPE (A) M12 L=66.5	9-09223-306-1	02	1	0107-0607
65	UNION; OIL PIPE (A) M12 L=66.5	0-92113-306-0	02	1	0608-
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (B) M12 ELBOW	9-09225-206-1	01	1	0107-0607
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (B) M12 ELBOW	0-92125-206-0	01	1	0608-
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (C) M12 3WAY	9-09228-606-1	01	1	0107-0607
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (C) M12 3WAY	0-92138-606-0	01	1	0608-
68	BRACKET; UNION (B)	1-47478-384-0	01	1	0107-
68	BRACKET; UNION (A)	1-53458-374-1	01	1	0107-
68	BRACKET; UNION MANUAL CAB TILT<SHK> (C)	1-53457-009-0	01	1	0107-
69	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
69	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
69	BOLT; BRKT MANUAL CAB TILT<SHK> (B) M10X30 FLANGE	0-28681-030-0	02	1	0107-0512
69	BOLT; BRKT MANUAL CAB TILT<SHK> (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
172	HOSE; FLEX,OIL TILT L=1600	1-09365-052-1	02	1	0107-
176	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	0107-0602
176	NUT; UNION (A) M12 FLANGE	0-91180-212-0	01	1	0603-
176	NUT; UNION (B) M12	9-09840-280-0	02	1	0107-
176	NUT; UNION MANUAL CAB TILT<SHK> (B) M12	9-09840-280-0	02	1	0107-
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	0107-0603
177	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	0604-
178	CLIP; FLEX HOSE L=140	5-09707-031-1	02	1	0107-
198	BRACKET; CABLE EXC. ANTI NOISE EQUIPMENT<SV9>	1-46147-101-0	01	1	0107-0410
199	BOLT; BRKT EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28680-825-0	01	1	0107-0410
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	0107-0605
273	WASHER; PL,OIL CYL ID=10.5 OD=32	0-91614-810-0	01	1	0606-

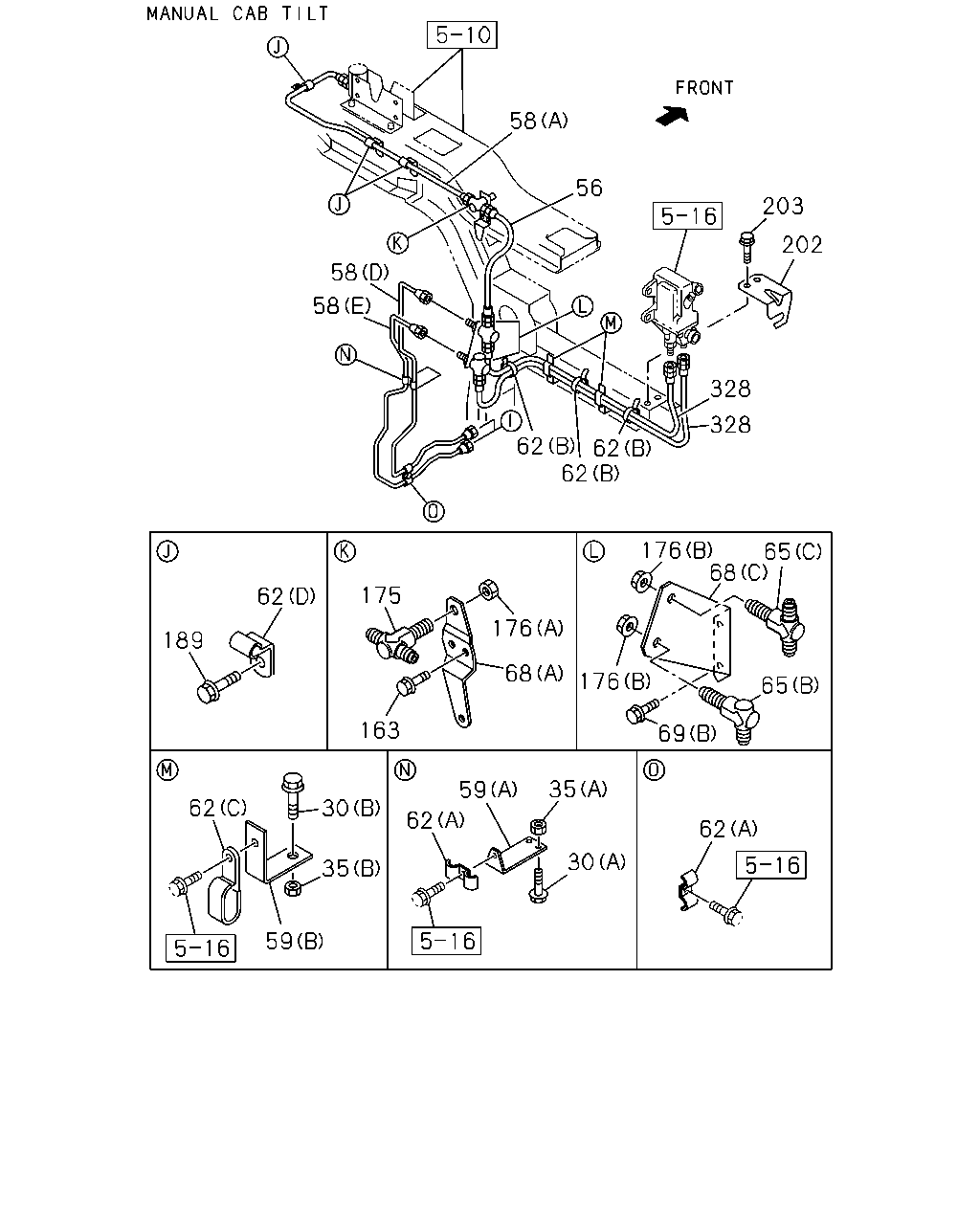

58 56 58 58 175 326 62 176 325 189 68 163 35 59 62 62 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT FIX (C) M8X30 FLANGE	0-28680-830-0	04	1	0109-0512
30	BOLT; BRKT FIX (C) M8X30 FLANGE	0-28650-830-0	04	1	0601-
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (B) M10X20 FLANGE	0-28681-020-0	02	1	0107-0512
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-
35	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0107-0602
35	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-
35	NUT; BRKT MANUAL CAB TILT<SHK> (B) M10 FLANGE	0-91150-210-0	02	1	0107-0602
35	NUT; BRKT MANUAL CAB TILT<SHK> (B) M10 FLANGE	0-91180-210-0	02	1	0603-
56	HOSE; FLEX,OIL PIPE L=400	1-09365-060-0	01	1	0107-
58	PIPE; OIL,POWER UNIT (A) L=1396	1-49163-351-0	01	1	0107-
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> (B) L=1054	1-49164-150-0	01	1	0107-
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> (C) L=1006	1-49165-034-0	01	1	0107-
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (D)	1-49165-815-0	01	1	0107-
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (E)	1-49165-816-0	01	1	0107-
59	BRACKET; CLIP (C)	1-47476-200-0	02	1	0109-
59	BRACKET; CLIP (D) L=90	1-82699-856-0	02	1	0109-
59	BRACKET; CLIP (A)	1-47477-317-0	01	1	0107-
59	BRACKET; CLIP MANUAL CAB TILT<SHK> (B)	1-53458-915-0	02	1	0107-
62	CLIP; OIL PIPE (E) ID=18 H=23 L=28	1-09700-860-0	02	1	0107-
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0107-
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0107-0606
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	9-09534-825-0	02	1	0107-0606
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	02	1	0607-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	0-95324-825-0	02	1	0607-
62	CLIP; OIL PIPE FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20	1-09700-603-0	03	1	0107-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (B) L=140	5-09707-031-0	03	1	0107-
68	BRACKET; UNION (B)	1-47478-384-0	01	1	0107-
68	BRACKET; UNION (A)	1-53458-374-1	01	1	0107-
68	BRACKET; UNION MANUAL CAB TILT<SHK> (C)	1-53457-009-0	01	1	0107-
163	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
163	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-
175	UNION; FLEX HOSE M12 2WAY	1-09654-234-2	01	1	0107-
176	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	0107-0602
176	NUT; UNION (A) M12 FLANGE	0-91180-212-0	01	1	0603-
176	NUT; UNION (B) M12	9-09840-280-0	02	1	0107-
176	NUT; UNION MANUAL CAB TILT<SHK> (B) M12	9-09840-280-0	02	1	0107-
189	BOLT; CLIP FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
189	BOLT; CLIP FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	01	1	0601-
189	BOLT; CLIP EXC. FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	03	1	0107-0512
189	BOLT; CLIP EXC. FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	03	1	0601-
325	ADAPTER; PUMP AUTO CAB TILT<WV2> M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0107-
326	UNION; PUMP AUTO CAB TILT<WV2> M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0107-

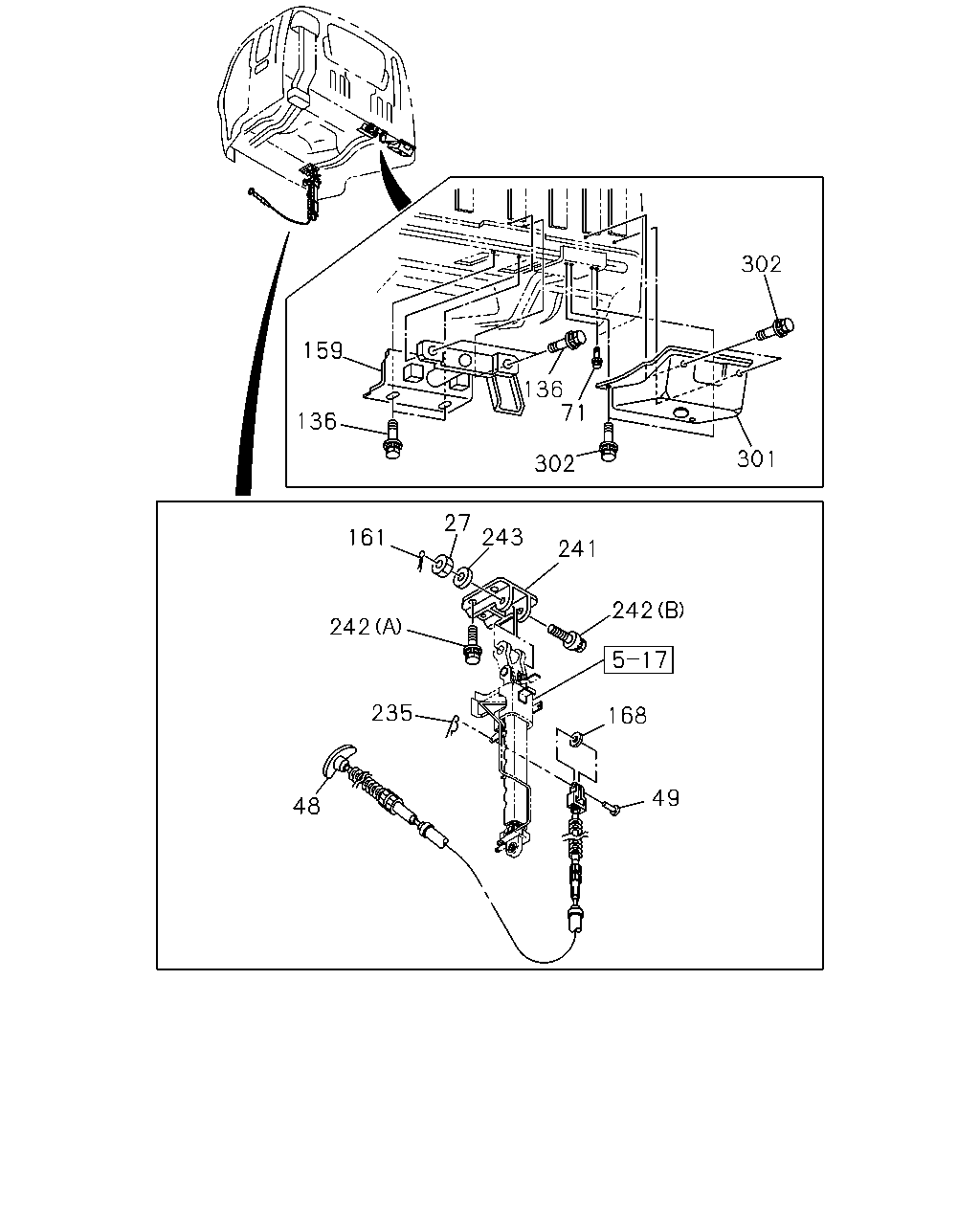

302 159 136 71 136 301 302 27 243 161 241 242 242 235 168 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	NUT; OIL CYL M14	9-99116-414-0	01	1	0107-0604
27	NUT; OIL CYL M14 SLOTTED	0-91116-514-0	01	1	0605-
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	0107-
49	PIN; JAW FIX OD=6 L=17	9-08223-617-0	01	1	0107-0606
49	PIN; JAW FIX OD=6 L=17	0-82253-617-0	01	1	0607-
71	BOLT M10X25 W/LK&PL WASHER	8-94279-220-0	02	1	0107-0204
71	BOLT M10X25 W/LK&PL WASHER	1-09980-488-0	02	1	0205-
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	0107-
159	PIN	1-79717-627-1	01	1	0107-
161	PIN; SPLIT OD=2.8 L=25	9-08113-025-0	01	1	0107-0606
161	PIN; SPLIT OD=2.8 L=25	0-81123-025-0	01	1	0607-
168	WASHER; PL ID=6.4	9-09160-506-0	01	1	0107-
235	PIN; SNAP L=21.2	8-94157-840-0	01	1	0107-
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-660-1	01	1	0107-
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30	1-09980-546-0	05	1	0107-
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	0107-
243	WASHER; LK,POWER CYL BRKT ID=14.2	9-09150-514-0	01	1	0107-0603
243	WASHER; LK,POWER CYL BRKT ID=14.2	0-91510-514-0	01	1	0604-
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	0107-
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	8-94279-220-0	08	1	0107-0204
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	1-09980-488-0	08	1	0205-

58 56 203 202 58 58 328 62 62 62 328 176 65 68 175 62 176 189 68 176 65 163 69 35 59 62 30 62 62 30 35 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT FIX (C) M8X30 FLANGE	0-28680-830-0	04	1	0109-0512
30	BOLT; BRKT FIX (C) M8X30 FLANGE	0-28650-830-0	04	1	0601-
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (B) M10X20 FLANGE	0-28681-020-0	02	1	0107-0512
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-
35	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0107-0602
35	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-
35	NUT; BRKT MANUAL CAB TILT<SHK> (B) M10 FLANGE	0-91150-210-0	02	1	0107-0602
35	NUT; BRKT MANUAL CAB TILT<SHK> (B) M10 FLANGE	0-91180-210-0	02	1	0603-
56	HOSE; FLEX,OIL PIPE L=400	1-09365-060-0	01	1	0107-
58	PIPE; OIL,POWER UNIT (A) L=1396	1-49163-351-0	01	1	0107-
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> (B) L=1054	1-49164-150-0	01	1	0107-
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> (C) L=1006	1-49165-034-0	01	1	0107-
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (D)	1-49165-815-0	01	1	0107-
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (E)	1-49165-816-0	01	1	0107-
59	BRACKET; CLIP (C)	1-47476-200-0	02	1	0109-
59	BRACKET; CLIP (D) L=90	1-82699-856-0	02	1	0109-
59	BRACKET; CLIP (A)	1-47477-317-0	01	1	0107-
59	BRACKET; CLIP MANUAL CAB TILT<SHK> (B)	1-53458-915-0	02	1	0107-
62	CLIP; OIL PIPE (E) ID=18 H=23 L=28	1-09700-860-0	02	1	0107-
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0107-
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0107-0606
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	9-09534-825-0	02	1	0107-0606
62	CLIP; OIL PIPE (C) ID=9X2 L=16	0-95324-825-0	02	1	0607-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	0-95324-825-0	02	1	0607-
62	CLIP; OIL PIPE FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-
62	CLIP; OIL PIPE EXC. FULL FLOATING CAB(W16) (D) ID=6 H=20 L=20	1-09700-603-0	03	1	0107-
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (B) L=140	5-09707-031-0	03	1	0107-
65	UNION; OIL PIPE (A) M12 L=66.5	9-09223-306-1	02	1	0107-0607
65	UNION; OIL PIPE (A) M12 L=66.5	0-92113-306-0	02	1	0608-
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (B) M12 ELBOW	9-09225-206-1	01	1	0107-0607
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (B) M12 ELBOW	0-92125-206-0	01	1	0608-
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (C) M12 3WAY	9-09228-606-1	01	1	0107-0607
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (C) M12 3WAY	0-92138-606-0	01	1	0608-
68	BRACKET; UNION (B)	1-47478-384-0	01	1	0107-
68	BRACKET; UNION (A)	1-53458-374-1	01	1	0107-
68	BRACKET; UNION MANUAL CAB TILT<SHK> (C)	1-53457-009-0	01	1	0107-
69	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512
69	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
69	BOLT; BRKT MANUAL CAB TILT<SHK> (B) M10X30 FLANGE	0-28681-030-0	02	1	0107-0512
69	BOLT; BRKT MANUAL CAB TILT<SHK> (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-
163	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
163	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-
175	UNION; FLEX HOSE M12 2WAY	1-09654-234-2	01	1	0107-
176	NUT; UNION (A) M12 FLANGE	0-91150-212-0	01	1	0107-0602
176	NUT; UNION (A) M12 FLANGE	0-91180-212-0	01	1	0603-
176	NUT; UNION (B) M12	9-09840-280-0	02	1	0107-
176	NUT; UNION MANUAL CAB TILT<SHK> (B) M12	9-09840-280-0	02	1	0107-
189	BOLT; CLIP FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
189	BOLT; CLIP FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	01	1	0601-
189	BOLT; CLIP EXC. FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	03	1	0107-0512
189	BOLT; CLIP EXC. FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	03	1	0601-
202	BRACKET; CABLE END MANUAL CAB TILT<SHK>	1-53458-911-0	01	1	0107-
203	BOLT; BRKT,CABLE END MANUAL CAB TILT<SHK> M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
203	BOLT; BRKT,CABLE END MANUAL CAB TILT<SHK> M8X20 FLANGE	0-28650-820-0	02	1	0601-
328	HOSE; OIL MANUAL CAB TILT<SHK>	1-09365-112-0	02	1	0107-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
