Isuzu WW
▶
TRUCKS
▶
EXD
▶
10866 - EXD LHD FUEL TANK 400L
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#9857) — 57 parça
◀

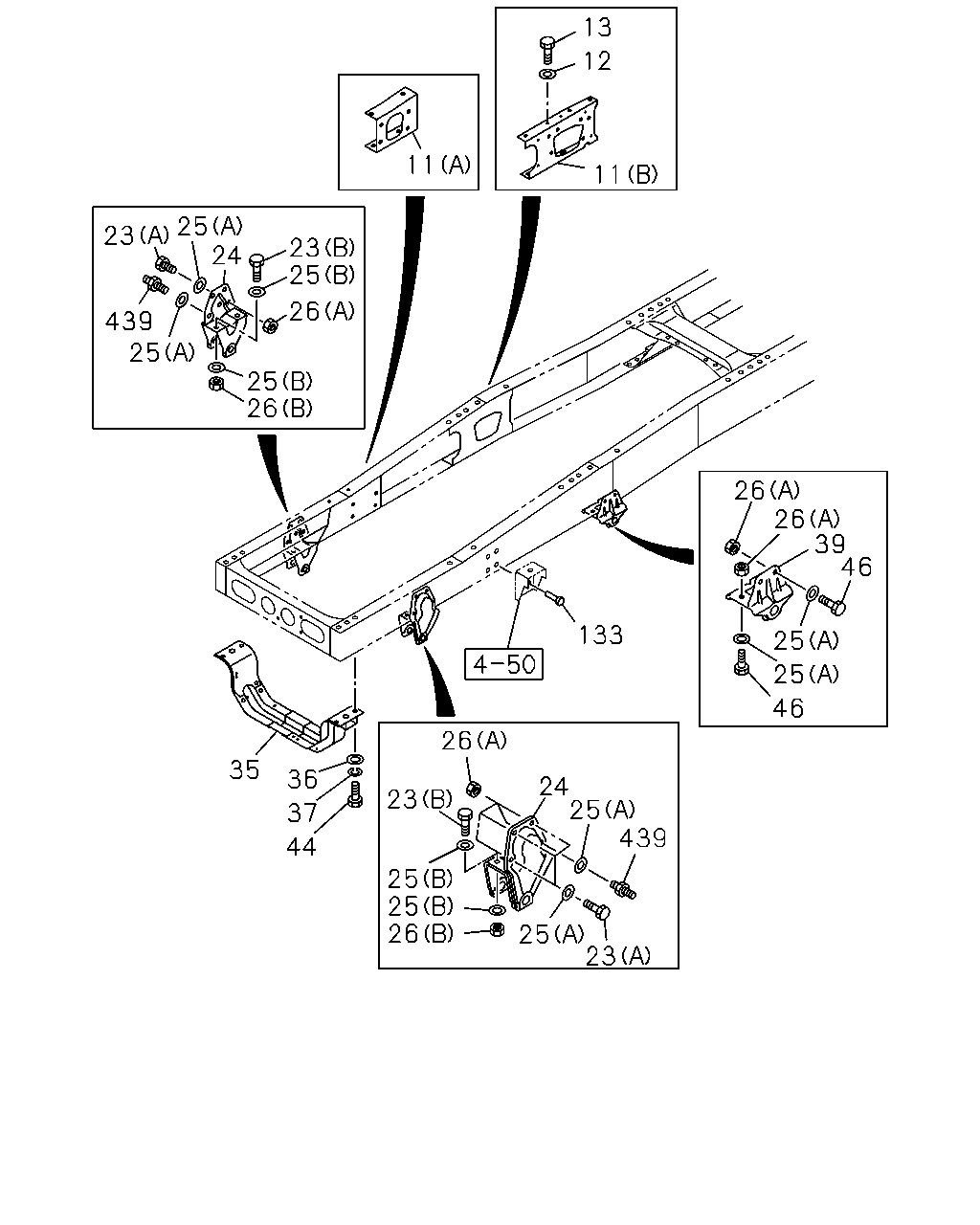

[501A] BRACKET;FRONT AND UNDER MEMBER (33 parça)
[501A] BRACKET;REAR (11 parça)

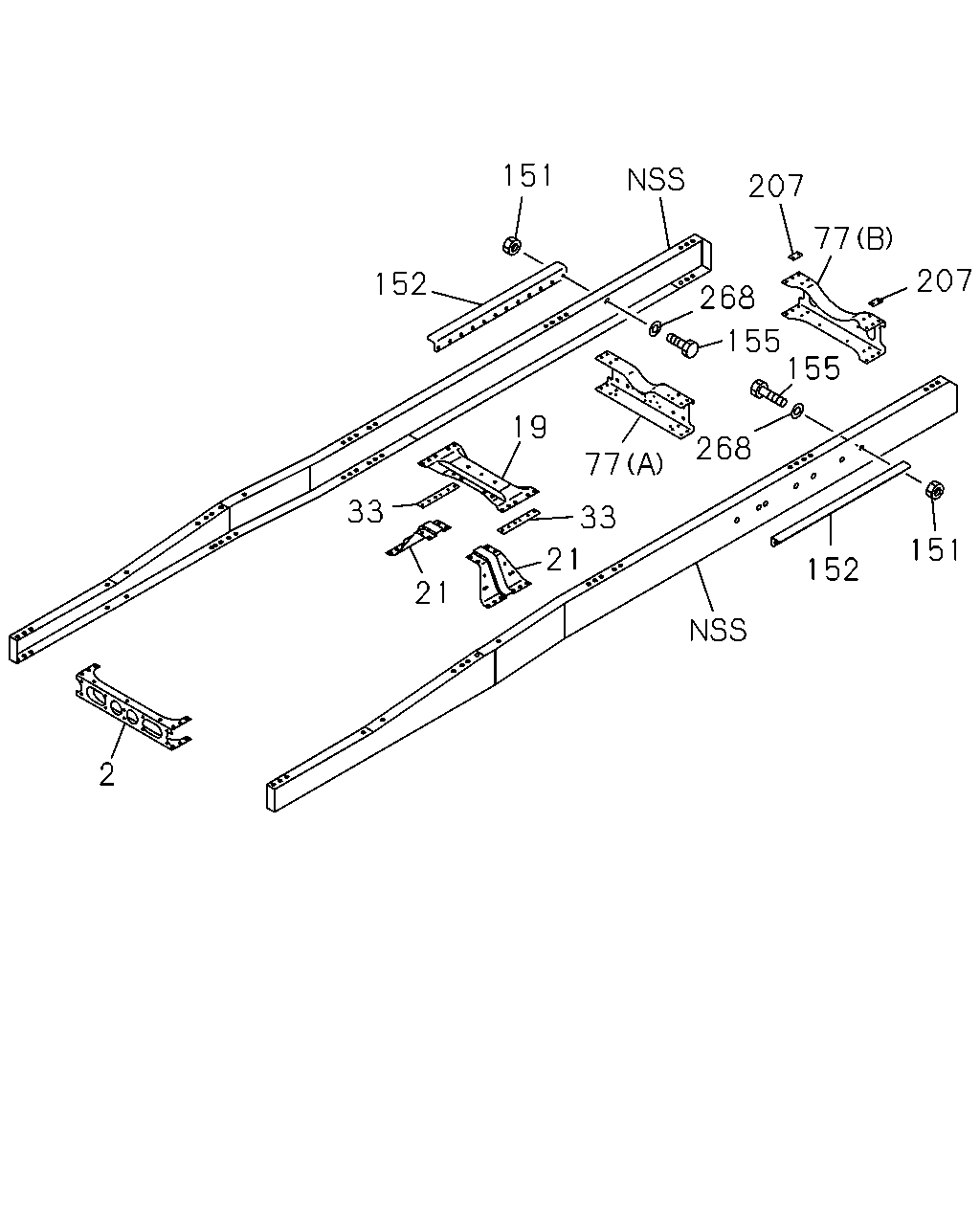

[501A] CROSS MEMBER AND OUTRIGGER (13 parça)
▶
13
12
11
11
25
24
23
23
25
26
439
25
25
26
26
26
39
46
25
133
25
46
26
35
36
24
25
439
23
37
44
25
25
26
25
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53219-783-1
01
1
0107-
11
BRACKET; ENG MTG
(A)
1-53219-784-1
01
1
0107-
11
BRACKET; ENG MTG
(B)
1-53219-867-0
01
1
0107-
11
BRACKET; ENG MTG
(B)
1-53219-868-1
01
1
0107-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
AR
1
0107-
13
BOLT; BRKT,ENG MTG
M14X40
9-92061-440-0
AR
1
0107-0512
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
AR
1
0601-
23
BOLT; BRKT,SPR
(A) M14X40
9-92061-440-0
AR
1
0107-0512
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
AR
1
0601-
23
BOLT; BRKT,SPR
(B) M16X50
9-92061-650-0
AR
1
0107-0512
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
AR
1
0601-
24
BRACKET; FRT SPR,FRT
1-53351-219-0
01
1
0107-
24
BRACKET; FRT SPR,FRT
1-53351-220-0
01
1
0107-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
AR
1
0107-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
AR
1
0107-
26
NUT; BRKT,SPR
(A) M14
9-99110-514-0
AR
1
0107-0512
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
AR
1
0601-
26
NUT; BRKT,SPR
(B) M16
9-99110-516-0
AR
1
0107-0512
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
AR
1
0601-
35
MEMBER; UNDER
1-53174-298-0
01
1
0107-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
AR
1
0107-
37
WASHER; LK,UNDER MBR
ID=16.2
9-09150-816-0
AR
1
0107-0603
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
AR
1
0604-
39
BRACKET; FRT SPR,RR
1-53352-146-0
01
1
0107-
39
BRACKET; FRT SPR,RR
1-53352-147-0
01
1
0107-
44
BOLT; UNDER MBR
M16X50
9-92061-650-0
AR
1
0107-
46
BOLT; BRKT FIX
M14X50
9-92061-450-0
AR
1
0107-0512
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
AR
1
0601-
133
RIVET; BRKT
D13X36 PLATED TAPER END
9-06771-336-0
04
1
0107-0607
133
RIVET; BRKT
D13X36 PLATED TAPER END
0-67901-336-0
04
1
0608-
133
RIVET; BRKT
D13X40 PLATED TAPER END
9-06771-340-0
02
1
0107-0607
133
RIVET; BRKT
D13X40 PLATED TAPER END
0-67901-340-0
02
1
0608-
439
STUD; BRKT,SPR
M12X35,M14X45 L=100
1-09029-075-0
AR
1
0107-
456
456
452
77
453
84
84
453
450
451
452
453
452
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
MEMBER; CROSS,TRUNNION RR
(A)
1-53181-944-1
01
1
0107-
77
MEMBER; CROSS,TRUNNION RR
(B)
1-53181-970-3
01
1
0107-
84
WASHER; PL,BRKT
ID=16.2
1-09503-223-0
AR
1
0107-
450
BRACKET; V ROD
1-53353-128-1
02
1
0107-
451
GUSSET; V ROD
1-53167-543-0
01
1
0107-
451
GUSSET; V ROD
1-53167-600-0
01
1
0107-
452
BOLT; V ROD
(B) M16X70
1-09000-673-0
AR
1
0107-
452
BOLT; V ROD
(C) M16X90
1-09000-675-0
AR
1
0107-
452
BOLT; V ROD
(A) M16X50
1-09000-679-0
AR
1
0107-
453
NUT; V ROD
M16 FLANGE
1-09440-066-0
AR
1
0107-
456
PATCH; STOPPER
1-53119-202-0
04
1
0107-
151
207
77
207
152
268
155
155
268
19
77
33
33
151
21
152
21
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
1-53181-526-4
01
1
0107-
19
MEMBER; CROSS,2ND
1-53174-231-1
01
1
0107-
21
GUSSET; 2ND CROSS
1-53164-185-0
02
1
0107-
33
SPACER; 2ND C/MBR,UPR
1-53168-351-1
02
1
0107-
77
MEMBER; CROSS,TRUNNION RR
(A)
1-53181-944-1
01
1
0107-
77
MEMBER; CROSS,TRUNNION RR
(B)
1-53181-970-3
01
1
0107-
151
NUT; OUTRIGGER
M16
9-99110-516-0
AR
1
0107-0512
151
NUT; OUTRIGGER
M16
0-91110-516-0
AR
1
0601-
152
OUTRIGGER
1-53456-392-0
02
1
0107-
155
BOLT; OUTRIGGER
M16X50
9-92061-650-0
AR
1
0107-0512
155
BOLT; OUTRIGGER
M16X50
0-20951-650-0
AR
1
0601-
207
SPACER; 4TH C/MBR
1-53168-171-1
02
1
0107-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
AR
1
0107-
