4-42 — POWER STEERING OIL PUMP (#9848) — 54 parça

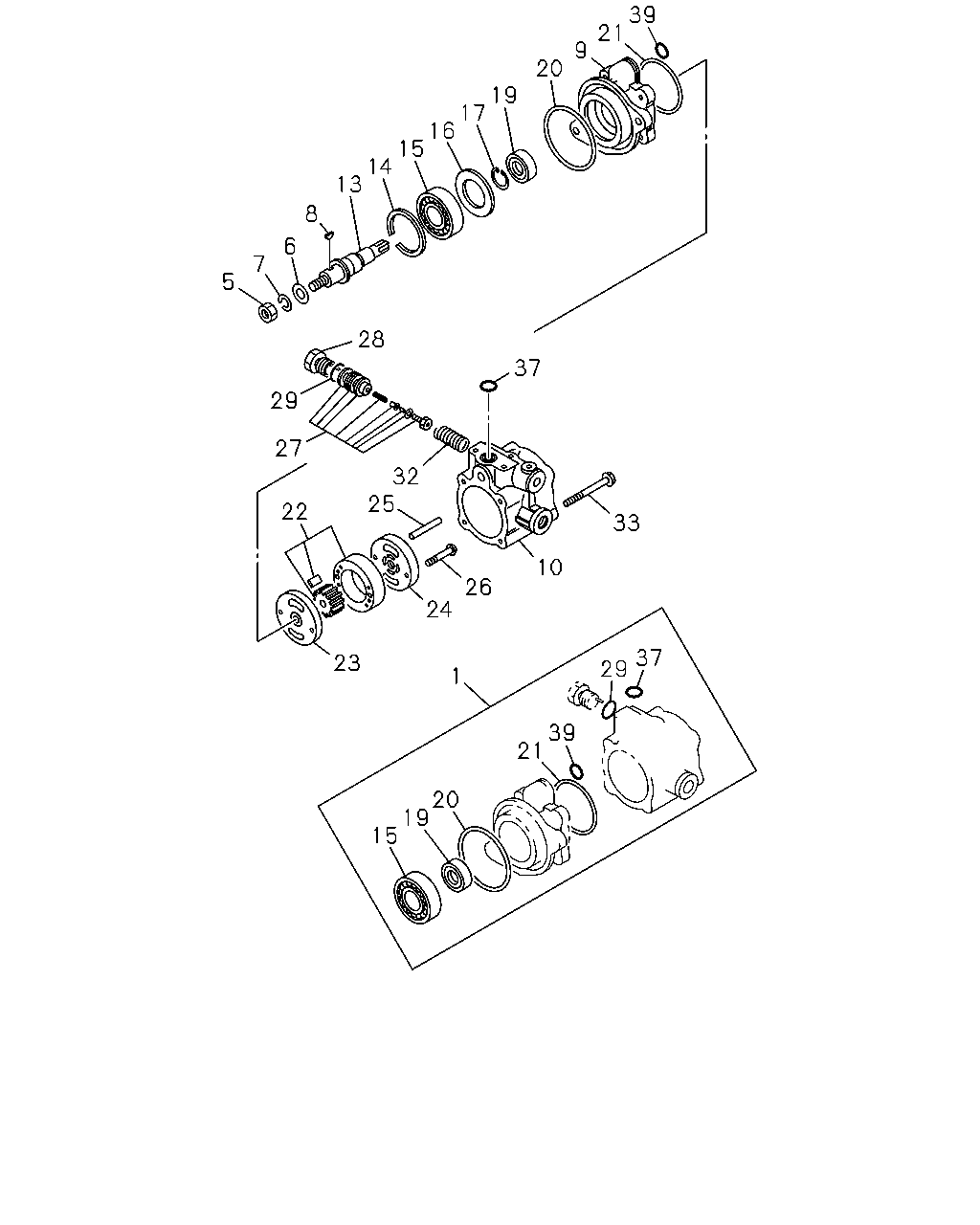

39 21 9 20 19 17 16 15 14 13 8 6 7 5 28 37 29 27 32 25 22 33 10 26 24 37 29 23 1 39 21 20 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-563-2	1-85574-049-0	01	1	-
5	NUT; SHAFT,P/S PUMP ASM PART: A = 1-19500-563-2	9-88510-424-0	01	1	-0209
6	WASHER; PL,OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-293-0	01	1	-0209
7	WASHER; SHAFT ASM PART: A = 1-19500-563-2	9-88510-425-0	01	1	-0209
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-563-2	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-563-2	1-19511-130-0	01	1	0210-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-563-2	1-19511-166-0	01	1	-0209
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-563-2	1-19511-131-0	01	1	-0209
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-563-2	1-19511-193-0	01	1	0210-
13	SHAFT KIT; RET ASM PART: A = 1-19500-563-2	1-19521-018-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-135-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-563-2	1-19515-004-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-563-2	9-19519-078-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-563-2	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-252-0	01	1	-
20	GASKET; FRT,OIL PUMP ID=79.6 ASM PART: A = 1-19500-563-2	1-09623-421-0	01	1	-0204
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-563-2	1-19519-314-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-311-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-234-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-563-2	1-19519-312-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-563-2	9-88510-421-0	02	1	-
26	SCREW; PLATE ASM PART: A = 1-19500-563-2	1-19519-142-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-183-1	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-230-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-563-2	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-563-2	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-563-2	1-19519-245-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-292-0	01	1	-
39	GASKET; OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-313-0	01	1	-

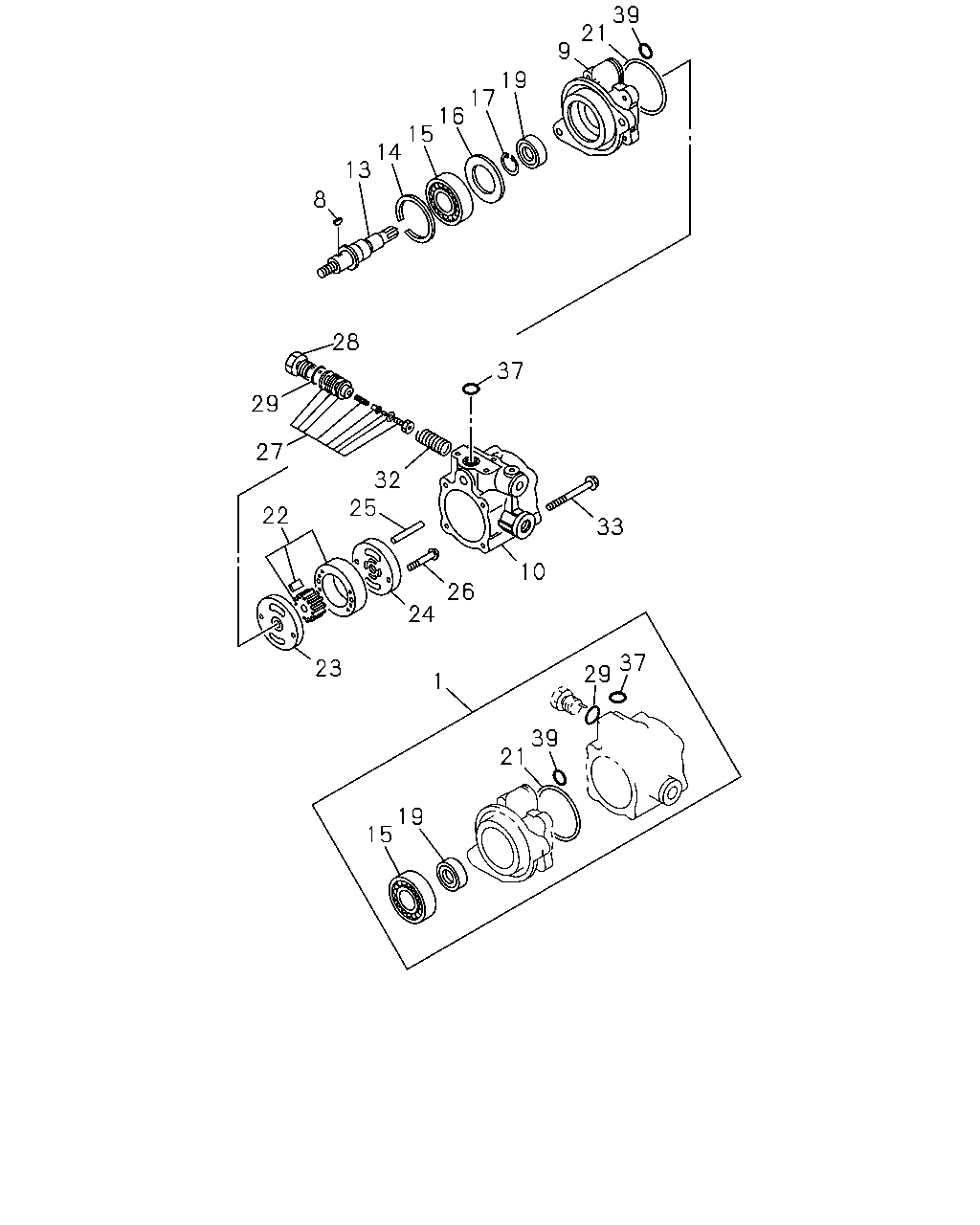

39 21 9 19 17 16 15 14 13 8 28 37 29 27 32 25 22 33 10 26 24 37 29 23 1 39 21 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-563-2	1-85574-049-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-563-2	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-563-2	1-19511-130-0	01	1	0210-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-563-2	1-19511-166-0	01	1	-0209
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-563-2	1-19511-131-0	01	1	-0209
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-563-2	1-19511-193-0	01	1	0210-
13	SHAFT KIT; RET ASM PART: A = 1-19500-563-2	1-19521-018-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-135-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-563-2	1-19515-004-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-563-2	9-19519-078-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-563-2	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-252-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-563-2	1-19519-314-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-311-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-234-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-563-2	1-19519-312-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-563-2	9-88510-421-0	02	1	-
26	SCREW; PLATE ASM PART: A = 1-19500-563-2	1-19519-142-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-183-1	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-230-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-563-2	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-563-2	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-563-2	1-19519-245-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-292-0	01	1	-
39	GASKET; OIL PUMP ASM PART: A = 1-19500-563-2	1-19519-313-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
