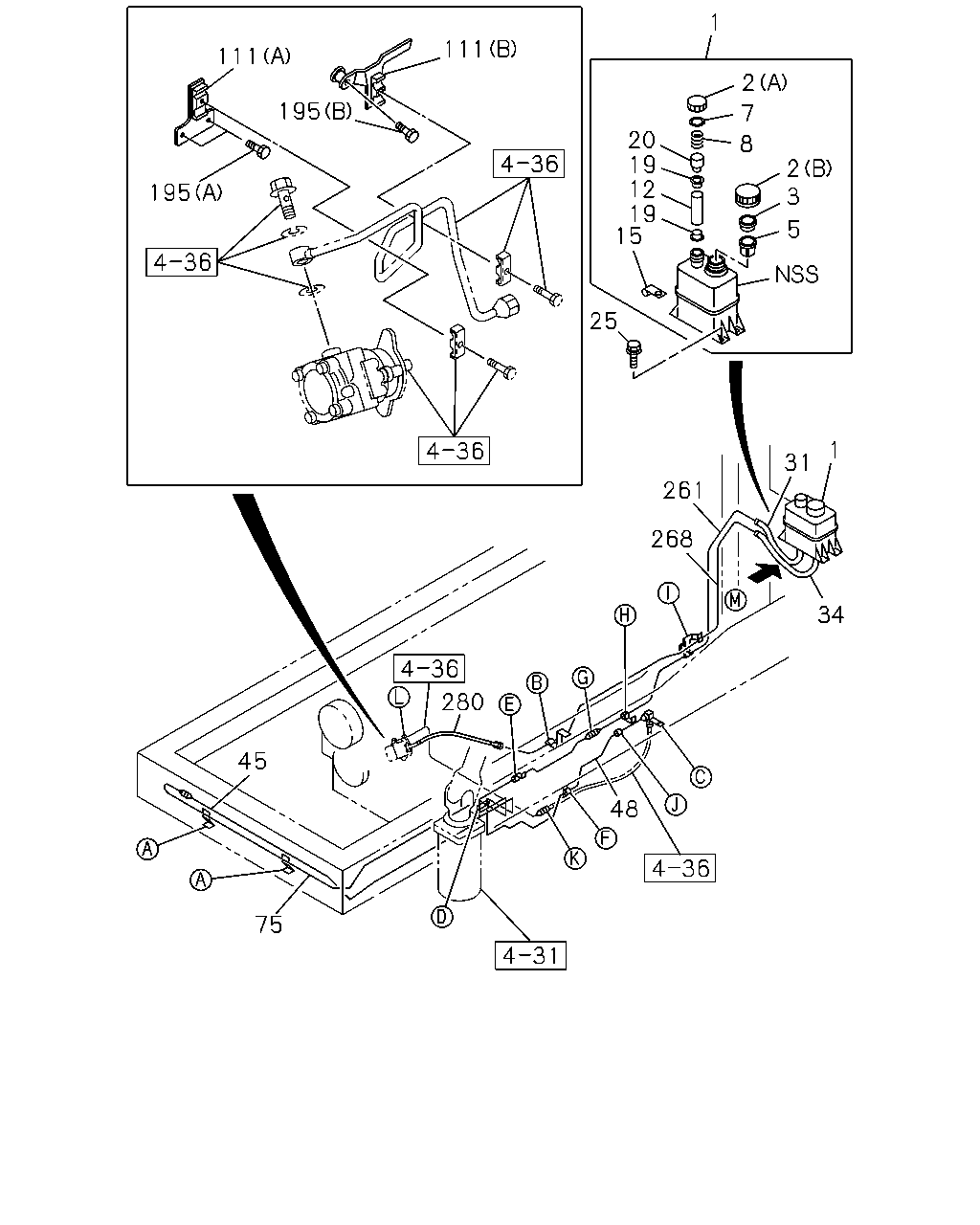

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#9845) — 152 parça

54 58 262 263 264 234 234 262 263 166 67 157 54 257 266 58 280 41 41 125 58 58 229 278 1 261 268 68 37 37 37 55 37 277 34 31 39 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0107-0508
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0107-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0107-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0107-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0107-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0107-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0107-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0107-
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0107-0606
54	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0107-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0107-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0107-0512
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0602
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0107-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0107-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0107-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0107-
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0107-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	0107-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	0603-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0107-0512
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0107-0512
256	NUT; UNION (A) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (A) M22	0-91111-522-0	01	1	0601-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0107-0603
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0107-0603
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0107-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0107-0606
262	CLIP; P/S PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0107-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	0107-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0107-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1315	1-21116-855-0	01	1	0107-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0107-0512
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28651-025-0	01	1	0601-
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0107-0602
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	0603-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0107-

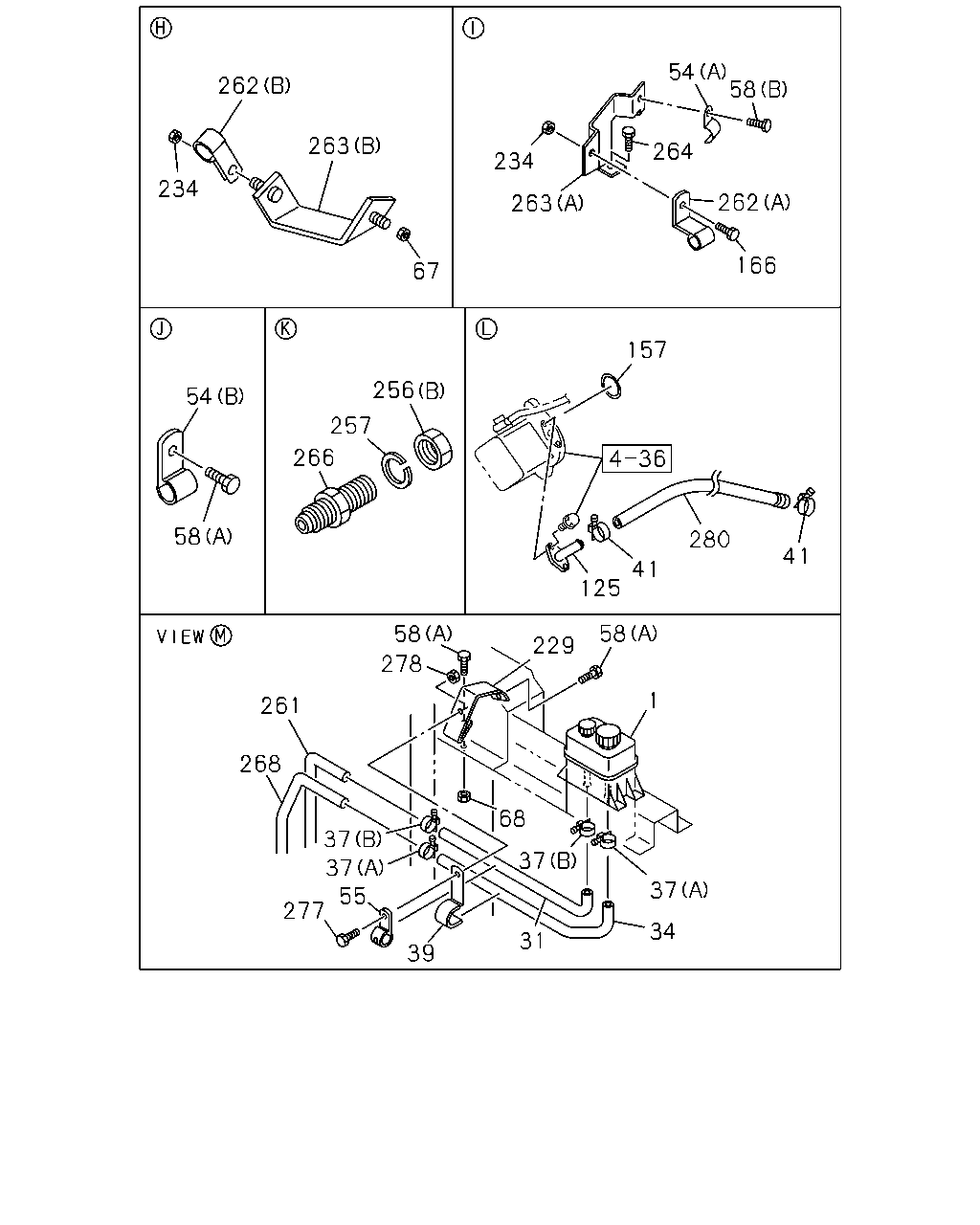

1 111 111 2 195 7 20 19 12 19 15 8 2 3 195 5 25 1 31 261 268 34 280 45 48 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0107-0508
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0107-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0107-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0107-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0107-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0107-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0107-0508
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0107-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0107-0508
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0107-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0107-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0107-0512
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0107-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0107-
45	PIPE; OIL,P/S UNIT TO UNION	1-21116-848-0	01	1	0107-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-186-0	01	1	0107-0108
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21117-135-0	01	1	0109-
75	PIPE; OIL,P/S,UNION TO UNION	1-21117-075-0	01	1	0107-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0107-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0107-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0107-0512
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0107-0512
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0107-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1315	1-21116-855-0	01	1	0107-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0107-

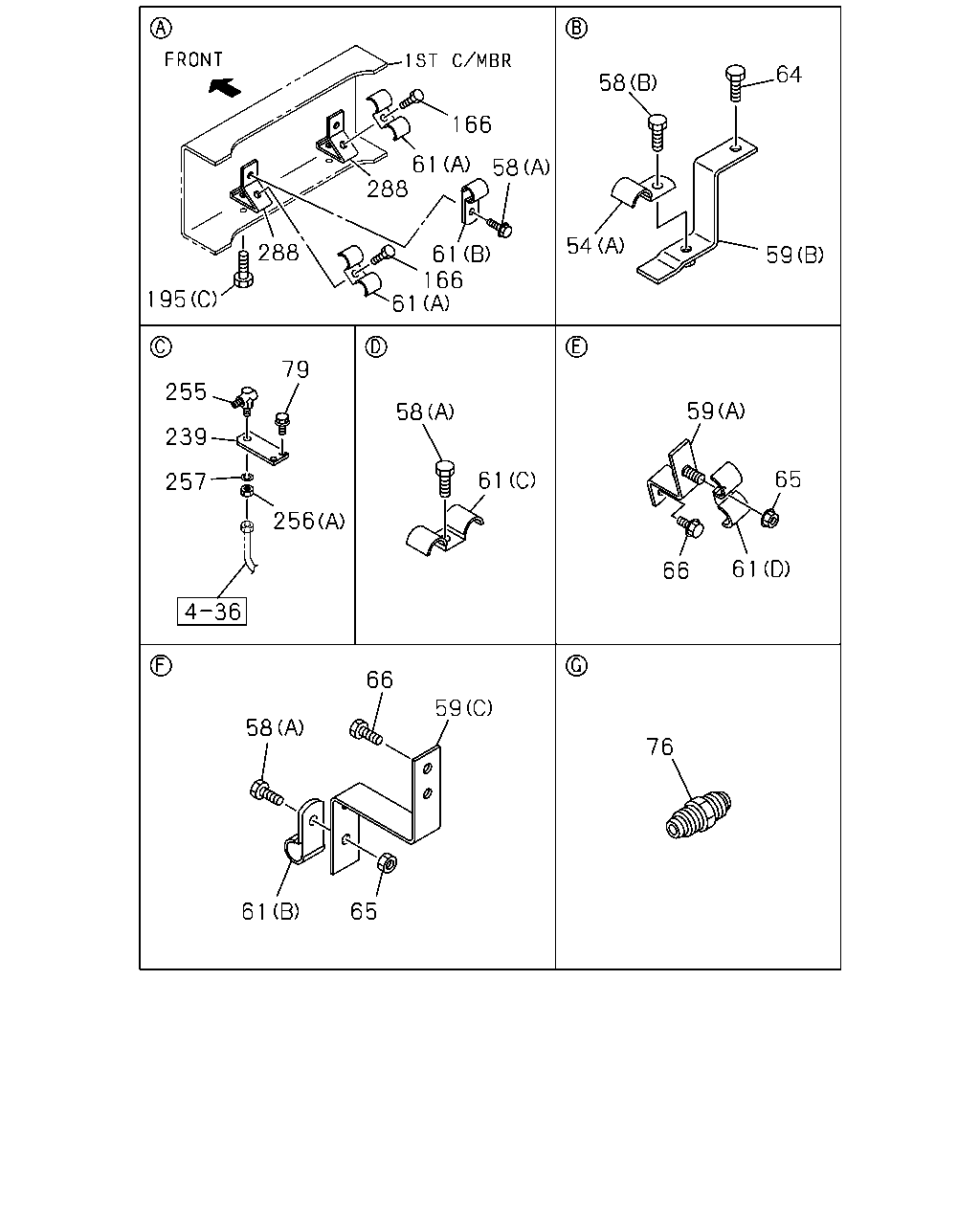

64 58 166 61 288 58 288 54 61 166 61 59 195 79 255 59 58 239 65 61 257 61 66 66 59 58 76 61 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0107-
54	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0107-0606
54	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0107-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0107-0512
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-669-1	01	1	0107-
59	BRACKET; CLIP,OIL PIPE (C)	1-47475-963-1	01	1	0107-
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-145-0	01	1	0107-
61	CLIP; OIL PIPE (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-
61	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0107-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0107-0606
61	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=16 L=20	9-09525-535-0	01	1	0107-0606
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
61	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=16 L=20	0-95235-535-0	01	1	0607-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0107-0606
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	0607-
61	CLIP; OIL PIPE MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (C) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0107-
61	CLIP; OIL PIPE MJD7S M/T(Y2Y) (C) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0107-
61	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
61	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	0107-0512
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0107-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0107-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0107-0512
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0107-0607
76	UNION; OIL PIPE M22	0-92123-015-0	01	1	0608-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0107-0512
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0107-0512
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0107-0512
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0107-0512
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0107-0512
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-
195	BOLT; BRKT (C) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512
195	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	02	1	0601-
239	BRACKET; FLEX HOSE	1-47476-679-4	01	1	0107-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	0107-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0107-0603
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0107-0603
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	0107-
